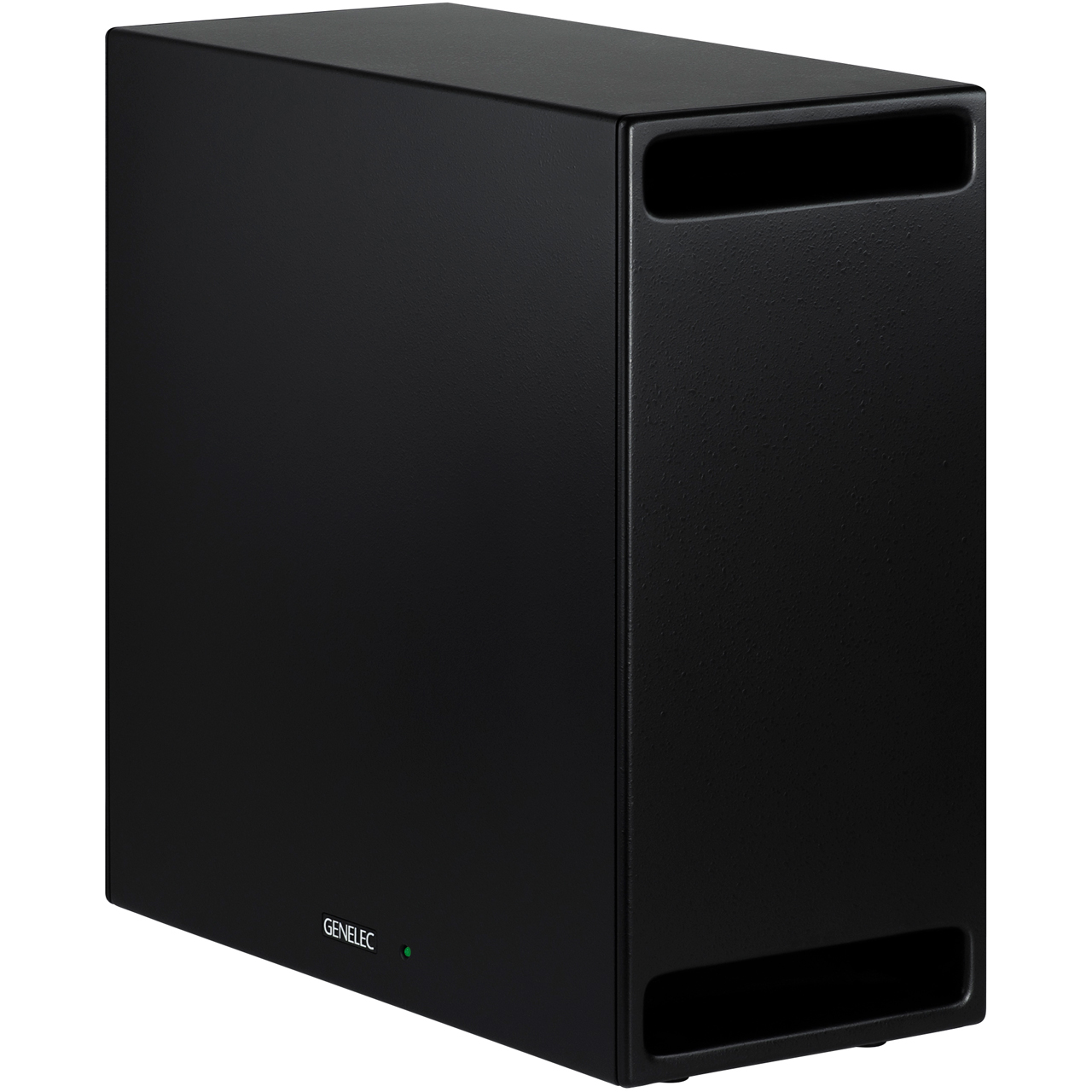

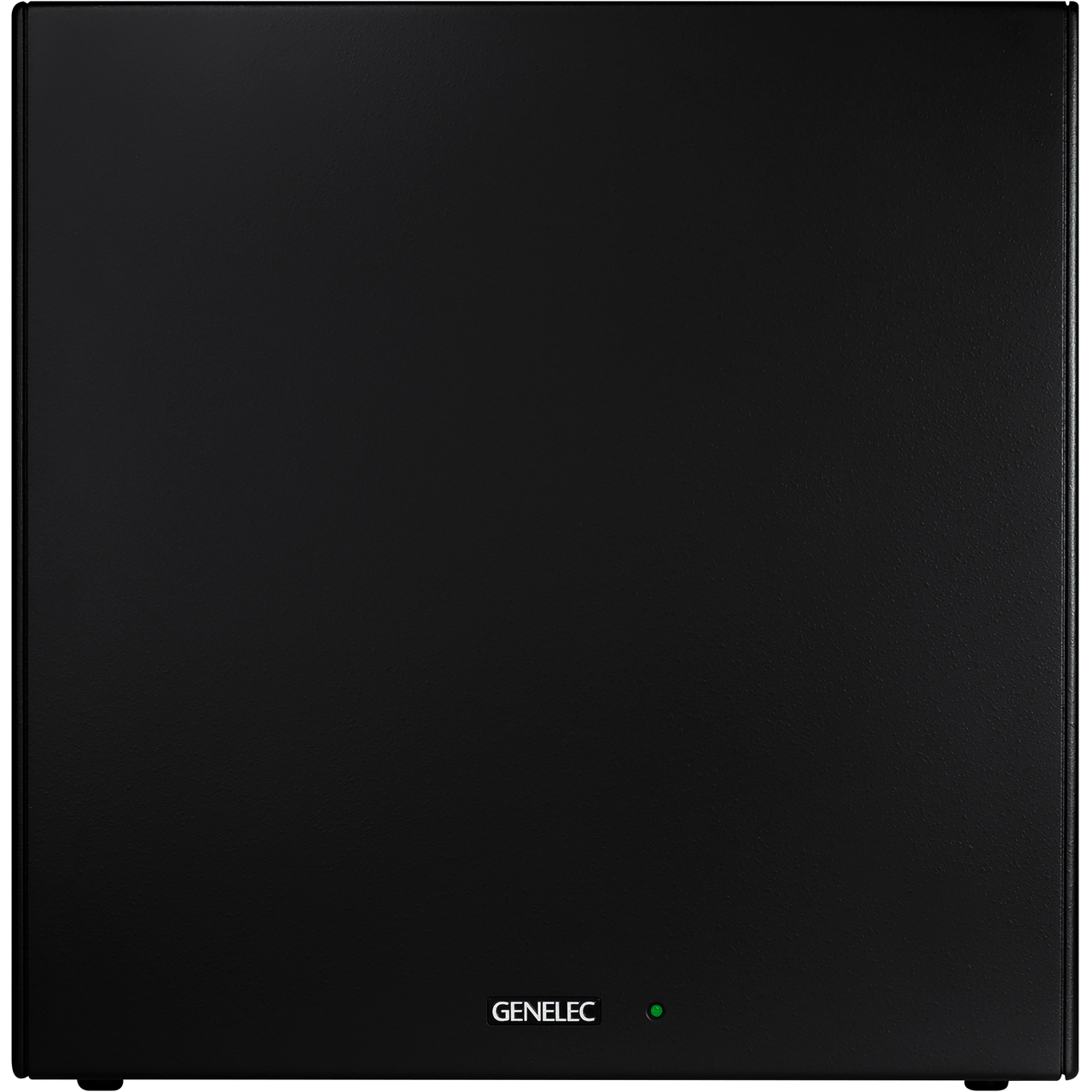

Genelec 3440AP PoE+ Powered Smart IP Compact Subwoofer - 35 Hz to 120 Hz - 106 dB - Black

ITEM #: GNC-3440AP MFG #: 3440AP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,095.00

Our Price:

$1,895.00

Availability: Preorder
iAvailability Description Popup


    3440AP - Overview

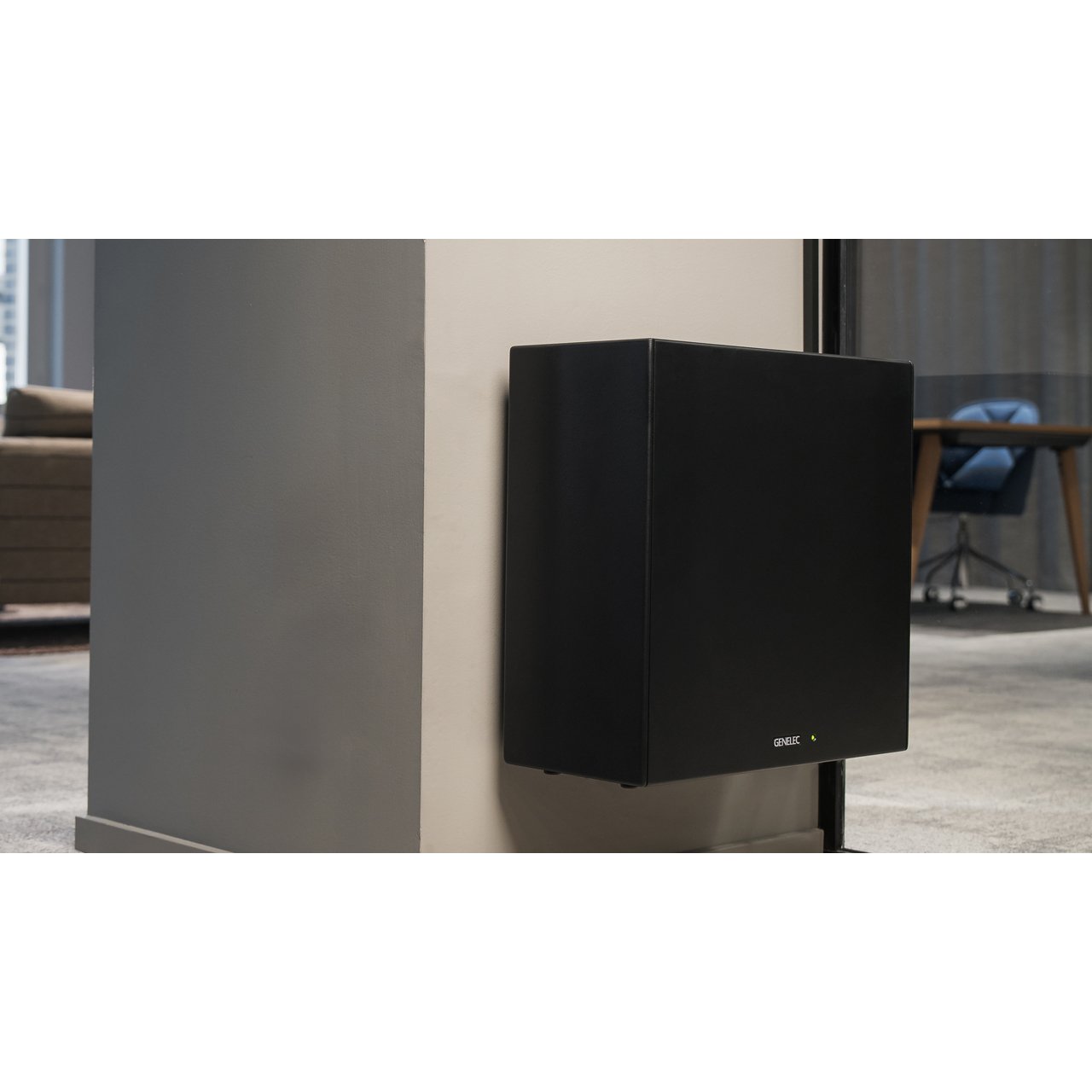

    The Genelec 3440A Smart IP subwoofer joins the existing Smart IP range of wall, ceiling and pendant loudspeaker models to provide a full-range audio solution that combines exceptional sound quality and networked convenience. The 3440A's proprietary internal power supply technology stores power in order to produce an impressive 106 dB of short-term SPL whenever needed. The compact design is available in black and white and comes with an optional mount for installing the subwoofer on walls or ceilings. With the addition of the 3440A, the Smart IP family now represents an even more complete, flexible and future-proof choice for integrators and installers everywhere.

    Uncompromised Quality
    With over four decades as the world's leading provider of professional studio monitoring loudspeakers, Genelec is uniquely placed to offer installed audio solutions with the highest standard of truthful, detailed and rich reproduction. Each loudspeaker is designed and manufactured to the highest sustainability standards and built to provide decades of reliable daily use. Wherever audio is intended to create an attractive experience that visitors enjoy, Genelec Smart IP loudspeakers ensure a smooth and flexible install, with a high-quality, engaging result.

    Smart IP Perfects Power-Over-IP

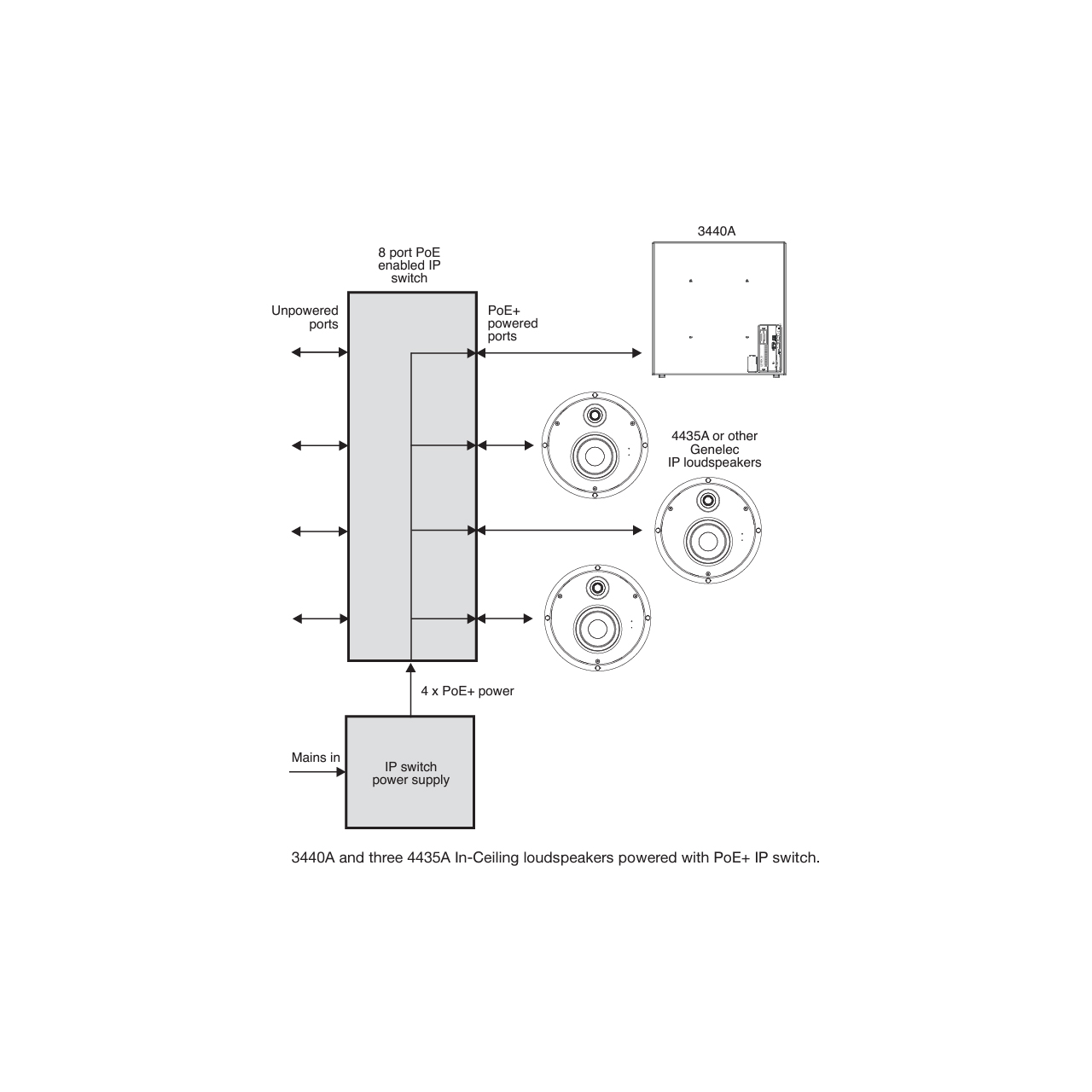

    Using Genelec patented power storage technology, the 3440A confidently delivers an impressive 106 dB of short-term SPL for flawless bass reproduction. All Genelec Smart IP loudspeakers offer the effortless scalability of open IP networking - with the added convenience of receiving PoE+ and PoE level power plus audio streams and management using only a single standard CAT cable. Audio is flawlessly delivered uncompressed using Dante or AES67 low latency streaming technologies.

    Ease of Installation
    Genelec Smart IP Manager software discovers Smart IP devices and allows detailed configuration, calibration and supervision of all Smart IP system loudspeakers, rooms, zones, and audio channels. Every Smart IP loudspeaker includes a public API command set for house automation systems and benefits from a series of ready-made drivers, enabling quick-and-easy integration with a wide range of applications.

    Genelec's wide range of Smart IP on-wall, ceiling and pendant loudspeaker solutions supports a wealth of installation opportunities. Using the 3440A Subwoofer, systems can be built with convenience, offering the aesthetic beauty and renowned uniform coverage, clarity and intelligibility of Smart IP, making this technology the most complete, flexible, and future-proof choice for AV integrators and installers everywhere.

    What Size of Projects is Smart IP Ideal For?
    Almost any project, since the number of Smart IP loudspeakers in one installation can be virtually unlimited and IP networks support very high loudspeaker counts. This, together with the highly flexible audio streaming options supported by Smart IP, enables complex installations with many loudspeakers to be implemented quickly and easily.

    • Features:

      • Single-cable connectivity using PoE+ and PoE without performance sacrifice.
      • Support for open audio and IP standards, and compatible with both Dante and AES67 streams.
      • Uncompromising uncompressed low-latency audio streaming directly into each loudspeaker.
      • Full set of acoustic room compensation and alignment tools built into each loudspeaker.
      • Genelec proprietary internal power supply technology that stores power in order to produce an impressive 106 dB of short term SPL whenever needed.
      • 165 mm (6.5 in) driver and a dual reflex port enclosure to provide protection for the driver delivering clean and controlled low frequency performance between 35 and 120 Hz
      • Designed and manufactured in Finland under strict quality control systems.

    • Specifications:

      • System
      • Lower Cut-off Frequency, -6dB: 35 Hz
      • Upper Cut-off Frequency, -6dB: 120 Hz
      • Output Capacity: ≥106 dB SPL (short-term)
      • Maximum RMS Acoustic Output: ≥101 dB SPL (long-term)
      • Self-Generated Noise Level: ≤5 dBA
      • Driver: 6.5in Cone (165mm)
      • Dimensions (HxWxD):
        - Enclosure Without Pads: 18.75" x 18.75" x 8.625" (475mm x 475mm x 220mm)
        - Enclosure Height with Pads (Vertical Orientation): 19.06" (484mm)
        - Enclosure Height with Pads (Horizontal Orientation): 9" (229mm)

        Input/Crossover

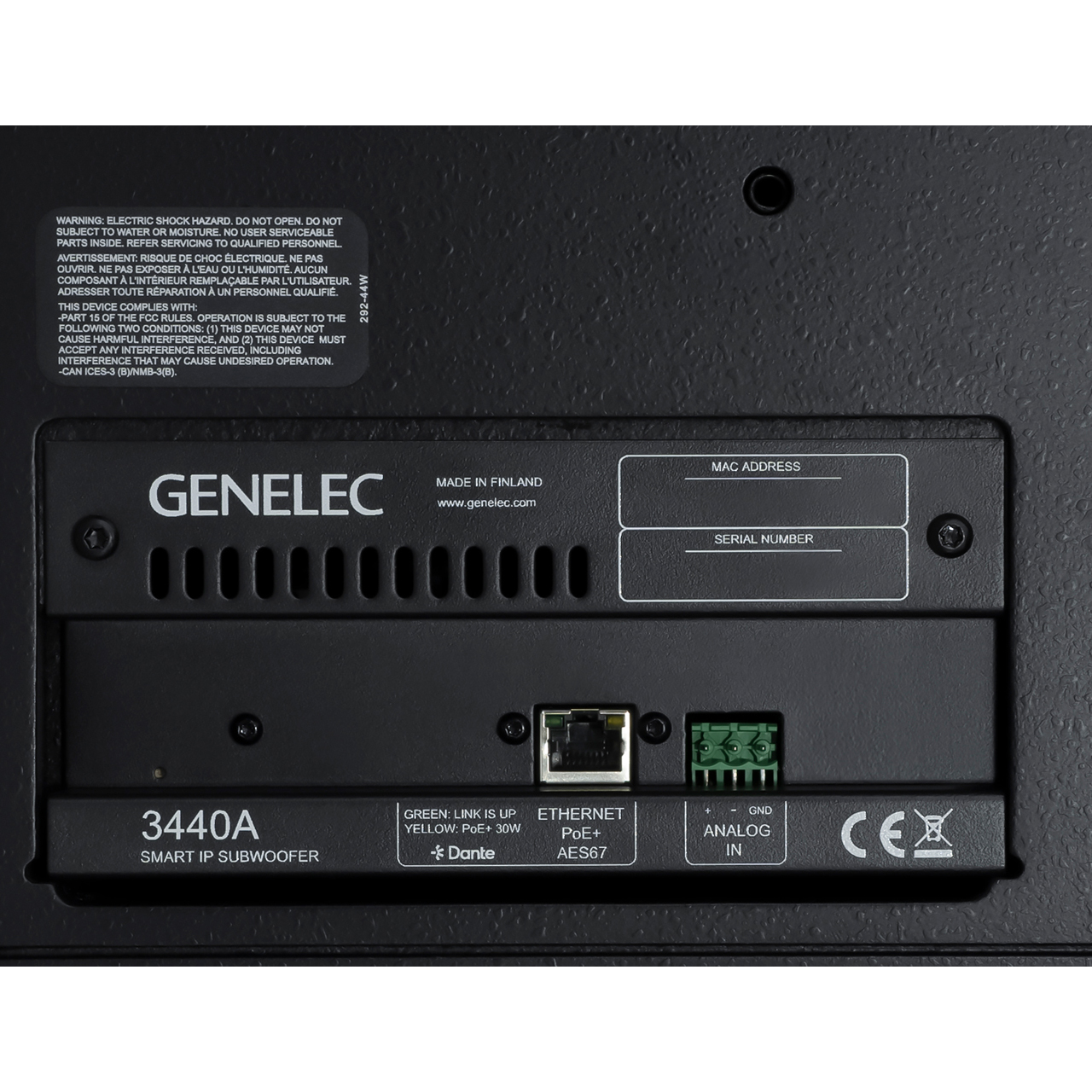

      • Ethernet Connection: 100BASE-TX 1x RJ45
      • Nominal SPL with 0 dBFS Digital Audio Input at Maximum Sensitivity: 130 dB SPL
      • Audio-over-IP Streaming Formats: AES67, Dante
      • Analog Input, Connector Type: 3 pin Euroblock
      • Analog Input, Input Impedance: 10 kOhm, balanced
      • Analog Input Level For 100 Db Spl At 1m: -6 dBu
      • Analog Input, Maximum Input Signal: 24 dBu
      • Number of User-Adjustable Filters: 20
      • User Selectable Filters, Choice of Function for Each User-Adjustable Filter:
        - Parametric Notch
        - High Frequency Shelf
        - Low Frequency Shelf
        - Bass Roll-Off
        - Bass Tilt
        - Treble Tilt
      • Sensitivity Adjustment Range: -60dB to 0dB
      • Delay Adjustment Range: 0ms to 98ms
      • Distributed Bass Management Adjustment Range: 50Hz to 120Hz in 5Hz steps

        Amplifier
      • Bass Amplifier Output Power, Short-Term: 70W
      • Supply Power at Switch, PoE:
        - PoE+ (Class 4): 30W
        - PoE (Class 3): 15.4W
      • Supported PoE Standards:
        - PoE+ (Supports Signature and LLDP): IEEE 802.3at
        - PoE (Supports Signature): IEEE 802.3af
      • Ethernet Cable Specification: 5, 5e, 6
      • Maximum Ethernet Cable Length: 333ft (100m)
      • Power Consumption in Idle: 5W
      • Power Consumption in ISS Power-Down Mode: 4W

    • Item Includes:

      • 1x Genelec 3440AP Compact Smart IP Active Subwoofer - Black
      • 1x Operating Manual

    • Warranty:

      • 2-Year Limited Warranty
