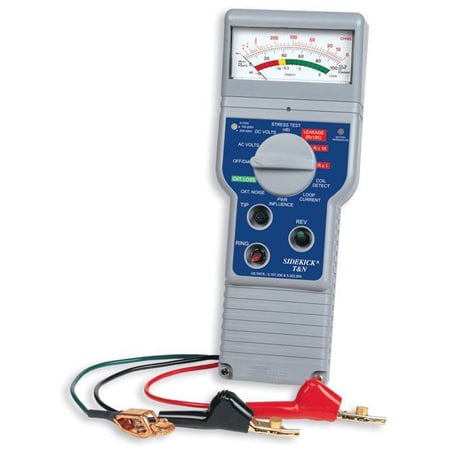

Tempo 1137-5002 Sidekick Cable Maintenance Test Set

1137-5002 - Overview

• Features:

  • Five transmission and noisetests
  • Determines the stressed noise susceptibility of dry and working pairs
  • Measures resistance, AC/DCvolts, and capacitive kick
  • Provides tone for twisted pair or crossed conductor identification
  • Single setup for testing Tip-Ring, Tip-Ground, and Ring-Ground
  • Minimal drying effect in all ranges
  • Field replaceable leads
  • Softcase with adjustable strand hook
  • Low battery indicator light


• Specifications:

  • AC Voltage: 0 - 300 V RMS
  • Circuit Loss: -15 to +1 dB
  • Circuit Noise: 0 To 75 dBmC
  • DC Voltage: 0 - 300 VDC
  • Dimensions: 10.750 IN x 4.250 IN x 2.500 IN
  • Leakage: RX10K: Reads 0 To 20 MOHM
  • Loop Current: 0 - 100 mA
  • Power: Four AA batteries
  • Power Influence: 50 - 100 dBmC
  • Replacement Part: 1134-1002S Case, 1131-0202 Test Leads
  • Resistance: Rx1: Reads 0 To 2000 MΩ, Rx1K: Reads 0 To 2 MΩ
  • StorageOperatingTemperature: -4 to 140° F
  • Stress Test: 0 To 82 dBmC
  • Sub Brand: Sidekick
  • Type: T And N Series
  • Voltage Measurement: 0 - 300 VDC; 0 - 300 VAC RMS
  • Weight: 2.0 lbs


• GTIN:

  0783310605263
