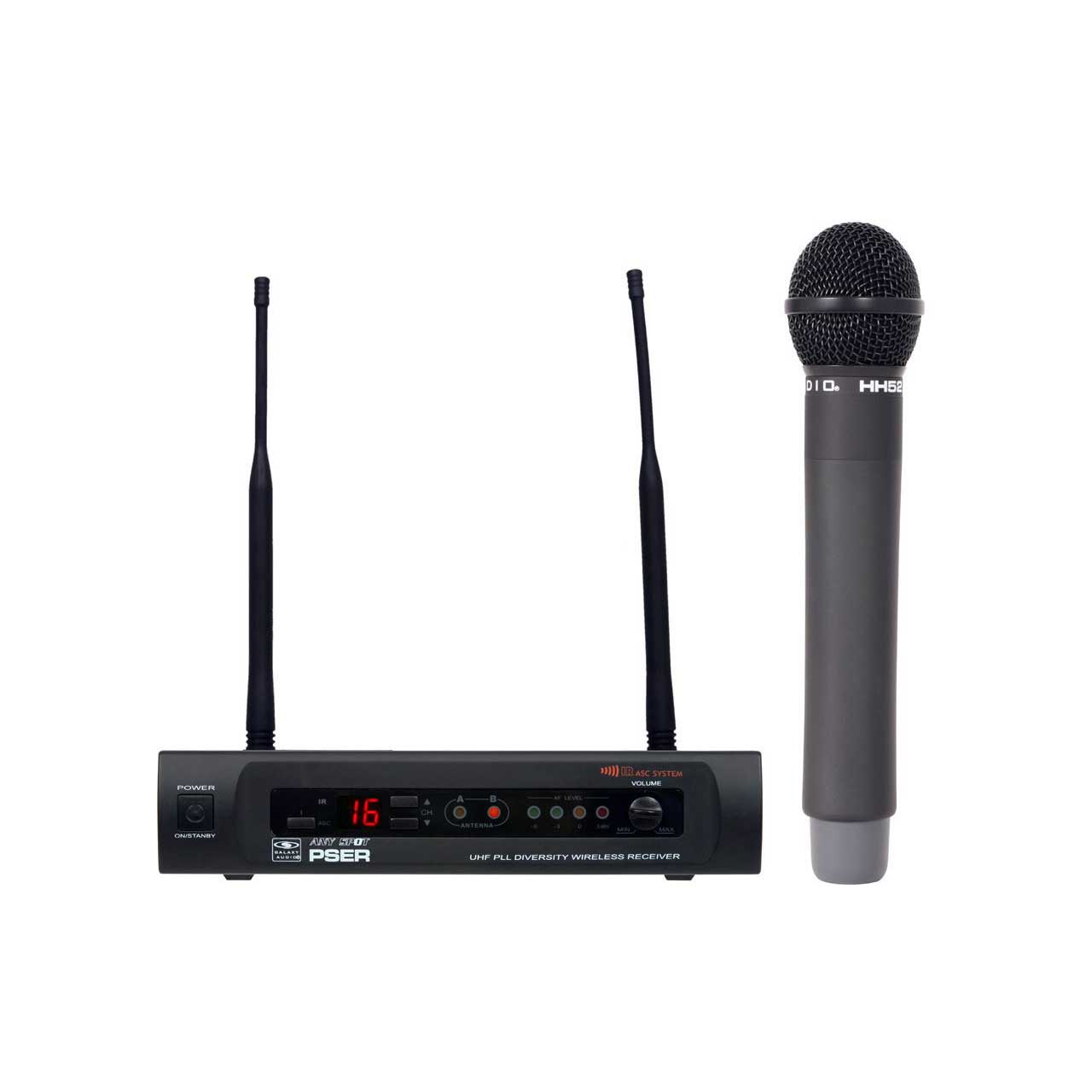

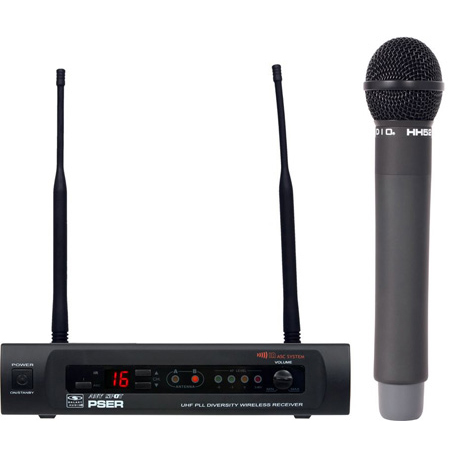

Galaxy Audio PSER/HH52 16 Channel UHF Handheld Wireless Mic System - D Band

PSER/HH52-D - Overview

• Features:

  • 300' Range
  • 16 Selectable UHF Frequencies
  • Diversity Antennas

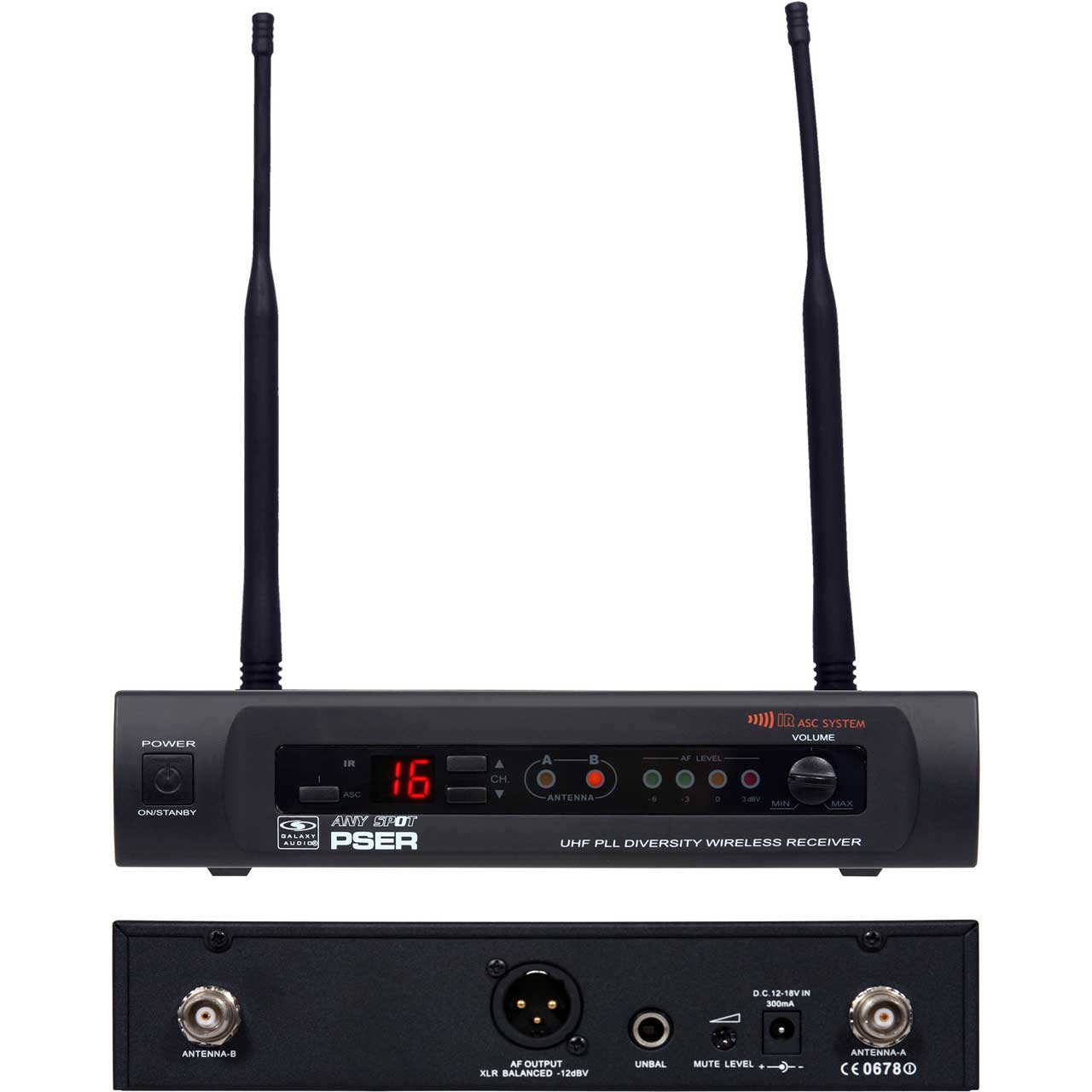

    PSER Receiver
  • Output Volume Control
  • IR Sync Receiver to Transmitter
  • AF Level Indicator
  • Active Antenna Indicator
  • Squelch Adjustment
  • XLR/1/4" Outputs
  • Detachable BNC Antennas
  • Metal Chassis

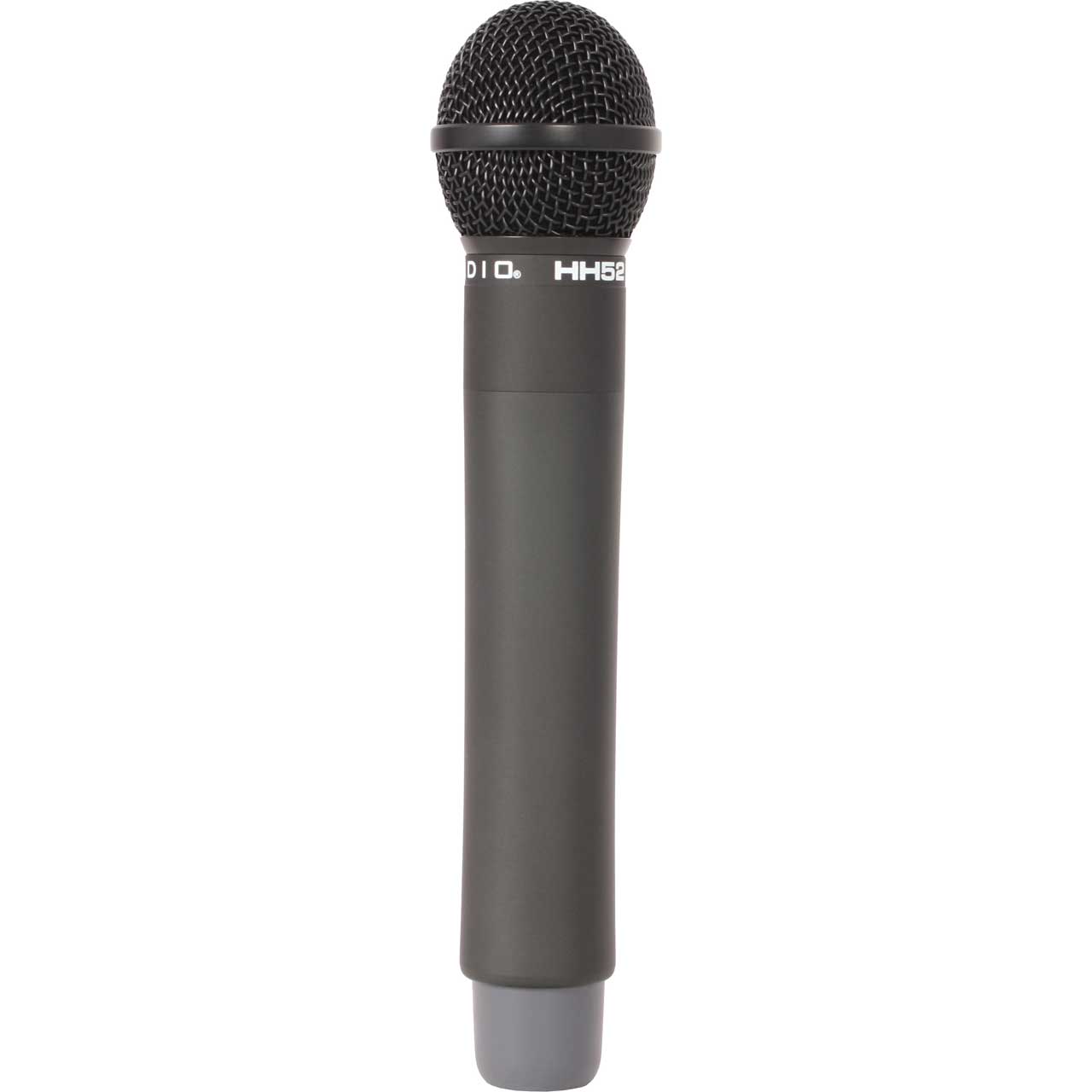

    HH52 Transmitter
  • Dynamic Microphone Element
  • On/Off Switch
  • IR Sync Transmitter to Receiver
  • High/Low RF Switch
  • 10mW/5mW
  • Metal Chassis
  • Operates on 2 AA Batteries (up to 8 hours Alkaline)


• Specifications:

  • System Specs
  • Available Frequencies: 16
  • Frequency Ranges: CODE D 584 - 607MHz
  • Band: UHF
  • Operating Range: Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
  • Audio Frequency Response: (+/-3dB) 60Hz - 16kHz
  • Total Harmonic Distortion: (+/-30kHz deviation 1kHz tone): <1%
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature Range: 14°F - 122°F, battery characteristics may limit this range

    PSER Receiver
  • Audio Output Level (+/-30kHz deviation, 1kHz tone): XLR Connector (into 600Ω load) -12dBV, 1/4" Connector (into 3kΩ load) -18dBV
  • Output Connections: 1 Male XLR Balanced, 1/4" Balanced
  • Output Impedance: XLR connector 200Ω, 1/4" connector 1kΩ
  • Sensitivity: -93dBm for 30dB
  • Image Rejection: >90dB
  • Casing: Metal Chassis EIA STANDARD 1 U
  • Dimensions: 1.7" x 8.3" x 6.3"
  • Weight: 31oz
  • Power Requirements: 12-18V DC at 1000mA, supplied by external power supply

    HH52 Handheld Transmitter
  • Max Audio Input Level: 0dBV
  • Gain Adjust: Trim Pot
  • RF Output: 10mW, 5mW
  • Frequency Response: 70Hz - 15kHz
  • Dimensions: 9.8" x 2.1" (LxDia)
  • Weight: 9.5 oz (without batteries)
  • Power Requirements: 2 AA size alkaline or rechargeable batteries
  • Battery Life: About 8 hours (alkaline)


• Item Includes:

  • PSER Receiver
  • HH52 Handheld Transmitter
  • MREWD Single/Dual Rack Kit
  • Mic clip
  • 1/4" connector cable
  • Power supply


• GTIN:

  0691281802898
