Male HD15 VGA to Screw Terminal Block Chassis Mount

Name: Male HD15 VGA to Screw Terminal Block Chassis Mount
Brand: Connectronics
SKU: HD15M-TBCM
Price: 8.49 USD
Availability: InStock

ITEM #: HD15M-TBCM MFG #: HD15M-TBCM

Connectronics

List Price:

$8.95

Our Price:

$8.49

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HD15M-TBCM - Overview

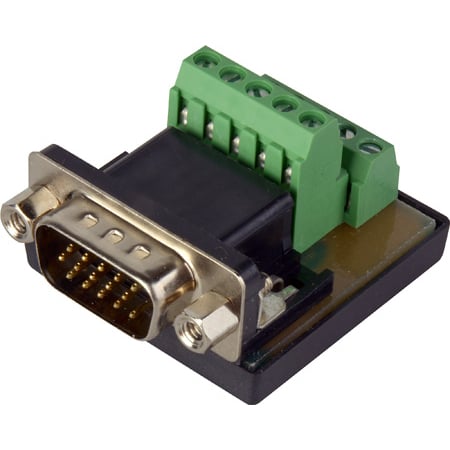

The best way to save time on installation of 15-Pin high density connectors. These connectors house a male or female 15-pin HD connector on the front and quick screw terminal block connections on the rear. Terminals accept 18-30 gauge wire. 1.375"D x 0.75"H x 1.375"W (Female).

Pinout Configuration:
- P1 = Red Hot - Video signal P2 = Grn Hot - Video signal P3 = Blue Hot - Video signal P6 = Red GND - Video signal ground P7 = Grn GND - Video signal ground P8 = Blue GND - Video signal ground P10 = Sync GND - H and V Sync ground P13 = H Sync Hot - Horizontal Sync signal P14 = V Sync Hot - Vertical Sync signal
