Heil PR40 Mic Kit with PRSM-B Shock Mount - Radial McBoost - MXL BCD Stand w/ 12ft Cable & Mic Boom - Windscreen

ITEM #: HEIL-PR40-KIT3 MFG #: HEIL-PR40-KIT3

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the HEIL-PR40-KIT3

HEIL-PR40-KIT3 - Overview

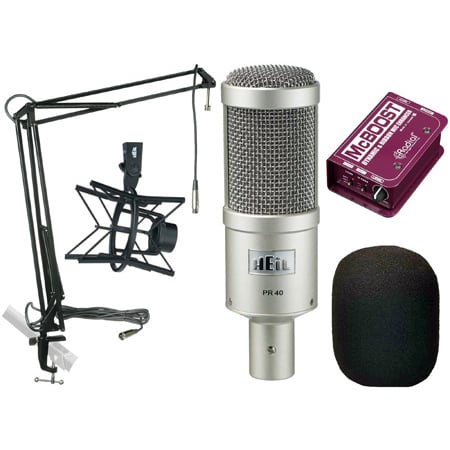

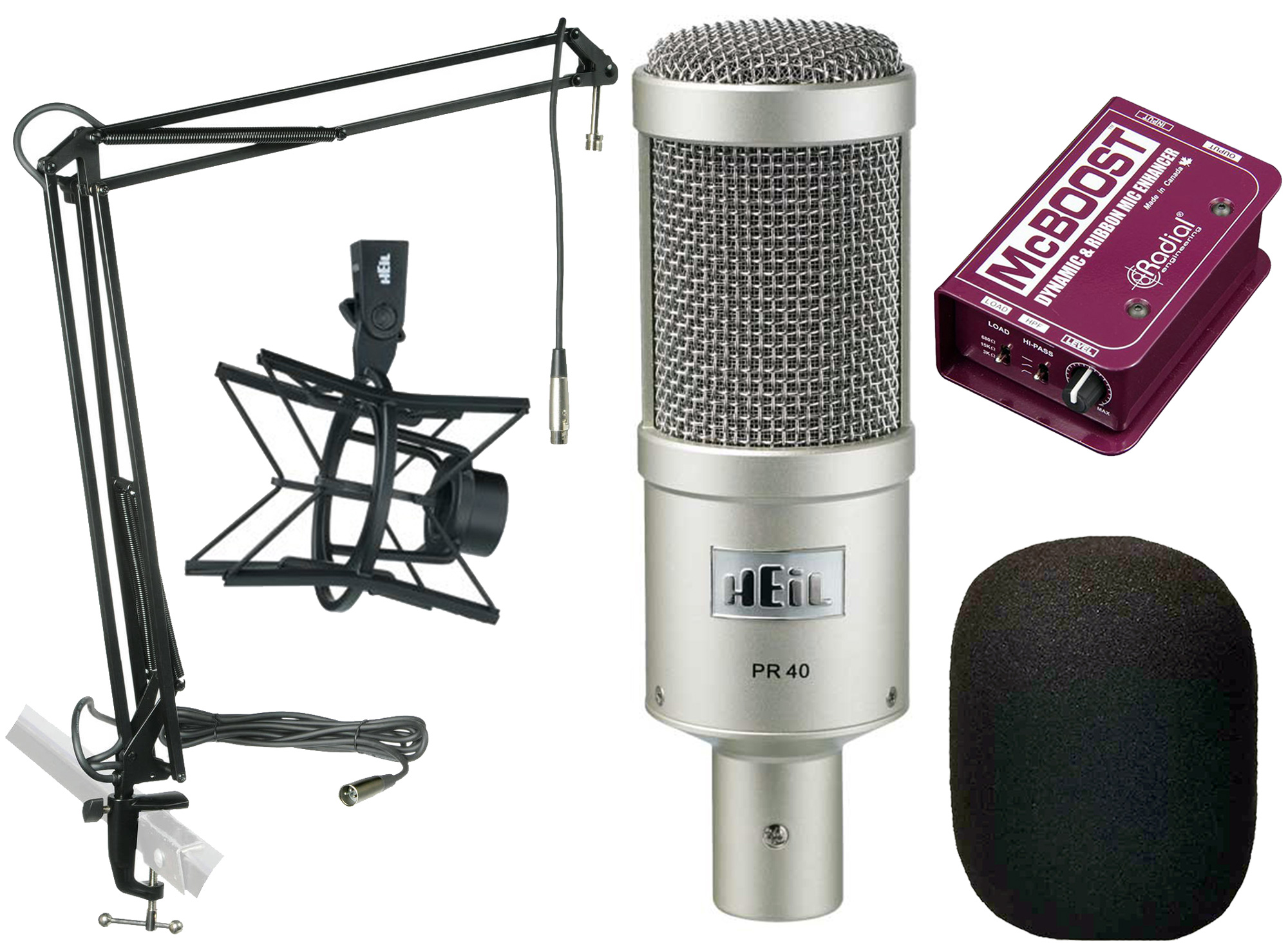

A Markertek Exclusive! You get the Heil Sound PR-40 Dynamic Studio Recording/Live Microphone PLUS the Heil PRSM-B Shock Mount, Heil WSPR40 Windscreen, MXL Microphone's BCD Desktop Stand with attached 12ft. Mic Cable AND Radial Engineering's McBoost!

The Heil PR 40 Microphone represents completely new dynamic microphone technology designed for a wide range of professional applications such as sophisticated recording, live sound, and commercial broadcast. Producing the widest frequency range available in a dynamic microphone, the PR 40 outperforms most condenser microphones, and can withstand huge amounts of SPL. At the same time, it maintains the 25 year Heil Sound tradition of superbly natural voice articulation.

The pattern control of the Heil PR 40 is outstanding. This exceptional performance is achieved by using the ideal combination of materials for the large low mass diaphragm and a special mixture of neodymium, iron, and boron that gives the PR 40 the strongest magnet structure available. These features allow the microphone to achieve magnificent dynamic range. A unique screen system using two different diameter mesh screens and an internal breath blast filter allow the user to talk closely to the microphone with little worry of pops or excessive sibilance. The large diameter dynamic element is mounted in a unique Sorbothane shock mount atop a non-resonant fixture, decoupling the element from the massive steel body. This body and the internal hum bucking coil removes any worry of using the PR 40 near monitor screens or noisy lighting fixtures and controls. The new technology of the Heil PR 40 has redefined the dynamic microphone with superior wide frequency response, the lowest presence of noise in the industry, flawless design, and elite quality expected by an innovator and leader in the field. Welcome to the new standard.

We're also including the Radial Engineering McBoost! The McBoost is a high performance microphone signal booster designed to elevate the output of a typical dynamic microphone for greater transient response and boost the signal of a low-output ribbon mic to bring it up to a usable level for mixing consoles or preamps that may not provide sufficient gain.

And for even more savings? We're including the MXL-BCD-STAND - perfect for DJ/talk show/podcast use! This heavy duty, articulating mic boom arm includes surface mount and 12 ft. mic cable.

If that's not enough - this kit also includes the Heil PRSM-B Shock Mount - a flexible support system that helps suppress low-frequency rumble on the microphone line by absorbing and damping vibrations picked up from the studio desk or console and Heil'sWSPR40 Windscreen.

  • Features:

    • Heil PR40 Mic
    • Designed for Broadcast, Performance & Sports Venues, Pro Music, Stadium Systems, Studio, and other applications
    • Variable-D for minimal proximity effect
    • True cardioid with no coloration at 180-degrees off-axis
    • Voice tailored frequency response
    • Studio condenser-like performance
    • Large diaphragm
    • Humbucking coil
    • Bass roll-off switch

      Radial Engineering McBoost
    • 25dB signal booster for dynamic & ribbon mics
    • Extends dynamic range and microphone reach
    • Uses standard 48V phantom for power
    • 3-position load switch and high-pass filter

  • Specifications:

    • Heil PR40 Mic
    • Response: 45-18,000 Hz
    • Case Material: Steel
    • Connector Type 3-pin XLR
    • Diameter (Max): 2.13"
    • Element: Dynamic
    • Finish: Fawn Beige
    • Impedance, Low-Z balanced: 150 Ohms
    • Open Circuit Voltage: 1.5 mV/Pascal
    • Polar Pattern: Cardioid
    • Height: 8.54"
    • Weight Net: 26 oz

      Radial Engineering McBoost
    • Audio circuit type: Class-A Differential FET/Bipolar Hybrid
    • Frequency response: 7Hz to 30kHz
    • Total harmonic distortion: 0.005% @-30dB
    • Dynamic range: 105dB
    • Maximum input: -6dBu
    • Maximum gain: +25dB
    • Equivalent input noise: -120dBu
    • Input impedance: 600, 2.7, 30k
    • Clip level - input: -17dBu / -14Bu / -9dBu
    • Clip level - output: +10dBu
    • Noise floor: -95dBu / -98dBu / -113dBu
    • Output impedance: 2.2k ?
    • Intermodulation distortion: 0.01%
    • Phase Deviation: 0° @ 20Hz, <10° @ 20kHz
    • Gain control: Variable from +4dB to +25dB
    • High-pass filter: 100Hz and 55Hz @-3dB
    • Filter slope: 6dB / Octave
    • XLR configuration: Pin 2 + / Pin 3 - / Pin 1 Ground
    • Construction: 14 gauge steel chassis & outer shell
    • Finish: Durable powder coat
    • Size: (L x W x H) 4.2" x 2.76" x 1.68" (106.7 x 70.1 x 42.7mm)
    • Weight: .5 lbs (0.23kg)
    • Shipping size: (L x W x H) 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
    • Shipping weight: 1.4lbs (0.64kg)
    • Power: 48V phantom
    • Conditions: For use in dry locations only between 5°C and 40°C
    • Warranty: Radial 3-year, transferable
    • Specifications are subject to change without notice.

  • Item Includes:

    • HEIL-PR40 Microphone
    • HEIL-PRSM-B Shock Mount
    • HEIL-WSPR40 Windscreen
    • MXL-BCD-STAND with Built-In 12 ft XLR Cable
    • RAD-MCBOOST Signal Intensifier
