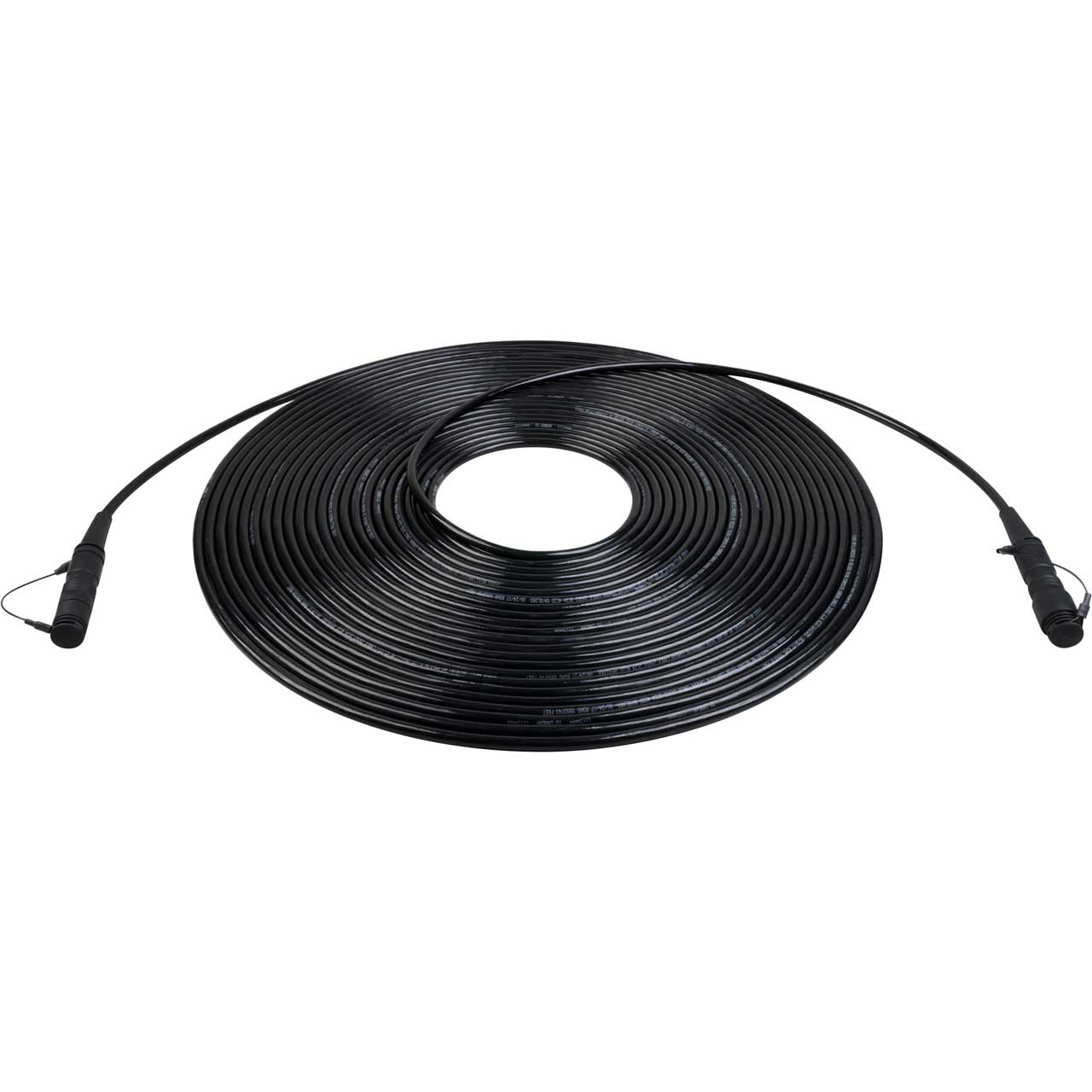

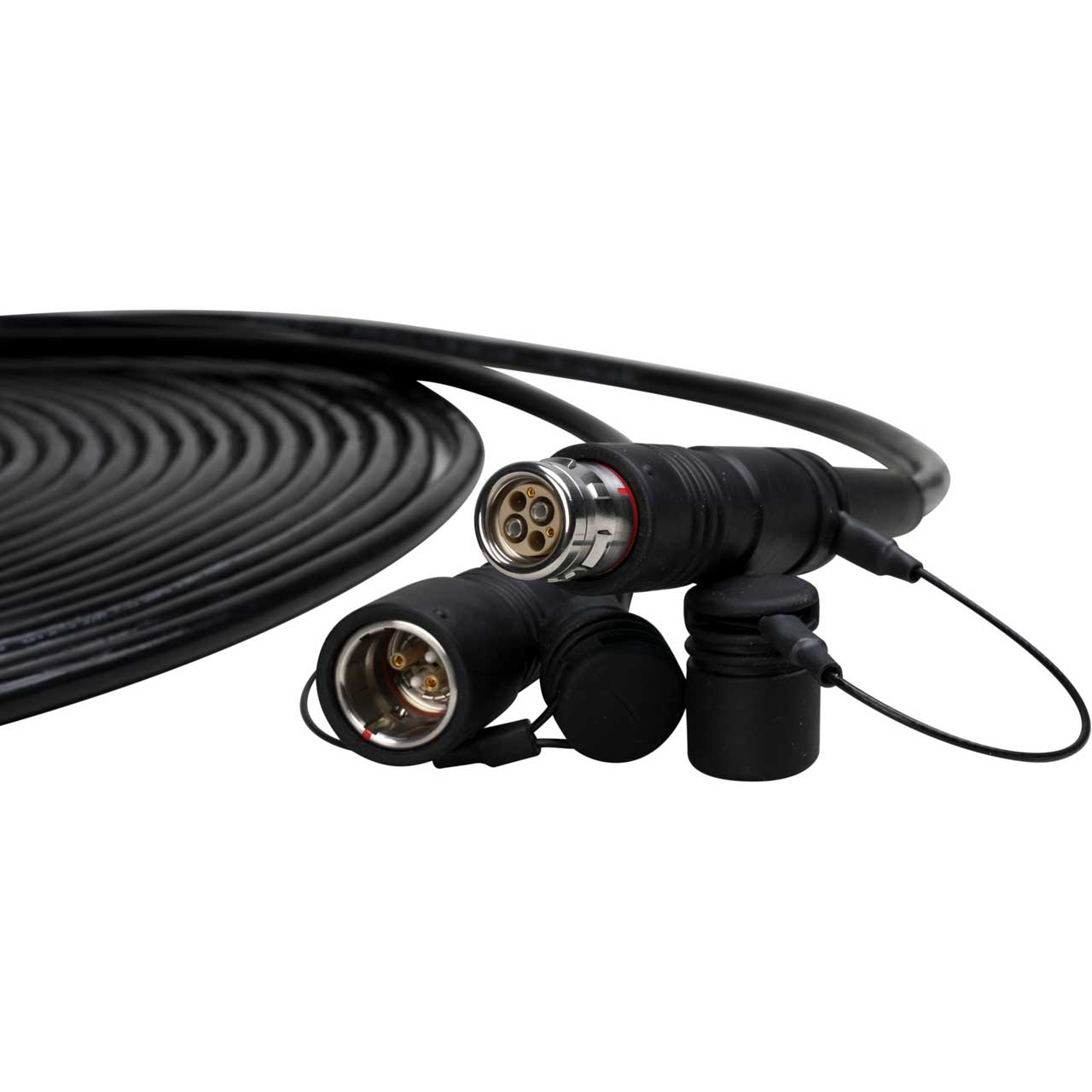

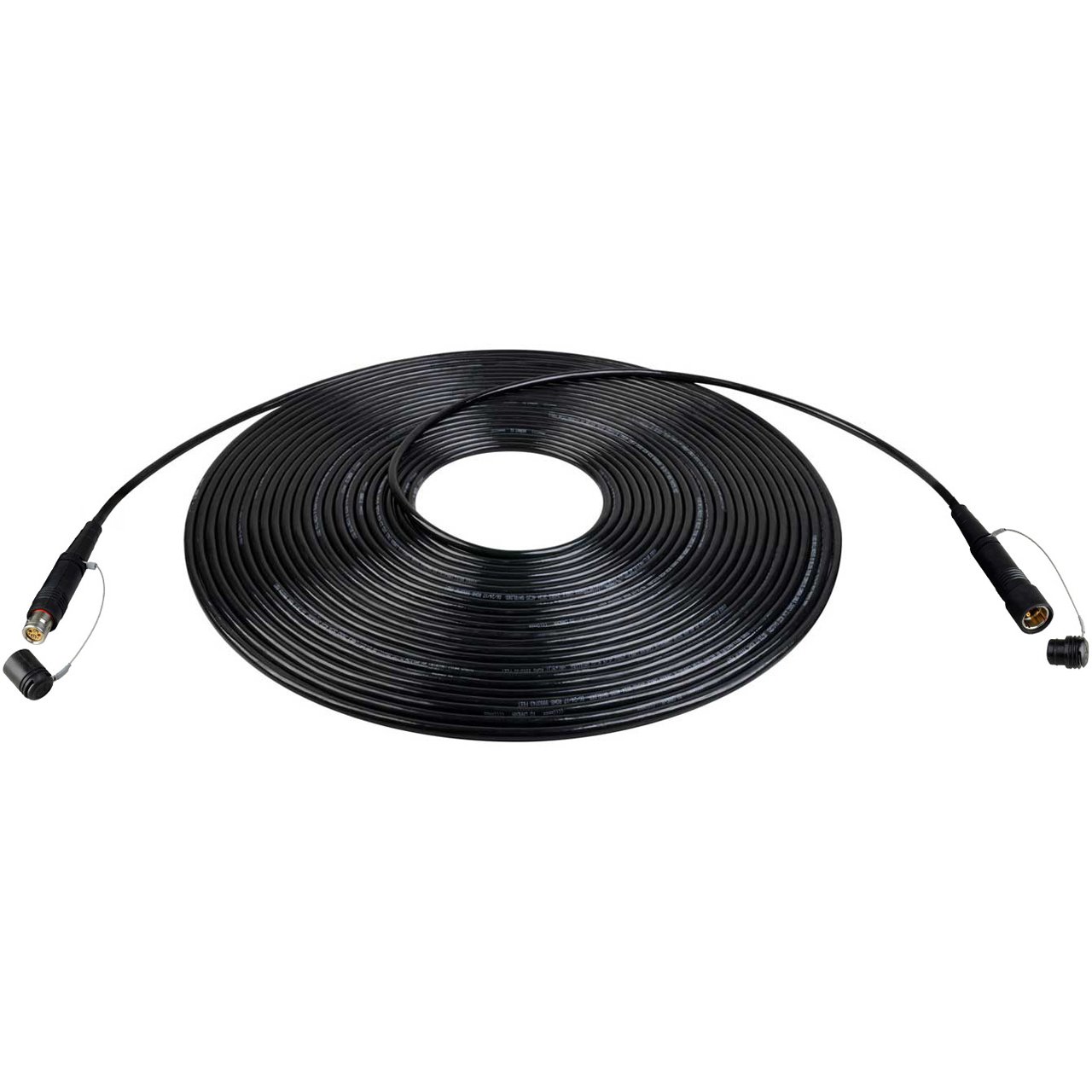

Camplex LEMO FUW-PUW with OCC Tactical SMPTE Hybrid Fiber Camera Cable - 250 Foot

ITEM #: HF-FUWPUW-T-0250 MFG #: HF-FUWPUW-T-0250

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,028.49

Our Price:

$1,825.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info


HF-FUWPUW-T-0250 - Overview

Camplex SMPTE 311M ruggedized camera cable assemblies with ultra-precision connectors meet your high-definition needs in harsh environments without affecting performance!

Featuring OCC SMPTE 311M ruggedized camera cable and ultra-precision LEMO connectors, Camplex LEMO FUW-PUW Outside Broadcast SMPTE Fiber Camera Cables are ideal for mobile trucks, outdoor venues, and permanent outdoor installations.

OCC cables feature a tough abrasion-resistant polyurethane jacket to meet all your high-definition needs in harsh environments without affecting performance. These flexible cables are perfect for use behind racks and in trucks where space is extremely limited. LEMO-certified machine polished fiber contacts are fully protected with Camplex over-boots and caps for the most demanding applications for high-speed uncompressed HD video transmissions over long distances.

Assemblies are multi-stage machines polished and tested for <-55db RL with test results supplied for each cable, which meets or exceeds SMPTE 304M/311M standards. Assembled and tested by LEMO-trained technicians in our in-house fiber shop to LEMO specifications. Full repair services are also available.

Available in a variety of lengths, custom lengths and configurations.

  • Features:

    • Connects LEMO 3K.93C Camera and Camera Control Unit Interfaces
    • Rugged OCC SMPTE Cable for Harsh Environments
    • Extreme Temperature Cable Rating: -40°C to +75°C
    • Terminations by LEMO Certified Technicians
    • Low Insertion and Return Loss (Documents Provided with Each Cable)
    • Made in the USA

  • Specifications:

    • OCC SMPTE Tactical Cable
    • Core/Cladding Diameter (µm): 9/125
    • Wavelength (nm): 1310/1550
    • Maximum Cable Attenuation (dB/km): 0.5/0.5
    • Primary Coating Diameter (µm): 500
    • Secondary Buffer Diameter (µm): 900
    • Zero Dispersion Slope (ps/nm2-km): 0.092
    • Proof Test Level (kpsi): 100
    • Jacket Material: Polyurethane
    • Cable Weight: 144 kg/km (97 lbs/1000')
    • Cable Diameter: 9.2 mm (0.36in)
    • Strength Member: 16 AWG Galvanized Steel, Polyurethane Insulated -Purple
