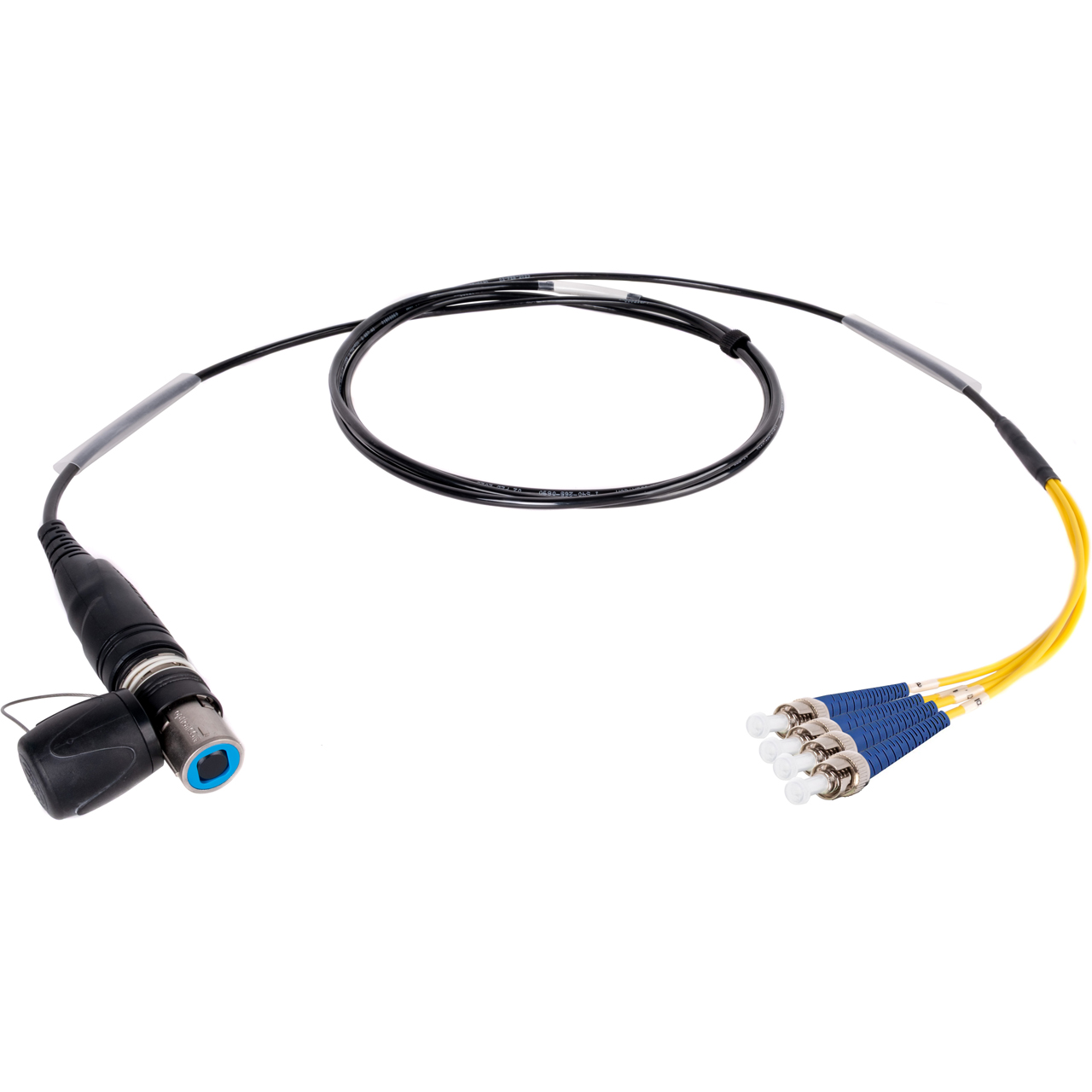

Camplex opticalCON QUAD to QUAD ST Single Mode Fiber Optic Breakout NKO4S-ST-A-0 - 18 Inch

ITEM #: HF-OC4S-ST-18IN MFG #: HF-OC4S-ST-18IN

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$607.49

Our Price:

$551.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in December.


HF-OC4S-ST-18IN - Overview

OpticalCON QUAD NO4SX to Quad ST SingLEMOde Fiber Optic Breakout Cables. Four Fibers only, no electrical conductors. Designed for Broadcast & Pro-Audio Applications! Ruggedized opticalCON QUAD fiber optic cables designed for internal wiring of racks and patch panels. Quickly adapt opticalCON QUAD equipment to standard ST fiber systems. OpticalCON assemblies are COCA factory terminated and machine polished in a state of the art Fiber Optic Lab. Camplex cables are exlusively assembled using the Neutrik opticalCON ADVANCED system. opticalCON ADVANCED further enhances the original opticalCON making it more robust by adding lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use, and the color-coding options allow custom-built coding. APC Polished Models, Custom Lengths & Configurations Always Available!

  • Features:

    • OpticalCON assemblies are interfermetrically tested to GR-326-CORE endface standards.
    • Made with high quality Senko ST connectors. Senko ST connectors have excellent optical parameters and random mating compatibility results.
    • Machine polishing processes provide exceptionally low return loss and insertion loss.
    • OpticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination.
    • Made with high quality Senko ST connectors freaturing excellent optical parameters and random mating compatibility results.
    • Machine polished and tested end faces
    • Tactical tight buffered PUR Cable
    • Optical Shutter Mechanism for added protection
    • Typical back reflection <-55dB
    • APC Polishing types, SC or LC Quad termination available upon request.

    • Applications
    • Digital Audio & Video
    • Digital Signage
    • Data & Networking
    • Lighting Control
    • Deployable, Staging, and Harsh Environment
    • JVC FS-790 Cameras
    • Telecast CopperHead, SHED-HDX
    • MultiDyne Silverback

  • Specifications:

    • Overall Specifications
    • (2) Neutrik OpticalCon, NO4SX
    • Tactical, Polyurethane Jacket, 5mm diameter, Black
    • Nickel Finish Connector Body
    • 50', 100', 164', 250', 328', 500', 656' or Custom

      Mechanical Specifications:
    • Cable Retention Force = 500N
    • Lifetime >1000 Cycles
    • Insertion/Withdrawal Force < 45N
    • Operating Temperature -25°C to +75°C
    • Minimum Bend Radius = 4cm

      Optical Specifications:
    • Type LC-UPC (Straight Polish)
    • Fiber Type 9 ?m Single-mode Fiber
    • Cable Loss < 3dB/km @ 850nm, < 1dB/km @ 1300nm
    • Connector Loss <0.5dB/Connector
    • Connector Back Reflection -55dB/-45dB RL (typical/max)
