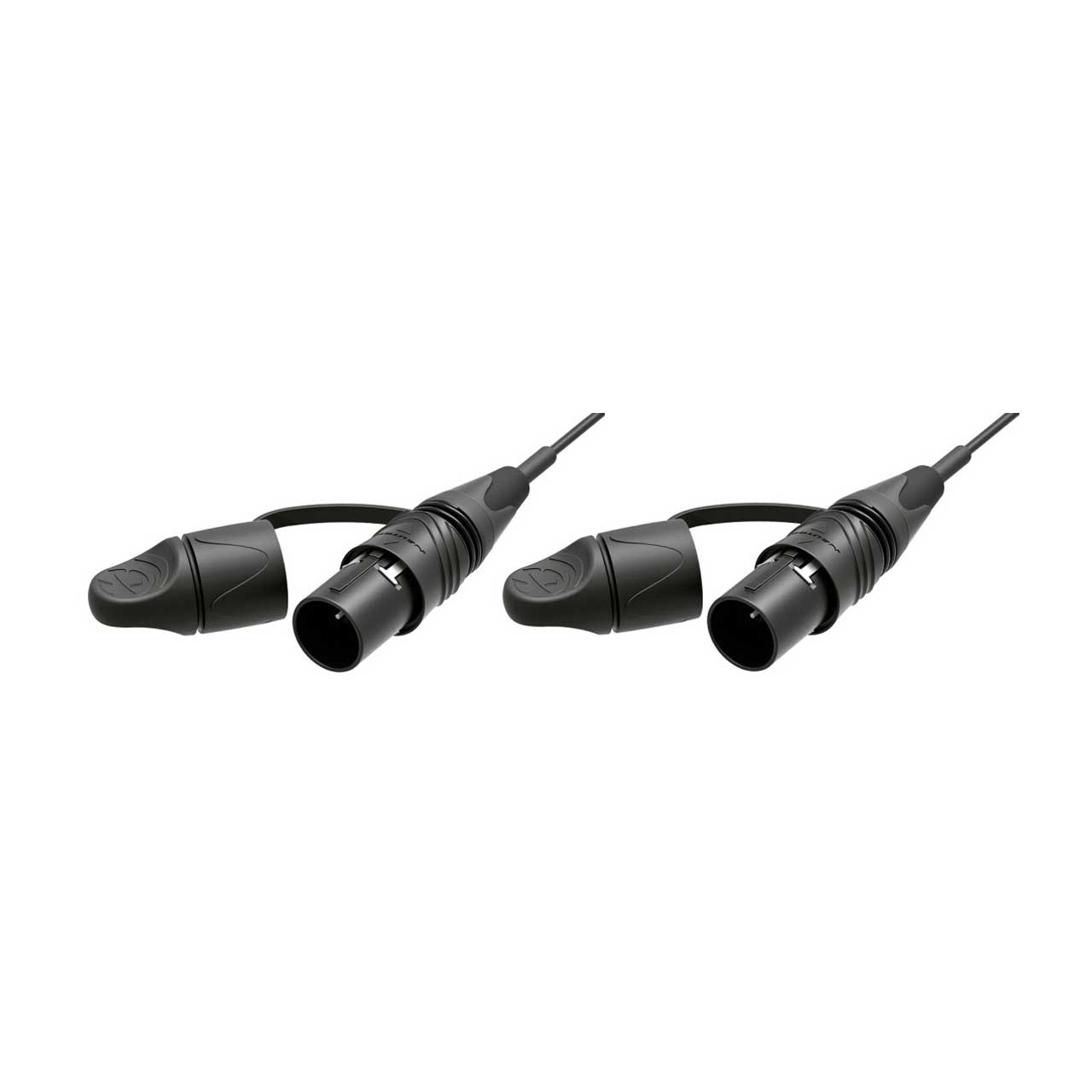

Camplex opticalCON DUO LITE Single Mode Fiber Optic NKO2S-L-0-1 Tactical Patch Cable - 3 Foot

ITEM #: HF-OCL2S-0003 MFG #: HF-OCL2S-0003

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$335.49

Our Price:

$301.95

Availability: In Stock
iAvailability Description Popup


HF-OCL2S-0003 - Overview

Neutrik opticalCON DUO LITE Single Mode fiber cables by Camplex provide a semi-rugged alternative to opticalCON Advanced systems when the action calls for a compact, lightweight solution. The cable is designed to allow higher bend radius performance typically used in rack interconnects, camera cranes, steadicam rigs, truck bays and other similarly controlled environments. Best of all, It is fully compatible with standard opticalCON DUO connections. The DUO delivers a ruggedized 2-channel fiber optic connection system for semi and permanent installation. Mated connections are waterproof acc. to IP65 safety standards and the reliable push-pull locking mechanism assures there is never an accidental disconnect. All connections are compatible with standard opticalCON DUO chassis NO2-4FDW-A connectors.

  • Features:

    • 2-Channel Single Mode Tactical Patch Cable
    • Dust and Waterproof According to IP65 in Mated Condition
    • Bend Insensitive Fiber
    • Rugged Push-Pull Locking Mechanism with Rubber Caps
    • Lifetime 2500 Mating Cycles
    • Easy to Clean Shutterless Connectors
    • Rugged Cable Retention Utilizing Aramid Yarn Strength Member
    • Extremely Flexible and Crush Resistant Lightweight Plastic Housing
    • Compatible with Standard opticalCON DUO NO2-4FDW-A / QUAD NO4FDW-A

  • Specifications:

    • Neutrik opticalCON DUO LITE NO2MX Connectors
    • Cable Retention: > 250 N
    • Insertion Force: < 35 N
    • Withdrawal Force: < 35 N
    • Insertion Loss: < 0.45 dB / connection
    • Optical Connector: 1.25 mm ceramic ferrule
    • Minimal Bend Radius: 3 cm DUO / 3.5mm QUAD
    • Cladding Diameter: 125 µm
    • PUR Number of Fibers: 2
