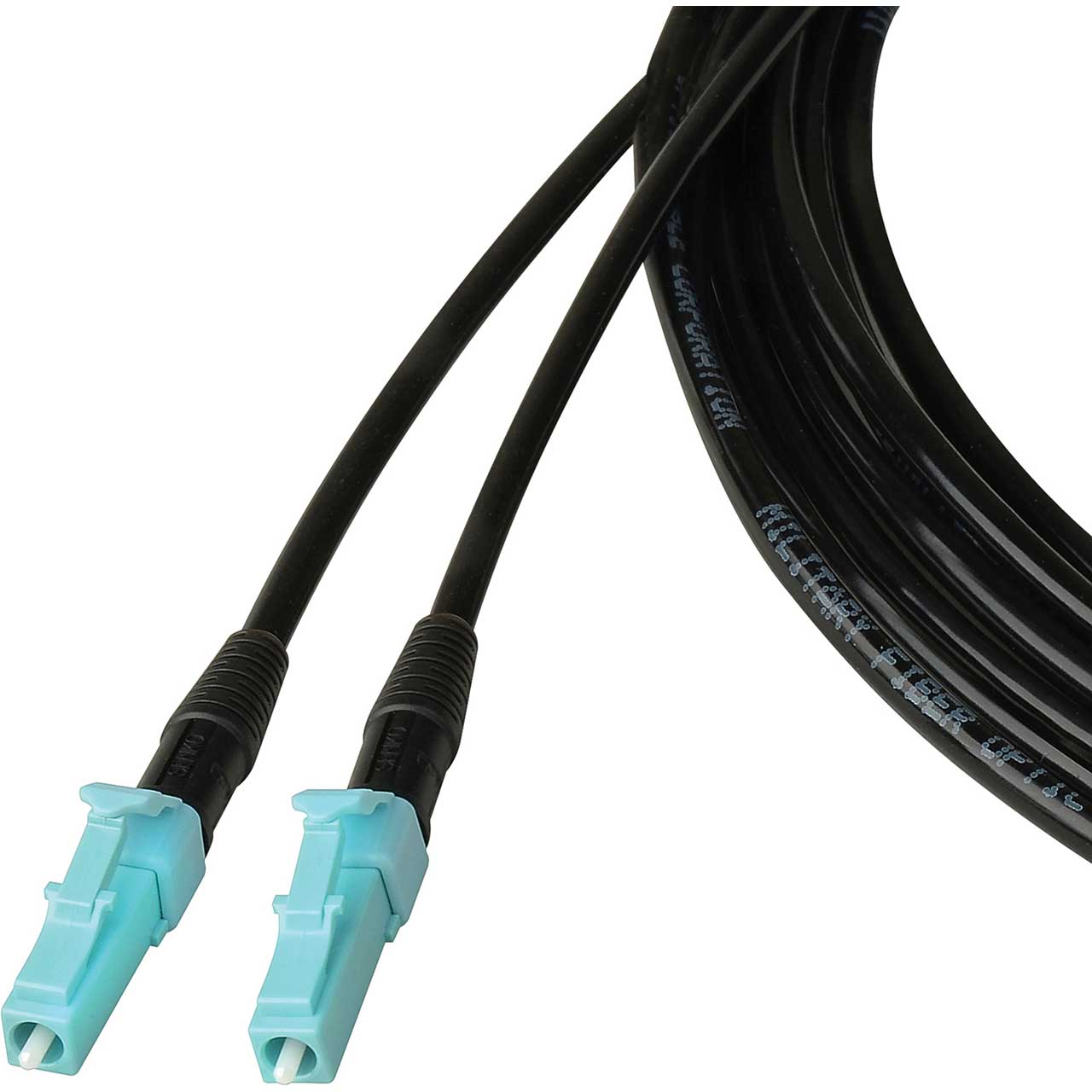

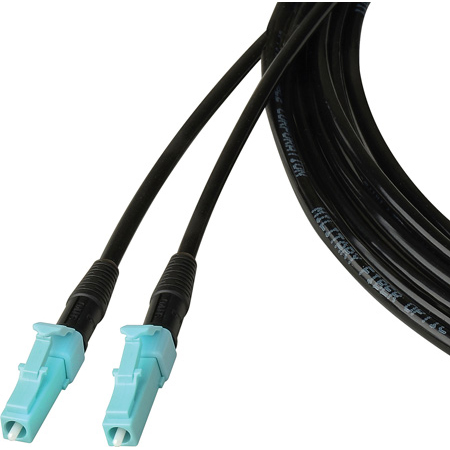

Camplex TAC1 Simplex OM3 Multimode LC Fiber Optic Tactical Cable - 10 Foot

ITEM #: HF-T1M3-LC-0010 MFG #: HF-T1M3-LC-0010

Primary Image
Camplex
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$61.95

Our Price:

$53.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HF-T1M3-LC-0010 - Overview

Extremely Rugged & Lightweight LC Simplex OM3 Multimode Tactical Cables for Broadcast & Pro-Audio Applications! This cable is designed for Military Tactical deployment applications and meets all outdoor tactical needs for broadcast applications requiring an outdoor rated crush and impact resistant design. The tough Polyurethane Core-Locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field. Featuring Senko ST and LC premium fiber connectors. All assemblies are machine polished and interferometer tested to industry standards. All products are 100% tested and ship with a complete set of test documentation. ST, SC, LC, and FC, UPC and APC connectors are available. Custom Lengths & Configurations Always Available!

  • Features:

    • Broadcast Deployable
    • Indoor/Outdoor rated jacket
    • Typical RL <-55dB and IL<0.25dB
    • Wide temperature range (typically -55°C to 85°C)
    • 500µm primary acrylate buffer with 900µm secondary hard elastomeric buffer (Ultra-Fox Plus)
    • Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
    • Designed to withstand crush and impact after deployment
    • Strong, lightweight and extremely durable cable


  • Specifications:

    • Industry Standard Designation: Laser Optimized OM3 ISO/IEC 11801
    • Core/Cladding Diameter (μm): 50/125
    • Numeric Aperture: 0.20
    • Wavelength (nm): 850/1310
    • Gigabit Ethernet Distance (m): 1000/600
    • 10-Gigabit Ethernet Distance (m): 300/300
    • Maximum Cabled Attenuation (dB/km): 3.5/1.5
    • Minimum Laser EMB Bandwidth (MHz-km): 2000/500
    • Minimum OFL LED Bandwidth (MHz-km): 1500/500
    • Primary Coating Diameter (μm): 500
    • Secondary Buffer Diameter (μm): 900
    • Proof Test Level (kpsi): 100
    • Typical RL <-55dB and IL<0.25dB
