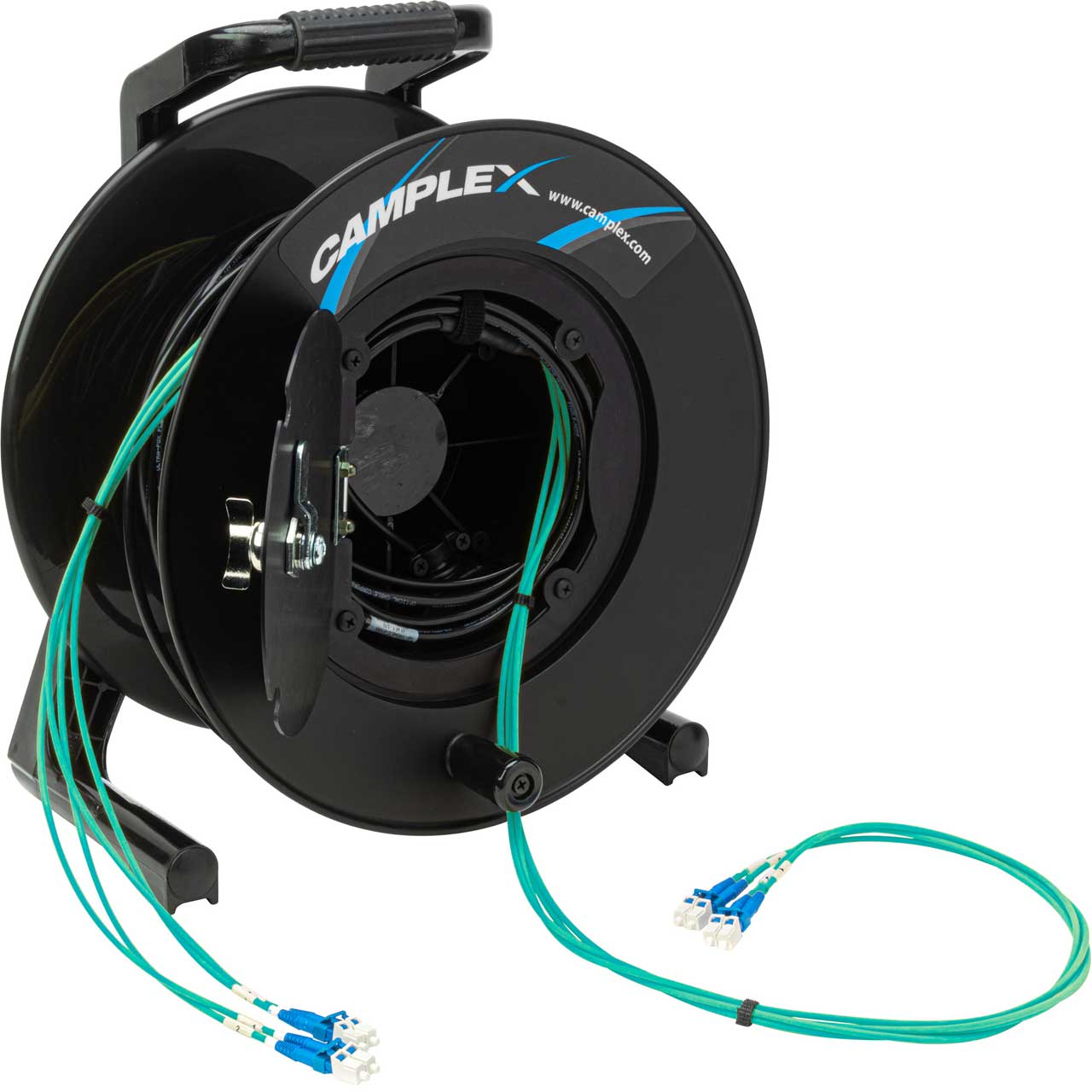

Camplex 4-Channel LC Multimode OM3 Fiber Optic Tactical Reel - 1000 Foot

ITEM #: HF-TR04LCM3-1000 MFG #: HF-TR04LCM3-1000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,251.49

Our Price:

$3,826.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-TR04LCM3-1000 - Overview

Extremely Rugged & Lightweight OM3 Multimode Tactical Fiber Snakes Designed for Broadcast & Pro-Audio Applications!

Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

Reels can include a hinged latching door, outboard coiling ring with retention strap, or slotted disk dividers depending on cable diameters and lengths. Check with your sales associate for reel information regarding specific assemblies.

Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.

  • Features:

    • Built with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
    • Individual 36-Inch Fanout Channels Protected with Polyurethane Tactical Furcation Tubing
    • Compact, round cable design for ease of transportation and deployment
    • Designed for use in adverse environments where reduced size and weight are important
    • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
    • Cables have been tested and are in use in military data communications applications worldwide
    • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
    • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
    • Crush-resistant and resilient with a thick layer of aramid strength members
    • Polyurethane jacketed for abrasion, cut and chemical resistance
    • Meets & Exceeds MIL-PRF-85045 Specifications!

  • Specifications:

    • Fanouts are color coded with Aqua or Blue to indicate OM3 Laser Enhanced Fiber Type 10G Ethernet compatible.
    • The cable features an extremely strong, lightweight, rugged tight-buffered cable for commercial, broadcast and military applications.
    • Suitable for Broadcast, Industrial, Mining and Petrochemical environments.
    • Crush resistant and resilient with a thick layer of aramid strength members.
    • Polyurethane jacket for abrasion, cut and chemical resistance.
    • Operating Temperature -55°C to +85°C (Storage -70°C to +85°C)
    • Impact Resistance 200 Impacts (EIA/TiA-455-25A)
    • Crush Resistance 440N/cm
    • Flex Resistance 2,000 cycles
    • Machine polished UPC Connectors, Back Reflection is <-55dB RL(Typical)
    • Gigabit Ethernet Max Distance: 5km @ 1310nm (Singlemode)
    • Gigabit Ethernet Max Distance: 600m @ 1310 (Multimode)
    • Attenuation: < 0.5dB/km @1310
    • Attenuation: < 1.5dB/km @1310
