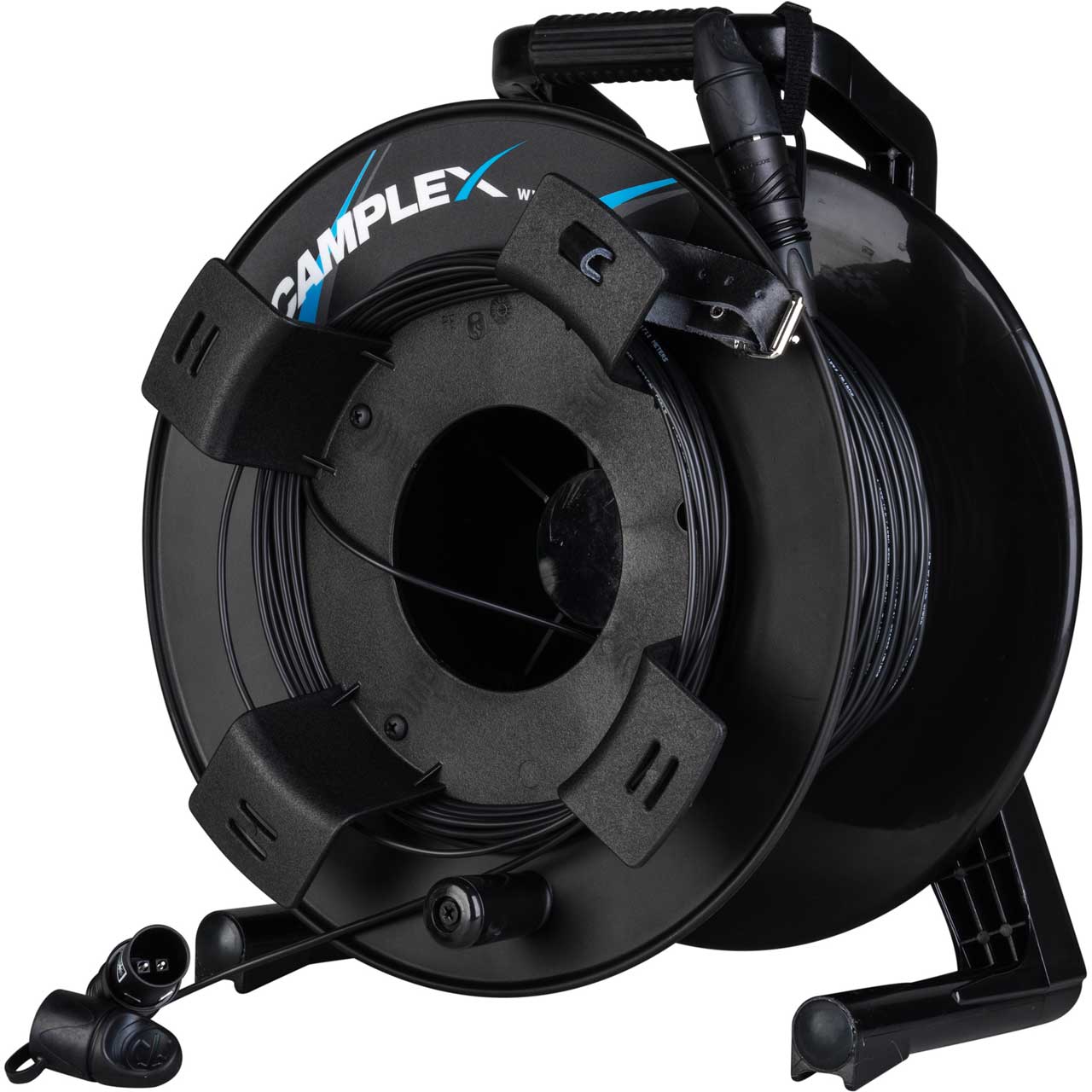

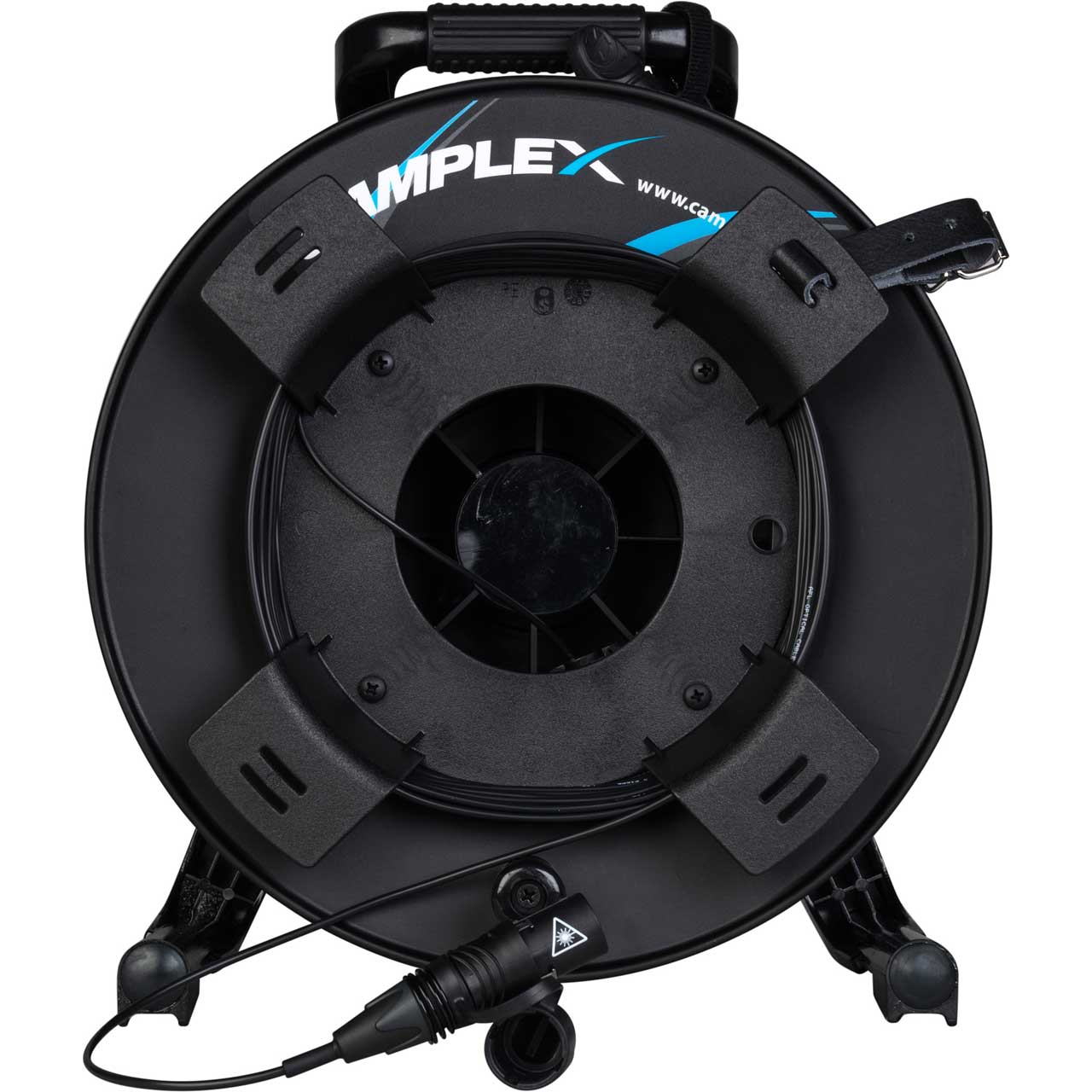

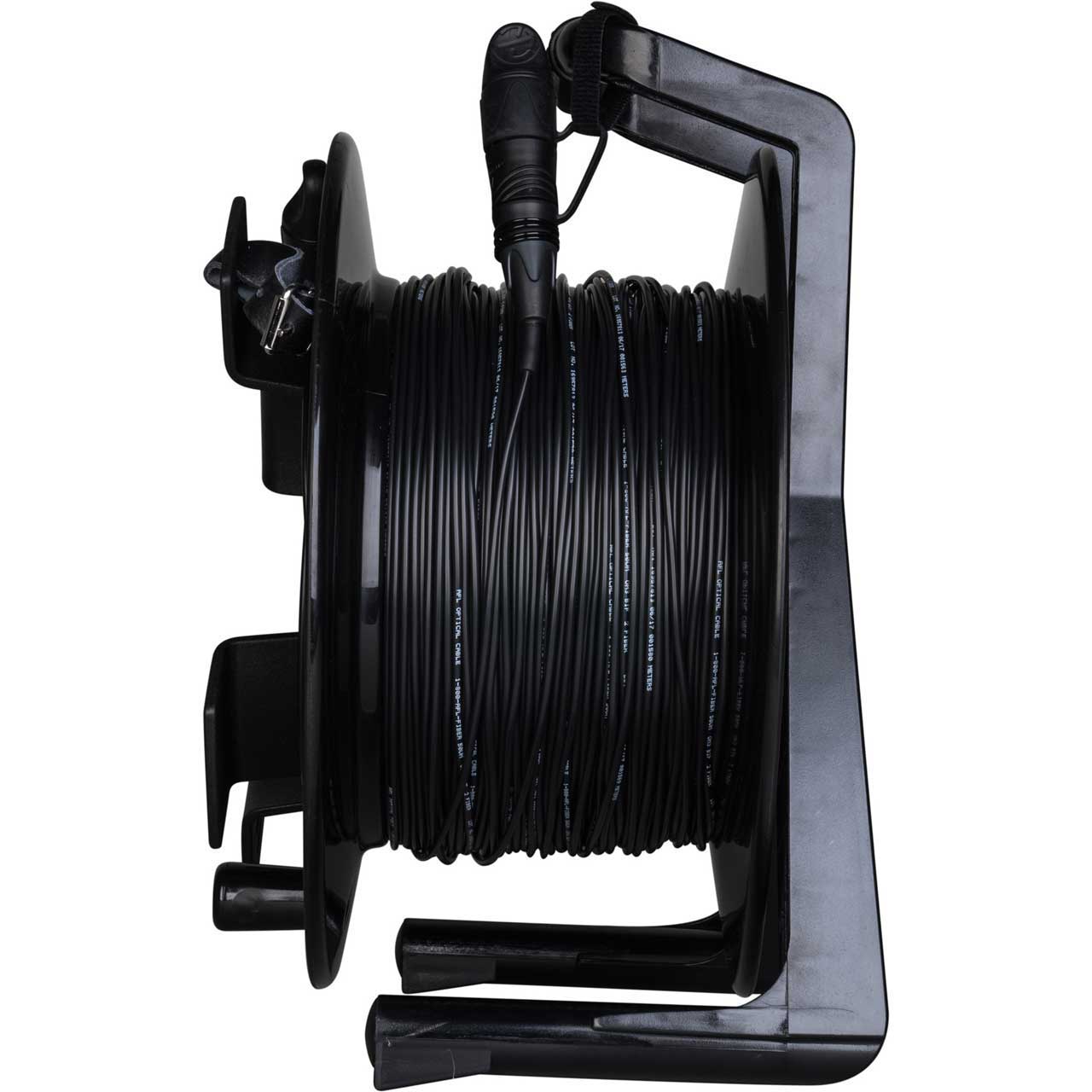

Camplex opticalCON DUO LITE Single Mode Fiber Optic Tactical Cable Reel - 100 Foot

ITEM #: HF-TROCL2S-0100 MFG #: HF-TROCL2S-0100

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$483.49

Our Price:

$435.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-TROCL2S-0100 - Overview

Neutrik opticalCON DUO LITE Single Mode fiber reels by Camplex provide a semi-rugged alternative to opticalCON Advanced systems when the action calls for a compact, lightweight solution. The cable is designed to allow higher bend radius performance typically used in rack interconnects, camera cranes, steadicam rigs, truck bays and other similarly controlled environments. Best of all, It is fully compatible with standard opticalCON DUO connections. The DUO delivers a ruggedized 2-channel fiber optic connection system for semi and permanent installation. Mated connections are waterproof acc. to IP65 safety standards and the reliable push-pull locking mechanism assures there is never an accidental disconnect. All connections are compatible with standard opticalCON DUO chassis NO2-4FDW-A connectors. These cables are delivered on a cable reel for fast field and studio deployment. Tactical Fiber Snake Reels can include a hinged latching door, outboard coiling ring with retention strap, or slotted disk dividers depending on cable diameters and lengths. Check with your sales associate for reel information regarding specific assemblies.

  • Features:

    • 2-Channel Single Mode
    • Tactical Patch Cable
    • Rugged Lightweight Reel with Brake Lock
    • Dust and Waterproof According to IP65 in Mated Condition
    • Bend Insensitive Fiber
    • Rugged Push-Pull Locking Mechanism with Rubber Caps
    • Lifetime 2500 Mating Cycles
    • Easy to Clean Shutterless Connectors
    • Rugged Cable Retention Utilizing Aramid Yarn Strength Member
    • Extremely Flexible and Crush Resistant Lightweight Plastic Housing
    • Compatible with Standard opticalCON DUO NO2-4FDW-A / QUAD NO4FDW-A

  • Specifications:

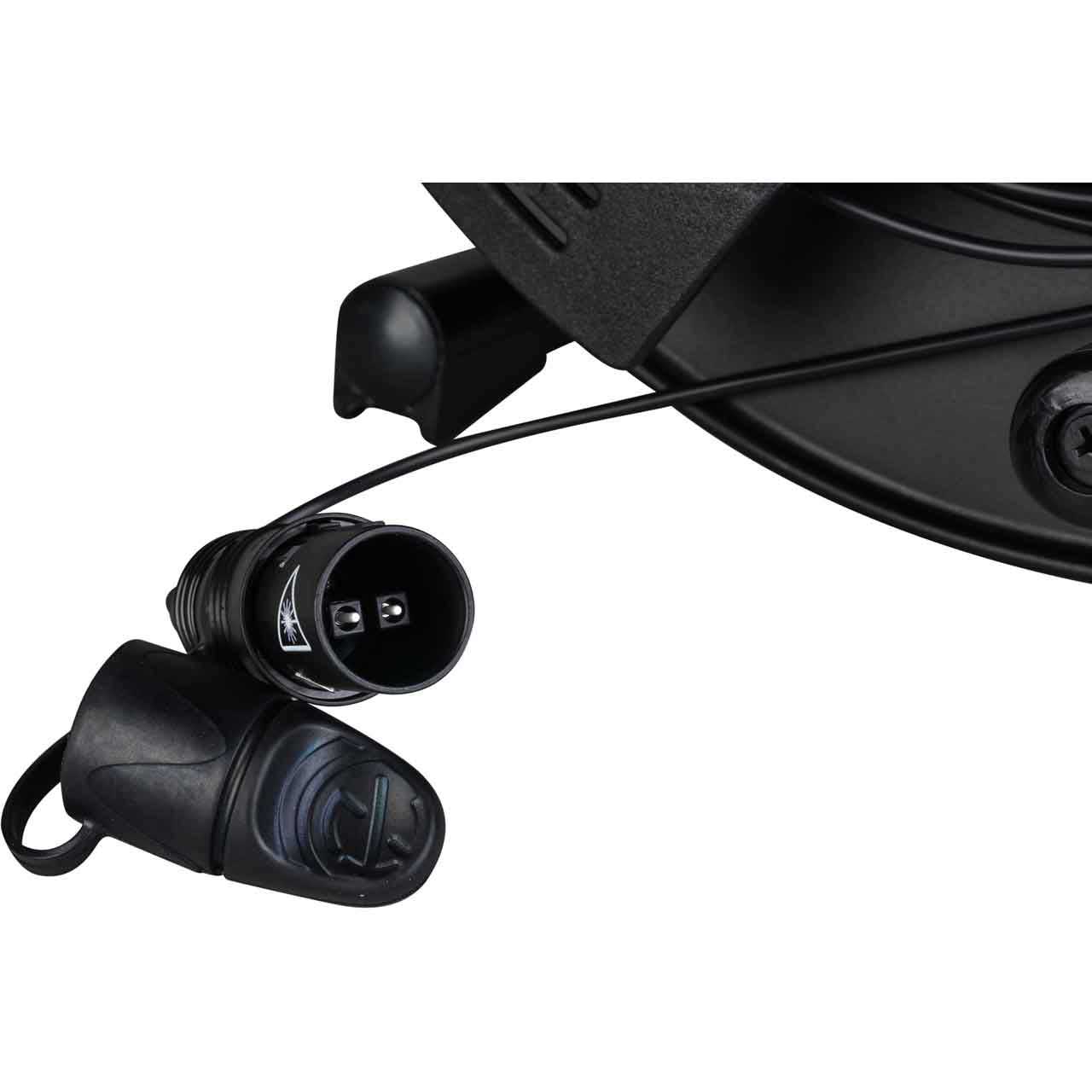

    • Neutrik opticalCON DUO LITE NO2MX Connectors
    • Cable Retention > 250 N
    • Insertion Force < 35 N
    • Withdrawal Force < 35 N
    • Insertion Loss < 0.45 dB / connection
    • Optical Connector 1.25 mm ceramic ferrule
    • Minimal Bending Radius 3 cm DUO / 3.5mm QUAD
    • Cladding Diameter 125 &M;m PUR
    • Number of Fibers 2
    • Cable Retention Aramid Yarn
