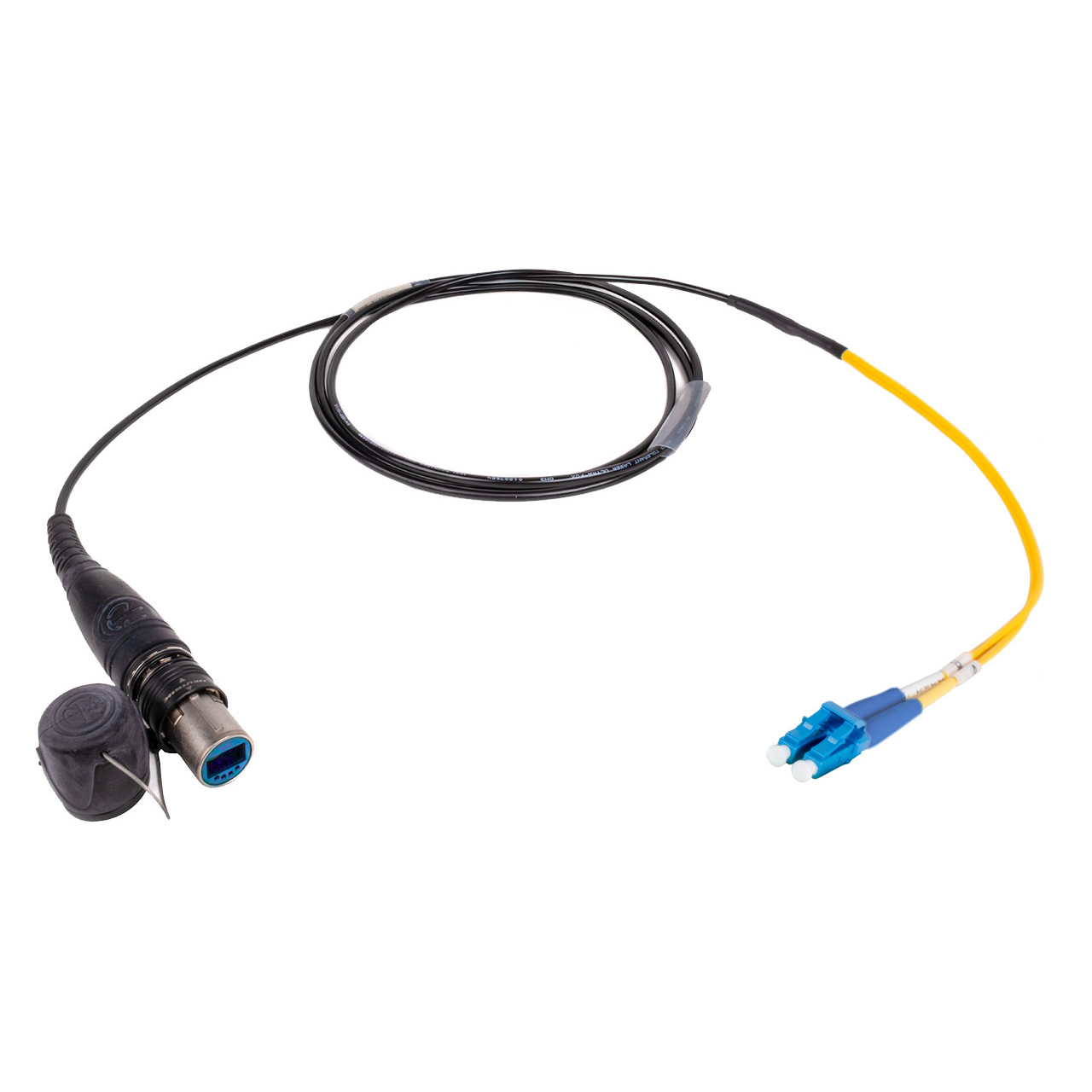

Camplex opticalCON DUO to Duplex LC Single Mode Fiber Optic Breakout NKO2S-LC-A-0 - 50 Foot

ITEM #: HF-OC2S-LC-0050 MFG #: HF-OC2S-LC-0050

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$484.49

Our Price:

$440.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in January.


HF-OC2S-LC-0050 - Overview

opticalCON DUO to Duplex LC singlemode Fiber Optic Breakout Cables. Two Fibers only, no electrical conductors. Designed for Broadcast & Pro-Audio Applications! Ruggedized opticalCON DUO fiber optic cables designed for internal wiring of racks and patch panels. Quickly adapt opticalCON DUO equipment to standard LC fiber systems. OpticalCON assemblies are COCA factory terminated and machine polished. Cables are assembled with lockable and water proofed metal caps as well as rubber guards. This is especially critical for outdoor applications. The ergonomically cable strain relief improves the cable protection and water resistance in long-term use. Custom Lengths & Configurations Always Available!

  • Features:

    • Neutrik opticalCON Cable Assemblies Tested to GR-326-CORE End Face Standards
    • Rugged Neutrik opticalCON Connector Body with Mechanical Shutter System to Shield Against Contamination
    • Senko Connectors with Excellent Optical Parameters & Random Mating Compatibility Results
    • Low Return Loss and Low Insertion Loss
    • No Electrical Conductors
    • Tactical Tight-Buffered PUR Cable

  • Specifications:

    • Neutrik opticalCON & Senko Connectors
    • Tactical, Polyurethane Jacket
    • Nickel Finish Connector Body
    • Cable Retention Force=500N
    • Lifetime>1000 Cycles
    • Insertion/Withdrawal Force <45N
    • Min Bend Radius: 5cm installation / 2.5cm operation
    • Impact Resistance: 1500
    • Crush Resistance: 1800 N/cm
    • Operating Temperature: -40°C to +85°C
