Camplex 12-Channel LC Single Mode Fiber Tactical Cable Reel with Protective Pulling Sleeve - 1000 Foot

ITEM #: HF-TRP12LC-1000 MFG #: HF-TRP12LC-1000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,477.49

Our Price:

$4,029.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • Extended Lead Time; estimated delivery in December.


HF-TRP12LC-1000 - Overview

Extremely Rugged & Lightweight 12-Channel Singlemode Tactical Fiber Snakes with Pulling Sleeve for Broadcast & Pro-Audio Applications!

Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

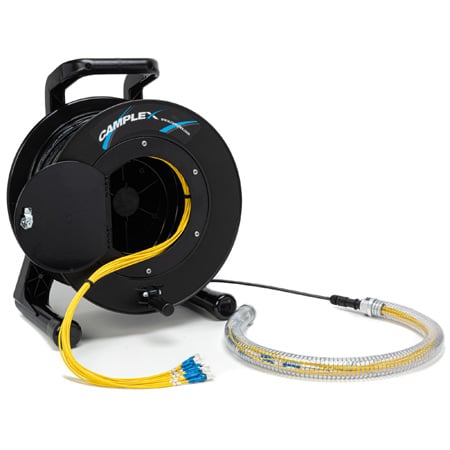

Our Tactical Fiber Snake Reels include JackReel, Schill or Hannay fiber optic cable reels with in-hub fanout & connector protection cavity. Each reel has been carefully selected to ensure proper support and critical bend radius required by fiber optic cables. We recommend tactical fiber optic cables over 25 feet be stored on a cable reel.

Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.

  • Features:

    • Built with OCC Multichannel Tactical Cable & Heavy Duty Connectors with Dust Caps
    • Individual 36-Inch Fanout Channels Protected with Polyurethane Tactical Furcation Tubing
    • Compact, round cable design for ease of transportation and deployment
    • Designed for use in adverse environments where reduced size and weight are important
    • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
    • Cables have been tested and are in use in military data communications applications worldwide
    • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
    • Suitable for outside broadcast, industrial, mining and petrochemical environments - chemical resistant
    • Crush-resistant and resilient with a thick layer of aramid strength members
    • Polyurethane jacketed for abrasion, cut and chemical resistance
    • Meets & Exceeds MIL-PRF-85045 Specifications!

  • Specifications:

    • Mounting - Hose Clip / Cable Tie
    • Number of Fibers - 4 or 12 channels
    • Connector Types - LC, SC, ST
    • Dimensions - 65mm x 24mm (Excluding cable gland)
    • Temperature Range - -40°C to 85°C
    • Fan-out kit retention - >15 lbs (>66N)
    • Feeder cable retention 100 lbs (450N)
    • Polished to UPC GR 326 Core standard, typical IL< 0.5dB and RL> -55dB

  • Applications

    :

    • Broadcast
    • Enterprise
    • Telecom
    • Datacenter
    • LAN
