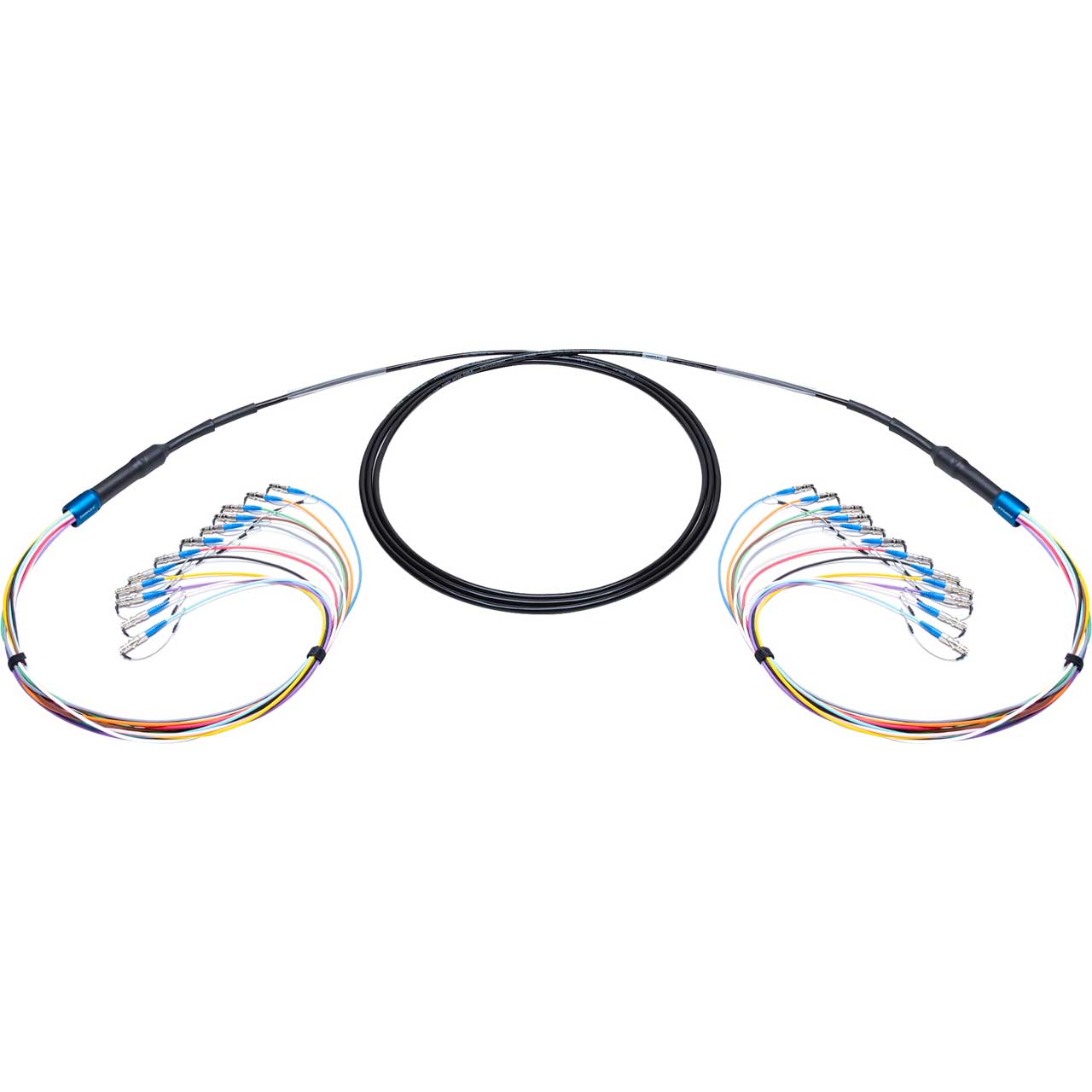

Camplex 12-Channel ST-Single Mode Fiber Optic Tactical Cable - 150 Foot

ITEM #: HF-TS12ST-0150 MFG #: HF-TS12ST-0150

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,239.95

Our Price:

$1,144.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-TS12ST-0150 - Overview

Extremely Rugged & Lightweight Tactical Fiber Snakes Designed for Broadcast & Pro-Audio Applications!

12-Channel singlemode fiber optic tactical snake cable designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both Military Tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.

  • Features:

    • OCC's 12-channel Low Water Peak Tactical Single-Mode Optic Fiber is outdoor-rated,chemical-resistant,crush-resistant,impact-resistant, and cut-resistant.
    • Core-locked jacket reinforces the cable's core and additional crush and impact protection and tear resistance during installation.
    • Helically Stranded Cable core for increased flexibility and protection.
    • IP50-rated Breakout kit with 36-inch fanouts
    • Individual fanout channels protected with 3mm riser-rated tactical furcation tubing

  • Specifications:

    • Fiber Type: Low Water Peak Single Mode
    • Cable Diameter: 0.26in (6.5mm)
    • Jacket Material: Polyurethane
    • Buffer Material: Hard Elastomeric
    • Core/Cladding Diameter: 9/125 µm
    • Maximum Cabled Attenuation: 0.5 dB/0.5 km
    • Max Tensile load (Installation): 2100 N (470lbs)
    • Max Tensile load (Operating): 700 N (160lbs)
    • Min Bend Radius (Installation): 2.6in (6.5cm)
    • Min Bend Radius (Operating): 1.3in (3.3cm)
    • Crush-Resistant (TIA/EIA-455-41A, Military Req): 200 impacts
    • Impact Resistance (EIA/TIA-455-25A, Military Req): 440 N/cm
    • Cable Weight: 0.028lbs/ft (0.04kg/m)
    • Operating Temperature: -67°F-185°F (-55°C to +85°C)

  • Warranty:

    • 1 Year
