Hollyland Solidcom M1 Wireless Intercom System - Base Station Only

ITEM #: HL-SOLIDCOM-BASE MFG #: SOLIDCOM BASE STATION

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SOLIDCOM BASE STATION - Overview

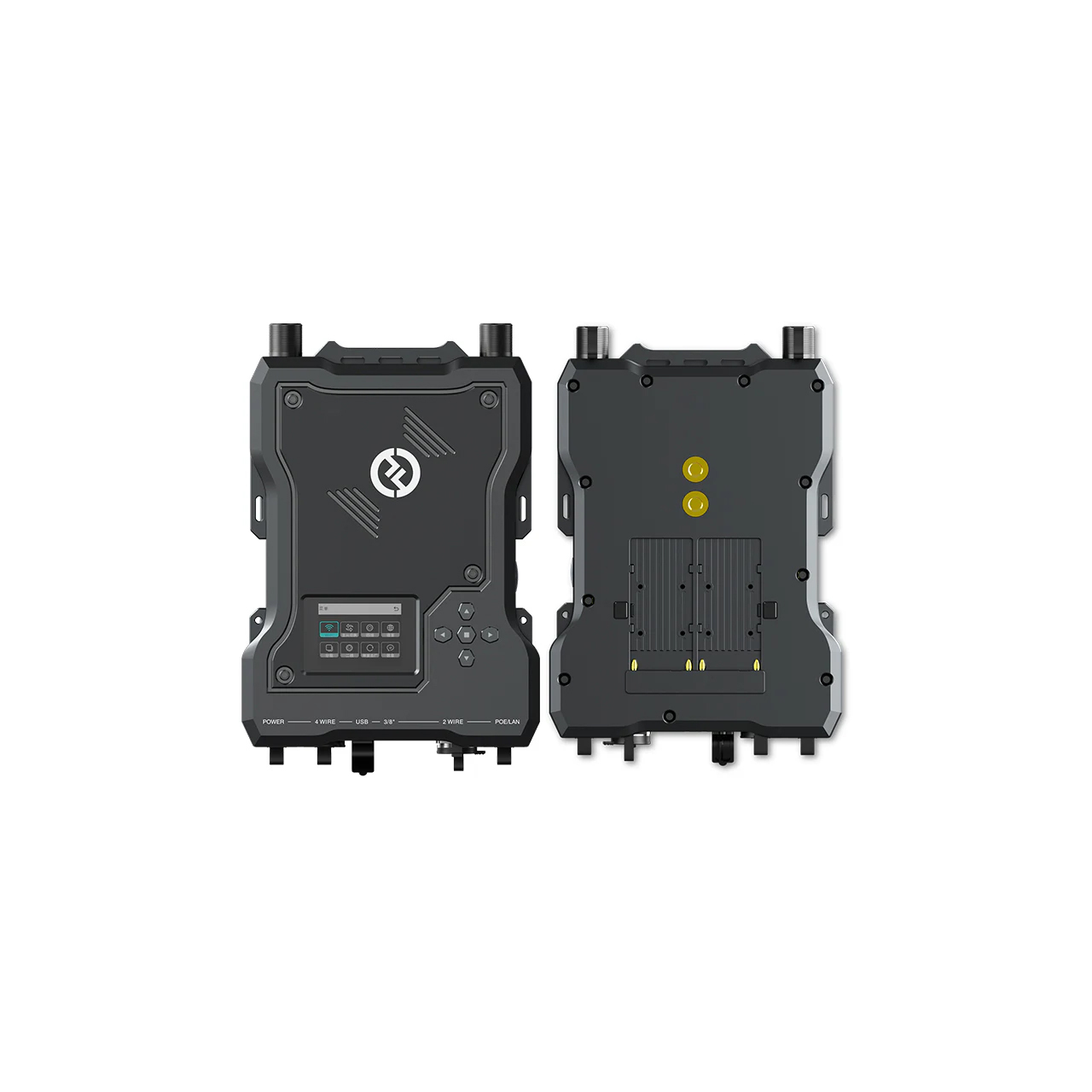

The Hollyland SOLIDCOM BASE STATION is the base station only for the SOLIDCOM M1 Full-Duplex Wireless Intercom Solution.

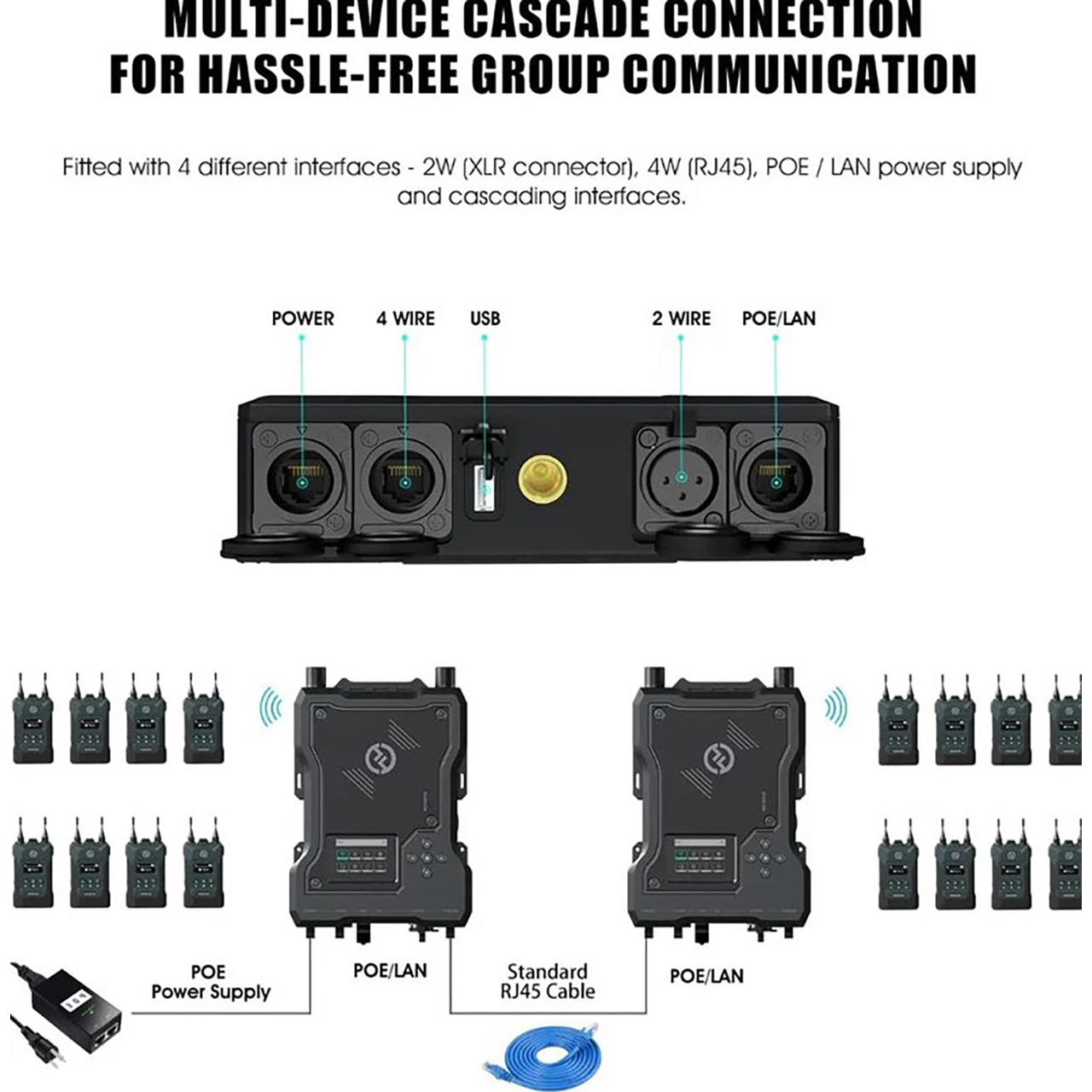

It is fitted with 4 different interfaces - 2W (XLR connector), 4W (RJ45), POE/LAN power supply, and cascading interfaces. The base station can be cascaded to multiple sets of different audio equipment only by connecting with a standard network cable or an XLR cable.

With up to 1300ft (400m) transmission range from the front panel and an extra 160ft (50m) range at the back panel, the Built-In Panel Antenna is perfect for real-time two-way communication in unobstructed venues, such as church events and concerts.

For reliable transmissions in a 360° radius range of around 985ft (300m), ideal for large-scale events including sports events, exhibitions, etc., you can use the HL-ATN09 fiberglass omnidirectional antennas.

  • Features:

    • POE Power Supply
    • NP-F Type Battery
    • Up to 1300ft-Radius Communication Range
    • Enhanced Audio Quality

  • Specifications:

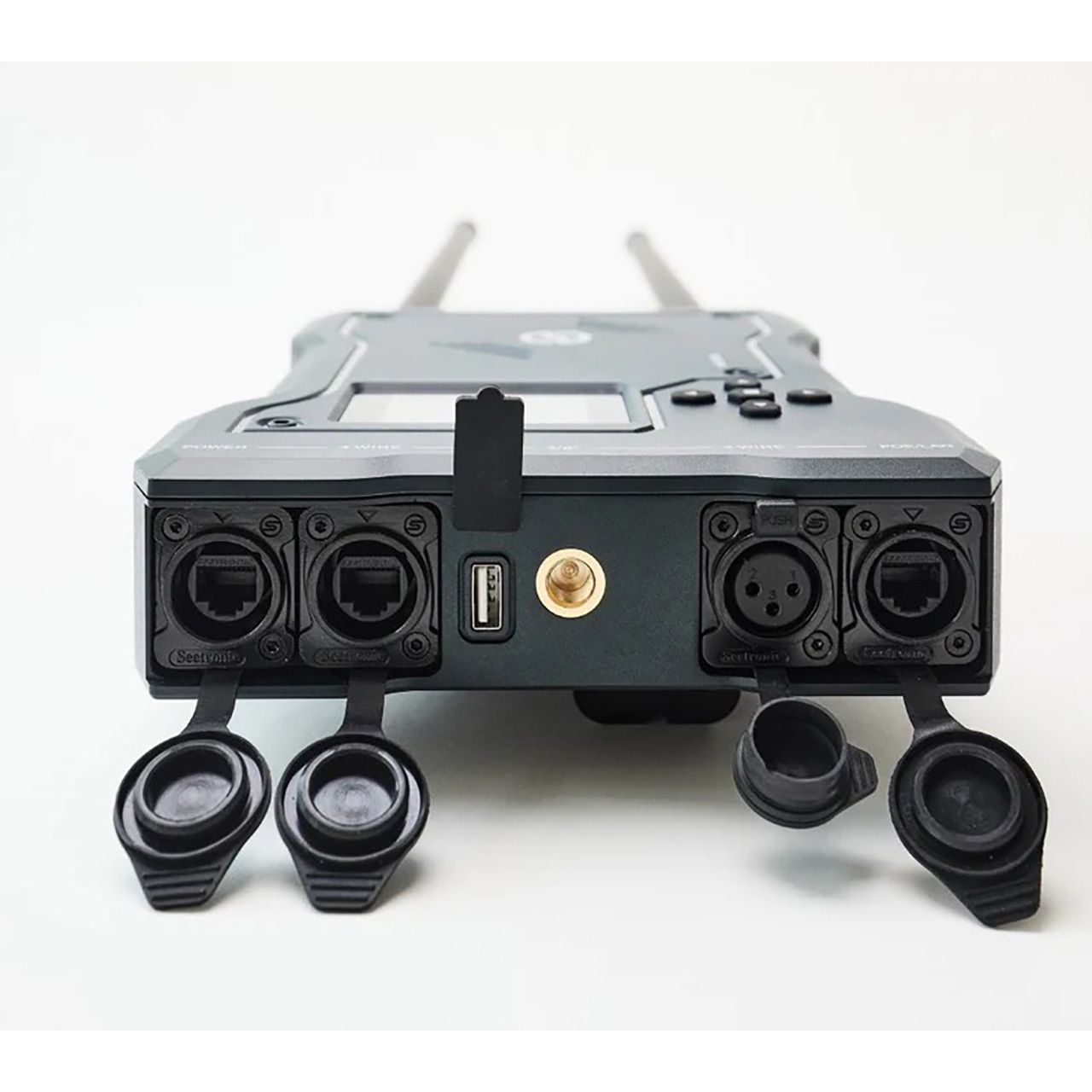

    • Interfaces:
      - PoE Interface (RJ45)
      - Power Supply Interface (RJ45)
      - 4 Wire Audio Interface
      - USB Interface
      - 2-Wire Audio Interface
    • Power Supply: POE Power Supply, NP-F Type Battery
    • Frequency Response: 200Hz to 7KHz
    • Signal-to-Noise Ratio: >50dB
    • Distortion: <1%
    • Use Range: 450 Meters Line-of-Sight Usage
    • Frequency Band: 1.9GHz
    • Modulation Mode: GFSK
    • Transmit Power: Maximum 21dBm
    • Receiving Sensitivity: =-93dBm
    • Frequency Bandwidth: 1.728MHz
    • Power Consumption: <3W
    • Dimension: (LxWxH): 10.05" x 7.10" x 1.90" (255.5mm x 180.4mm x 48.5mm)
    • Weight: About 3.43lbs (1560g)
    • Working Temperature: 0°F - 113°F (0°C - 45°C) (Working Status) -4°F - -140°F (20°C - 60°C) (Stock Status)

  • Item Includes:

    • 1x Solidcom Base Station (Only)

  • GTIN:

    0191460002113


SOLIDCOM BASE STATION - Required Accessories
