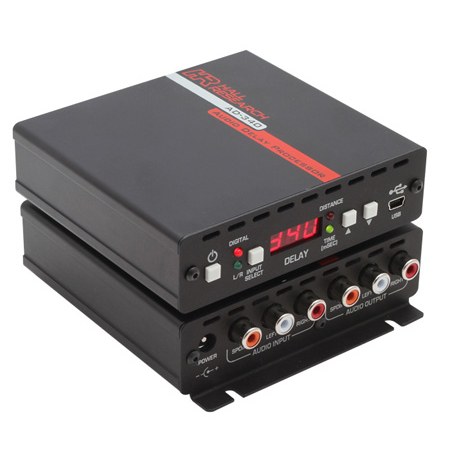

Hall Technologies AD-340 Universal Audio Delay Processor

AD-340 - Overview

• Features:

  • Delay analog or digital audio in milliseconds, frames, or distance
  • Analog to Digital and Digital to Analog conversion
  • Supports CD, DVD, and Blu-Ray sample rates at 32kHz, 44.1kHz, 48 kHz and 96kHz
  • Supports 2-channel linear PCM digital audio and 5.1 Channel Dolby Digital and DTS encoded bitstreams
  • Delay up to 510 ms
  • Delay calculation based on distance with optional automatic temperature compensation
  • Stereo Analog RCA inputs are ground loop isolated to prevent spurious buzz or hum
  • USB interface for advanced control


• Specifications:

  • Digital Audio:
  • Standards: IEC 60958 Type II - Sony/Philips Interconnect Format=S/PDIF.
  • Audio Formats: Linear PCM (stereo), bitstreams: Dolby Digital 5.1, DTS 5.1 .
  • Cable/Connectors: Coaxial Cable with RCA Connector - 75 Ohm
  • Signal Level: 0.5 Vpeak-to-peak (transformer coupled output)
  • PLL Lock Frequency: 32 to 196 kHz
  • Sampling Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
  • PCM Bitrates: 32 kHz~2 MHz, 44.1 kHz~2.8 MHz, 48 kHz~3.1 MHz, 96 kHz~6 MHz
  • Bitstream Bitrates: DTS: 1.5 Mbps - Dolby-DVD: 448 kbps - Dolby-BD: 640 kbps

    Analog Audio:
  • Standards: Stereo (Left and Right Channel)
  • Signal Level: Line Level - 2Vrms (5.6 Vpeak-to-peak)
  • Sampling Rate: Selectable: 32 kHz or 48kHz
  • Cable/Connectors: Coaxial Cable with RCA Connector (ground loop isolated)
  • Frequency Response: 20 Hz - 20kHz (+/- 0.2 dB)
  • ADC Gain: Nominal 0 db (unity gain) Adjustable +/- 24 dB
  • DAC Gain: Nominal 0 db (unity gain) Adjustable +/- 6 dB

    Delay Settings:
  • Maximum Delay (msec): 510 ms @ 32 kHz | 370 ms @ 44.1 kHz | 340 ms @ 48 kHz
  • Maximum Frames: 16 video frames at both 50 Hz and 60 Hz
  • Maximum Distance: 550 feet @ 32 kHz | 396 feet @ 44.1 kHz | 362 feet @ 48 kHz
  • Resolution for Delay Values: 1 msec, 1 Frame, 1 Foot, 1 Meter
  • Compensation Temp Range: 32° F to 122° F - Step Value: 1 °F

    Dimensions:
  • 1.18" H x 4.17" W x 3.85" D (30 mm H x 106 mm W x 98 mm D)
  • Depth excludes connectors

    Power:
  • 6 to 9 v DC at 200 ma. Included is a 6v. 1.5A Power Supply (100~240 VAC with Universal plugs)

    PC Interface:
  • Mini-B USB 2.0 - Full Speed. Cable included

    Weight:
  • Product - 0.75 lb (0.35 kg)
  • Shipping - 1.5 lbs (0.70 kg)

    Vibration:
  • ISTA 1A in carton (International Safe Transit Association).

    Safety:
  • CE.

    EMI/EMC:
  • CE/FCC Class A

    MTBF:
  • 90,000 hours.

    Warranty:
  • 2 years parts & labor.


• Item Includes:

  • 1x Hall Technologies AD-340 Universal Audio Delay Processor


• GTIN:

  0724696529804
