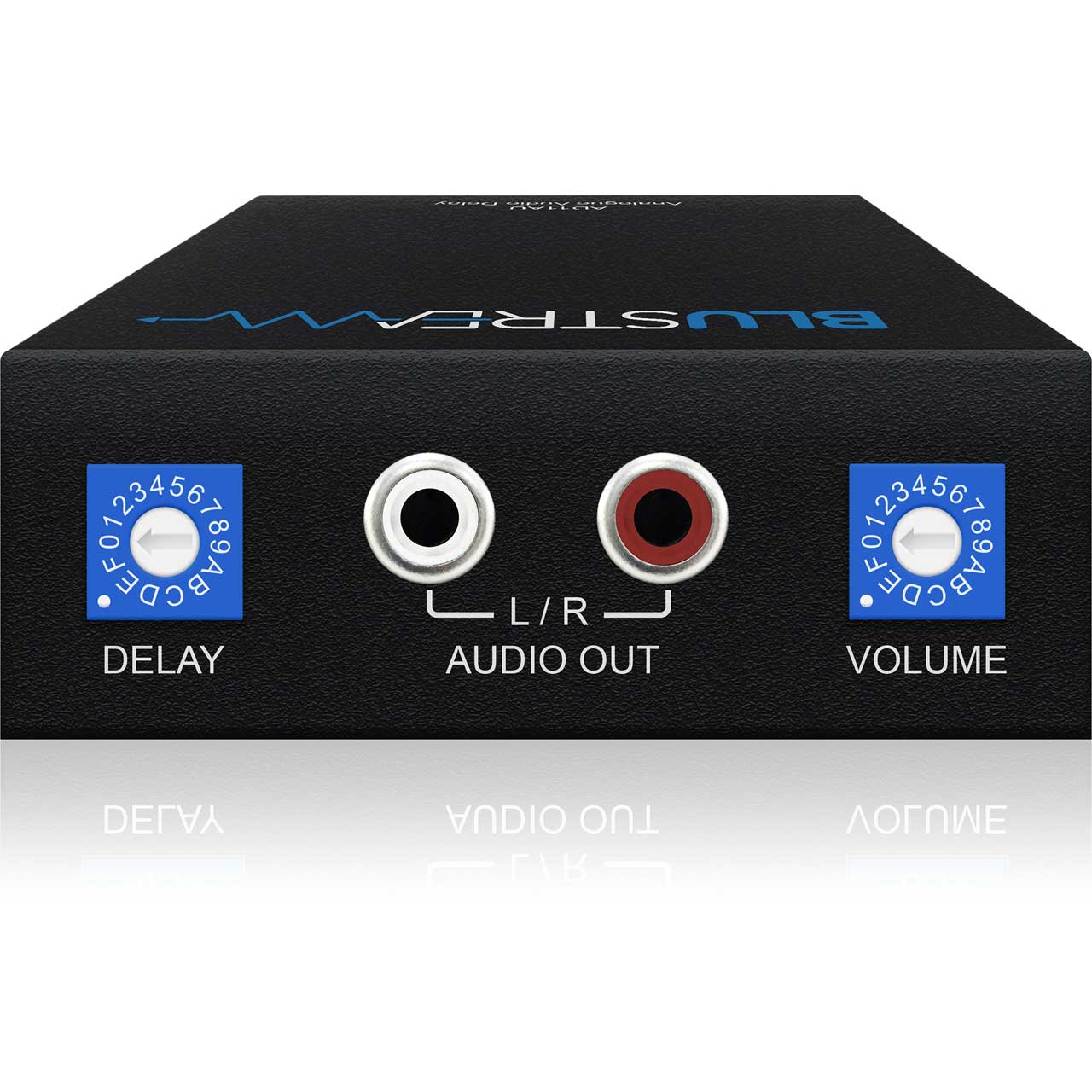

Blustream AD11AU Analog Audio Delay Processor with Volume Control

AD11AU - Overview

• Features:

  • In-line 2ch analogue audio delay with line-level volume control
  • Supports 48KHz / 24 bit sample rates
  • Selectable audio delay from 50-1,000ms
  • 0-500ms in steps of 50ms
  • 500-1,000ms in step is of 100ms
  • Adjustable line level volume control from -75dB to 0dB


• Specifications:

  • Audio Input Connectors: 2 x RCA analogue left/right
  • Audio Output Connectors: 2 x RCA analogue left/right
  • Audio Delay: Rotation switch
  • Volume Control: Rotation switch
  • Casing Dimensions (W x H x D): 70mm x 25mm x 73mm
  • Shipping Weight: 0.4kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 5V/1A DC


• Item Includes:

  • 1x AD11AU
  • 1x 5V/1A DC Power Supply
  • 1x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003195
