Hall Technologies HT-DSCV3-TX-WP HDBaseT USB3.2 Extender Wallplate Transmitter - Transfer Speeds up to 5Gb/s

ITEM #: HRT-HT-DSCV3TXWP MFG #: HT-DSCV3-TX-WP

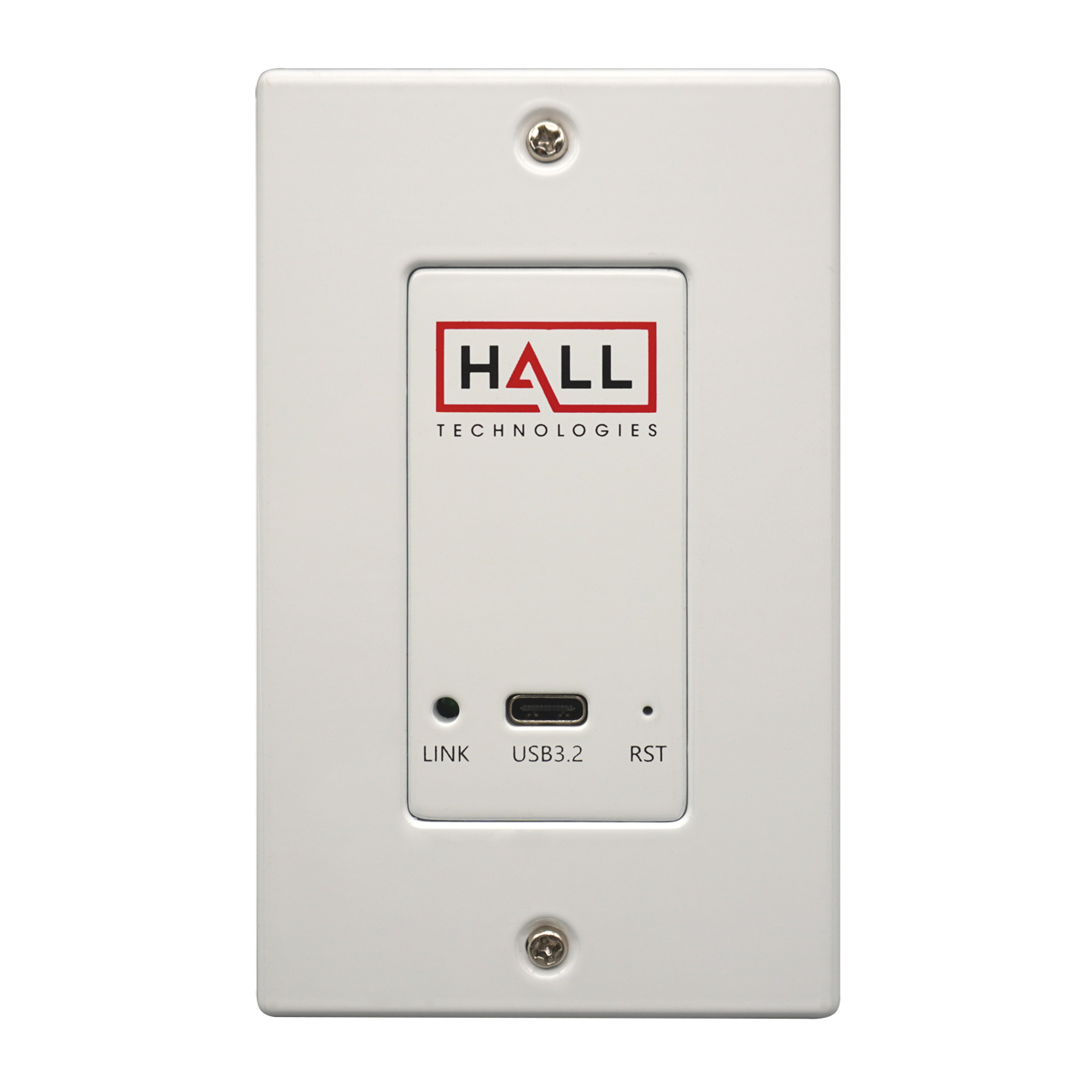

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$349.00

Our Price:

$331.55

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HT-DSCV3-TX-WP - Overview

The Hall Technologies HT-DSCV3-TX-WP is a next-generation USB 3.2 extender designed to provide seamless high-speed data transfer and reliable connectivity. Supporting the USB 3.2 Gen 1x1 standard, it delivers data transfer speeds of up to 5 Gbit/s while ensuring full backward compatibility with USB 3.0, USB 2.0, and USB 1.1 devices. With Power over HDBaseT (POH) technology, this extender requires power on only one side-either the transmitter (TX) or receiver (RX)-reducing cable clutter and simplifying installation. Additionally, its PSE power module supplies up to 90W charging power to a connected host device via USB-C.

The HT-DSCV3-WP extends USB connectivity up to 295 feet (90 meters) via Cat6a/7 cabling, offering flexibility for various environments, including corporate offices, educational institutions, and medical facilities. It also features RS-232 pass-through, enabling seamless device control. When paired with the HT-DSCV3-RX-V2 model, users can take advantage of dual HDMI video outputs, allowing video from a PC to be displayed on two separate monitors using just a single USB-C connection. The built-in control pass-through further enhances usability by allowing users to manage the source from the display's location or control the display from the source's location.

With its compact and lightweight design, the HT-DSCV3-WP is easy to install in a variety of settings. Whether used for extending USB signals, powering devices, or supporting high-quality video output, this extender provides a powerful, efficient, and reliable solution for modern AV and IT installations.

  • Features:

    • Supports USB 3.2 Gen 1x1 standard
    • Backwards compatible to support USB 3.0, USB 2.0, and USB 1.1 devices
    • Supports 90m transmission via Cat6a/7
    • Supports up to 5 Gbit/s data transfer rate
    • Supports RS-232 pass-through
    • POH power module - only one device connected to power
    • PSE power module - provides 90W charging power to the connected host device

  • Specifications:

    • USB Standard: USB 3.2 Gen 1x1
    • Data Rate: Up to 5Gbit/s
    • Transmission Distance: 90m over Cat6A/7

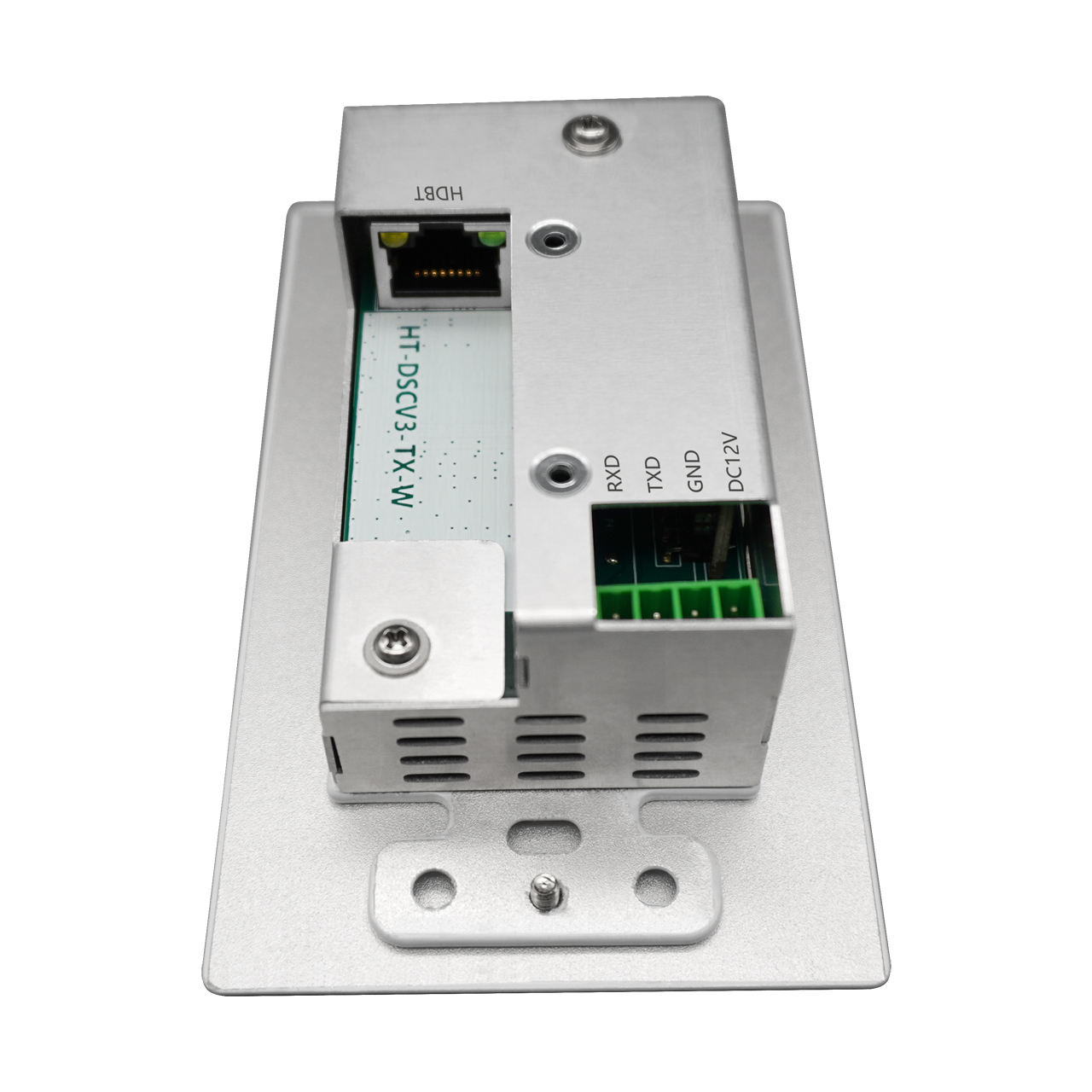

    • Inputs:
      - 1x USB 3.2 Type-C, Host
      - 1x 4-pin Phoenix, RS-232 and 12V Power
    • Outputs: 1x RJ-45, HDBT
    • Dimensions (HxWxD): 4" x 1.75" x 1.5" (101.6mm x 44.45mm x 38.1mm)
    • Weight: 0.3lbs (0.14kg)
    • Power: 1x 12V, 1A on Phoenix Connector (power supply not included)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: 4°F - 140°F (-20°C - 60°C)
    • Humidity: 10% - 90%, non-condensing

  • Item Includes:

    • 1x HT-DSCV3-TX-WP Extender Transmitter Wall Plate
    • 1x Cover Plate w/ Screws
    • 1x 4-Pin Phoenix Male Connector
    • 2x Mounting Screws

  • Warranty:

    • 3 Year Warranty
