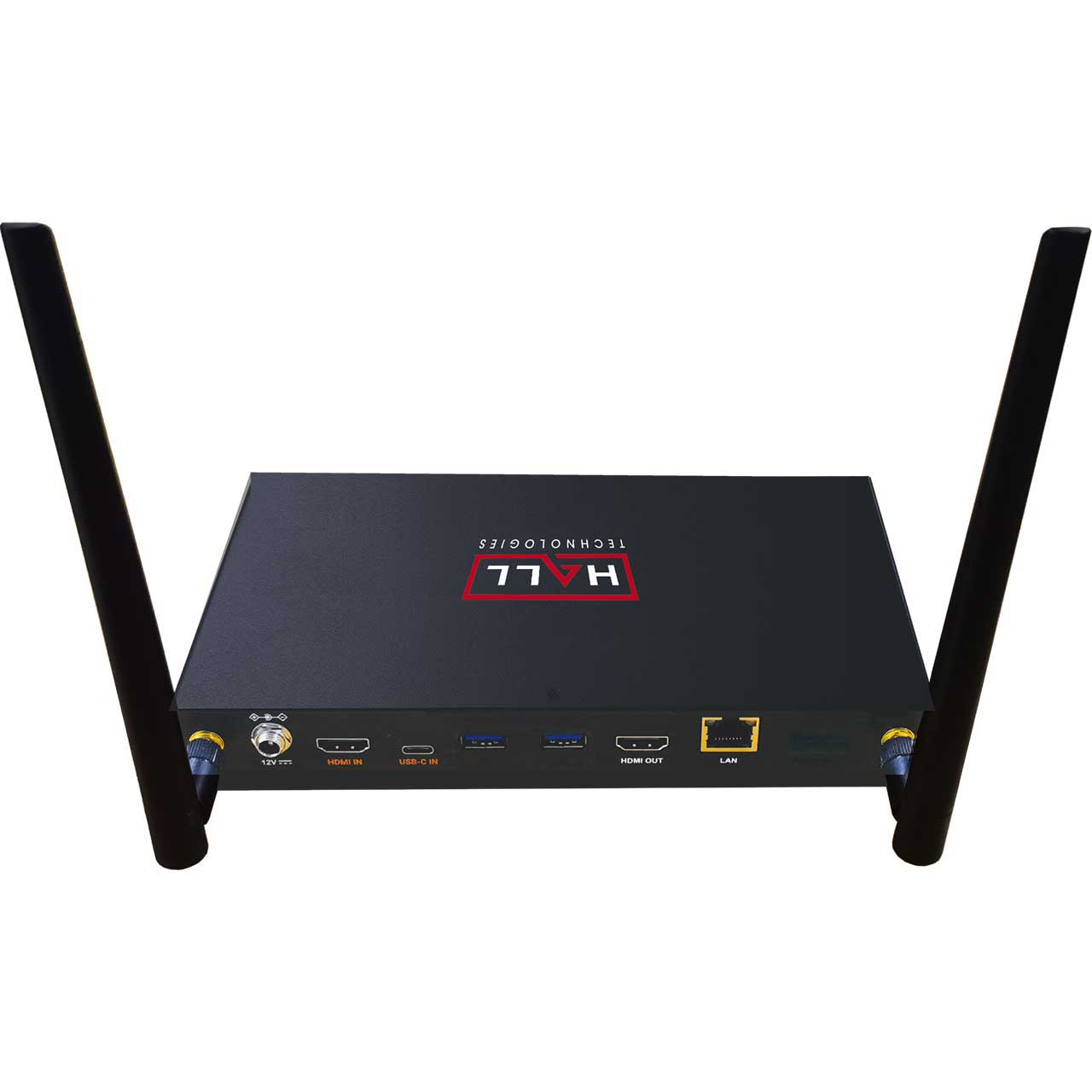

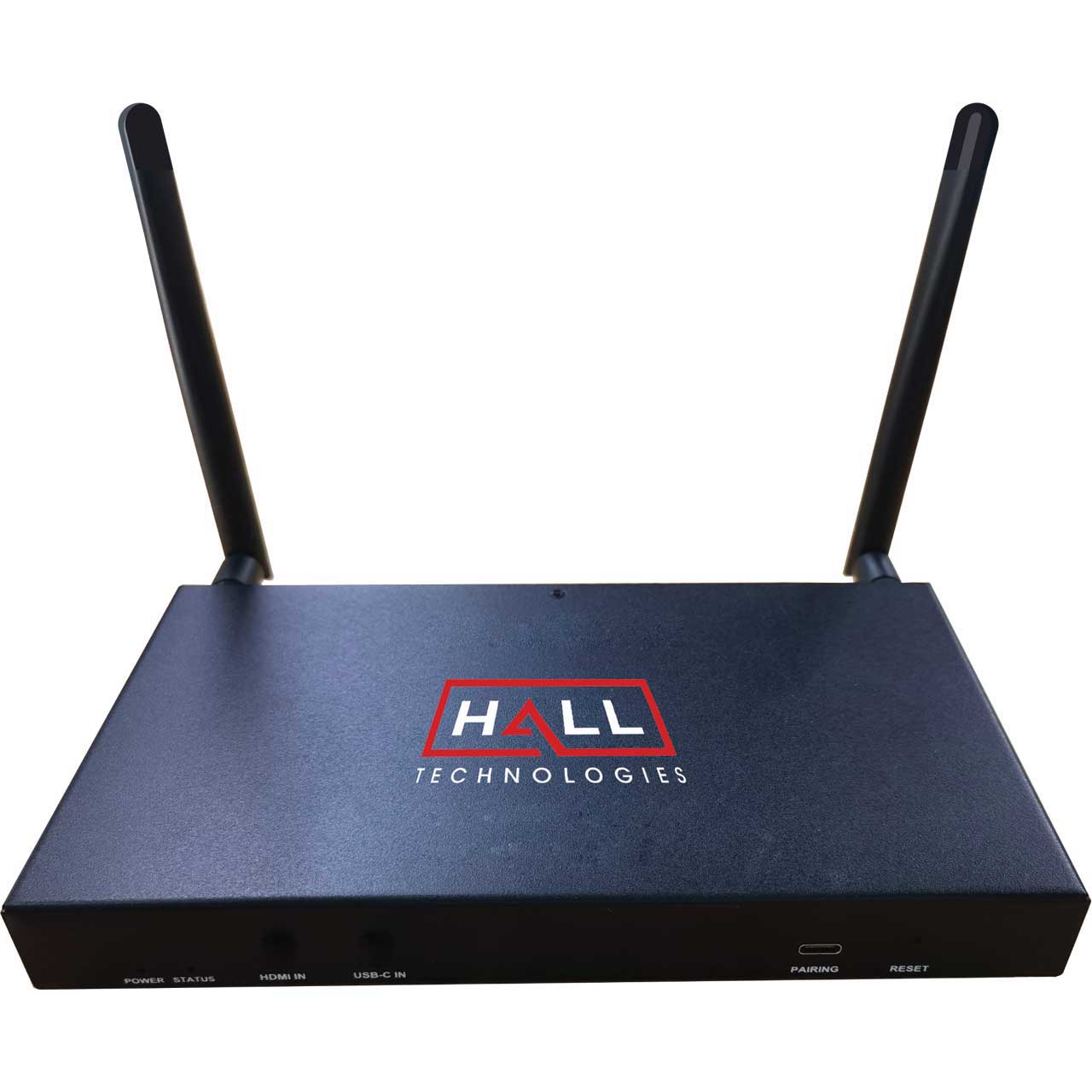

Hall Technologies HT-RANGER 4K BYOD Presentation Switcher - HDMI and USB-C

HT-RANGER - Overview

• Features:

  • Dual view presentation.

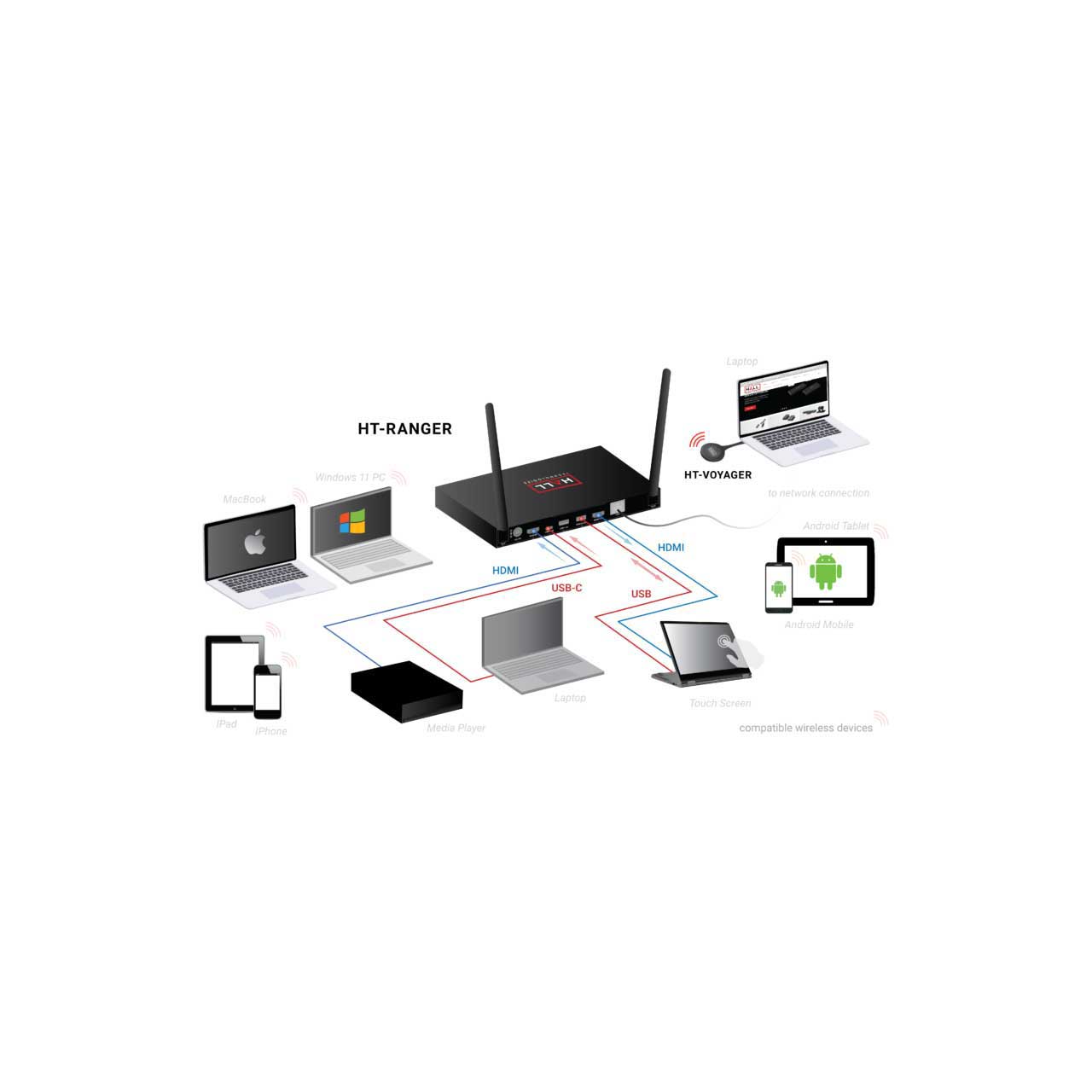

  • Built-in Wi-Fi module for wireless connectivity with devices over AirPlay, Miracast, Smart View, and HT-Voyager.
  • Supports HDMI input and output resolutions up to 4K@30Hz 4:4:4.
  • Detailed On Screen Display (OSD) information.
  • Device control using Web UI and Telnet API.
  • Laptops connected to the HT-RANGER using the USB-C interface can access USB peripheral devices (i.e. cameras, microphones) connected to USB-A ports on the HT-RANGER.


• Specifications:

  • Video
  • Input Video Port: 1x USB In; 1x HMI In; 1xLAN In; 1xWLAN In;
  • Input Video Signal: HDMI: HDMI 1.4, HDCP 1.4, USB-C: Displayport 1.1, HDCP 1.4, LAN/WLAN:H.264
  • Input Resolution: - HDMI: 640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x1200, 1680x1050, 1920x1200, 720x480 (480), 720x576 (576), 1280x720 (720p30), 1280x720 (720p50), 1280x720 (720p)60, 1920x1080(1080p24), 1920x1080, (1080p25), 1920x1080 (1080p30), 1920x1080 (1080p50), 1920x1080((1080p60),3840x2160 (2160p30) LAN.WLAN: Up to 1920x1080 (1080p30) Note: The Input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and devices.. 1=at 23.98 Hz, 2=at 24 Hz, 3=at 25 Hz, 4=at 29.97 Hz, 5=at 30 Hz, 6=at 50 Hz, 7=at 59.94 Hz, 8=at 60 Hz
  • Output Video port: 1x HDMI
  • Output Video Signel: HDMI 1.4, HDCP 1.4
  • Output Resolutions: 720x480 (480p60), 720x576 (576p60), 640x480, 800x600, 1024x768, 1280x1024, 1366x768, 1440x900, 1280x800, 1680x1050, 1920x2160, 1600x1200, 1920x1200, 2560x1440, 2560x1440, 1280x720(720p50), 1280x720, (720p60), 1920x1080, (1080i50), 1920x1080 (1080i60), 1920x1080 (1080p24), 1920x1080 (1080p25),1920x1080, (1080p30),1920x1080 (1080p50),1920x1080 (1080p60, 3840x2160 (2160p25), 3840x2160 (2160p30)) 1=at 23.98 Hz, 2=at 24 Hz, 3=at 25 Hz, 4=at 29.97 Hz, 5=at 30 Hz, 6=at 50 Hz, 7=at 59.94 Hz, 8=at 60 Hz

    Audio
  • Input Audio Port: 1x HDMI; 1x USB-C; 1x LAN; 1x WLAN
  • Input Audio Signal: RAW PCM 2.0, 16 bit, 32/44.1/48KHz sps
  • Output Audio Port: 1x HDMI
  • Output Audio Signal: RAW PCM 2.0, 16 bit, 32/44.1/48KHz

    Wi-Fi
  • Standard: IEEE 802.11 a/b/g/n/ac
  • Frequency: Dual bands, 2.4~2.4835GHz,5.0~5.8GH
  • Throughout: 2T x 2R,up to 433Mbps
  • Security: WEP, TKIP,AES, WPA, WPA2

    Control
  • Control Connector: 1x RJ45, 10/100/1000Mbps Ethernet
  • Control Method: LAN (Web UI & Telnet API)
  • Operating Temperature: 32°F to +113°F
  • Storage Temperature: -4°F to 158°F
  • Humidity: 10% to 90%, non-condensing
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    General
  • Power Supply: 12V 2A DC
  • Power Consumption: 12W (max)
  • Device Dimension (W x H x D): 8.46" x 0.98" x 4.73"(Antennas not included)
  • Net Weight: 1.5lbs


• Item Includes:

  • 1x Switcher
  • 2x Wi-Fi Antennas
  • 1x DC 12V Power Adapter with US Pins
  • 2x Mounting Brackets (with Screws)
