VigilLink VLPT-42WHUB 2x1 4K30 Wireless BYOD Multiview Presentation Switcher - USB-C/USB 3.0/Ethernet

ITEM #: VGL-VLPT-42WHUB MFG #: VLPT-42WHUB

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$2,750.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLPT-42WHUB - Overview

The VLPT-42WLHUB Multiview Presentation Switcher is a versatile solution designed for seamless wireless presentations, supporting BYOD via Airplay, Miracast, and Chromecast. This device allows users to effortlessly connect and share content from smartphones, tablets, laptops, or computers, enabling smooth collaboration in any meeting environment. The Multiview function enhances productivity by displaying two videos from any device, whether wired or wireless, on a single screen. With automatic switching between HDMI and USB-C inputs, the switcher offers a plug-and-play experience with no configuration required, ensuring a hassle-free setup.

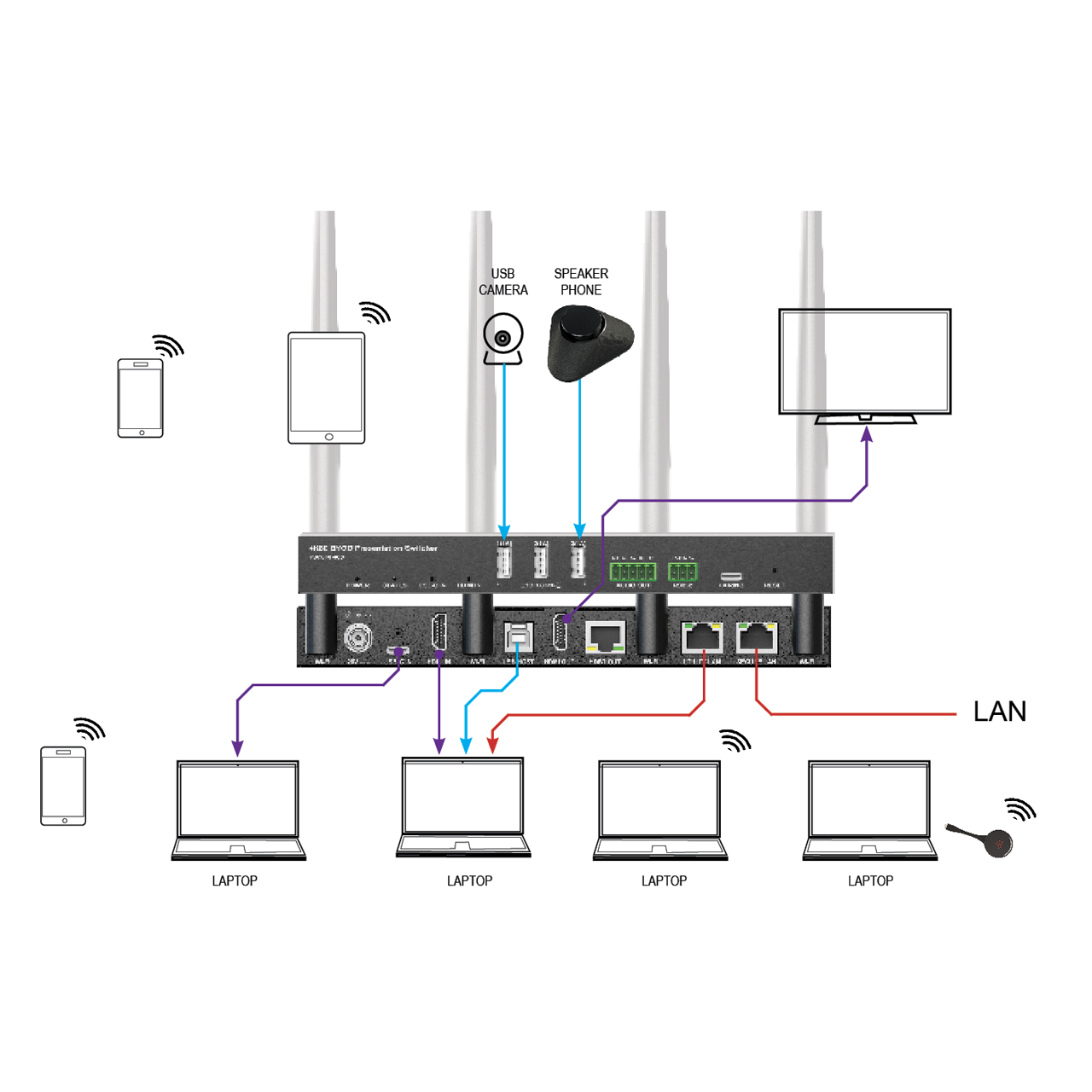

In addition to its wireless capabilities, the device also features USB connectivity, enabling integration with speakerphones and 4K cameras for seamless conferencing on platforms like Zoom and Teams. For even greater flexibility, the switcher is available with integrated HDBaseT2 technology, which provides a single connection extension for USB, video, and RS232 functionality. This all-in-one solution is ideal for modern meeting rooms and collaborative spaces, delivering high-quality video and audio with ease.

  • Features:

    • 2x1 presentation switcher
    • USB-C port with video input, USB 3.0, charging, and Ethernet
    • Multiview presentation, up to dual-view
    • BYOD receiver with Airplay Mirroring, Miracast, Chromecast, and Dongle
    • Video input timing up to 4K@30Hz 4:4:4
    • Video output timing up to 4K@60Hz 4:4:4 (4:2:0 on HDBT out)
    • Built-in Wi-Fi module for wireless casting
    • 4 input and 2 output USB 3.0 switcher
    • Built-in Ethernet switch
    • Analog audio output

  • Specifications:

    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2, 1.4
    • Video Bandwidth: 18 GB
    • Video Resolution (Up To): 4k30
    • Color Space: 4:4:4
    • Color Depth: 10 Bit
    • Audio Formats: LPCM 2.0t
    • Transmission Distance 4k: 40 meters
    • Transmission Distance 1080p: 70 meters

      Connections
    • Input Ports:
      - 1x USB-C
      - 1x HDMI
      - 2x LAN, 10/100/1000Mbps Ethernet
      - 2x Wi-Fi
      - 3x USB-A
    • Output Ports:
      - 1x HDMI
      - 1x HDBT (Mirror of HDMI output)
      - 1x Analog Audio (5 pin Phoenix)
      - 1x USB Host
    • Control Ports:
      - 1x RS-232

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 6.30 x 8.46 x .098" (130 x 270 x 30mm)
    • Product Weight: 2lbs (0.9KG)
    • Power Supply Voltage: 20V
    • Power Supply Current Draw: 6A
    • Operating Temperature: 32 - 104°F (0 - 40°C)
    • Storage Temperature: -4 - 140°F (-20 - 60°C)
    • Relative Humidity: 20 - 90% RH (non-condensing)

  • Warranty:

    • 6 Years
