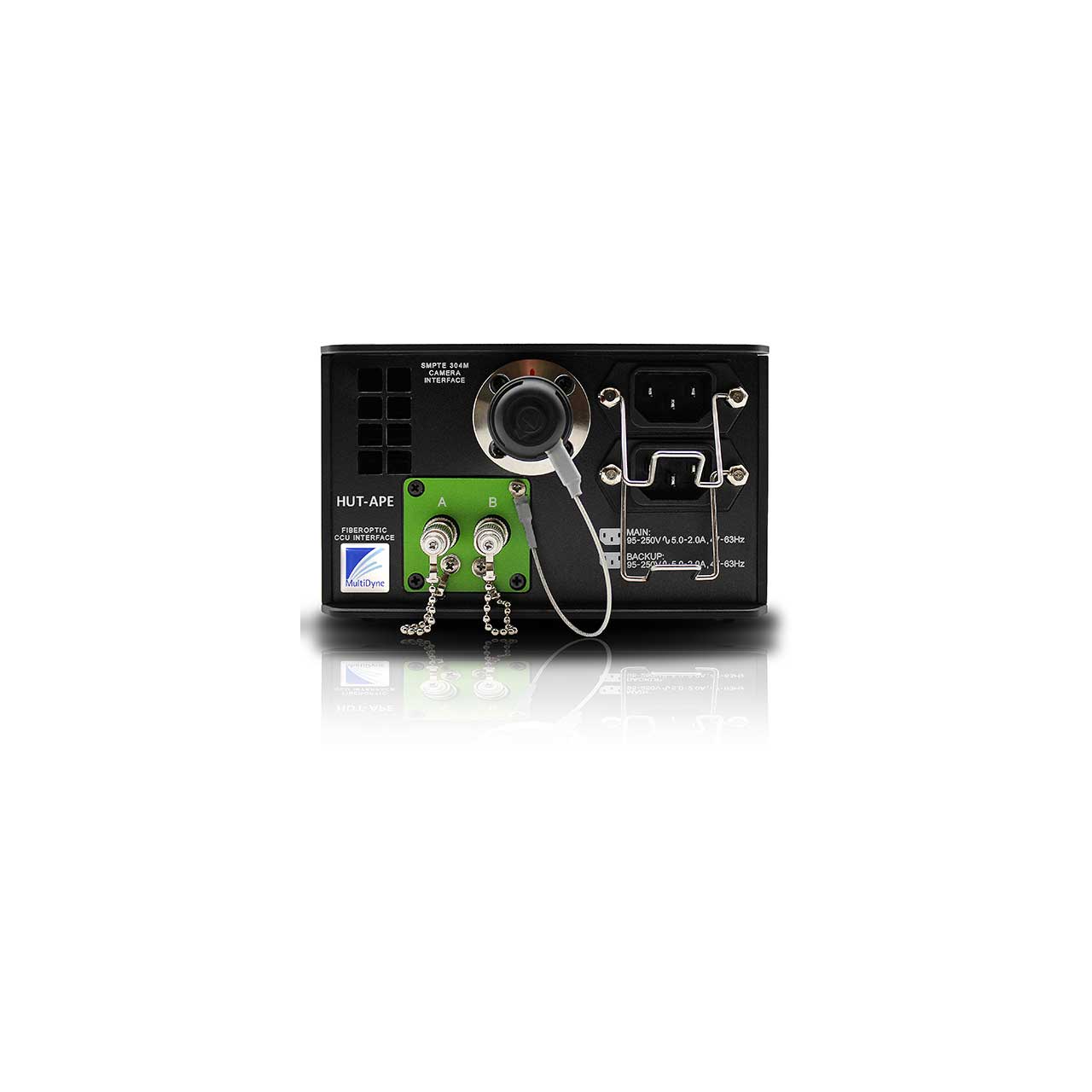

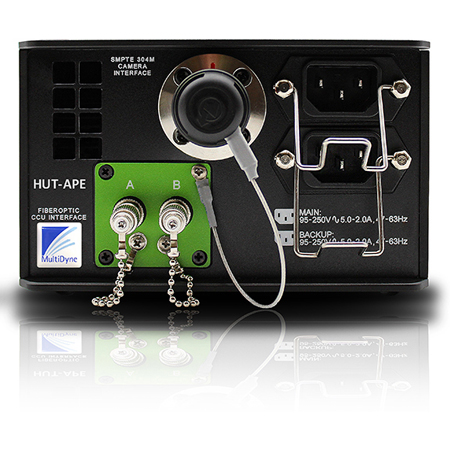

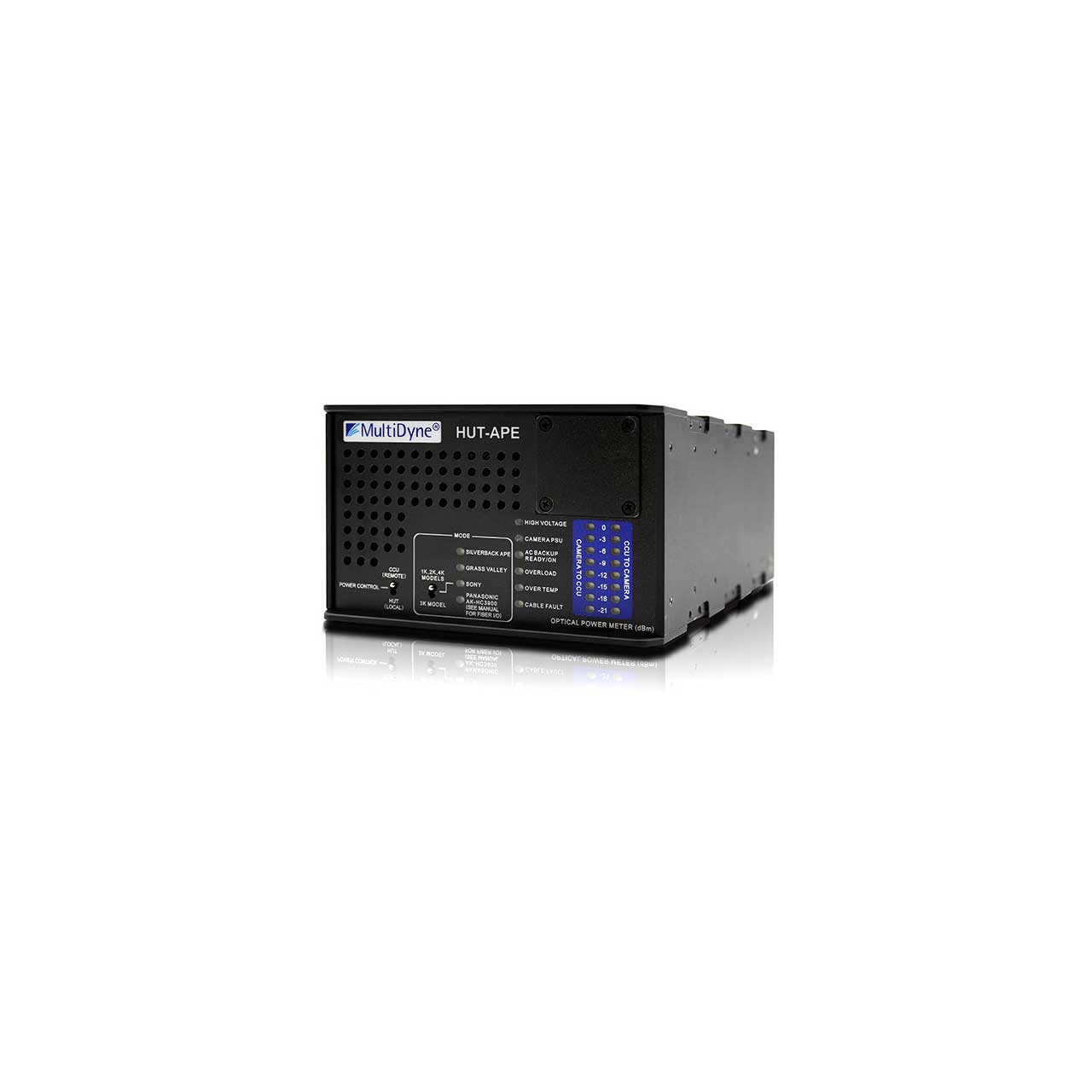

The Multidyne HUT-APE with 2 SingleMode ST Fiber system frees camera chains from the limitations of hybrid copper and fiber cabling permitting cameras to be separated from their CCUs by distances of over 10km using inexpensive, conventional single mode fiber. This has many advantages over SMPTE hybrid cable including:
- Eliminating RF, EMI and grounding issues
- Faster set and strike times saves time and money
- Reduced weight makes for lighter OB trucks, B-units and cable shipments
Connect Anywhere Easily
The plug and play system allows camera chains to connect via a facility's fiber infrastructure or on tactical fiber cable in the field using industry-standard connectors, such as STs, LCs, SCs, or OpticalCON. The HUT system works by "spoofing" (or "tricking") the camera and CCU into seeing a physical copper connection between them when connected only by single mode fiber cable.
Local Or Remote Power

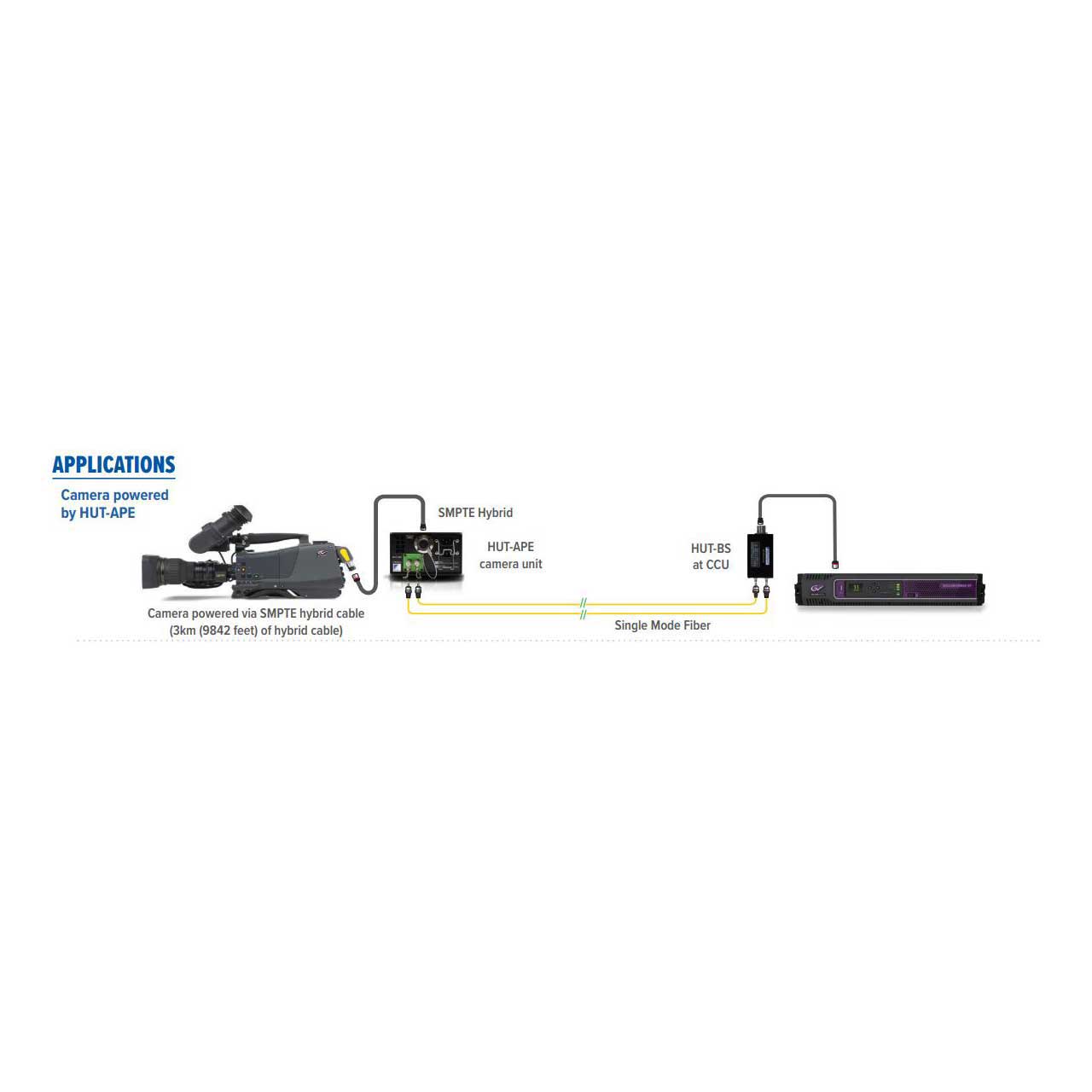

After a long run of single mode fiber, HUT-enabled camera systems can be configured in one of two ways:
1. Power the camera with the HUT-APE with up to 3km of hybrid cable. Power is sufficient for hand-held cameras or cameras installed in sleds with long lenses and other high-power accessories.
2. Power the camera locally and use the HUT-BS
Route And Multiplex Cameras
Once the hybrid cable is removed, a camera chain can be easily routed through optical routers or used with MultiDyne's FiberSaver systems to multiplex up to nine cameras onto just one strand of a single mode fiber.
Use Less Fiber With Fibersaver
While passive to the camera chain optics, the HUT-APE can be used with the MultiDyne line of FiberSaver wavelength shifting muxes.
- Multiplex a camera chain onto a single fiber strand
- Boost the optical range
- Remap the camera & CCU optics to different wavelengths
Applications
Remote Broadcasting
Sports Production
Shared Control Rooms
Campus Facilities
Arenas and Stadiums
Provides power and signal transport to Sony HDC series, Panasonic AK-HC3900, GrassValley Focus and LDX series, and SilverBack-APE
