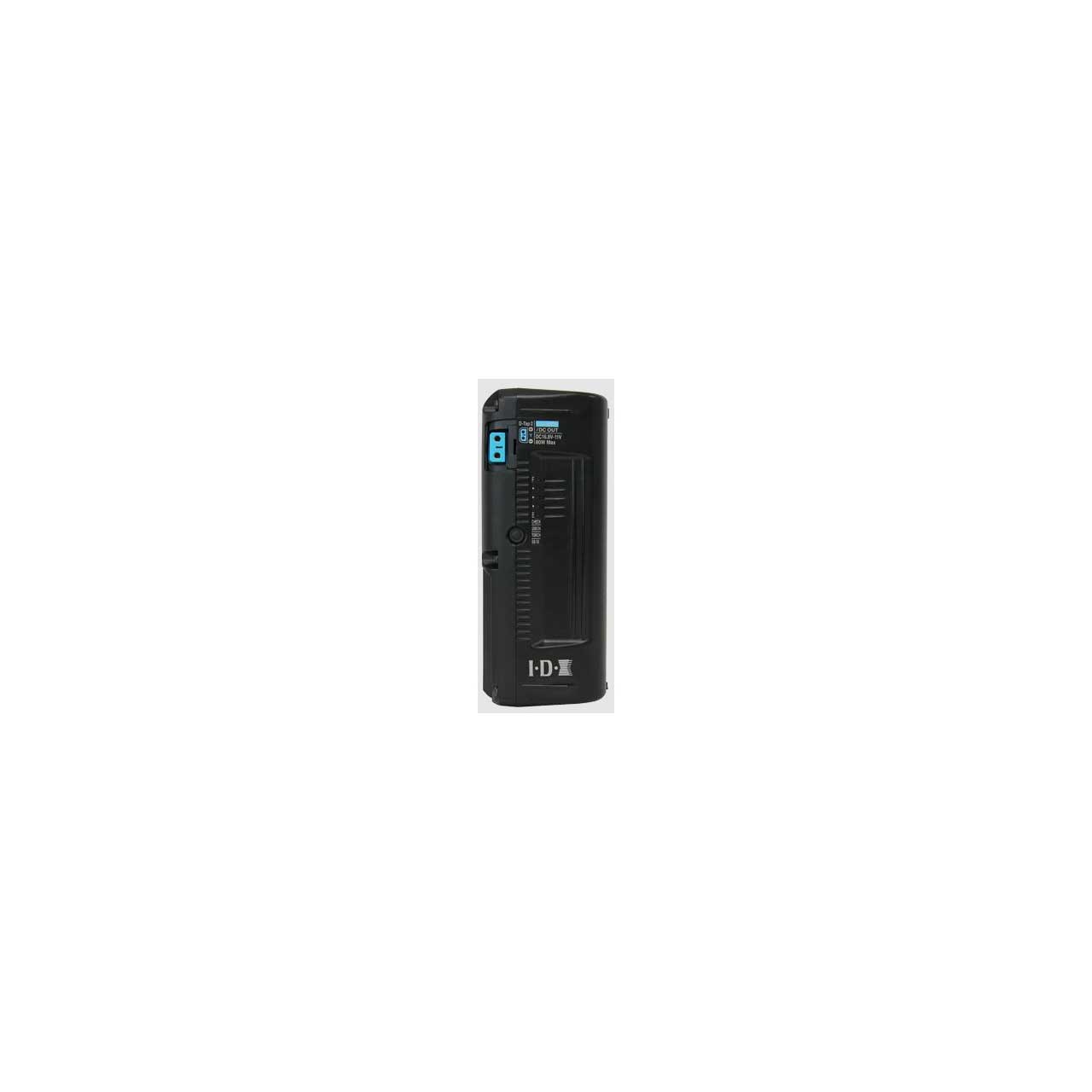

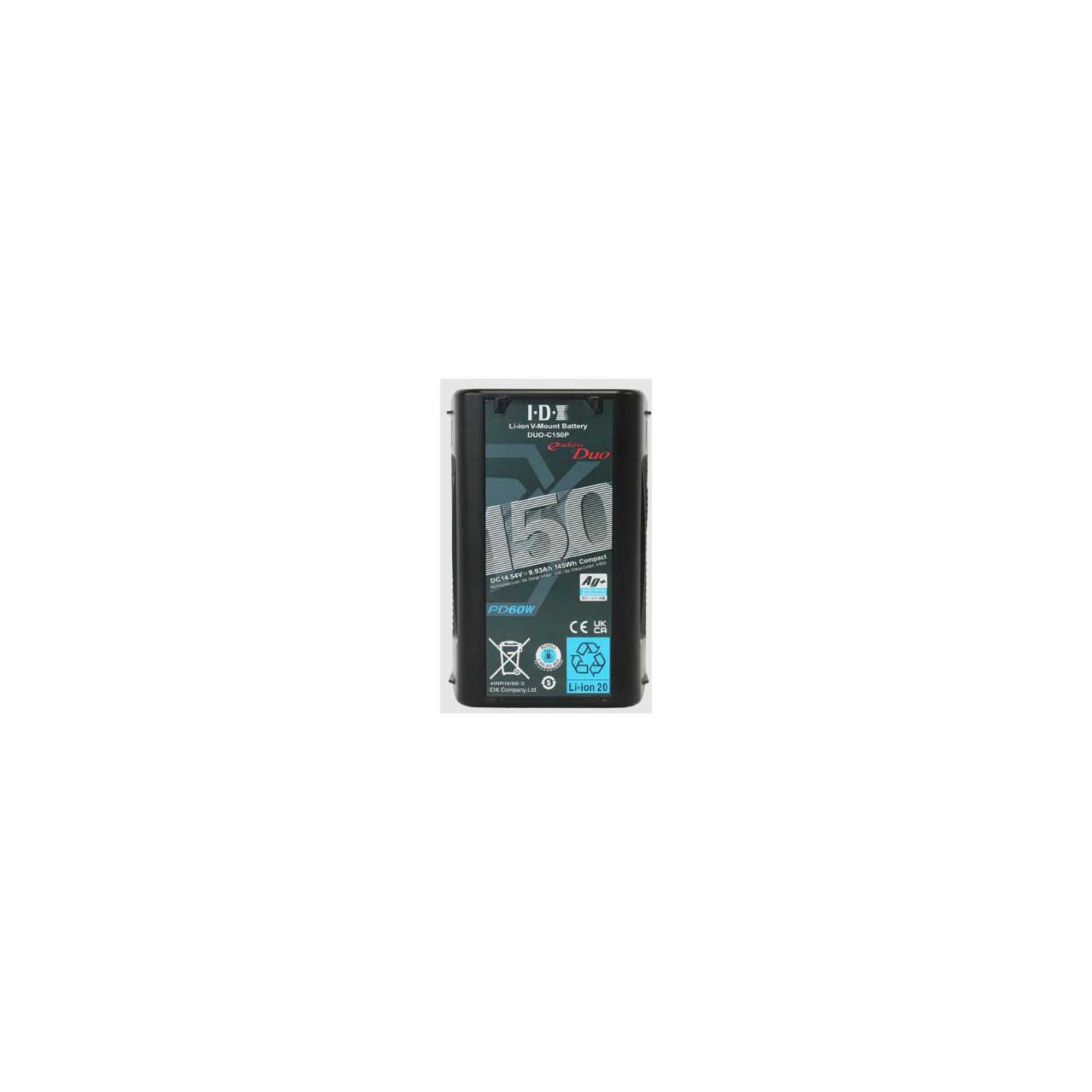

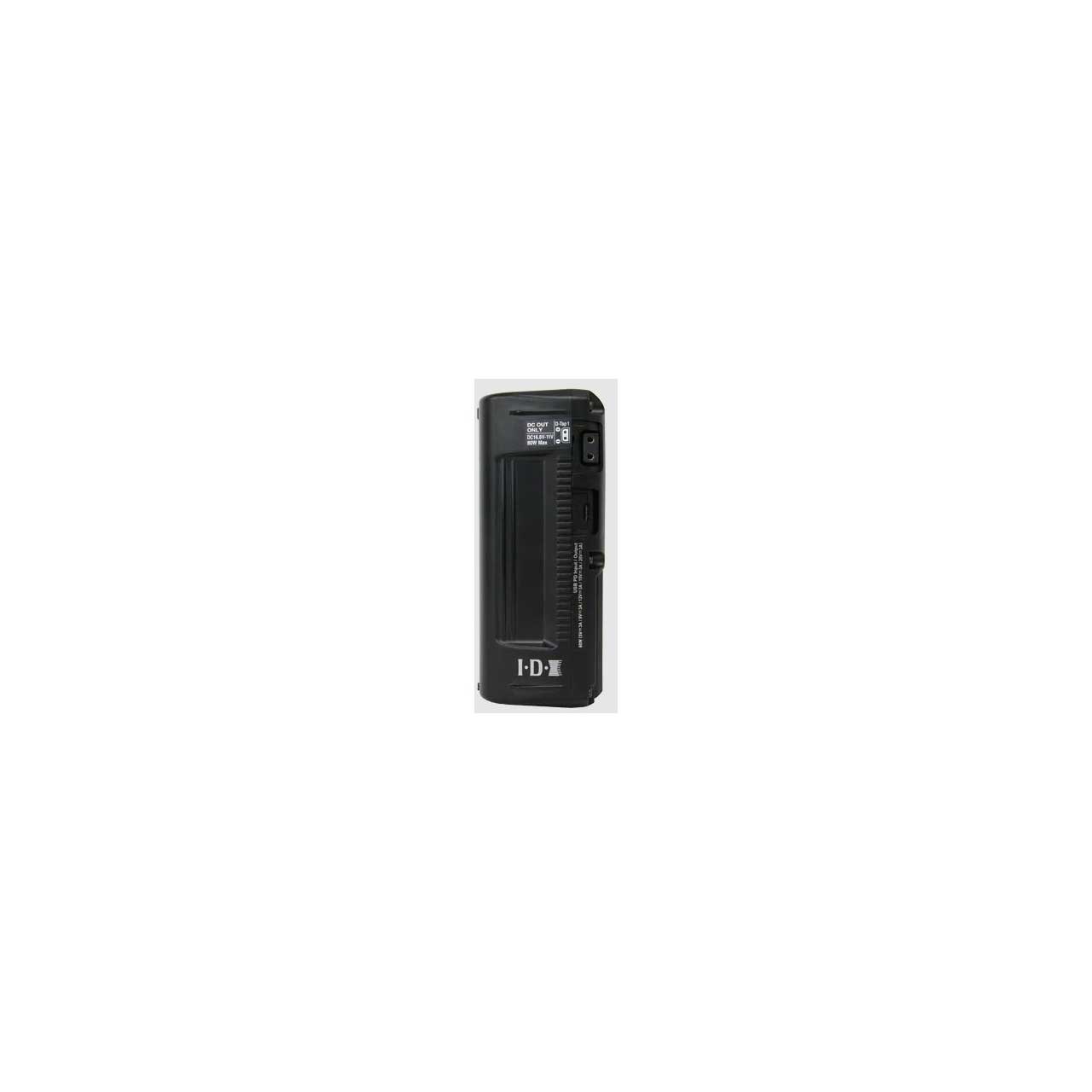

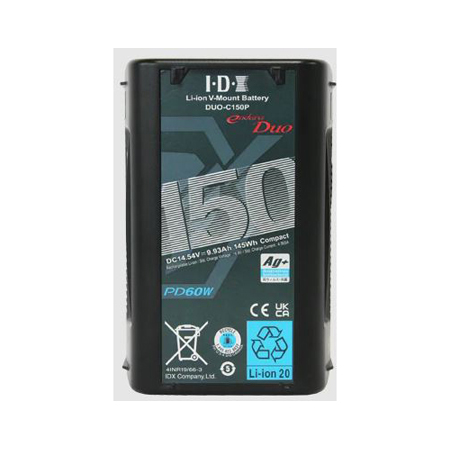

IDX DUO-C150P 145Wh V-Mount Li-Ion Battery 14.54V with 2x D-Tap & USB-PD

Name: IDX DUO-C150P 145Wh V-Mount Li-Ion Battery 14.54V with 2x D-Tap & USB-PD
Brand: IDX
SKU: IDX-DUO-C150P
Price: 349.00 USD
Availability: InStock

ITEM #: IDX-DUO-C150P MFG #: DUO-C150P

IDX

Options:

Options

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$349.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Item restricted to the Contiguous United States ground shipment only.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DUO-C150P - Overview

The IDX DUO-C150P is the successor of the popular DUO-C150 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C150P also includes two on-battery D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.

Features:
- 145Wh Capacity
- Three ways to charge the DUO-CP Series
- 1x D-TAP / 1x D-TAP Advanced
- 60W USB-C PD to be mated with UC-PD1 compact pocket travel charger
- Communication with camera via IB or SB Modes
- V-Torch light for easy a achment to the plate
- 5 LED status display for remaining capacity
- An viral and an microbial body for hygienic peace of mind
Specifications:
- Capacity: 145Wh (14.54V/ 9.93Ah)
- Max Output Voltage: 16.8V DC
- Nominal Voltage: 14.54V DC
- Max Discharge Current: 14A‡
- D-Tap: 80W each
- USB-C PD: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W
- End Voltage: 11V
- Battery Protection: Over-charge, Over-discharge, Over-current, Thermal protection
- Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended), To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended), To store: -4°F ~ 122°F (less than 1 month)
- Dimensions: 3.82(W) x 5.75(H) x 2.32(D) inches
- Weight: 1.98 lbs approx.
Item Includes:
- 1x IDX DUO-C150P 145Wh High-Load Li-Ion V-Mount Battery with 2x D-Tap and USB-PD
