Ikan PT4900S-V2-TRIPOD 19-inch High-Bright Beamsplitter SDI Turnkey Teleprompter with Tripod and Dolly

ITEM #: IKAN-4900S-V2-TP MFG #: PT4900S-V2-TRIPOD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$7,099.00

Our Price:

$6,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT4900S-V2-TRIPOD - Overview

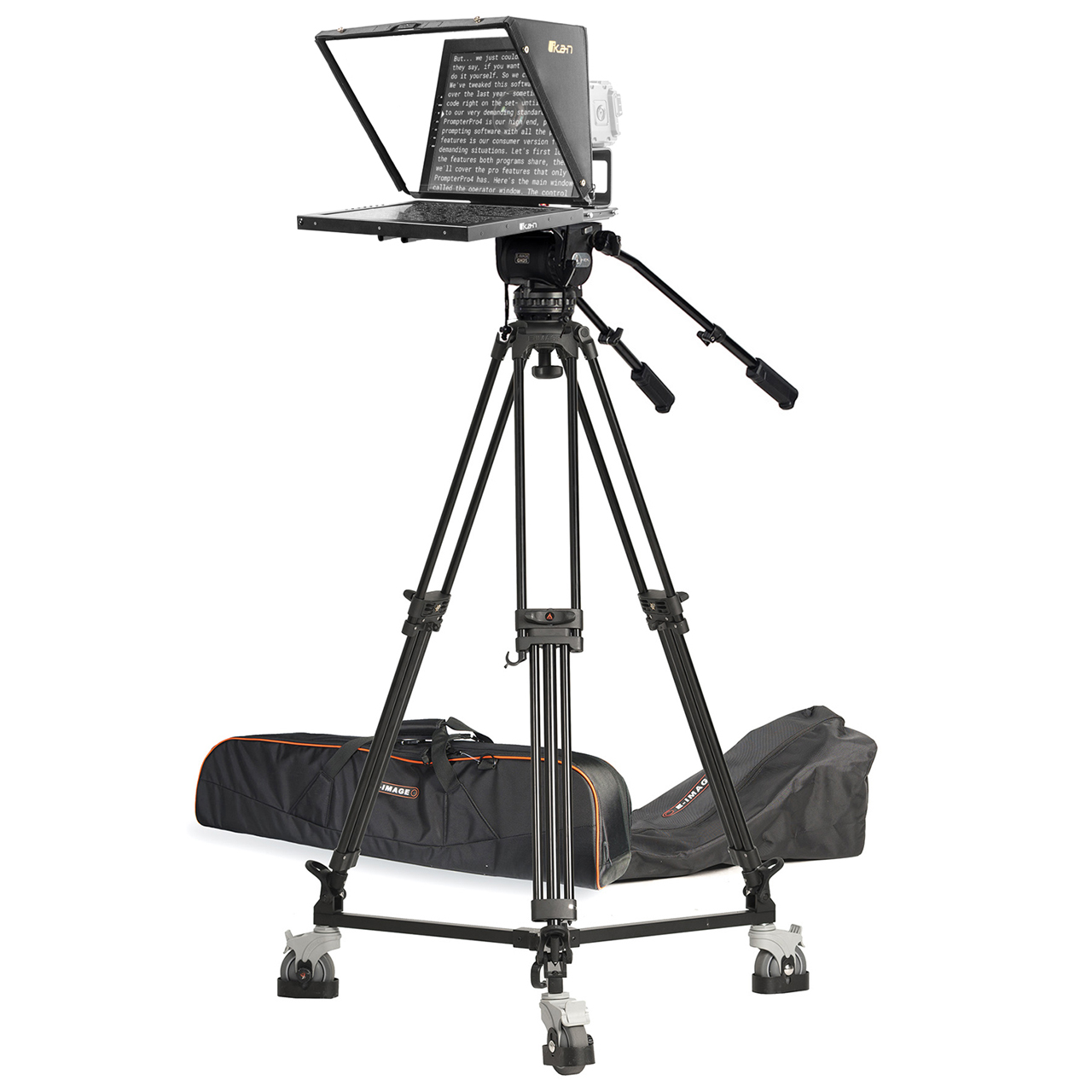

Turnkey Broadcast Solution
Ikan’s PT4900-V2 Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 19" teleprompter, tripod, and dolly.

The remaining payload capacity, after mounting the full 19" teleprompter, can accommodate camera setups up to 31.7lbs This solution also includes a hard case for the pedestal and a carrying bag for the dolly.

19" Teleprompter System
Ikan’s professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20” and 3/8-16” threads for mounting to a tripod or pedestal. The monitor includes HDMI, 3G-SDI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a wide viewing angle.

Extreme Clarity
The glass is coated so that it reflects 65% of the light projected onto it while allowing the remaining 35% to pass through.

Large Range of Camera Compatibility
Ikan’s professional line teleprompters include three different camera mount bases to allow for a large range of different-sized cameras to work. The base can conveniently slide to adjust the weight without the need to remove the plate.

Easy to Balance
The PT4900-V2 includes a long rail which allows you to easily balance your entire teleprompter setup. A counterweight is not needed with the PT4900 since the weight can be shifted anywhere along the teleprompter base. Since a counterweight is not needed, you will not be adding additional weight to the tripod head.

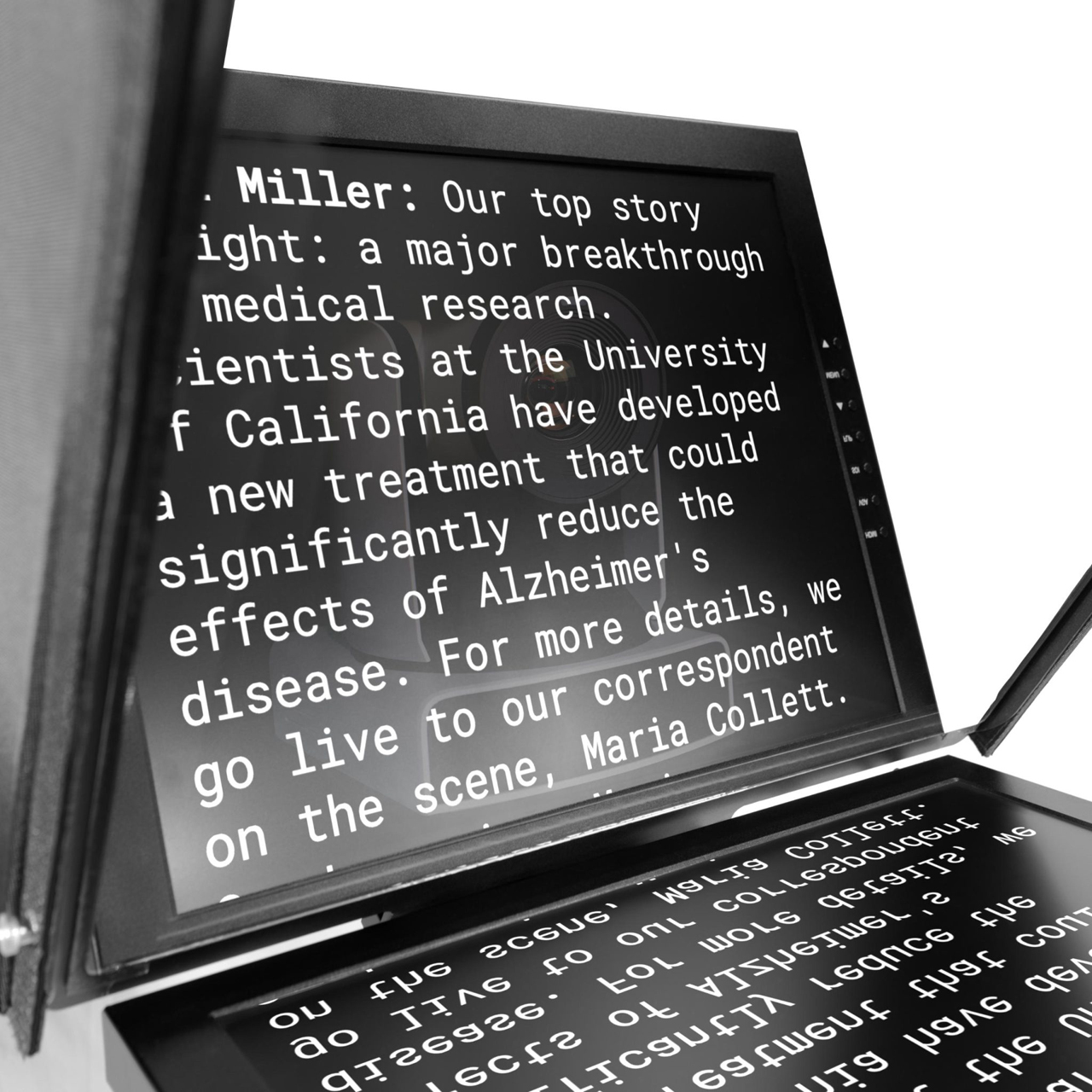

High Bright Screen
The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor.

Slide Range
The 60mm tripod plate mounts the teleprompter system to the fluid head and provides an extra 5.7 inches of sliding range. By allowing horizontal adjustments of the camera position on the tripod plate, this feature enables precise counterbalancing. Videographers can fine-tune the distribution of weight to achieve equilibrium, ensuring that the counterbalance system effectively stabilizes the camera setup, especially when using heavy lenses or accessories.

Drag/Counterbalance
The fluid head features 15-steps of adjustable counterbalance system, and 8 steps of pan & tilt dampening. The Drag & Counterbalance combined are a crucial feature in video camera tripods, enhancing stability and facilitating smooth camera movements.

  • Features:

    • Includes 19" SDI teleprompter, tripod, & dolly (w/ cable guards & wheels)
    • Aluminum chassis

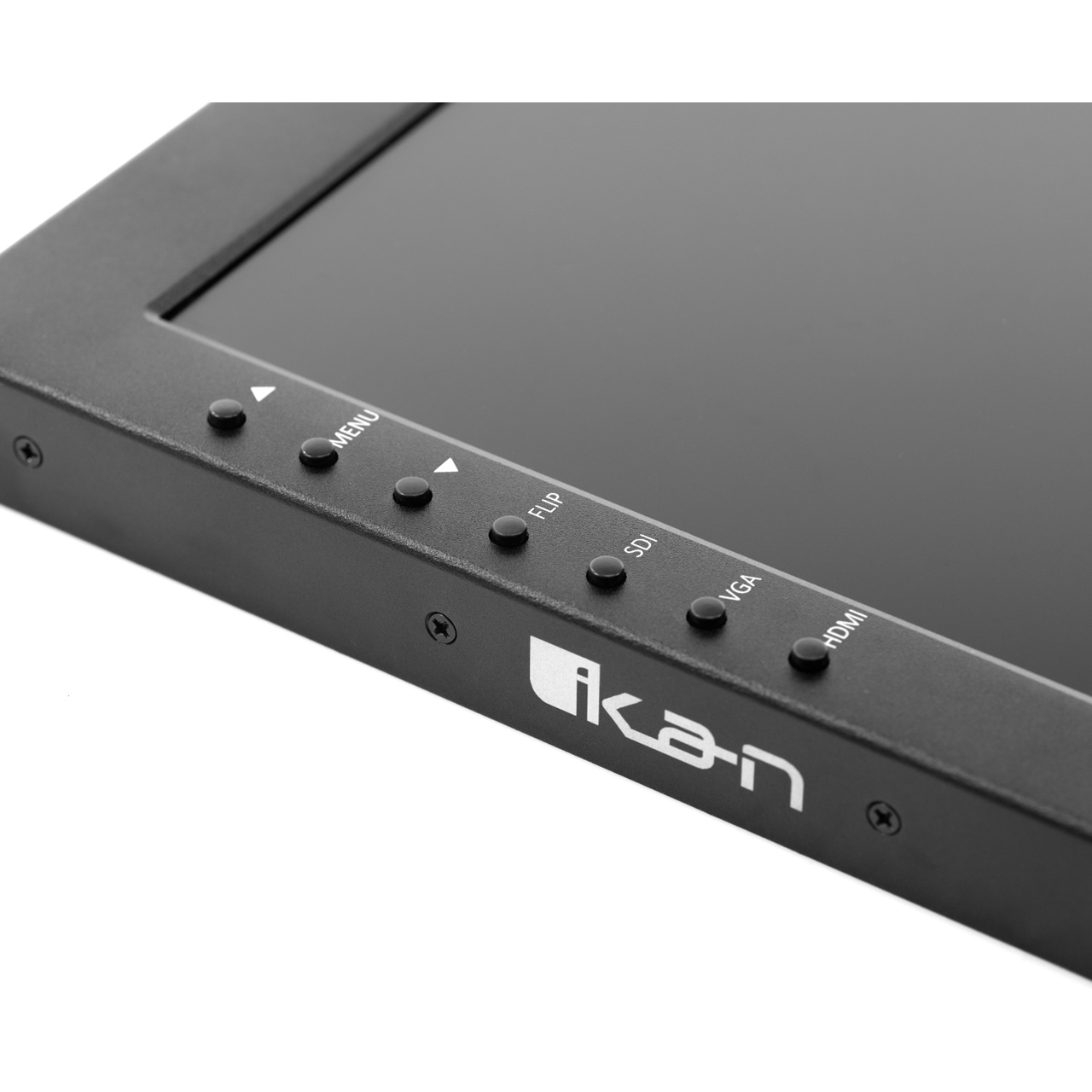

    • Image flip button on monitor
    • Fluid head comes with pan/tilt locks and 100mm bowl
    • Dual panhandles

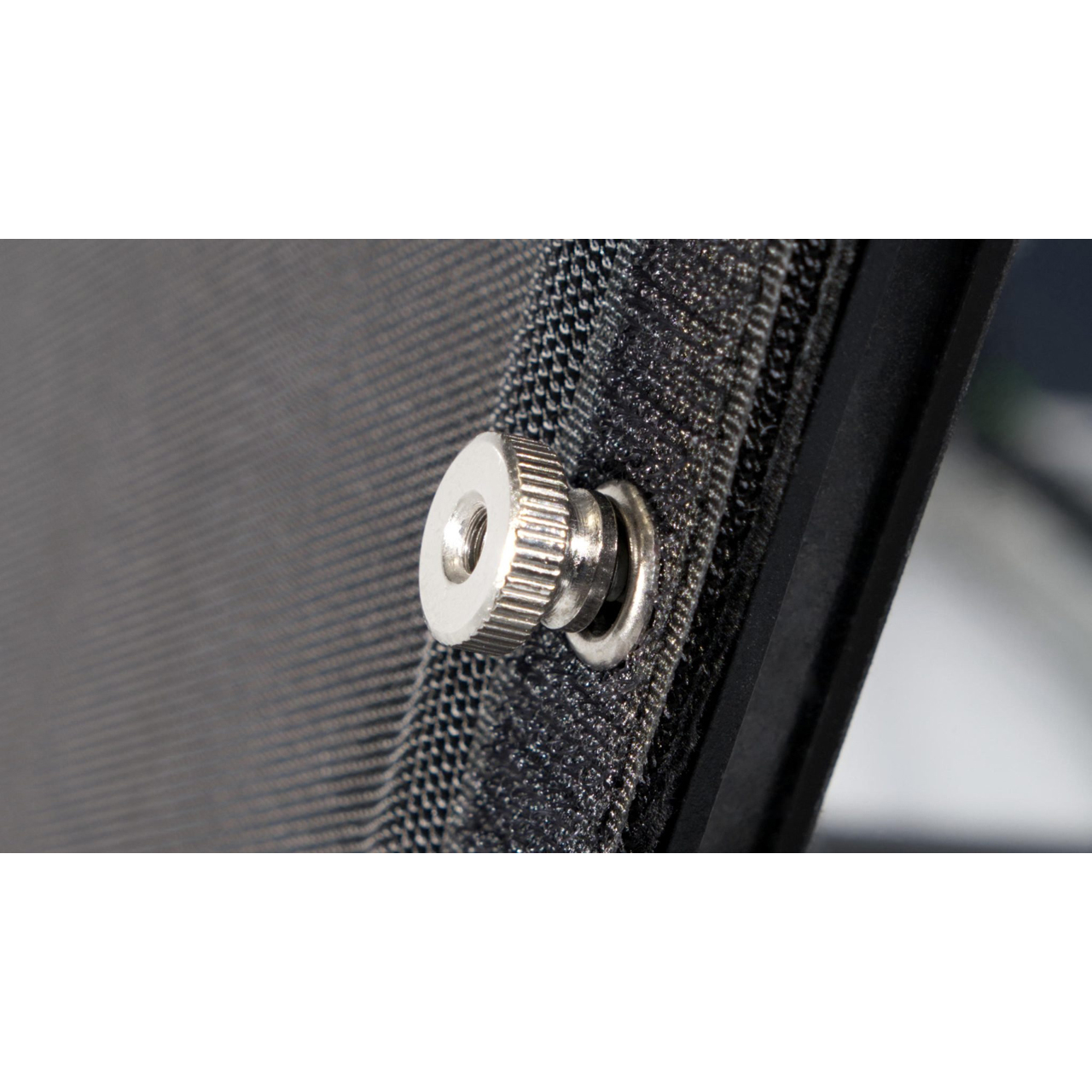

    • Hood secured with bolts and magnets
    • Accommodates camera payloads up to 31.7 lbs
    • For use in studios, live events, & virtual productions

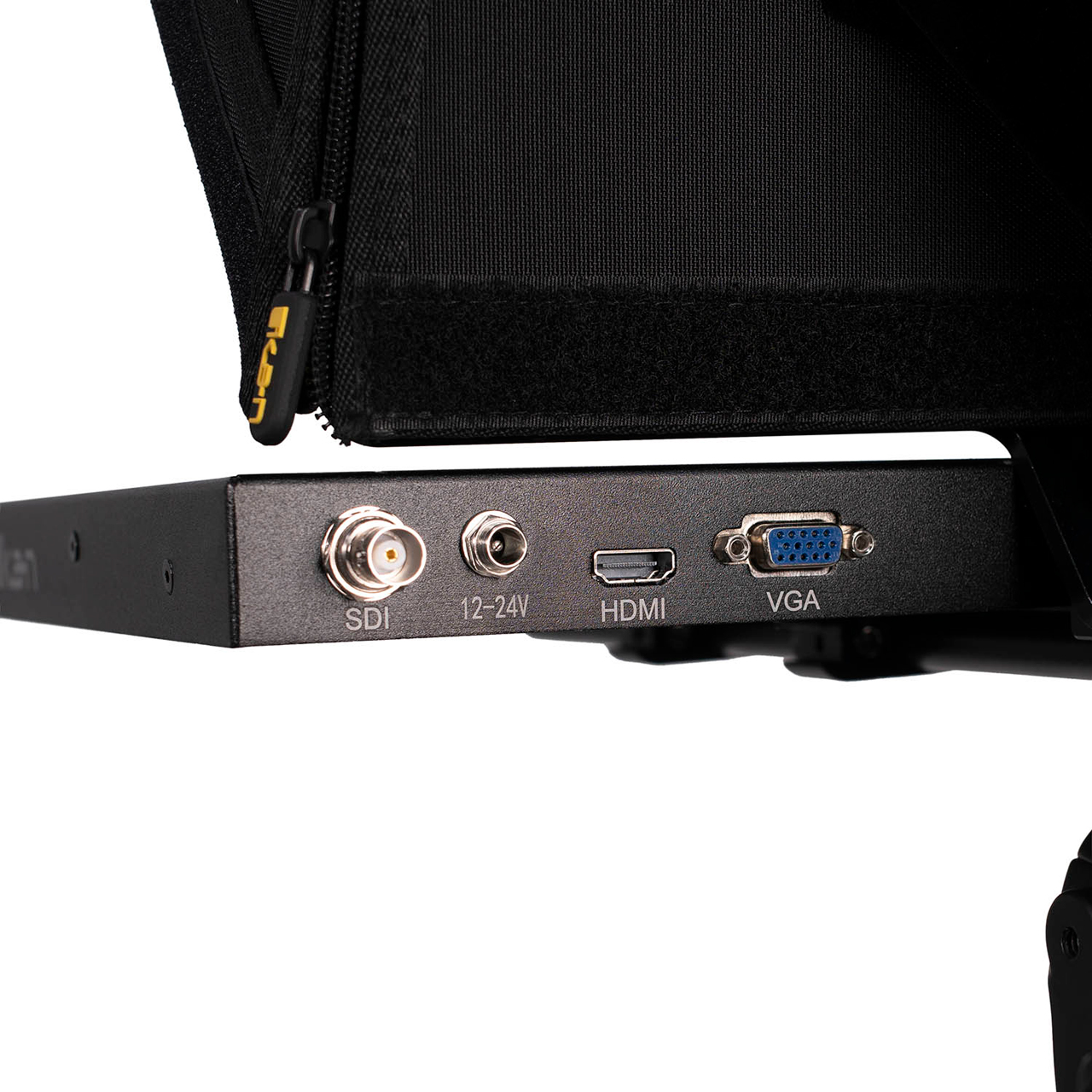

    • Video Inputs: HDMI, VGA, 3G-SDI
    • 2 carrying bags for tripod & dolly

  • Specifications:

    • Available Camera & Accessory Payload Capacity: 31.7lbs

      19" Teleprompter
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25' (7.62m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts:
      - 11 x 1/4" -20 Female
      - 9 x 3/8" -16 Female
    • Weight w/ Low Plate: 29.6lbs
    • Weight w/ Medium Plate: 30lbs
    • Weight w/ High Plate: 30.13lbs
    • Weight w/ DSLR Plate: 29.5lbs
    • Height: 16.1" (411mm)

      19" SDI Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 19"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 4A
    • Power Consumption: 30W
    • Product Weight: 6lbs
    • Product Dimensions: 17" x 15" x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H) / 170° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes

      Tripod
    • Material: Anodized aluminum alloy
    • Bowl Size: 100mm
    • Leg Stages/Sections: One-Stage / Three-Section
    • Leg Lock Type: Rotary clamp
    • Spreader: Mid-Level
    • Spiked/Retractable Feet: Yes
    • Load Capacity: 132.3lbs
    • Height Range: 18.5" - 63.0" (47cm - 160cm)
    • Folded Length: 29.1" (74cm)
    • Weight: 11.2lbs (5.1kg)

      Fluid Head
    • Head Payload Capacity: 61.7lbs (28kg)
    • Bowl Size: 100mm
    • Counterbalance System: Stepped, 1-15
    • Pan Drag Settings: 0-7
    • Tilt Drag Settings: 0-7
    • Tilt Lock: Thumb Lock
    • Tilt Range: -80°/+90°
    • Bubble Level: Yes- Illuminated
    • Pan Handle Length Range: 16.7" - 24"
    • Net Weight: 9.2lbs (4.2kg)
    • Net Weight w/ Pan Handles: 11lbs (4.98kg)
    • Sliding Plate Range: 5.7" (145mm)
    • Temperature Range: -40°F - 194°F
    • Camera Plate Length: 6.3" (160mm)

      Dolly
    • Net Weight: 15lbs (6.8kg)
    • Footprint Diameter: 39.4" (100cm)
    • Cable Guard Diameter: 4.92" (12cm)
    • Height: 6.7" (17cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.9" (100mm)
    • Lockable Wheels: Yes
    • Build Material:
      - Legs: Aluminum
      - Wheels: Rubber
      - Screws: Steel
    • Payload: 132.3lbs (60kg)

  • Item Includes:

    • 1x GH25 Head
    • 2x GB4 Pan Handles
    • 1x GP2 Tripod Plate
    • 1x GA102 Tripod Plate
    • 1x T20 Carrying Bag
    • 1x EI-7004B Dolly
    • 1x DB-01 Dolly Carring Bag
    • 1x Teleprompter Base
    • 1x 19 in. SDI Teleprompter Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 1x Power Supply
    • 1x Prompter Pro 4 Digital Download

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0847983036295
