ikan IKC-AH2S Advanced HDMI to SDI Converter

ITEM #: IKAN-IKC-AH2S MFG #: IKC-AH2S

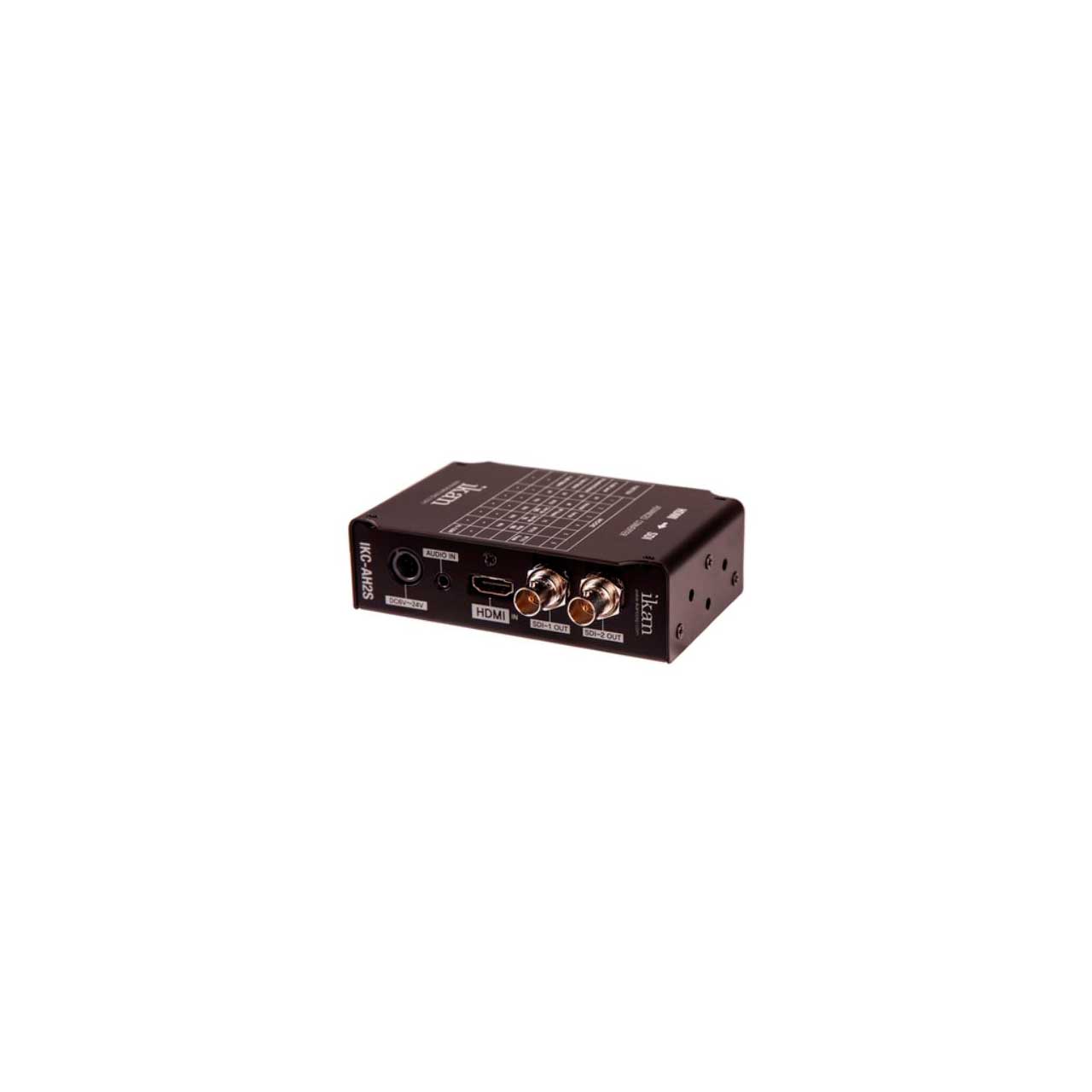

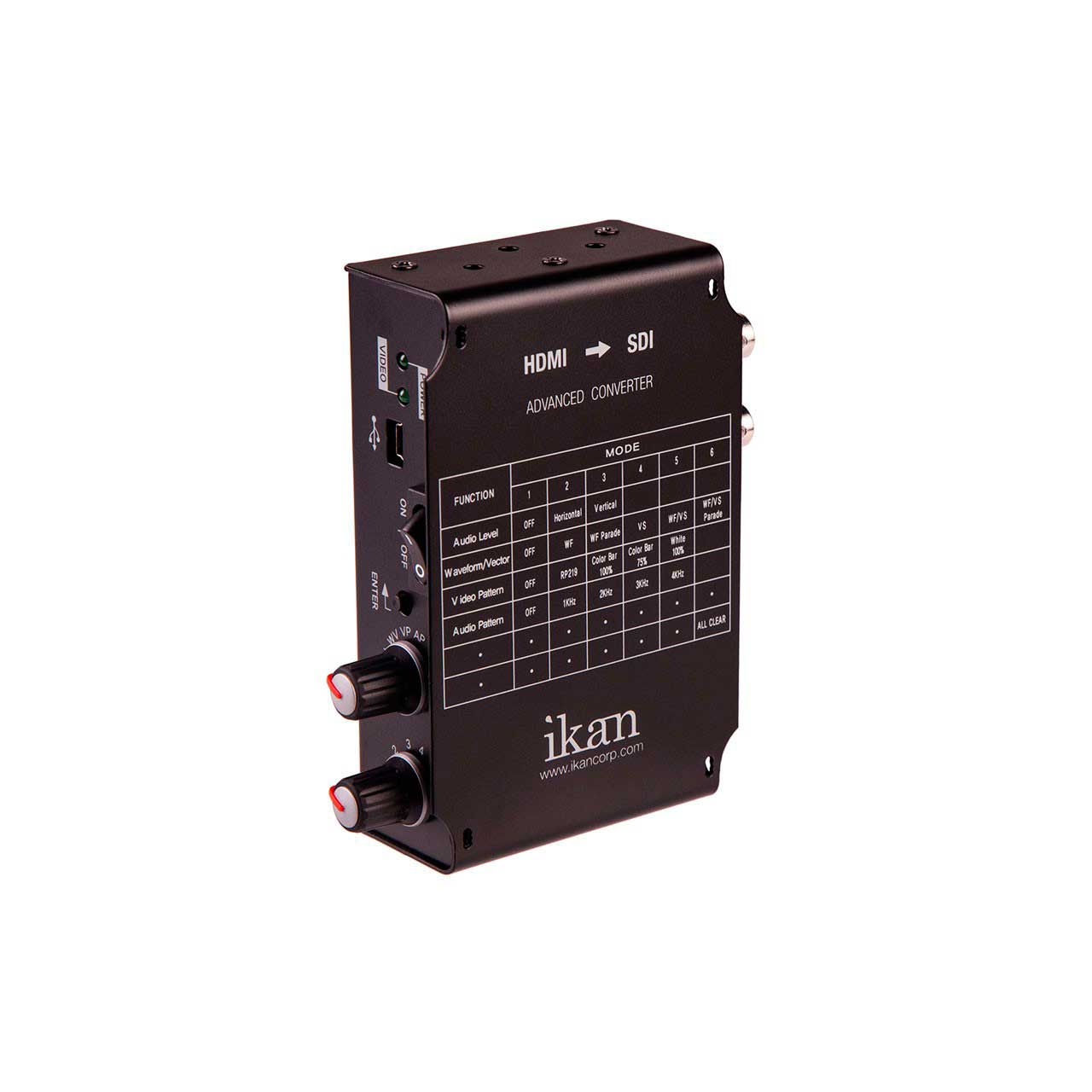

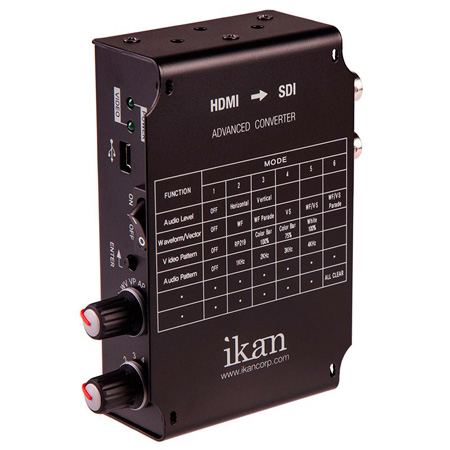

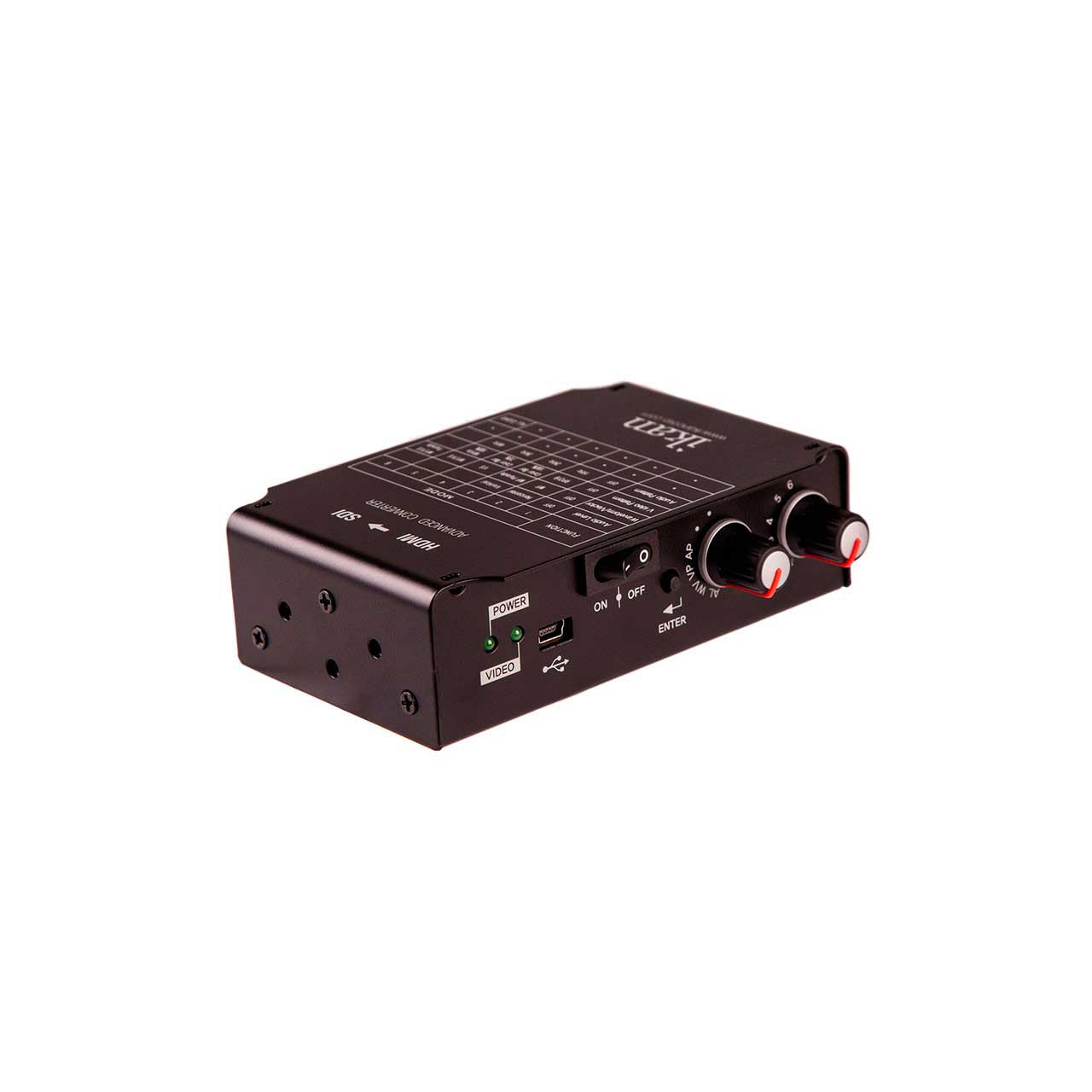

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Ikan Corporation
Free Shipping with $49 Minimum Order

List Price:

$104.99

Our Price:

$99.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

IKC-AH2S - Overview

The IKC-AH2S Advanced HDMI to SDI Converter is designed and built for professionals.

The Advanced HDMI to SDI Converter delivers field-tested reliability, solid construction, and all the features required for professional performance.

The IKC-AH2S' features include full HD HDMI to SDI Conversion that delivers reliable, consistent performance.

The IKC-AH2S Advanced HDMI to SDI Converter has video monitoring features such as waveform and vectorscope, a video test pattern generator, up to 8ch HDMI embedded audio, and an audio test pattern generator. A 1/4"-20 threaded mounting point is on the bottom of the converter.

  • Features:

    • Full HD HDMI to SDI Conversion
    • Video Monitoring Features: Waveform (Single/Parade) and Vectorscope
    • Video Test Pattern Generator: Color Bars & RP219
    • Up to 8ch HDMI Embedded Audio
    • Audio Test Pattern Generator (1 to 4kHz)
    • 1/4"-20 Thread on Bottom for Mounting


  • Specifications:

    • Audio Input: Audio Input Port (Stereo 3.5mm)
    • Video Outputs: 2 x SDI (BNC Port)
    • Inputs: 1 x HDMI (HDCP v.1.1), 19pin Female
    • Power Consumption: 6W
    • Operating Temperature: (-10°C ~ 40°C) (14°F ~ 104°F)
    • Power Requirements: 4DC (7V-24V) or AC Adapter (100 ~ 230V, 50Hz/60Hz)
    • Dimensions: 4.6 x 3.9 x 1.4"
    • Weight : .8 lb
    • Shipping Dimensions: 12.3 x 10.1 x 2.8"
    • Shipping Weight: 3 lbs


  • Item Includes:

    • 1 X AC Adapter
    • 1 X HDMI To SDI Converter
    • 1 X Power Cord


  • GTIN:

    0847983012367
