Ikan PT4500-V3-TRIPOD 15-Inch Turnkey Teleprompter with Tripod and Dolly - HDMI/VGA/Composite

ITEM #: IKAN-PT4500V3TRI MFG #: PT4500-V3-TRIPOD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,299.00

Our Price:

$3,949.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT4500-V3-TRIPOD - Overview

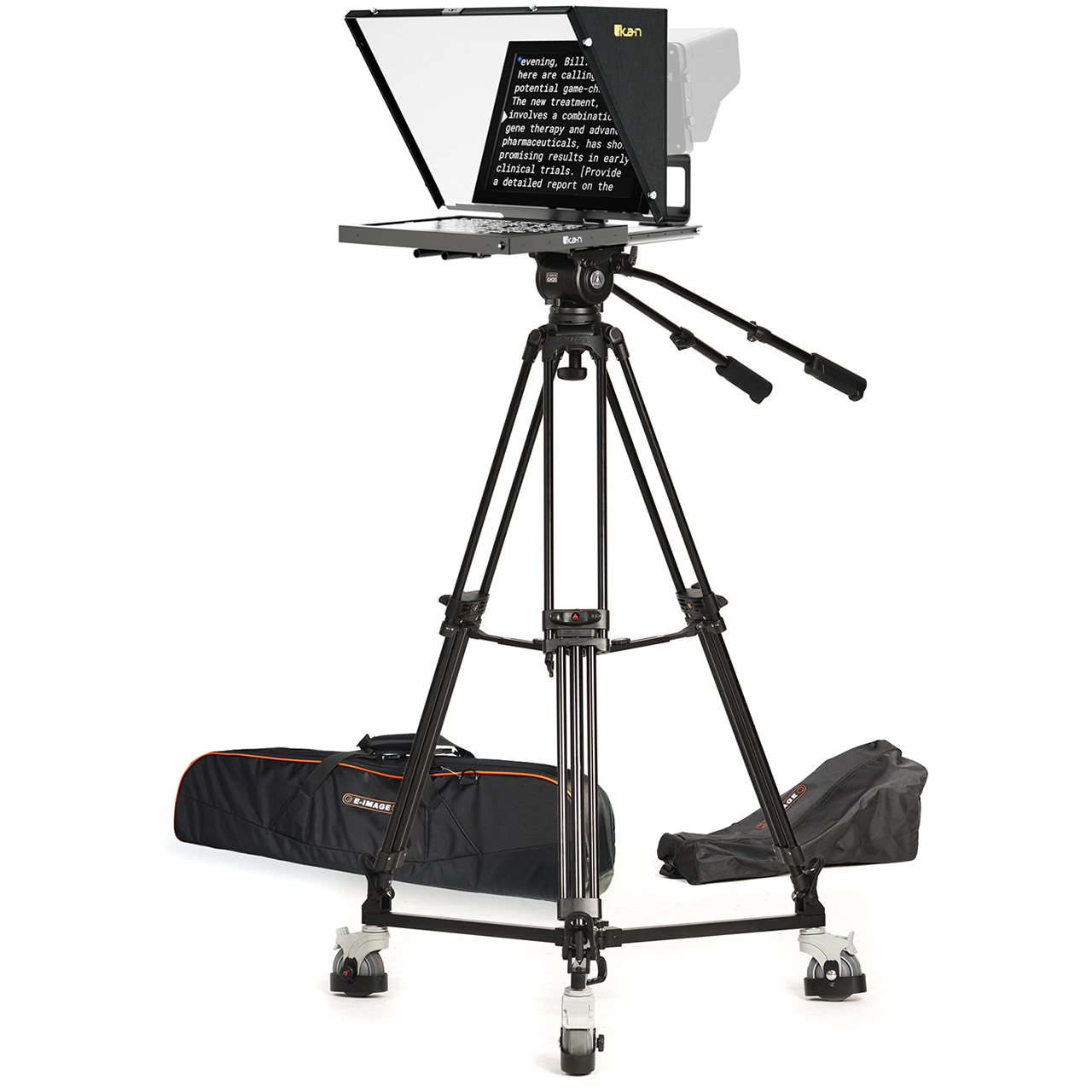

Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. The PT4500-V3-TRIPOD solution includes a 15" teleprompter, tripod, dolly, and carrying bags for the tripod legs & dolly. All systems have been tested internally for payload compatibility. The remaining payload capacity, after mounting the full 15" teleprompter, can accommodate camera setups up to 22.9lbs.

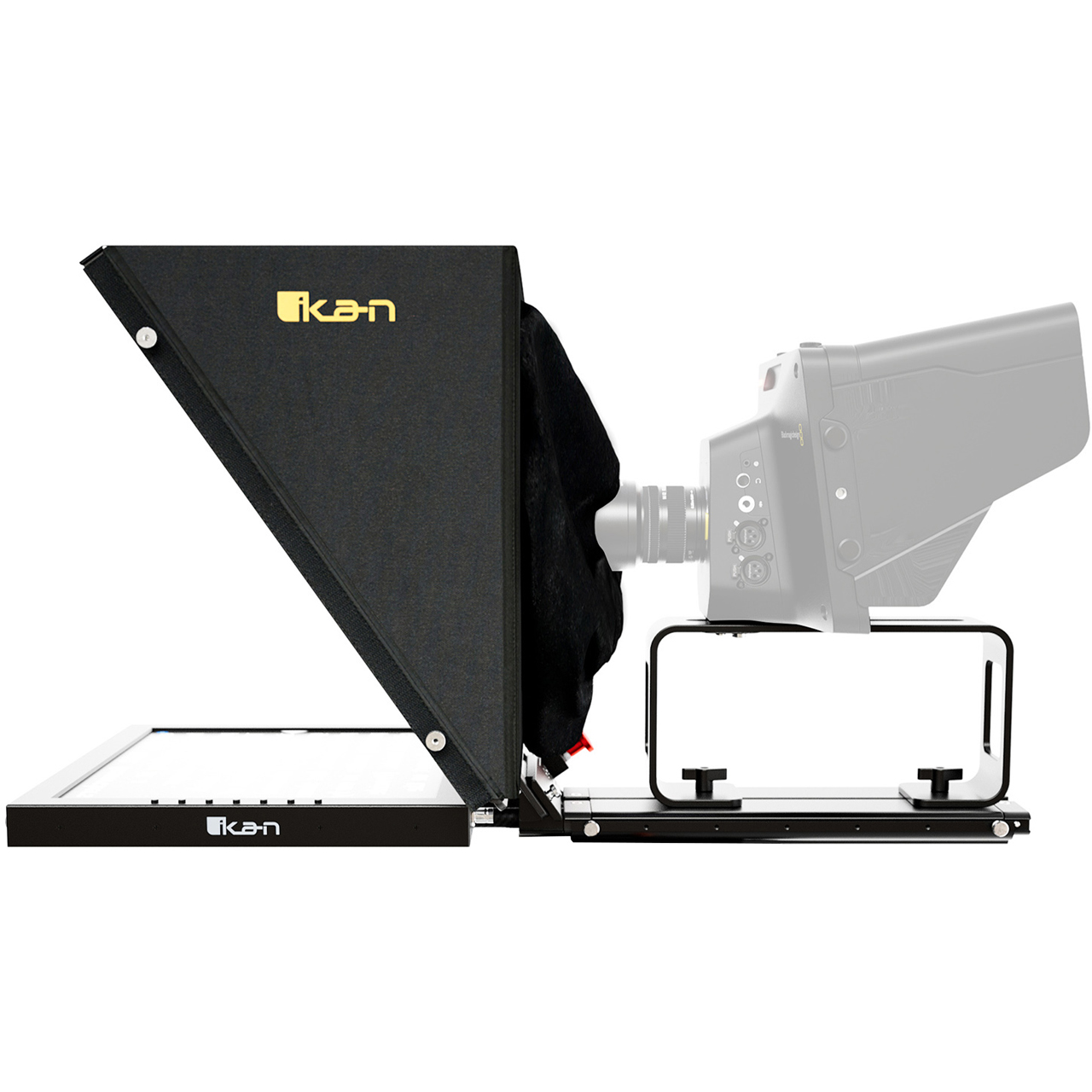

15-Inch Teleprompter System
Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes HDMI, Composite, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a wide viewing angle.

Large Range of Camera Compatibility
This professional line of teleprompters include three different camera mount bases, making it compatible with a wide variety of cameras such as professional ENG cameras, cinema cameras, mirrorless cameras, and camcorders.

Versatile Teleprompter Monitor

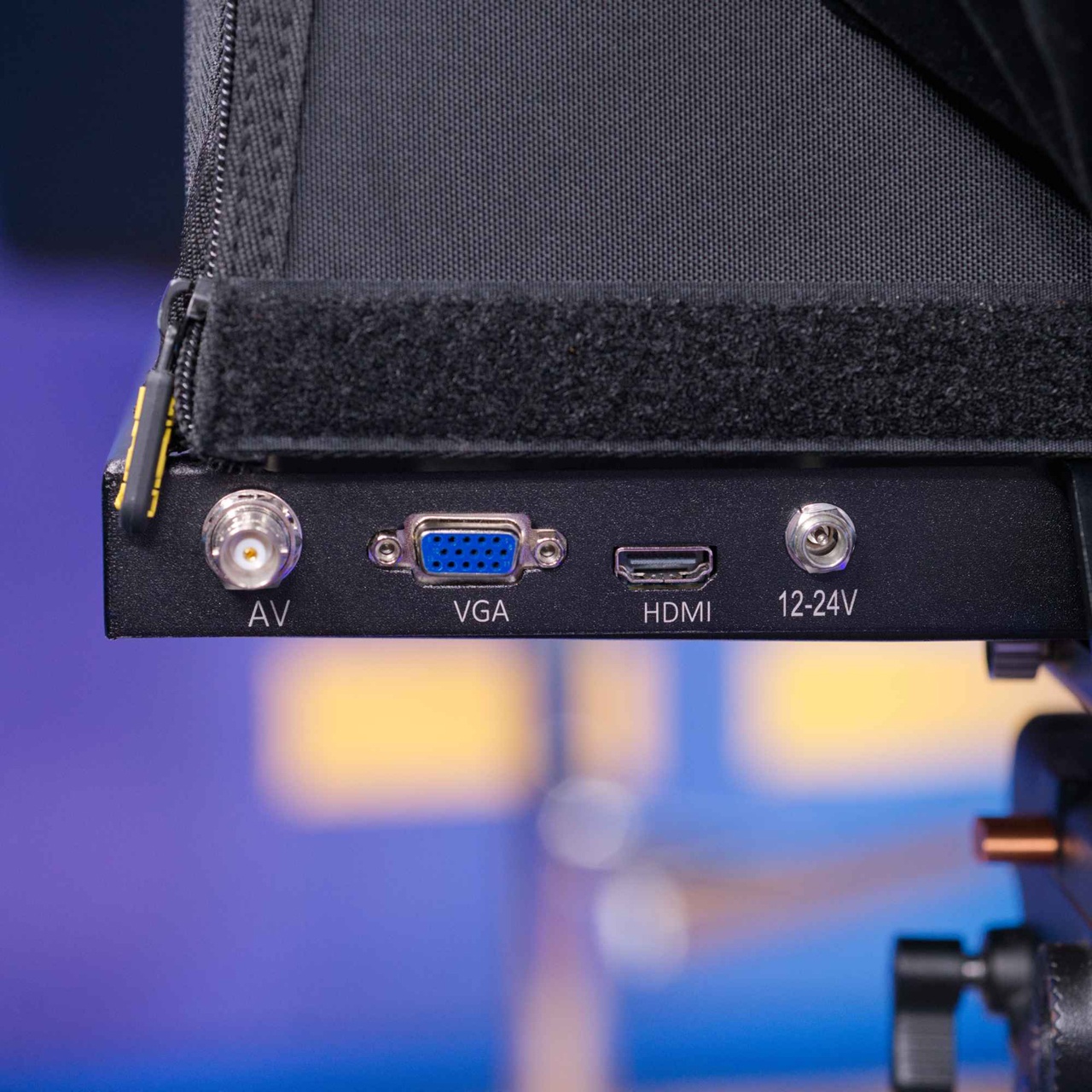

The 15-inch monitor features HDMI, Composite, and VGA inputs. The native resolution is 1280 x 1024 and the max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. The wide viewing angles make it easy to view, even when you are not directly in front of the system.

High Bright Screen
The 1000 nit high bright screen is able to deliver clear and vivid text visibility in various lighting conditions. In environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor.

Heavy-Duty Tripod
The heavy-duty tripod is made of aluminum and the legs are a twin tube design with two stages. It includes the E-Image Mono-Lock design which allows you to control the height of both stages with a single twist lock. The tripod by itself can be adjusted to a maximum height of 63" and a minimum height of 18" with a folded length of 29".

  • Features:

    • Includes 17" Teleprompter, Tripod, & Dolly
    • Accommodates Camera & Accessory Payloads up to 22.9 lbs
    • For Use in Studios, Live Events, & Virtual Productions
    • Video Inputs: HDMI, VGA, Composite (BNC)
    • Pneumatic Pedestal w/ Fluid Head Dolly w/ Cable Guards
    • Carrying Bags for Tripod & Dolly

  • Specifications:

      Tripod
    • Material: Anodized aluminum alloy
    • Bowl Size: 100mm
    • Leg Stages/Sections: One-Stage/Three-Section
    • Leg Lock Type: Rotary clamp
    • Spreader: Mid-Level
    • Spiked/Retractable Feet: Yes
    • Load Capacity: 132.3lbs
    • Height Range: 18.5" - 63.0" (47cm - 160cm)
    • Folded Length: 29.1" (74cm)
    • Weight: 11.2lbs (5.1kg)

      Fluid Head
    • Head Payload Capacity: 44.1lbs (20kg)
    • Bowl Size: 100mm
    • Counterbalance System: Stepped, 1-8
    • Pan Drag Settings: Fixed
    • Tilt Drag Settings: Fixed
    • Tilt Lock: Thumb Lock
    • Tilt Range: -60°/+90°
    • Bubble Level: Yes
    • Pan Handle Length Range: 16.7" - 24"
    • Net Weight: 7.7lbs (3.5kg)
    • Net Weight w/ Pan Handles: 9.5lbs (4.30kg)
    • Sliding Plate Range: 7.87" (200mm)
    • Temperature Range: -40°F - 194°F
    • Camera Plate Length: 8" (203.2mm)

      Dolly
    • Net Weight: 15lbs (6.8kg)
    • Footprint Diameter: 39.4" (100cm)
    • Cable Guard Diameter: 4.92" (12cm)
    • Height: 6.7" (17cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.9" (100mm)
    • Lockable Wheels: Yes
    • Build Material:
      - Legs: Aluminum
      - Wheels: Rubber
      - Screws: Steel
    • Payload: 132.3lbs (60kg)

      Teleprompter Base System
    • Riser Plate Height:
      - Short: 2.06" (52.5mm)
      - Tall: 5.31" (135mm)
      - DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material:
      - Chassis: Anodized Aluminum
      - Rods: Carbon Fiber
    • Reading Range: 25 ft. (7.62m)
    • Beamsplitter Ratio: 65/35
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 11 x 1/4"-20 Female/9 x 3/8"-16 Female
    • Weight of Teleprompter Base: 16lbs
    • Weight of Low Plate: 1lbs
    • Weight of High Plate: 1.38lbs
    • Weight of DSLR Plate: 0.748lbs
    • Height of Teleprompter: 16.1" (411mm)

      Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 15"
    • Mount: VESA 100mm
    • Video Inputs: AV COMPOSITE, HDMI, VGA
    • Input Voltage: DC 12V/4A
    • Power Consumption: 28W
    • Product Weight: 3.97lbs
    • Product Dimensions: 12.13" x 14.25" x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H)/170° (V)
    • Build Material: Aluminum Chassis
    • Image Flip:
      - Horizontal: Yes
      - Vertical: Yes

  • Item Includes:

    • 1x GH20 Head
    • 1x GA102 Tripod Legs
    • 2x GB4 Panhandle
    • 1x GS01 Mid-Level Spreader
    • 3x F3 Rubber Feet
    • 1x EI-7004B Dolly
    • 1x T30 Tripod Carrying Bag
    • 1x Dolly Carrying Bag
    • 1x Teleprompter Base
    • 1x 15 in. Teleprompter Monitor
    • 1x 15 in. SDI Widescreen Talent Monitor
    • 1x Tall Riser
    • 1x Small Riser
    • 1x DSLR Riser
    • 1x Teleprompter Hood
    • 1x Teleprompter Glass
    • 1x Warranty Card
    • 2x Power Supply
    • 1x Prompter Pro 4 Digital Download

  • GTIN:

    0847983036943
