IK Multimedia iLoud MTM Compact Studio Monitor with ARC Self-Calibration - EACH

ITEM #: IKM-ILOUD-MTM MFG #: ILOUD MTM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$399.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ILOUD MTM - Overview

Available Late Spring.

High-resolution compact studio monitor - Your music as you've never heard before
IK's iLoud Micro Monitors stunned an industry. Producers and engineers at every level marveled at the performance coming from such a small setup, so IK challenged their team to push its concept even further - to design a new compact speaker to rival 5", 6" and even 8" monitors. The result is iLoud MTM, and it changes everything about the sound, accuracy and convenience of reference monitors in today's modern studio.

Once you hear iLoud MTM, you'll find it hard to ever go back to traditional big-box speakers.

Reference-class, ultra-linear response
The first job of any studio monitor is to deliver accurate, uncolored sound so you can trust your mixing decisions will translate across multiple playback systems. iLoud MTM uses the most advanced DSP techniques to provide total control over the speakers' performance, delivering results simply not obtainable with traditional analog designs.

Highs are neutral and defined, mids are clear and balanced, and lows are as balanced as ever. You can mix for hours with no ear fatigue, and the work you create will translate better than ever. And of course it's loud, with 100W RMS total power per speaker and 103dB SPL maximum sound pressure, delivering the proven volume the iLoud brand is known for.

Extended low-end to rival larger systems
iLoud Micro Monitor wowed the world with the bass performance it delivered from a 3" speaker that "defied physics". But iLoud MTM offers even more, with even bass response down to an astonishing 40Hz ideal for modern music styles.

iLoud MTM debuts IK's new patent-pending Physical Response Linearization (PRL™) system, that uses a precise model of the enclosure's design, construction and materials, combined with electro-mechanical measurements of the real units, to correct the system's performance in real time. The result is a stunningly "firm," balanced and defined low end, to surpass the sound of speakers even twice iLoud MTM's size.

A new phase in accurate sound reproduction
Most conventional studio monitors, even high-end designs, suffer from skewed phase response caused by traditional, phase-shifting crossovers and driver/enclosure phase alterations. The end result is an unfocused stereo image, blurry transients, and overall lack of detail. iLoud MTM leverages IK's two decades of DSP experience to offer a true phase-coherent response across the useful frequency spectrum, for unbelievably realistic, natural sound like you've never heard.

You'll hear instruments and dialogue as if it's happening live, discover more detail in your tracks than ever before, and stop wasting hours trying to EQ away issues with your mixes that were never really there. This linear-phase response is rarely found in speakers even several times iLoud MTM's price, and has to be heard to be appreciated.

Symmetrical MTM design for superior imaging and precision

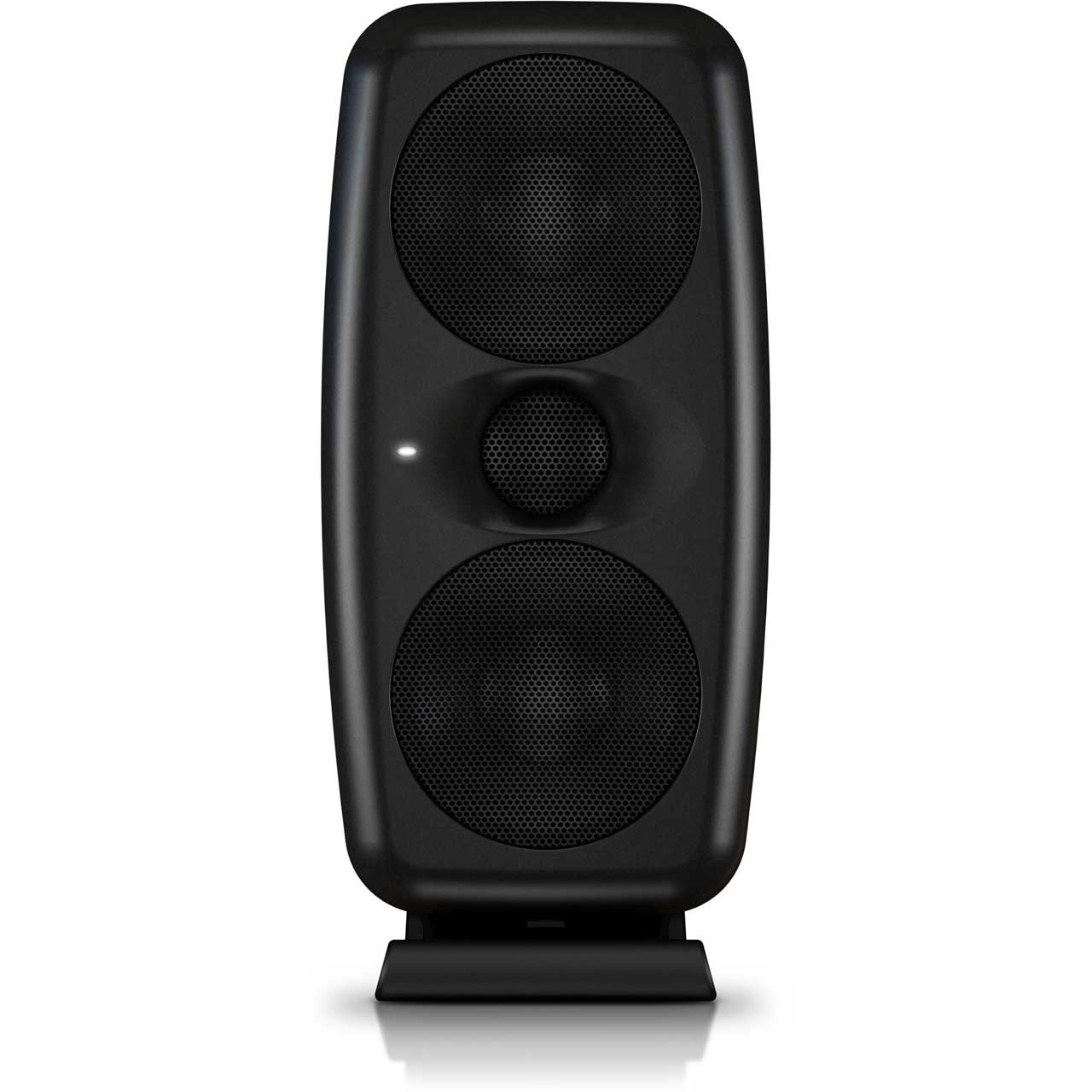

iLoud MTM uses a midrange-tweeter-midrange symmetrical design, with a pair of 3.5" high performance woofers and one 1" high definition, back-chamber loaded tweeter, which provides ultra precise, defined, point source sound that can't be achieved by traditional 2-way systems at close distances.
iLoud MTM offers:

  • Ultra-flat frequency response
  • Phase-coherent sound
  • Extended, controlled low end
  • Superior sound at short distances
  • Perfect for desks and small spaces
  • ARC self-calibration adjusts to any room
  • DSP-controlled for superior performance
  • 100W RMS total power per speaker
  • 40 Hz to 24 kHz frequency response

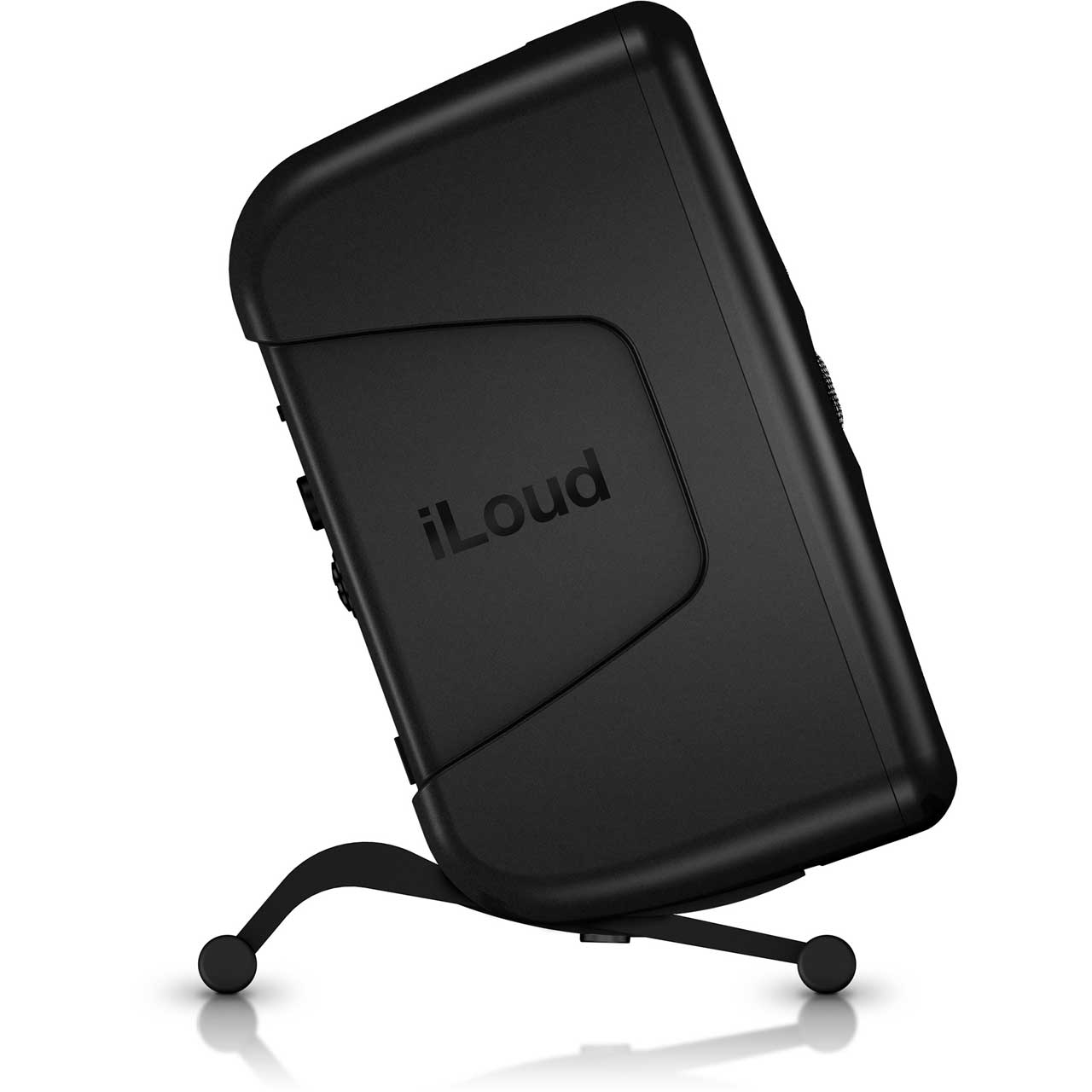

  • 0° - 20° tilting stand for ideal positioning
    • Features:

      • MTM design for accurate sound focus and superior sound dispersion
      • 2 x 3.5" high performance woofers + 1" back-chamber loaded tweeter
      • 100W 2-way bi-amped speaker with class D amplifiers
      • 103dB max SPL @1 m
      • 40 Hz - 24 kHz frequency response
      • Coherent phase response within +/- 15° from 200 Hz to 24 kHz
      • 1/4" / XLR Combo input, -10dBv or +4dBu selectable sensitivity
      • EQ controls: LF extension, LF boost/cut, HF boost/cut
      • Automatic environment calibration with included ARC™ measurement microphone

    • Specifications:

      • Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
      • LF Drivers: 2 x 3.5" polypropylene custom made mid-woofers
      • HF Driver: 1" low distortion, back chambered silk dome tweeter
      • Acoustic Design: DSP tuned bass reflex
      • Number of amps per speaker: 2
      • Amplifiers type: High efficiency Class-D
      • Total power: 100W RMS
      • LF power: 70W RMS
      • HF power: 30W RMS
      • Crossover Type: Linear Phase Variable Order
      • Crossover Frequency: 3.1kHz
      • Frequency response: from 50 Hz to 24 kHz +/- 2dB (40 Hz -6dB when uncal, -3 dB when cal)
      • Phase response: System remains coherent within +/- 15° from 200Hz to 20kHz
      • Sensitivity at +4dBu: 0dBu signal generates a 100 dB SPL @ 1 m
      • Sensitivity at -10dBV: -11dBu signal generates a 100 dB SPL @ 1 m
      • Maximum SPL @ 1m one speaker playing, on axis: 103dB from 200Hz up sine wave, 95dB at 100Hz sine, 93dB pink noise
      • Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
      • LF extension: switch Sets -3dB point of the frequency response at 40, 50 or 60 Hz
      • LF switch: Low shelf, +2dB or -3dB from 100Hz down
      • HF switch: high shelf, +2dB or -2dB from 8kHz up
      • Desk switch: -4dB at 160Hz and +1dB at 1.8kHz
      • Calibration: Fully automatic and built-in digital calibration, microphone included
      • Measurement Microphone: Omnidirectional, Mems based precision measurement microphone
      • Full DSP control

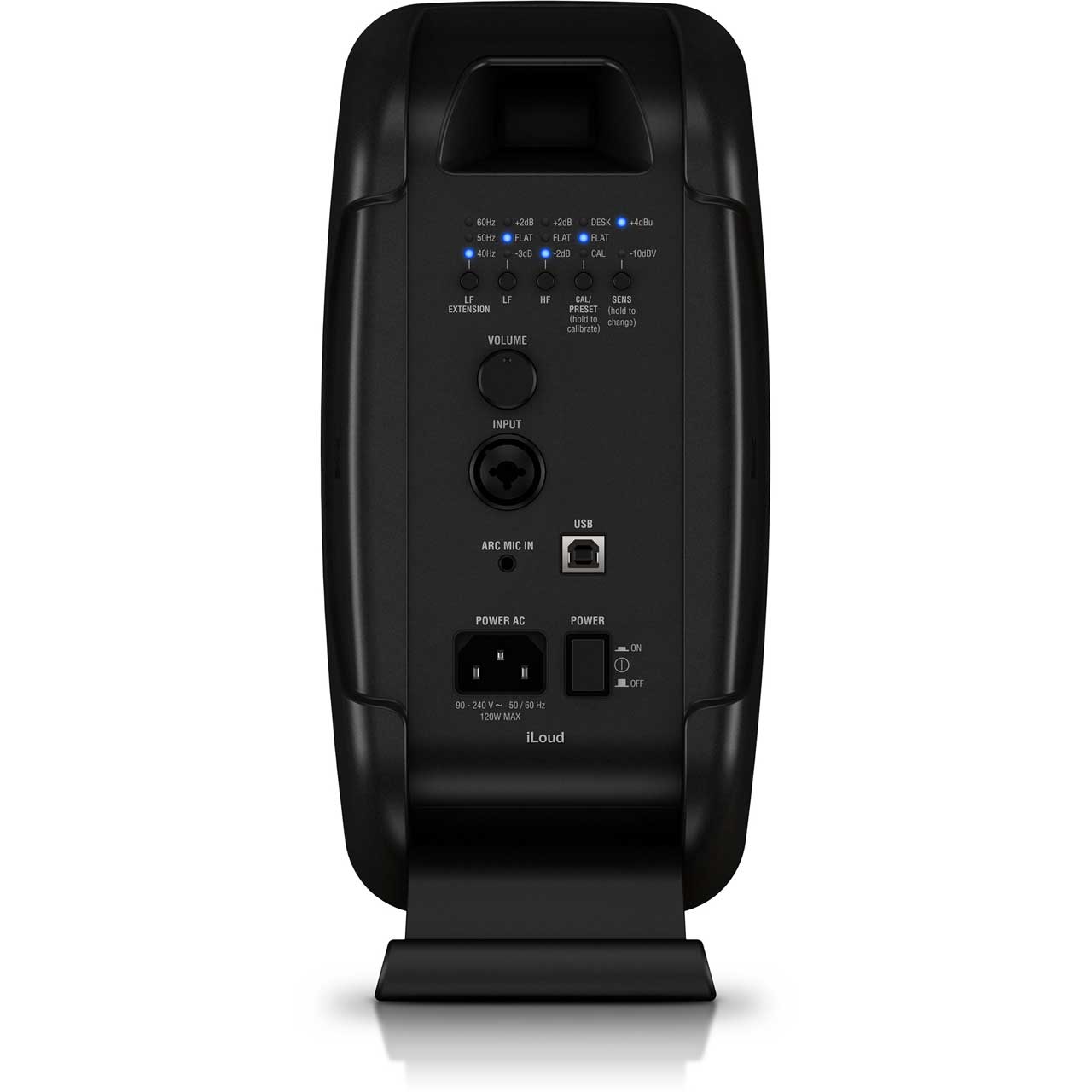

      • Connectors: 1x combo XLR-1/4" TRS balanced input; 1/8" TS ARC microphone input, 1 x USB type-B (service use only), AC POWER socket
      • Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60Hz, 120W max power consumption
      • Size: 264mm / 10.39" x 160mm / 6.3" x 130mm / 5.12"
      • Weight (per speaker): 2,5kg/5.5lbs (speaker + foot)

    • Item Includes:

      • 1 x iLoud MTM monitor
      • Power cord
      • ARC Microphone
      • ARC Microphone clamp
      • ARC Microphone cable
      • Tilting stand
      • Horizontal support feet
      • Locking key

    • GTIN:

      8025813787032
