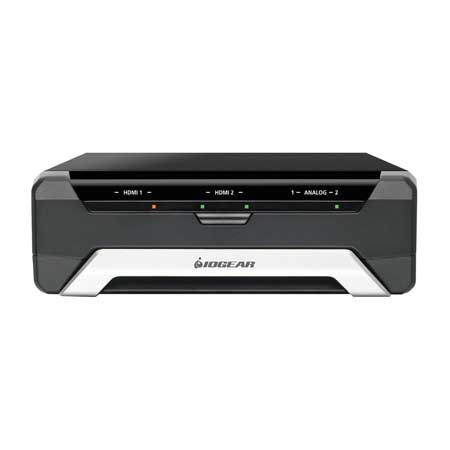

IoGear GUV322 UpStream Pro Dual Video Capture Adapter - USB Type B - 3840 x 2160 - USB - 1 Pack - Mac/PC - Mountable

Name: IoGear GUV322 UpStream Pro Dual Video Capture Adapter - USB Type B - 3840 x 2160 - USB - 1 Pack - Mac/PC - Mountable
Brand: IoGear Inc.
SKU: IOG-GUV322
Price: 399.95 USD
Availability: PreSale

ITEM #: IOG-GUV322 MFG #: 8RQ984

IoGear Inc.

Our Price:

$399.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8RQ984 - Overview

Broadcast-Level AV Capture, Mix, Effects and Control for Live Streaming

Capture and create customized, high-quality video with professional effects from multiple sources and control your program via a smartphone with the TAA Compliant IOGear GUV322 UpStream Pro Dual Video Capture Adapter. Along with the FREE UpStream Essentials App, you'll get the essential pro tools needed to create a customized, broadcast-level video finished in real-time that's ready to stream.

The UpStream Pro Dual Video Capture Adapter is perfect for adding a professional-level finish to your videos, taking them to the next level.

Features:
- Capture & mix two unencrypted live 4K videos at 1080p
- Connects to your streaming desktop, laptop or mobile device via USB 3.1
- Operate via smartphone app, control adapter via Bluetooth wireless

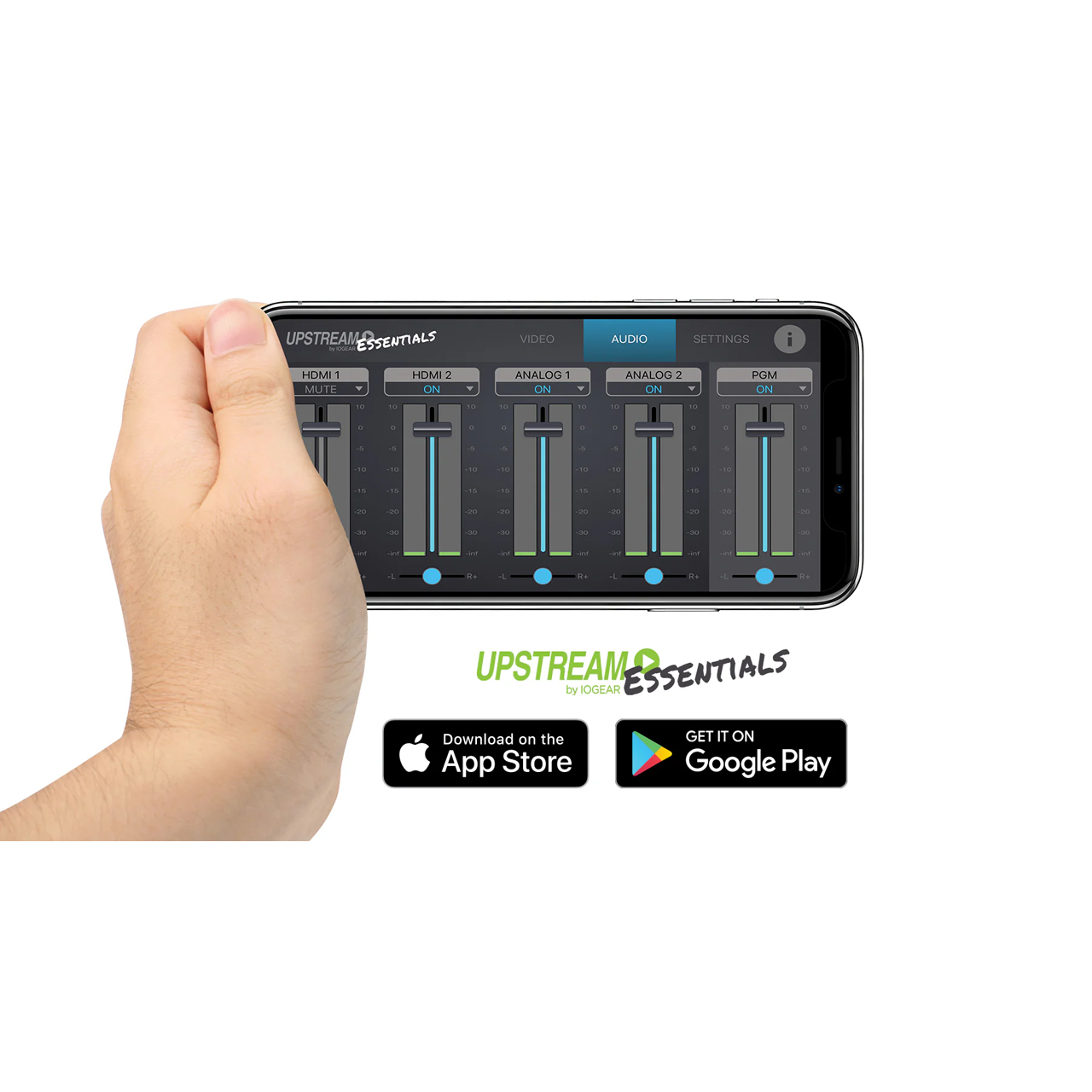

- FREE Android/iOS UpStream Essentials App lets you control & select scenes
- Customize live streams including NEW UpStream Command Center feature to create up to 18 hot key buttons to control your broadcast to control
- Broadcast-level finish - Picture-in-Picture (PIP) & split screen options
- Change backgrounds, add green screen effects with built-in chroma key tool
- Real-time video preview and program management
- Audio mixer with dual analog audio inputs
- Automatic audio transitions are ideal for podcasts & interviews
- Supports protected video switching mode for regular event usage
- Compatible with USB & ThunderboltT 3 (USB-C) specification
- Capture and mix two live HDMI video inputs to HD UVC format
- 4:4:4 HDMI Video Sampling
- YUY2, RGB output color space
Specifications:

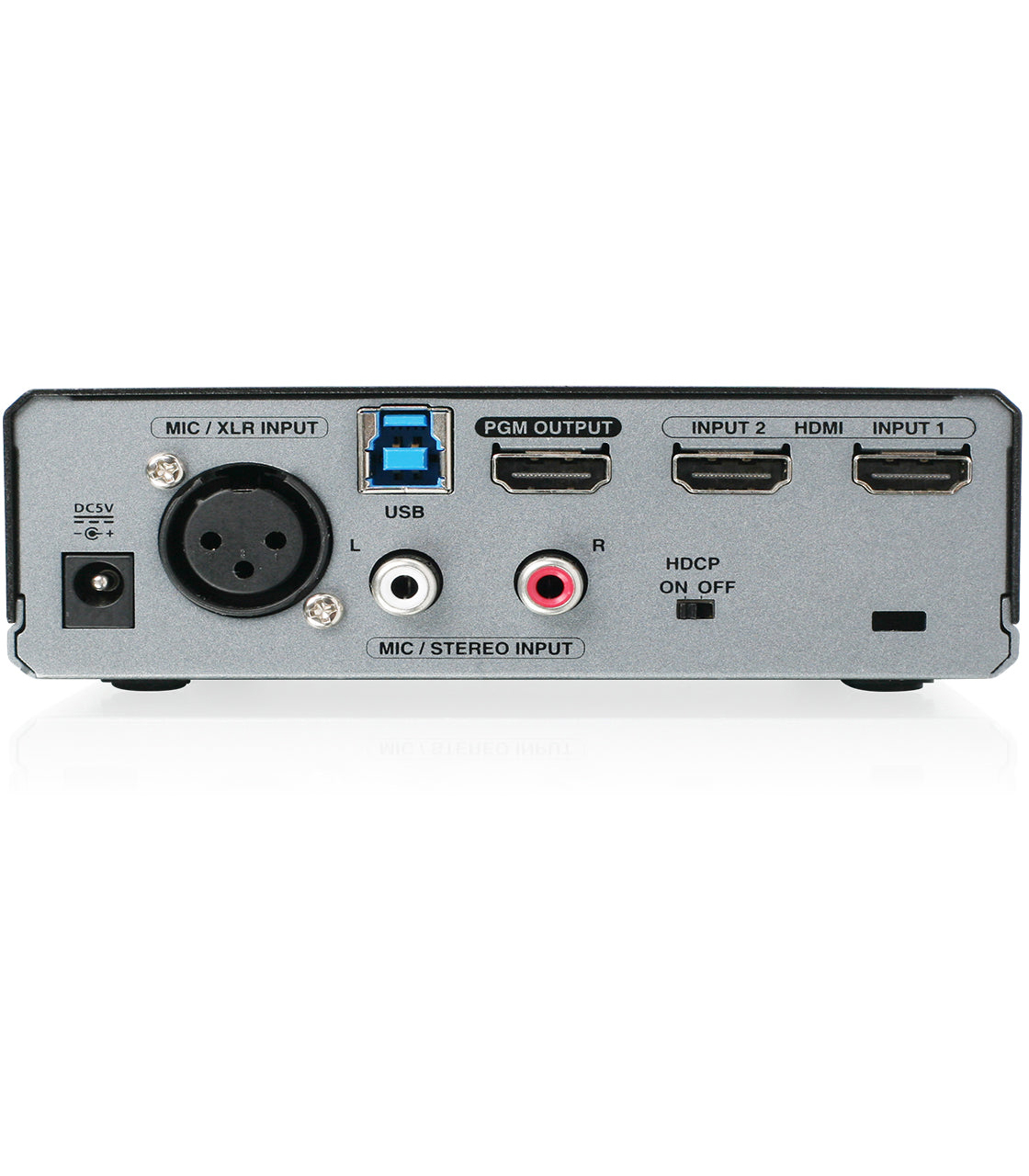

- Connectors
- Audio Input:
  - 1x MIC XLR
  - 1x 1x RCA (L/R)
- USB: 1x USB Type-B for host computer
- Video Input: 720p50, 720p60, 1080p24, 1080p25, 1080p30,1080p50, 1080p60, 2160p24, 2160p25, 2160p30
- Video Output:
  - UVC Capture Enabled: 720p50, 720p60, 1080p24, 1080p25, 1080p30,1080p50, 1080p60 (HDCP disabled)
  - UVC Capture Disabled: 720p50, 720p60, 1080p24, 1080p25, 1080p30,1080p50, 1080p60, 2160p24, 2160p25, 2160p30 (HDCP enabled)
- Video Capture Size:
  - UVC Output: Uncompressed 720p60, 1080p60 UVC Video Stream with UAC Audio

  Video Connections
- Input: 2x HDMI inputs (Up to 4K@30)
- Output: 1x HDMI PGM output 1080P

  Power
- Input Rating: DC Jack with Power cable IEC C14, 100-240 Vac (w/250V fuse)

  Physical
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Humidity: 0% - 80% RH, Non-Condensing
- Dimensions: 10.5" x 3.8" x 8.8"
- Weight: 1.5lbs (0.68kg)
Item Includes:
- 1x IOGear GUV322 Upstream Pro Dual Video Capture Adapter
- 1x USB-B to A Cable
- 1x USB-B to C Cable
- 1x Quick Start Guide
- 1x Tripod Mount
- 1x Warranty Card
Warranty:
- 1 Year Limited Warranty
GTIN:
0881317519634
