Tripp Lite ISOBAR8ULTRA 8-Outlet All Metal Housing Isobar Surge Protector W/ 12 Foot Cable - Right Angle Plug

ITEM #: ISOBAR 8 ULTRA MFG #: ISOBAR 8 ULTRA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$138.82

Our Price:

$101.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ISOBAR 8 ULTRA - Overview

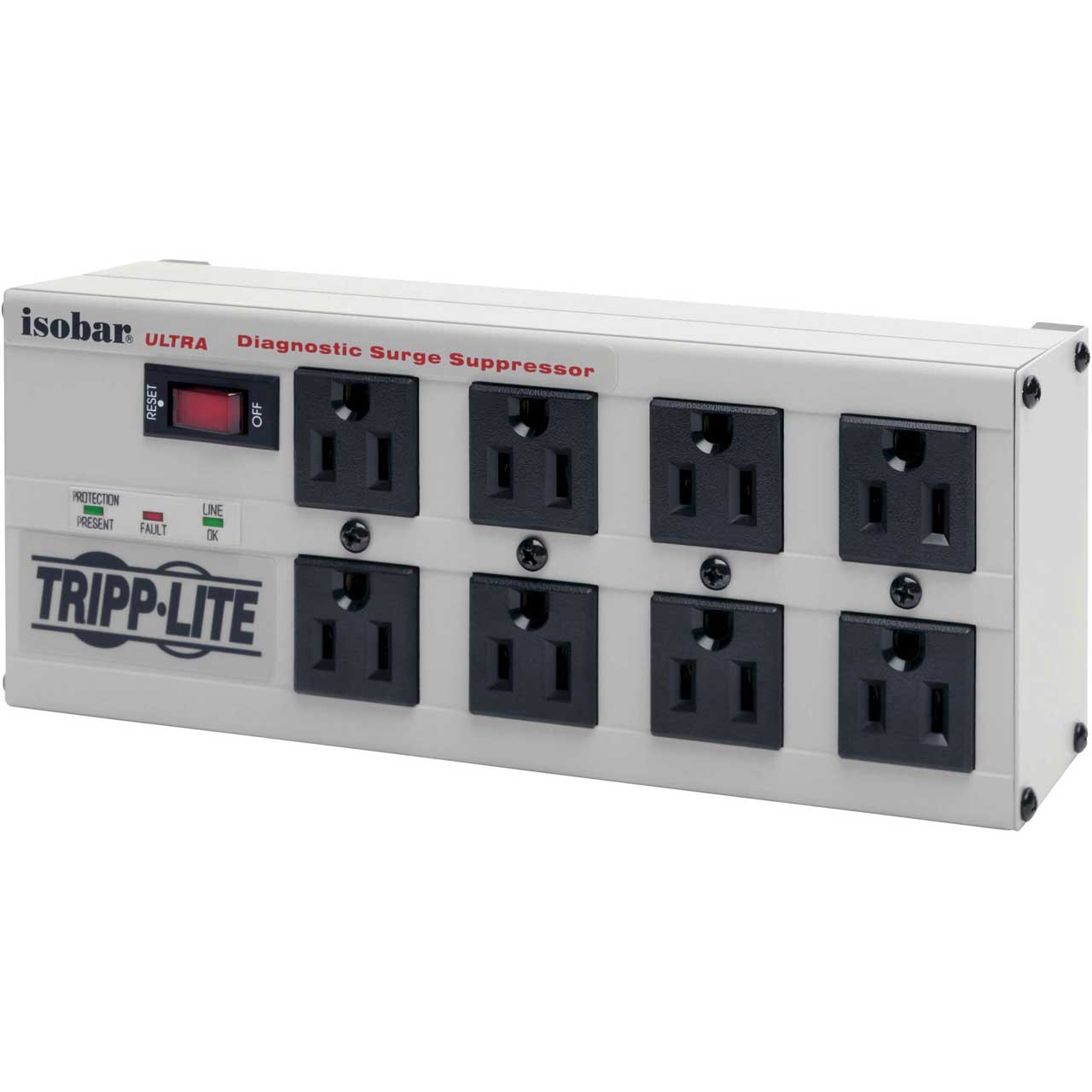

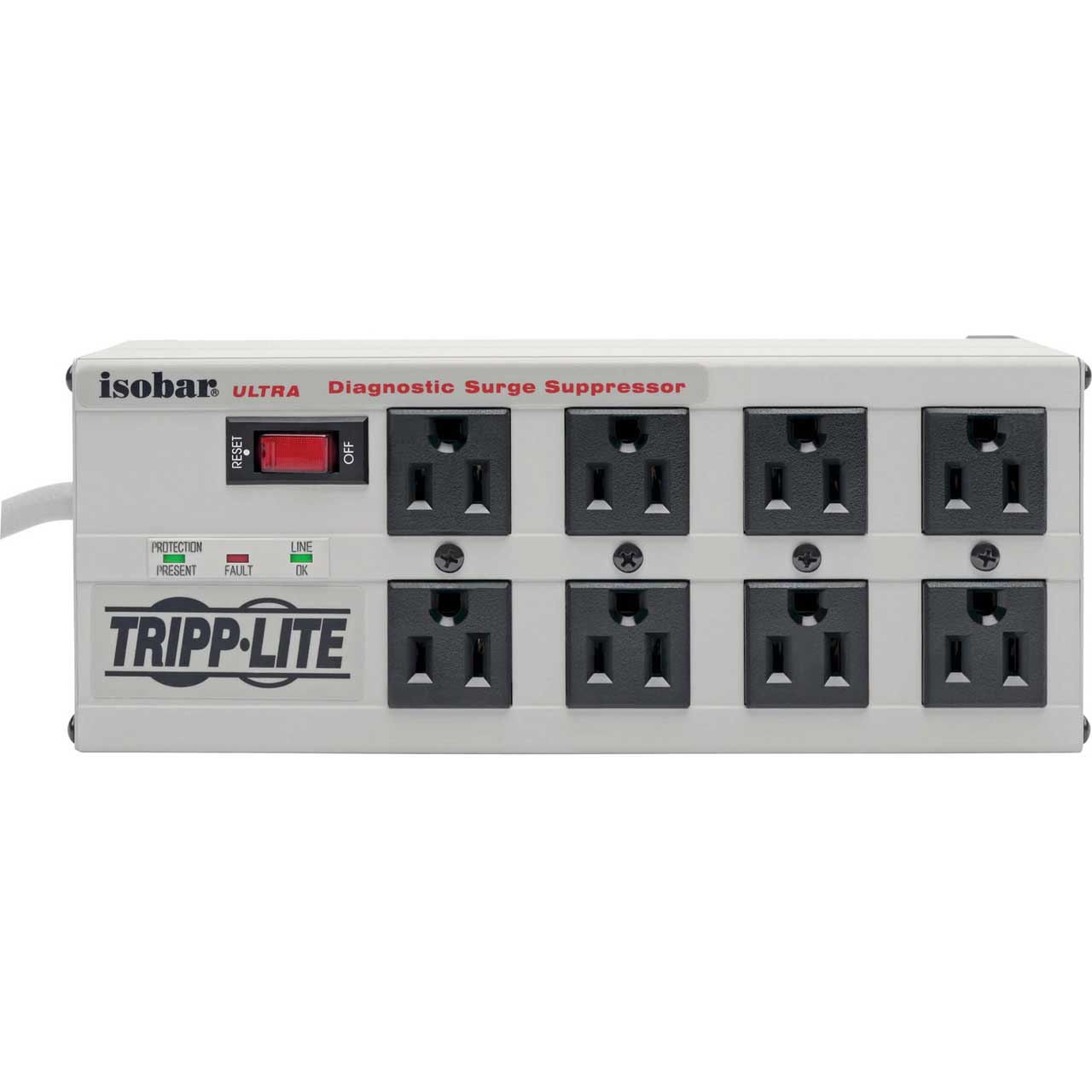

8-Outlet All Metal Housing Isobar Surge Suppressor

Premium protection for essential network workstations, telecom systems, point-of-sale equipment and audio/video systems, the Tripp Lite ISOBAR8ULTRA Isobar® 8-Outlet Surge Protector features a network-grade surge protection rating of 3840 joules to defend your sensitive electronics against even the strongest surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $50,000 for life (valid in the U.S., Canada and Puerto Rico only).

Because residential power outlets have three wires--hot line (H), neutral (N) and ground (G)--the ISOBAR8ULTRA protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

Your devices plug into eight widely spaced NEMA 5-15R outlets, which are arranged in four exclusive isolated filter banks. These internal barriers filter out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

Included safety covers block accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm power, protection and line fault status. The 12-foot AC power cord includes a space-saving right-angle NEMA 5-15P plug.

  • Features:

    • 8 NEMA 5-15R outlets in exclusive isolated filter banks
    • Network-grade 3840-joule surge protection rating
    • Durable metal housing designed for tough environments
    • 12A resettable circuit breaker prevents dangerous overloads

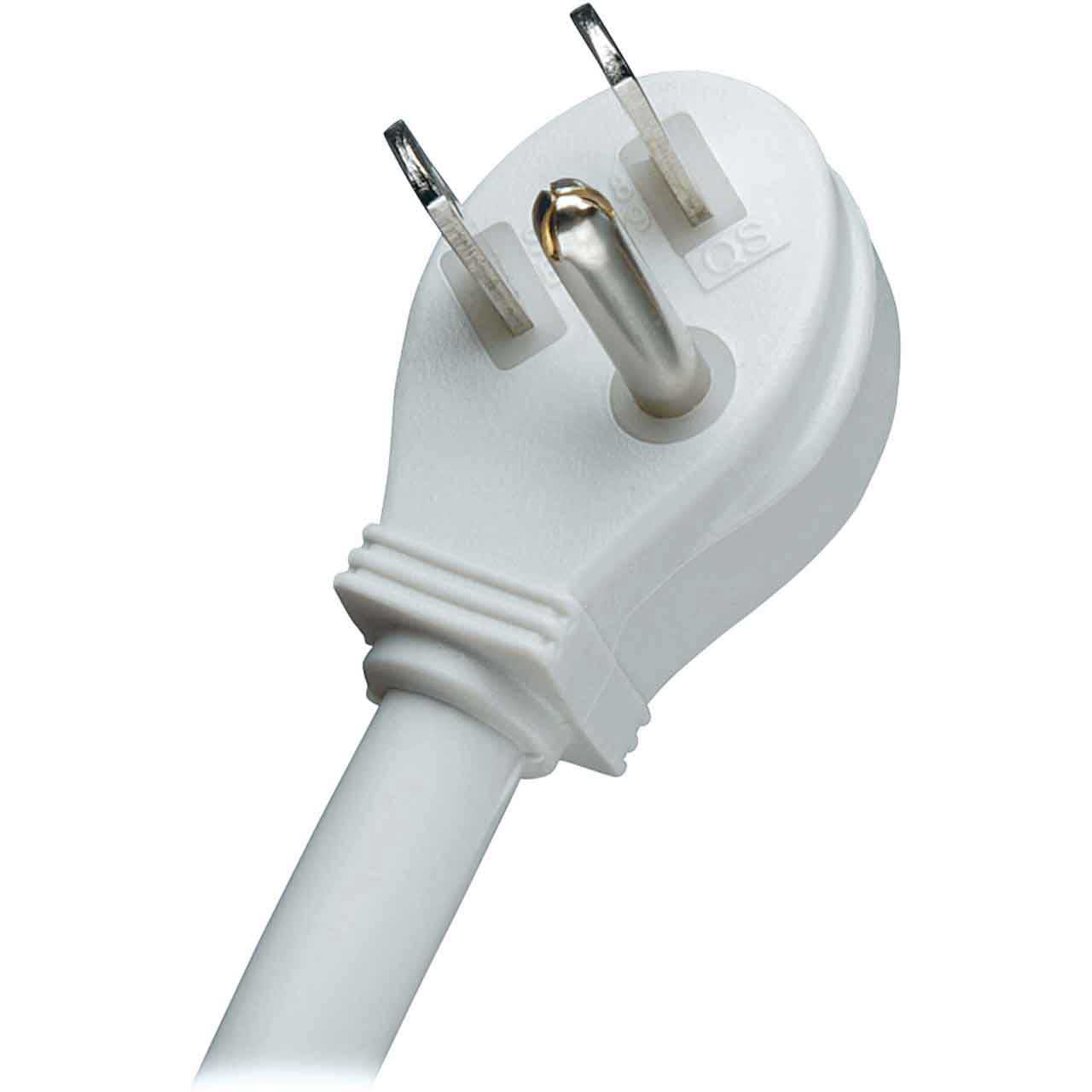

    • 12 ft. AC power cord with right-angle NEMA 5-15P plug
    • This product is covered by a Lifetime Limited Warranty (coverage details)
    • $50,000 Ultimate Lifetime Insurance
    • Protects your A/V components, network hardware, retail displays, appliances, power tools and other expensive electronics against even the strongest surges and spikes
    • Recommended for network workstations, telecom systems, point-of-sale equipment and audio/video systems requiring AC line protection
    • Full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
    • Exceeds IEEE 587 Category A and B surge suppression specifications
    • 8 NEMA 5-15R AC outlets accept most computer, networking and telecom equipment
    • Outlets are widely spaced to accommodate bulky transformers without blocking other outlets
    • Included safety covers block accidental contact with unused outlets
    • Outlets arranged in 4 exclusive isolated filter banks to limit noise interaction among connected equipment
    • Blocks disruptive EMI/RFI line noise up to 80 dB that can cause equipment damage or data loss
    • Combine large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors to block interference

  • Specifications:

    • Input
    • Nominal Input Voltage(s) Supported: 120V AC
    • Recommended Electrical Service: 120V (110-125V)
    • Voltage Compatibility (VAC): 120
    • Maximum Surge Amps: 150000
    • Input Plug Type: NEMA 5-15P
    • Input Cord Length (ft.): 12
    • Right-Angle Plug: Yes
    • Integrated Cord Clip: No

      Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output (Watts): 1440
    • Output Receptacles: (8) 5-15R
    • Circuit Breaker (amps): 12
    • Transformer Accommodation: (4) Yes
    • Right-Angle Outlets: No

      User Interface, Alerts & Controls
    • Diagnostic LED(s): Yes
    • Switches: Combination AC circuit breaker and two position red illuminated on/off power switch
    • Diagnostic LED Details: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)

      Surge / Noise Suppression
    • AC Suppression Joule Rating: 3840
    • AC Suppression Response Time: NM = 0 ns. CM = <1 ns
    • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
    • Clamping Voltage (RMS): 140
    • AC Suppression Surge Current Rating: 97,000 amps (36,000 NM / 61,000 CM)
    • AC Suppression Components Used: Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
    • Safe Thermal Fusing: Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
    • UL1449 Let Through Rating: 330V
    • IEEE587 Cat. A Ringwave Let-Through: Less than 35 volts
    • EMI / RFI Filtering: 40-80 dB
    • Isolated Filter Banks: 4
    • Immunity: Conforms to IEE 587 / ANSI C62.41
    • Automatic Shut-Off: Yes

      Dataline Surge Suppression
    • Telephone/DSL Protection: No
    • Cable (Coax) Protection: No
    • Network (Ethernet) Protection: No

      Physical
    • Anti-Microbial Protective Coating: No
    • Color: Light Gray
    • Color (AC Line Cord): Light Gray
    • Housing Color: Light Gray

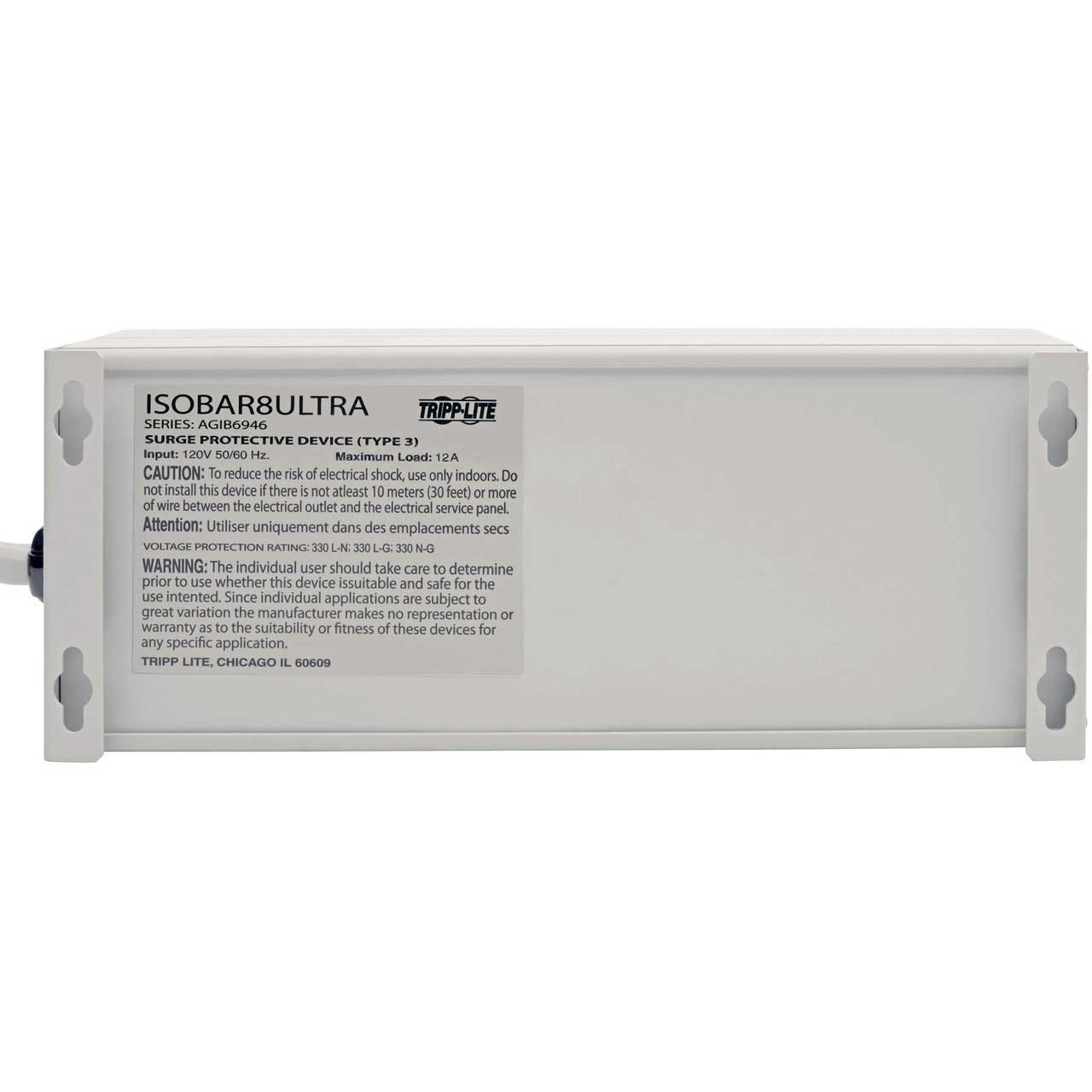

    • Integrated Keyhole Mounting Slots: Yes
    • Keyhole Slot Mounting Measurement (Center to Center): Distance between horizontal tabs = 210.79mm; Distance between vertical tabs = 58.17mm
    • Material of Construction: Metal
    • Outlets Measurement (Center to Center): Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm
    • Receptacle Color: Black
    • Shipping Dimensions (hwd / in.): 3.00 x 6.90 x 11.70
    • Shipping Weight (lbs.): 3.70
    • Unit Dimensions (hwd / in.): 2.19 x 3.5 x 8.87
    • Unit Weight (lbs.): 3.3

      Special Features
    • Rotatable Outlets: No
    • STANDARDS & COMPLIANCE
    • Canada: Approved for Canada by ETL
    • Approvals: Exceeds IEEE 587 category A&B specifications
    • UL1449 3rd Edition (AC Suppression): Tested to UL1449 3rd Edition

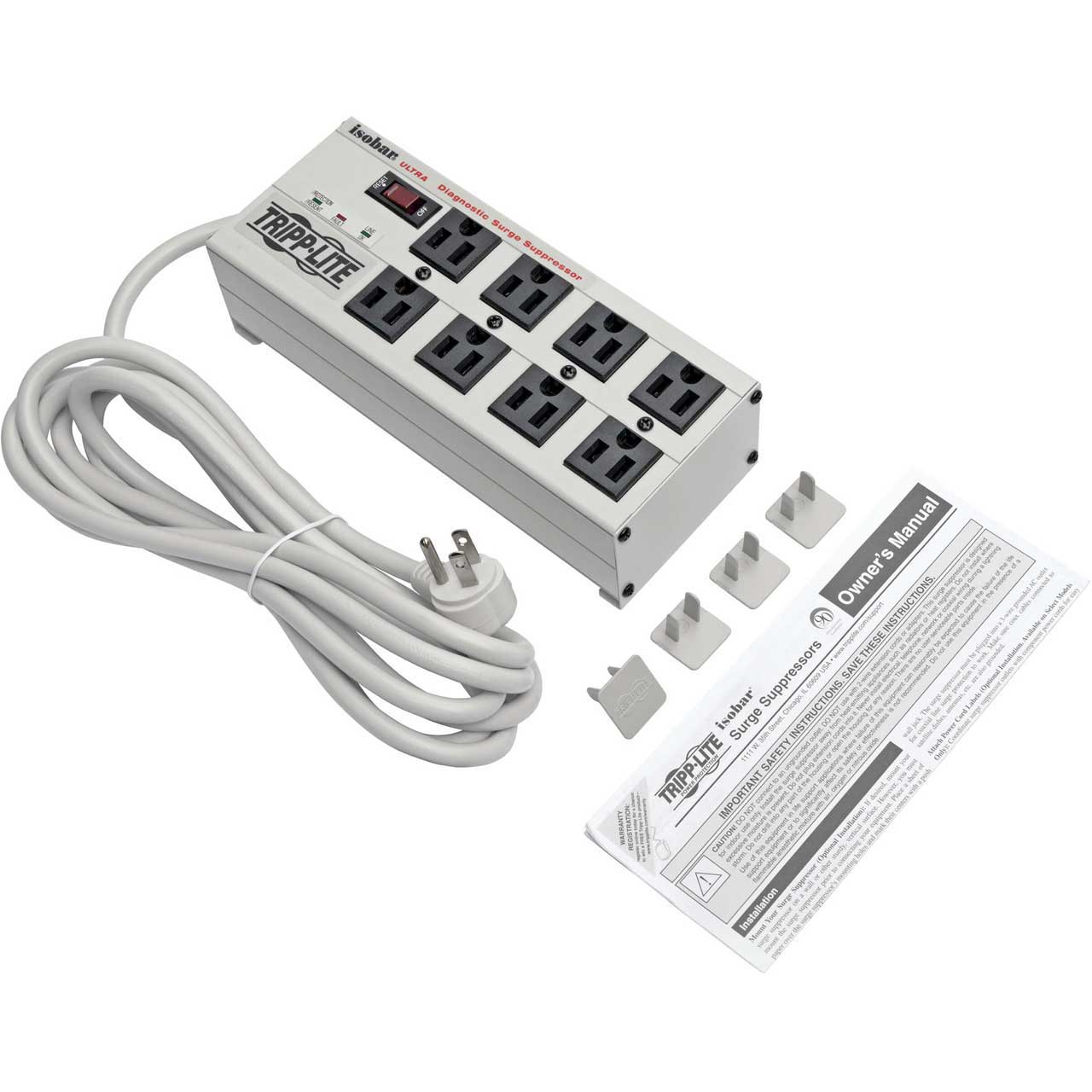

  • Item Includes:

    • 1x ISOBAR8ULTRA Isobar 8-Outlet Surge Protector, Metal Housing
    • 4x Outlet safety covers
    • 1x Owner's manual

  • GTIN:

    0037332010551
