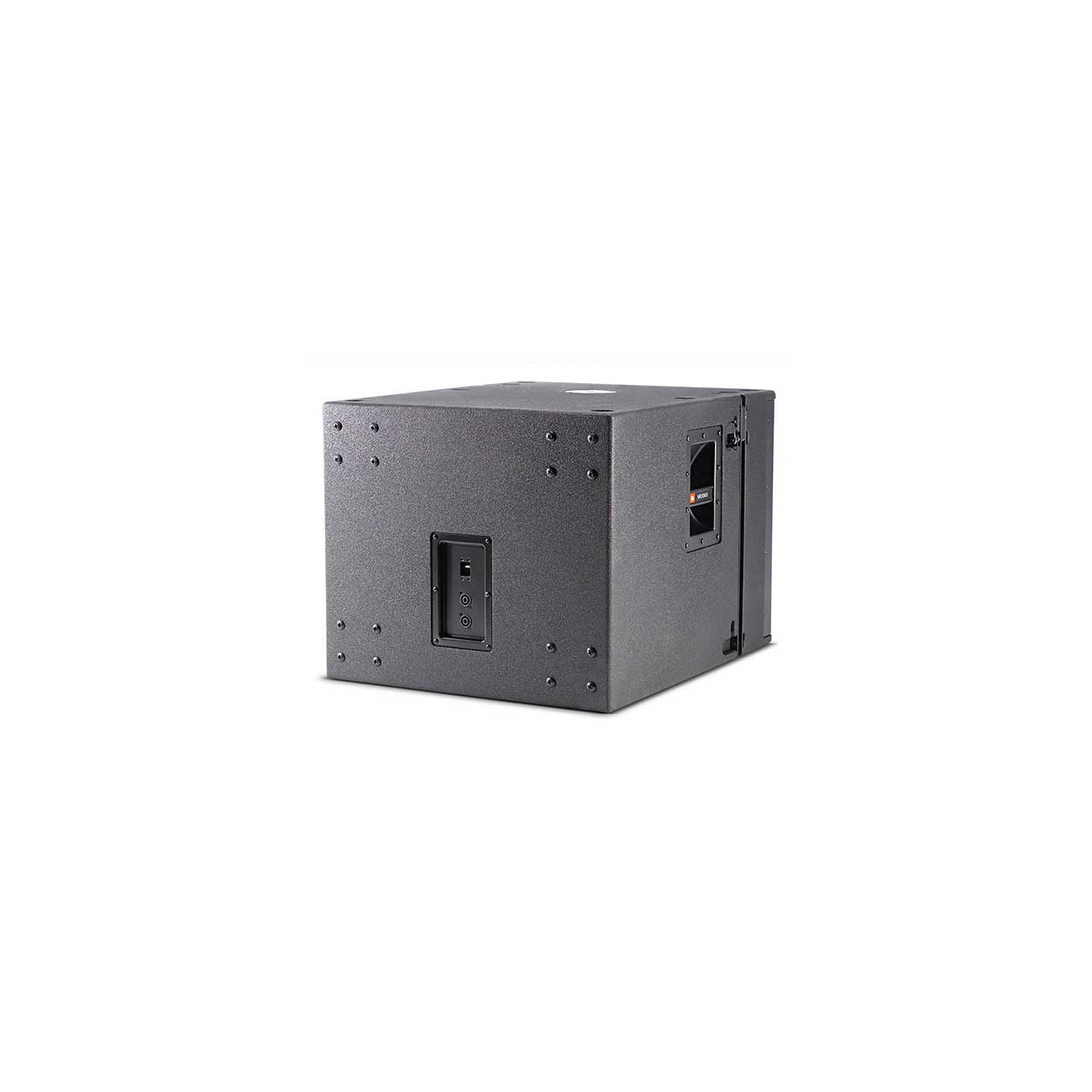

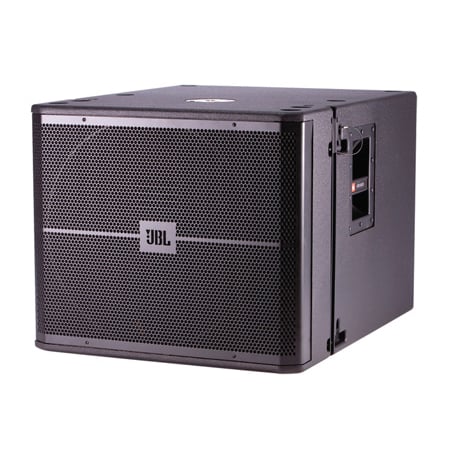

JBL VRX918S 18 Inch High Power Flying Subwoofer

VRX918S - Overview

• Features:

  • Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
  • 18 inch, 2268H Differential Drive woofer for extended low-frequency output
  • Large port area for reduced distortion
  • 20 mm threaded pole socket for solid, secure satellite speaker mounting


• Specifications:

  • Power Rating 800 W / 1600 W / 3200 W
  • Frequency Range 31 Hz - 220 Hz
  • Dimensions
  • (H x W x D) 508 mm x 597 mm x 749 mm
  • (20.0 in x 23.5 in x 29.5 in)
  • Frequency Response 34 Hz - 220 Hz
  • Recommended
  • Crossover Frequencies 80 Hz, 24 dB / octave HPF
  • 80 Hz, 24 dB / octave LPF
  • System Maximum SPL 130 dB SPL peak
  • System Sensitivity 95 dB SPL
  • LF Driver 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
  • Nominal Impedance 8 ohms
  • Active Tunings Tunings available at www.jblpro.com
  • Enclosure Rectangular, 18 mm, 13-ply birch plywood
  • Suspension / Mounting Optional VRX932LA-AF line array frame kit or 10mm eyebolt
  • Finish Black DuraFlex finish
  • Grille Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
  • Input Connectors Neutrik Speakon NL-4 (x2)
  • Net Weight 37 kg (81 lb)
  • Optional Accessories SRX718S-CVR: Pull-over padded cover
  • SS4-BK: Adjustable, heavy-duty pole, M20 thread to 35 mm
  • WK-4: Caster kit
  • VRX-AF: Array Frame Kit


• GTIN:

  0050036903226
