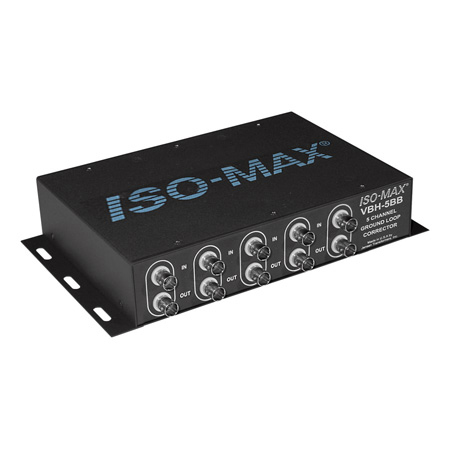

Jensen VBH-5BB Component Video & VGA Hum Eliminator Ground Loop Isolator

ITEM #: JEN-VBH5BB MFG #: VBH-5BB

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JEN-VBH5BB

VBH-5BB - Overview

The ISO-MAX VBH-5BB reduces ground current induced video interference such as "hum bars" by a factor of over 100, eliminating the visible effects of these types of interference. The high bandwidth and low VSWR prevent degradation of the picture quality due to high frequency roll-off and cable reflections.

When used with a D15HDM-5BF-3 VGA breakout cable, this is a great solution to eliminate hum from any VGA system.

  • Features:

    • Provides 56dB Reduction in Ground Loops
    • DC to 600MHz (VBH-3RR) or 900MHz Bandwidth (VBH-5BB)
    • Low VSWR Prevents Signal Degradation
    • Channels may be used independently


  • Specifications:

    • 56dB of CMRR typ at 60Hz minimizes ground loops
    • DC to 900MHz bandwidth for excellent picture quality
    • Greater than 1 Vrms 60Hz common-mode level handling
    • VSWR under 1.1 at 100MHz to prevent waveform distortion
    • Insertion loss of 0.05 dB maintains maximum S/N ratio
