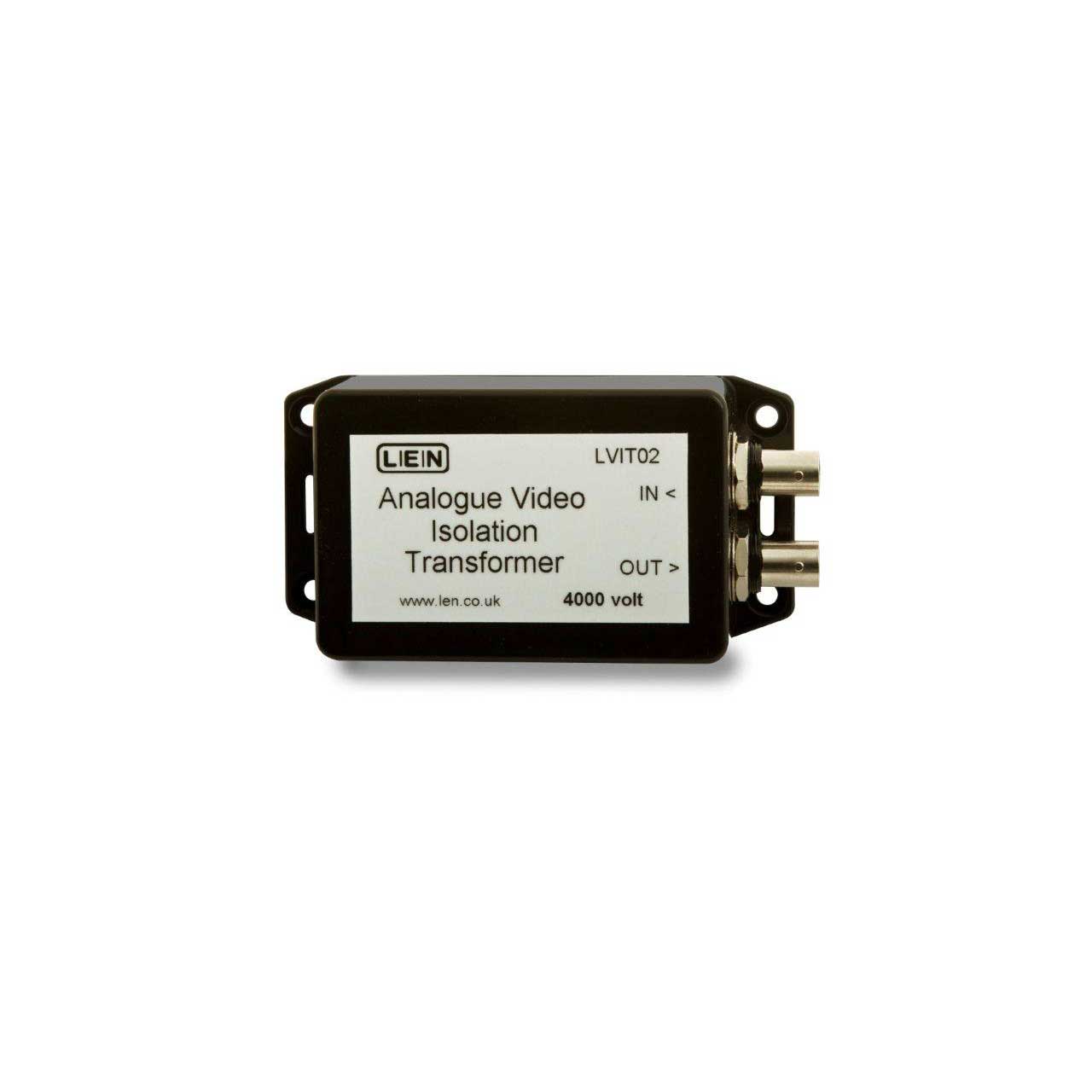

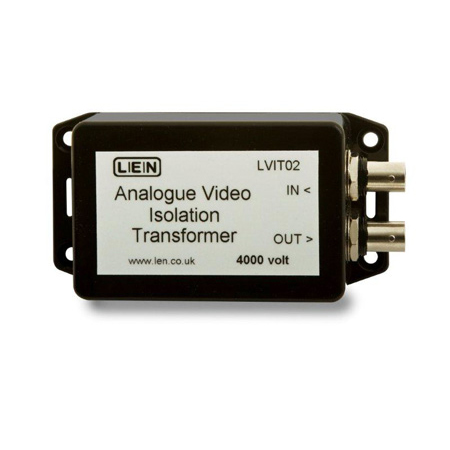

LEN VIT02 Video Isolation Transformer - Analog - 4kV Breakdown

ITEM #: LEN-VIT02 MFG #: LVIT02

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$665.00

Our Price:

$633.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LVIT02 - Overview

The LEN VIT02 Video Isolation Transformer acts as BOTH a Hum Eliminator AND a Ground Isolator whilst also improving on the performance of the traditional individual products.

The VIT02 will remove severe interference caused by 50 or 60 Hz hum whilst a normal "Humbucker" will only remove moderate interference.

At the same time it acts as a high performance Ground Isolator eliminating ground potential differences between equipment with a minimal phase and gain distortion. The VIT02 has been developed to withstand the high breakdown voltages required of medical applications.

  • Features:

    • Eliminate severe interference (Hum eliminator)
    • High breakdown voltage (Ground Isolator)
    • Minimal differential phase or gain distortion
    • Transparent to PAL and NTSC video
    • Small size 8.5 x 5.6 x 3.9 centimetres
    • DC Block - blocks DC signals

  • Specifications:

    • Breakdown Voltage: Greater than 4kV.
    • Dimensions: 85 x 56 x 39 (l x w x h)mm excluding mounting flanges, 110mm length including flanges.
    • Weight: 170g.

  • Item Includes:

    • 1x LEN VIT02 Video Isolation Transformer - Analogue - 4kV Breakdown


LVIT02 - Required Accessories
