LEN L3GGI01 3G-SDI Galvanic Video Ground Path Isolator - In Line / Tubular Model

Name: LEN L3GGI01 3G-SDI Galvanic Video Ground Path Isolator - In Line / Tubular Model
Brand: LEN
SKU: LEN-L3GGI01
Price: 279.00 USD
Availability: PreSale

ITEM #: LEN-L3GGI01 MFG #: L3GGI01

LEN

List Price:

$293.00

Our Price:

$279.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

L3GGI01 - Overview

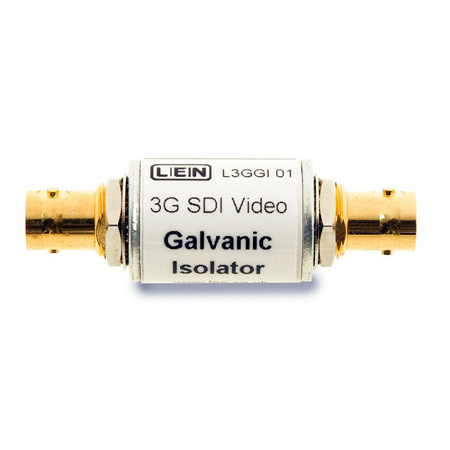

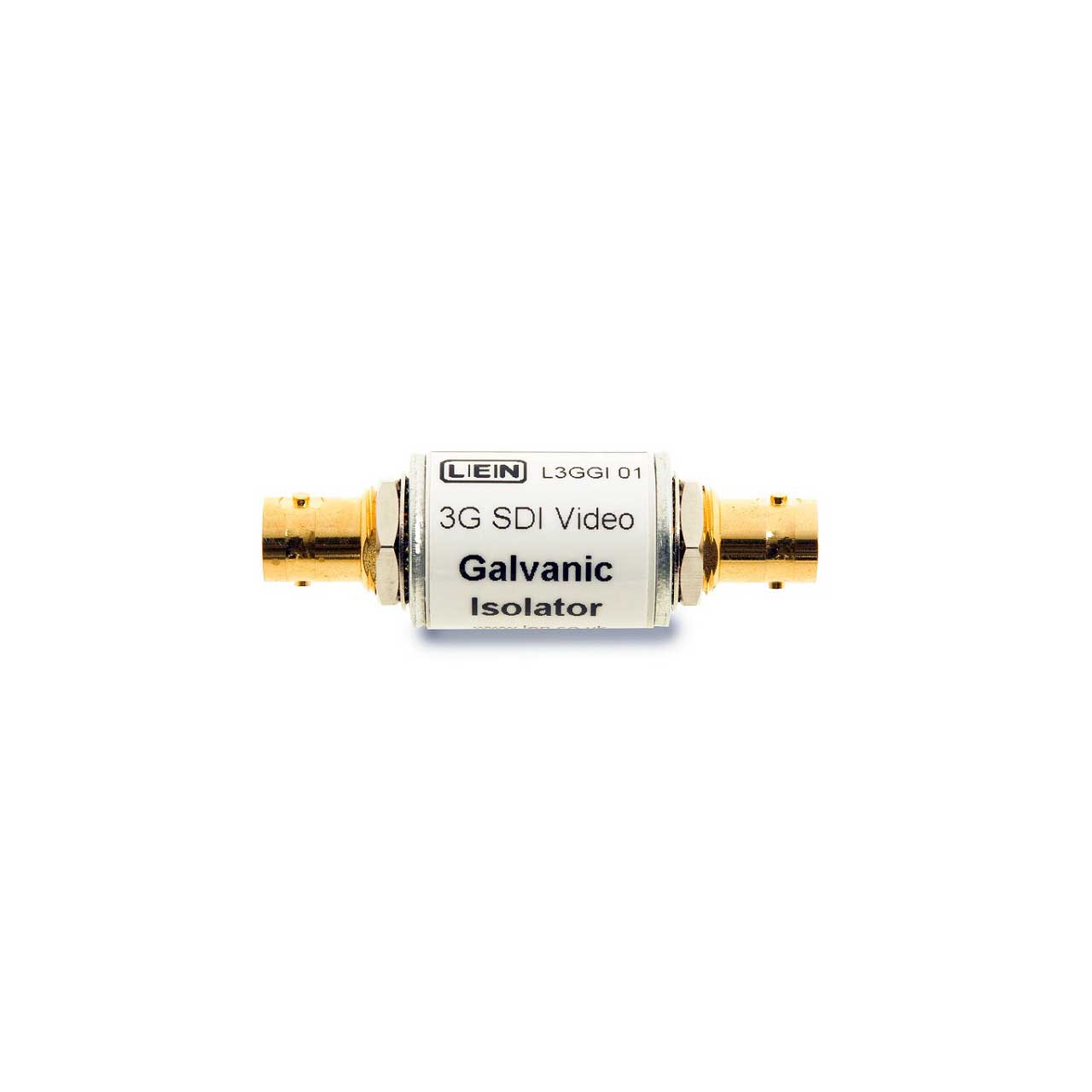

The LEN L3GGI 01 is a galvanic signal and gound path isolator for use with 3G HD, SD & SDI video signals. They are built in cylindrical "barrel" style enclosures and fitted with a BNC connector at each end and isolate both the signal and ground paths.

Specifications:
- Bandwith: 0.5MHz to 3.0GHz
- DC Breakdown Voltage: 100 volts minimum
- Input and Output Impedance: 75 ohms
- Return Loss: >20dB
- Dimensions: 30 x 20 (l x diameter) mm
- Weight: 36g
Item Includes:
- 1x LEN L3GGI01 3G HD SDI Galvanic Video Ground Path Isolator - In Line / Tubular Model
