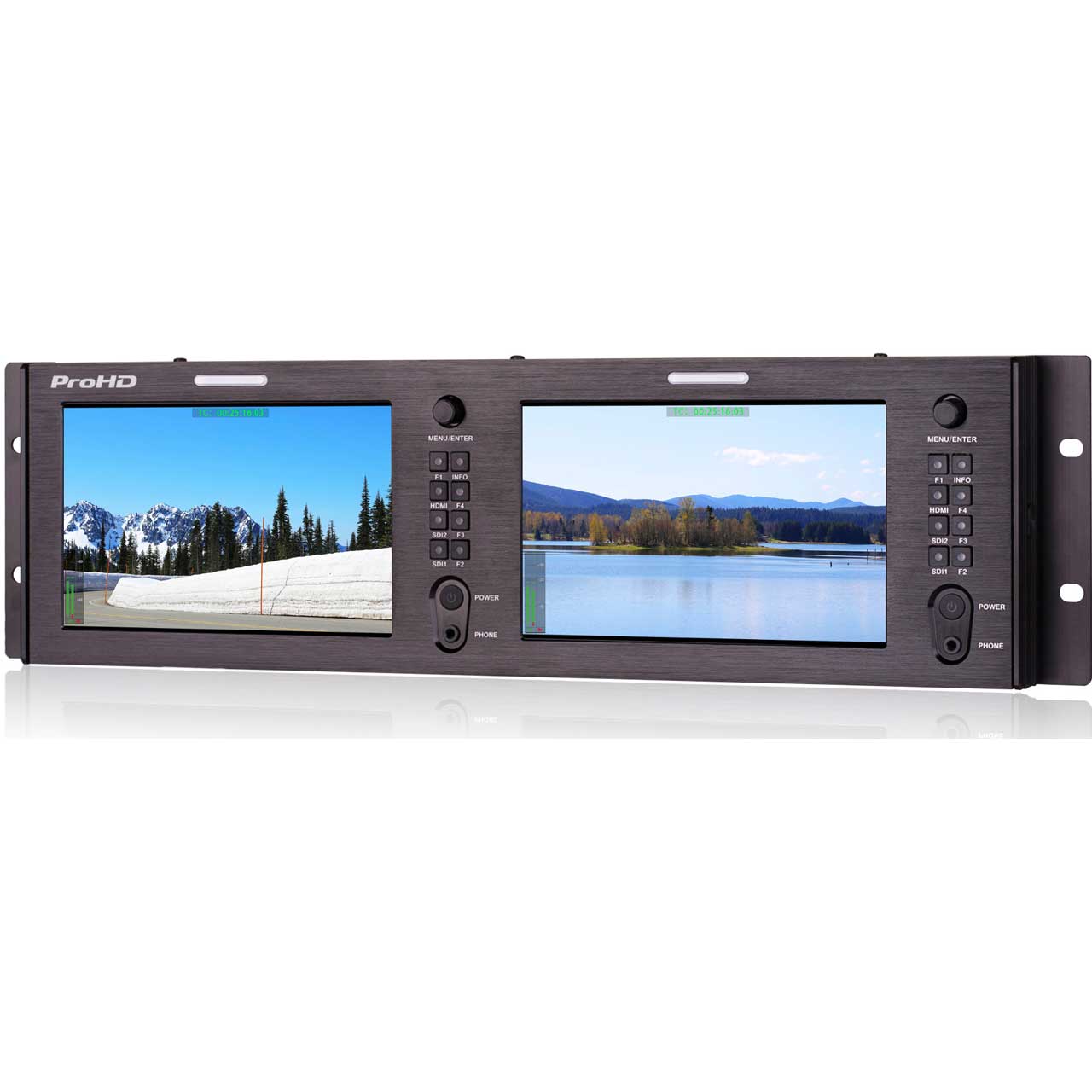

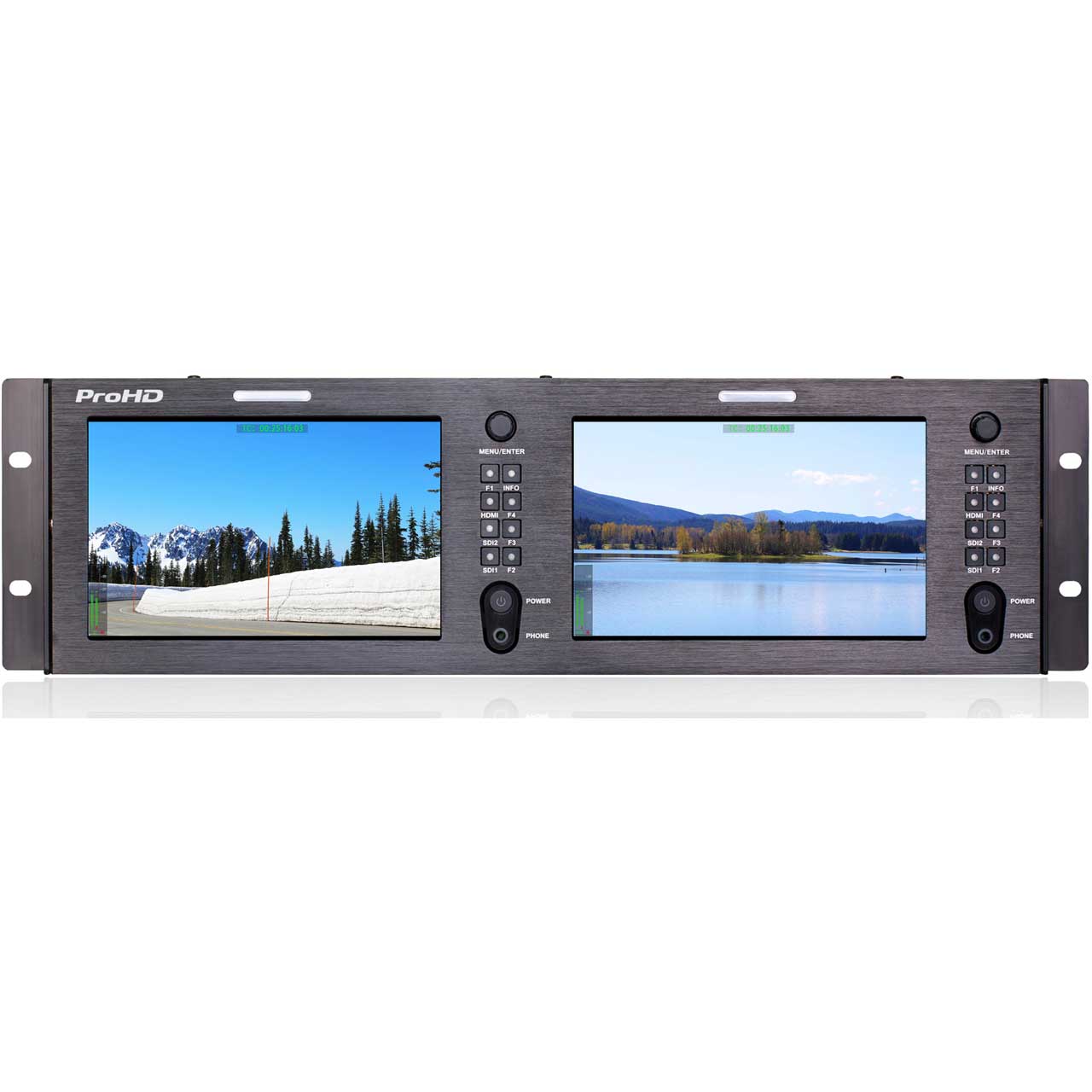

The JVC DT-X7HUx2 is an affordable 2-in-1 Full HD 4K-HDMI rackmount monitor that offers wide connectivity options and all of the essential features required of a broadcast monitor, whether you're out in the field or in the studio.

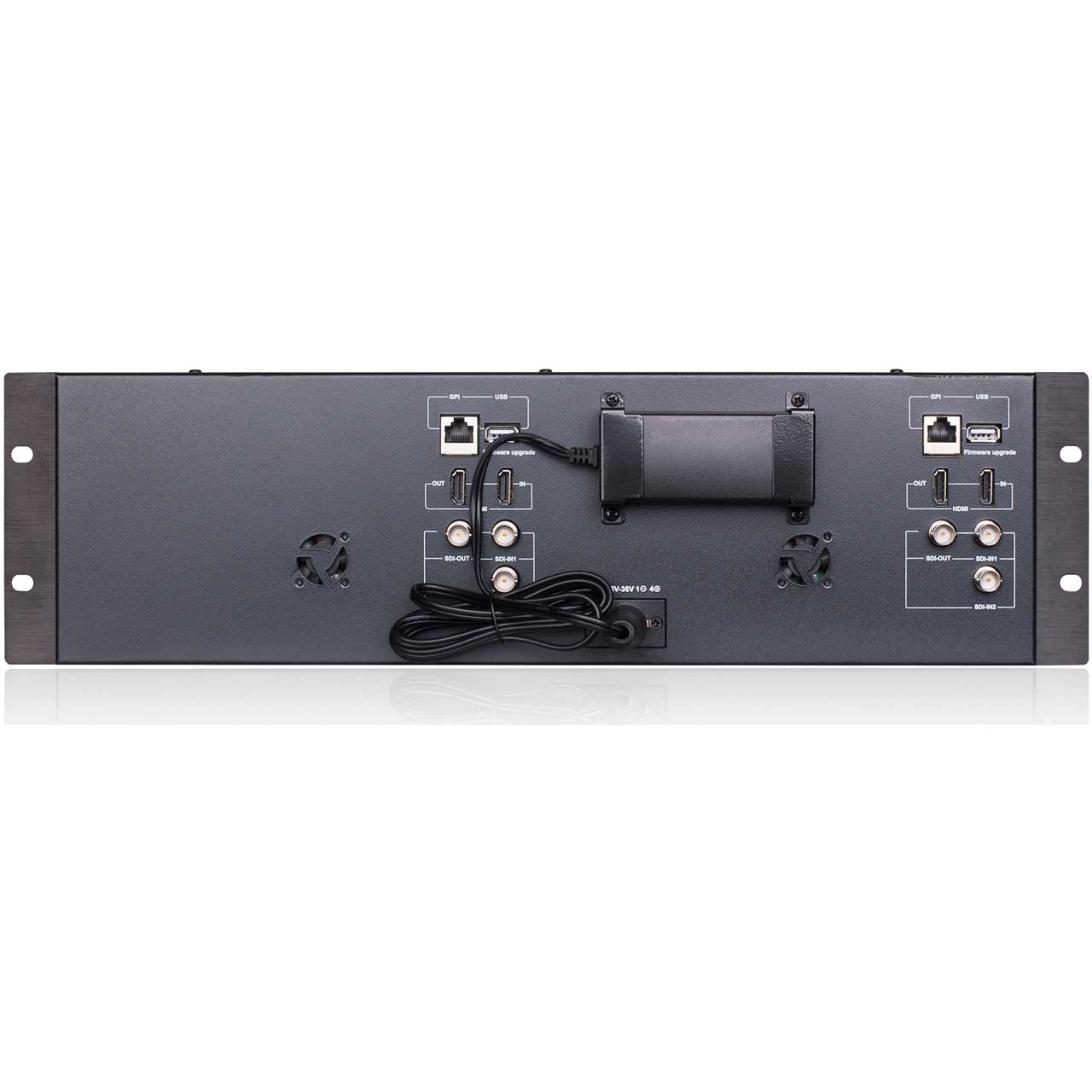

Each monitor has 2K/3G/HD/SD-SDI and HDMI 2.0 (4K60p) inputs and loop outputs, 16-channel embedded audio meters, which you can monitor through 3.5mm headphone outputs if needed, and time code displays. Whether you're using an SDI or HDMI input source, these monitors have a 100% internal color bar which helps to analyze the monitor color and adjust the display parameter.
The DT-X7HUx2 also has some other great video analysis functions such as Peaking Focus Assist, Zebra Stripes, Freeze Frame, R/G/B/Mono and False Color.
Peaking Focus Assist
The Peaking Focus Assist function is to mark the sharpest edges of the image with Red or Blue color under SDI and HDMI input, for users to check if the subjects are focused.
Zebra Stripes
Zebra Stripes are used to check if the image is over exposed or not by showing black and white lines on the monitor. It is considered over exposed when luminance value exceeds 90%.
Freeze Frame
The Freeze Frame is to capture and display the current broadcast frame.
R/G/B/Mono
R/G/B/Mono is used to display only the Red/Green/Blue primary signal or the luminance signal only so as to monitor the image noise.
False Color
The False Color is used to aid in the setting of camera exposure. Under false color mode, there's a color chart on the bottom of the screen for reference. The color from the dark to the bright will be displayed as blue, cyan, green, yellow, orange and red in a consecutive way.
