The most advanced handheld camcorder now has NDI®|HX connectivity to add to its built-in wireless LAN with super-reliable SRT or Zixi streaming and optional HEVC/H.265 encoding. Never before has this level of connectivity been available in a compact form factor. Ideal for multitasking from ENG electronic newsgathering to live broadcasts, it's equipped with JVC's powerful communications engine that delivers high quality, low latency error-free video right from the camera, both wired and wirelessly. And while shooting in the field, your crew can view return video and receive IFB from your facility. With its integrated 20x lens there are no compromises in image quality. There are plenty of media options including SDHC, SDXC and SDD. You can even shoot and record to SSD (solid state drive) media in a wide variety of formats, including 10-bit ProRes 422 at 4K resolution and 50/60p frame rates.** Everything you need is included, including built-in dual channel (2.4GHz, 5GHz) broadband radios with MIMO. Just plug in an appropriate media card and begin shooting, recording and streaming, or do direct-to-live production by setting the camera to NDI®|HX. (Note: Camera does not record in NDI®|HX mode.)
NDI®|HX Mode Selection
The NDI®|HX live video source capability is a mode of operation in addition to the existing output formats of the camcorder. The modification adds the NDI®|HX mode to the Recording Format System selection of the camcorder. Selecting NDI®|HX sets the camera to operate solely as a live video source. Features available in the NDI®|HX mode include automatic camera discovery on the LAN by supported hardware and software, tally support, and IP remote control capability.
NDI®|HX Modification for Current GY-HC500 Series
Current owners of the GY-HC500U, GY-HC550U, and GY-HC500SPCU will be able to have their camcorders modified to incorporate the new NDI®|HX features through JVC. Please contact JVC Professional Support at 800-582-5825 for assistance.
1" CMOS 4K Image Sensor

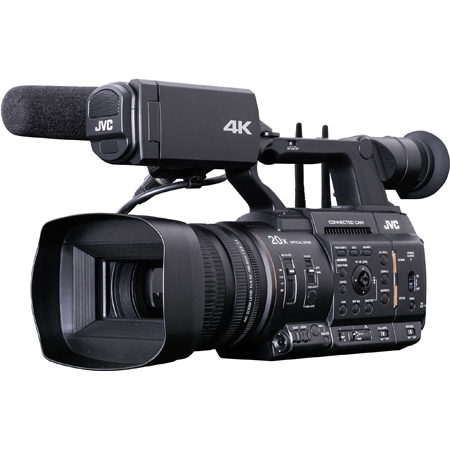

The GY-HC550 features a 1-inch CMOS 4K image sensor for uncompromised cinema and video production. This large sensor delivers a superior dynamic range, high S/N ratio and high sensitivity (F11 at 2000lx), contributing artistic visual expression including shallow depth of field 'bokeh' capability.
20x Optical/40x Dynamic Zoom Lens with Manual Functions
The GY-HC550 is equipped with a newly developed wide-angle 20x optical zoom lens to offer optimal magnification for shooting. When shooting in HD mode, Dynamic Zoom combines optical zoom and pixel mapping from a 4K image sensor to create seamless and lossless 40x zoom.
