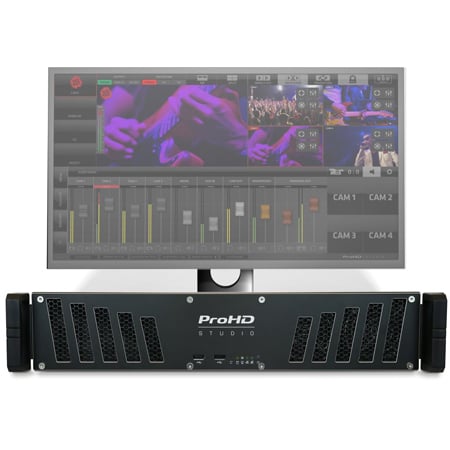

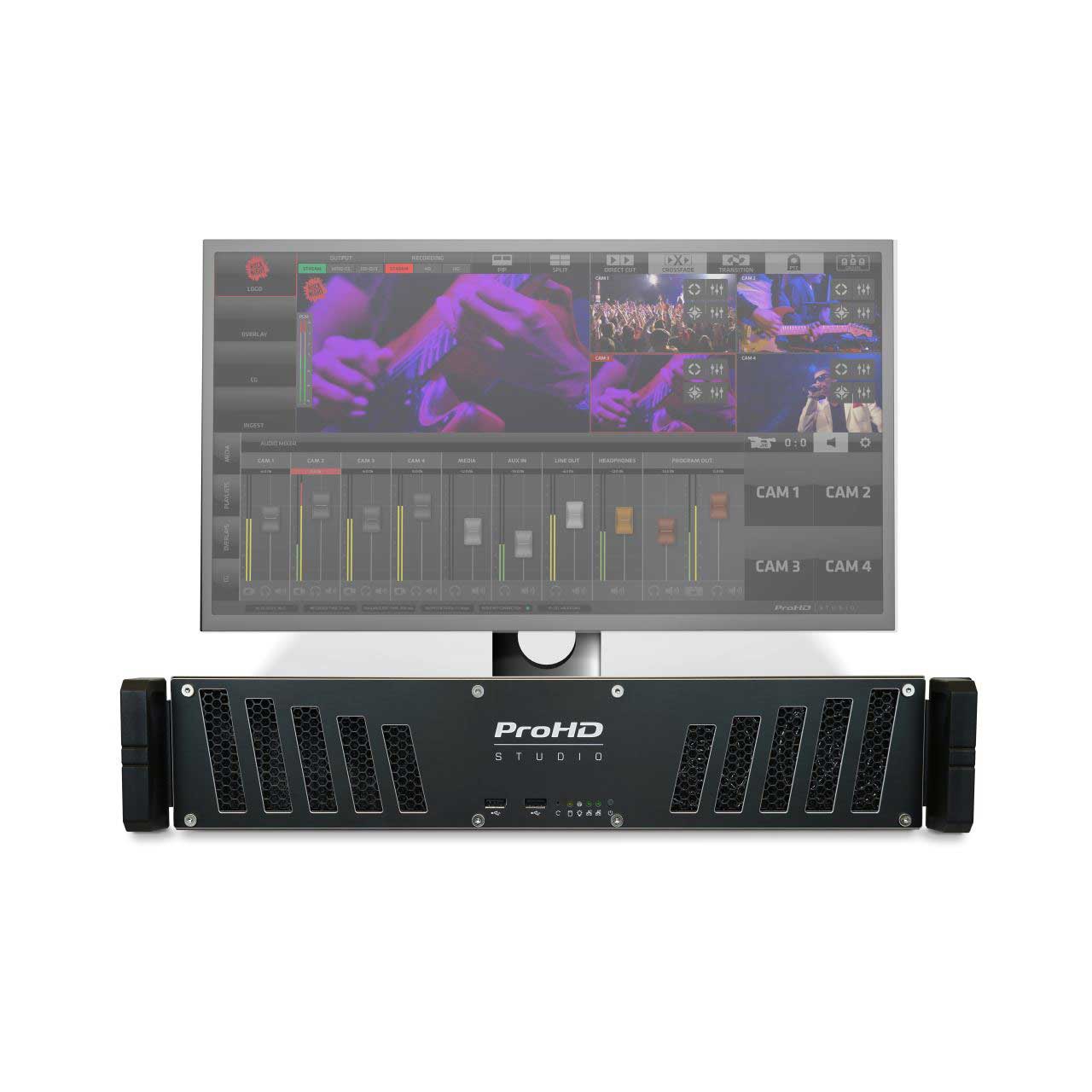

JVC KM-IP4000 ProHD STUDIO 4 Channel HD-SDI / HDMI or IP Live Production and Streaming Studio

KM-IP4000 - Overview

• Features:

  • Intuitive and easy-to-use touch screen user interface
  • 4x HD-SDI input
  • 4x IP Stream input
  • 4x NDI input
  • 1x Ingest input for HDMI or NDI with transparency
  • IP video stream inputs from JVC streaming camcorders
  • Integrated JVC camcorder remote control
  • External signal ingest with keying (for PowerPoint, Keynote, Facebook, GoPro or even a smart phone camera)
  • 1x HD-SDI video out
  • 1x HDMI video out - PGM
  • 1x HDMI/Display port video out - multiview or PGM
  • up to 1080@50/60p streaming @ 10 Mbps max
  • RTMP & MPEG-TS simultaneous output
  • Cut/Crossfade/Transitions automated switching modes
  • Monetizing system with advertising statistics
  • Internal character generator with templates
  • 4 layers of DSK -- CG/images/animations with transparency
  • Instant, unlimited video clips playback -- No transcoding!
  • Unlimited playlists -- Media management/playout
  • PIP and Split screen layouts


• Specifications:

  • Video Input
  • 4x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 1080i

    Network Video Input
  • 4x IP video inputs via NDI, RTSP, RTMP, UDP unicast, UDP multicast, HLS

    SDI Video input
  • 4x HD/SD-SDI connections supporting video input in any combination
  • 1080i: 50, 60, 59.94
  • 1080p: 25, 30, 29.97
  • 720p: 50, 60, 59.94
  • SD: 50, 60, 59.94

    SDI Video Output
  • 1x HD/SD-SDI + HDMI: Program output with embedded audio
  • 1080i, 50, 59.94
  • 720p: 50, 59.94
  • SD: 50, 59.94

    HDMI or NDI Video Input
  • 1x HDMI input, usable as video input for capturing any ( Ingest )external screen ( laptop, pc , tablet ) or NDI transparency ingest input usable for external Sport graphics software or CG applications

    Network Video Output
  • 1x NDI IP video program output
  • H.264 + AAC-LC stream output, RTMP, MPEG-TS UDP
  • Streaming to up to 5 destinations at the same time

    Streaming Resolutions
  • 1080p: 15, 25, 30
  • 720p: 15, 25, 30, 50, 60
  • 540p: 15, 25, 30, 50, 60
  • 576p: 15, 25, 30, 50, 60
  • 486p: 15, 25, 30, 50, 60

    Multiview Output
  • HDMI/DVI/Display port (depends on GPU version), supporting standard display resolutions, configurable: full PGM / All Inputs grid / All Inputs + PGM grid

    Recording
  • ISO recording of all cameras in MPGEG2 Intraframe
  • Program recording HD: MPEG2 @ ~18 Mpbs or SD: MPEG2 @ ~8 Mbps
  • Simultaneous Stream Recording in H.264 + AAC at streaming settings bitrate ,resolution and fps

    Storage
  • 120GB SSD - system
  • 500GB SSD - media and recording storage (recording time varies depending on amount of media files stored on drive and recordings configuration. Maximum of 60h of HD program recording)

    Audio Input
  • 3.5mm line in/microphone connector
  • HD/SD-SDI embedded audio
  • IP input embedded audio
  • Support for USB audio device input via compatible WDM audio drivers


• Item Includes:

  • 1x JVC KM-IP4000 ProHD STUDIO 4 Channel HD-SDI / HDMI or IP Live Production and Streaming Studio
