JVC RM-LP5G Compact Joystick PTZ Controller

Name: JVC RM-LP5G Compact Joystick PTZ Controller
Brand: JVC
SKU: JVC-RM-LP5G
Price: 799.00 USD
Availability: PreSale

ITEM #: JVC-RM-LP5G MFG #: RM-LP5G

JVC

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RM-LP5G - Overview

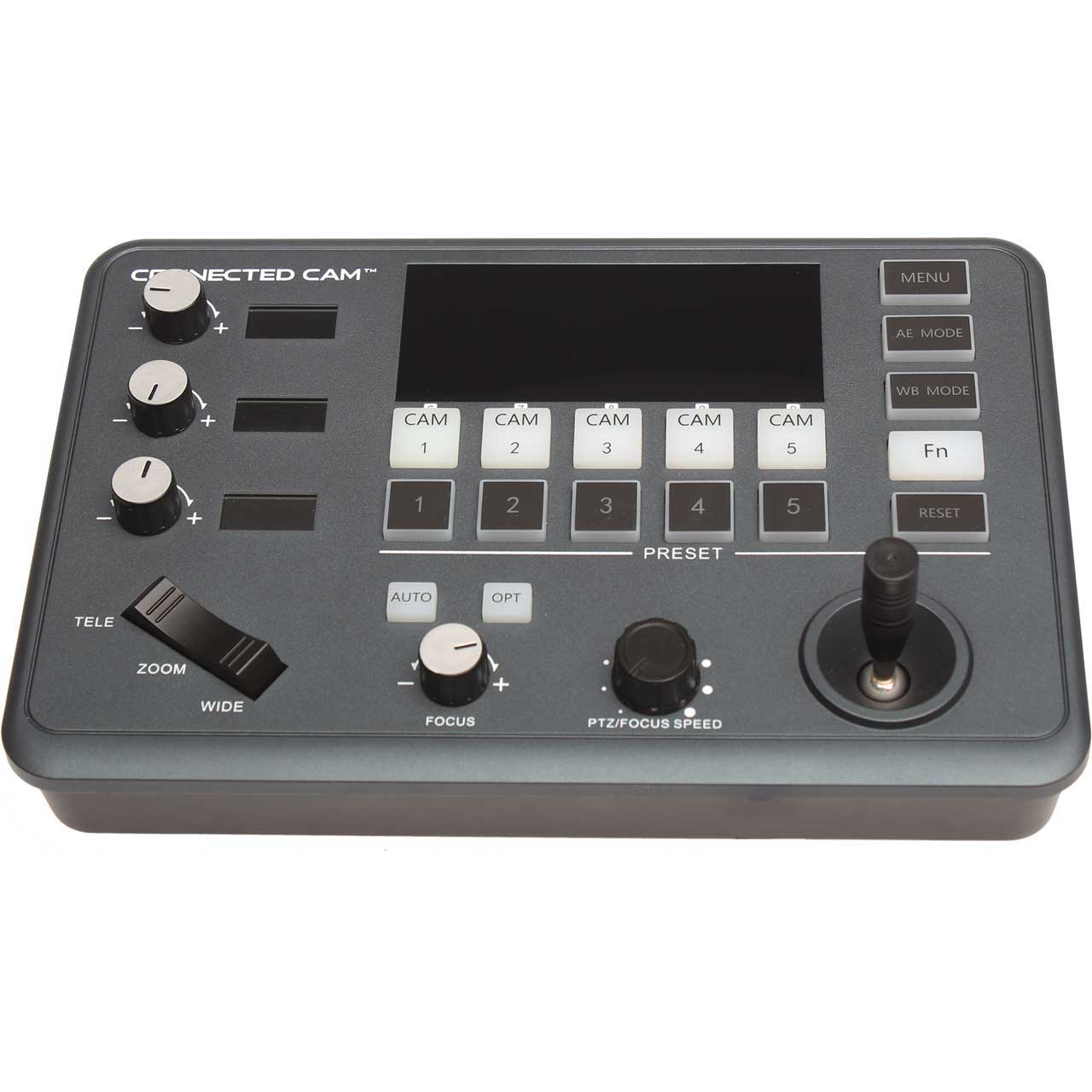

This JVC RM-LP5G compact joystick controller connects to your network and provides complete IP control of cameras in your facility or anywhere in the world through the Internet.

Please Note! The RM-LP5G cannot be sold separately or individually. This controller is only available with the purchase of 2 or more JVC Connected Cam PTZ cameras.

Please see the following PTZ camera kits to complete your order:
(Black / White)
JVC-PZ200NBU-KIT / JVC-PZ200NWU-KIT
JVC-PZ200BU-KIT / JVC-PZ200WU-KIT
JVC-PZ400NBU-KIT / JVC-PZ400NWU-KIT
JVC-PZ510BU-KIT / JVC-PZ510WU-KIT
JVC-PZ510NBU-KIT / JVC-PZ510NWU-KIT

Features:
- 5 camera / 5 preset PTZ camera operation with 2-axis joystick and zoom bridge controls
- Supports VISCA, UDP, PELCO P/D control protocols over RS422, RS485, RS232 and IP
- 4-color LED multi-screen display supports easy setup and operation
- Available April 2023 and only offered in a bundle with 2 or more PTZ cameras
Specifications:

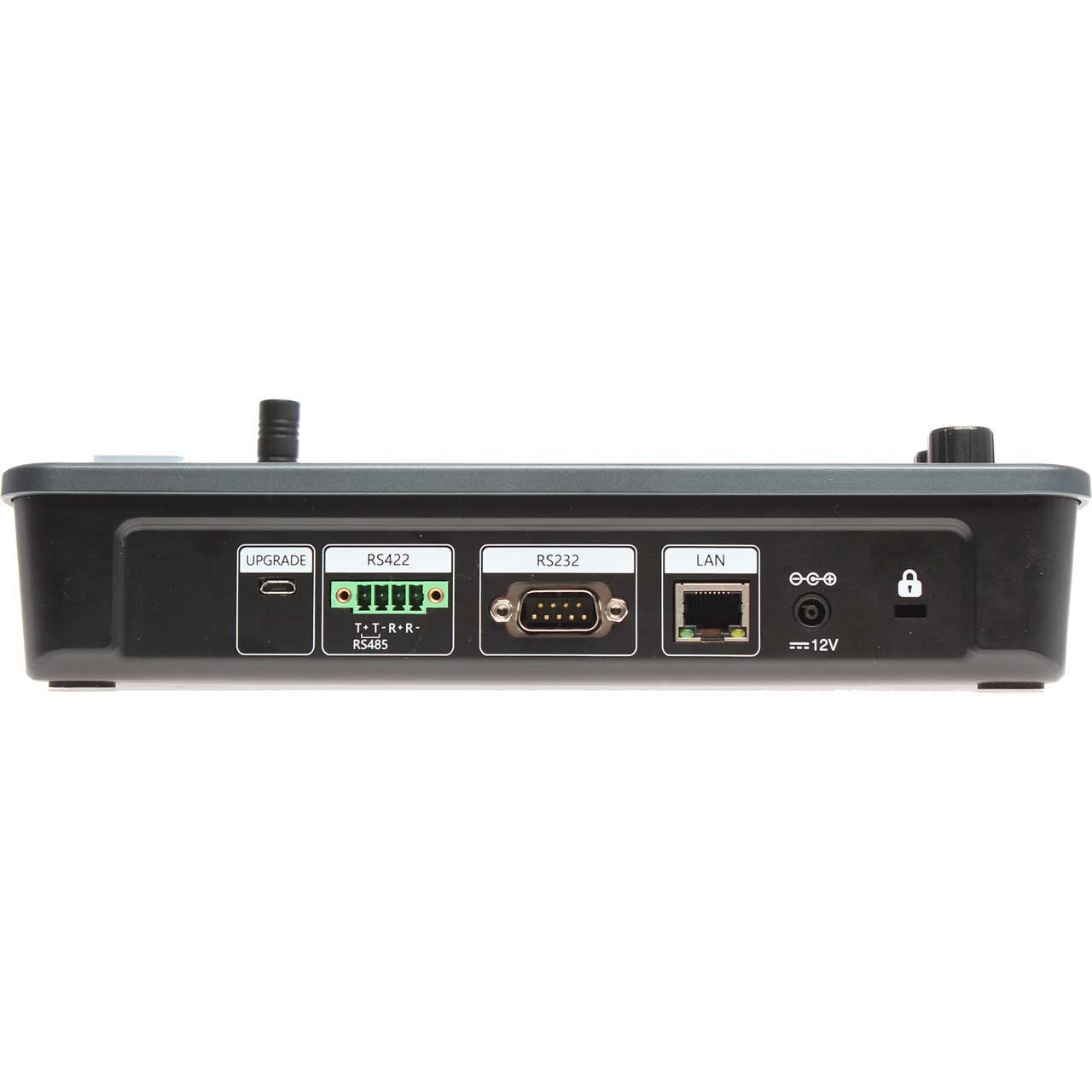

- Communication Control Interface
- RS422/RS485 Interface: Phoenix Contact 4 pin 3.81mm Terminal
- RS232C Interface: DB9 Male Interface
- LAN Interface: RJ45 Female Interface
- Power Supply: JEITA type4 Female Interface

  Camera Control or Operation
- Supports up to Control Cameras: 5
- Communication Protocol: VISCA, PELCO P/D, UDP
- Infinitely variable knobs: 4
- Joystick: 2-Axis
- Zoom Mode: Tele-Wide Bridge Keys
- Focus Mode: Auto/ Manual/ OPT
- Pan/Tilt Rotation Speed: 7-Level Adjustment
- Zoom In/Out Speed: 7-Level Adjustment

  Control Signal Format
- Baud Rate: 2350bps, 4800bps, 9600bps, 19200bps, 38350bps
- Date Bits: 8 Bit
- Stop Bit: 1 Bit
- Parity bit: NONE
- Internet Protocol: UDP / VISCA OVER IP

  Power Supply and Consumption
- Rated Voltage: DC 12V
- Rated Current: 0.3A max
- Max Power Consumption: 3.6W

  Physical & Others
- Password Privacy Protection: Yes
- Kingston's Lock Holes: Yes
- Works Temperature: 32° to 104°F
- Storage Temperature: -4° to 140°F
- Dimensions (LxWxH): 9.60 x 6.45 x 1.89"
- G.W: 2.42Lbs (1.1kg)
Item Includes:
- 1x RM-LP5G Compact Joystick PTZ Controller
- 1x Phoenix Contact 4 pin 3.81mm Terminal
- 1x Power Adapter
- 1x User Manual

RM-LP5G - Recommended Accessories

JVC Two KY-PZ200 20x 1080P Streaming PTZ Cameras with RM-LP5G PTZ Controller Kit -3G-SDI/HDMI/USB/IP - Black
JVC-PZ200BU-KIT
Our Price: $3,050.00
JVC Two KY-PZ200N 20x 1080P NDI Streaming PTZ Cameras with RM-LP5G PTZ Controller Kit - 3G-SDI/HDMI/USB/IP - Black
JVC-PZ200NBU-KIT
Our Price: $3,749.00
JVC Two KY-PZ400N 4K NDI/HEVC Wide Angle PTZ Cameras with RM-LP5G PTZ Controller Kit - 3G-SDI/HDMI/IP - Black
JVC-PZ400NBU-KIT
Our Price: $4,335.00
JVC Two KY-PZ510 Ultra Wide 4K60P HEVC Auto-Tracking PTZ Cameras w/ RM-LP5G PTZ Controller - 3G-SDI/HDMI/USB/IP - Black
JVC-PZ510BU-KIT
Our Price: $5,800.00
JVC Two KY-PZ510N Ultra Wide 4K60P NDI/HEVC Auto-Tracking PTZ Cameras w/ RM-LP5G Controller - 3G-SDI/HDMI/USB/IP - Black
JVC-PZ510NBU-KIT
Our Price: $6,395.95
Connectronics ULTRA High Speed 8K HDMI 2.1 AM/AM Cable - 6 Foot
HDMI-21-06FT
Our Price: $7.49

RM-LP5G - Reviews

RM-LP5G - Attachments

See JVC RM-LP5G User Manual (PDF)
