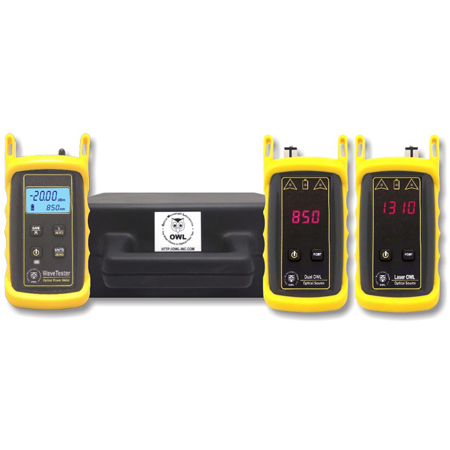

Optical Wavelength Labs KIT-WT-D285SC WaveTester Dual OWL 850 / Laser OWL 1310 MM/SM Test Kit

KIT-WT-D285SC-L213SC - Overview

• Features:

  • Applications:
  • Full-featured certification of multimode fiber links at 850nm, and singlemode fiber links at 1310nm
  • Optical loss (attenuation) measurement
  • Patch cord verification
  • WaveTester Optical Power Meter Features:
  • Equipped with InGaAs photodetector
  • Universal detector port supports 2.5mm and 1.25mm connectors
  • Calibrated wavelengths: 850, 1300, 1310, 1490, 1550 nm
  • Measurement range: +5 to -60 dBm
  • Separate zero reference for each calibrated wavelength
  • Measurement modes include absolute (for optical power) or relative (for optical loss)
  • Displays power measurements in dBm, dB, and W
  • Data storage for up to 200 points
  • USB interface for continuous data logging, report printing, or data downloading
  • Includes OWL Reporter software for downloading data and printing reports
  • Simple 4-button operation
  • Backlit LCD display
  • Small, hand-held design
  • Ergonomic protective rubber boot
  • Rechargeable lithium polymer battery
  • Up to 250 hours battery life
  • NIST traceable
    Dual OWL 850nm Multimode Light Source Features:
  • Multimode LED source
  • Temperature-compensated output
  • Output power calibrated to -20dBm
  • 850nm output wavelength
  • Configured with SC connector
  • Compact size and rugged design
  • Simple 2-button operation
  • LED indicators for selected source port and battery power
  • Wavelength indicated by 7-segment LED display
  • Powered by rechargeable lithium polymer battery
  • Up to 120 hours battery life
  • NIST traceable
  • Laser OWL 1310nm Singlemode Laser Source Features:
  • Singlemode FP laser source
  • Provides high output and stability
  • Designed to test singlemode fiber optic links
  • Temperature-compensated output
  • Output power calibrated to -10dBm
  • 1310nm output wavelength
  • Configured with SC connector
  • Compact size and rugged design
  • Simple 2-button operation
  • LED indicators for selected source port and battery power
  • Wavelength indicated by 7-segment LED display
  • Powered by rechargeable lithium polymer battery
  • Up to 120 hours battery life
  • NIST traceable


• Item Includes:

  • 1 - WaveTester Optical Power Meter (WT-1)
  • 1 - Dual OWL 850nm Multimode Optical Light Source, SC Connector (DO2-85sc)
  • 1 - Laser OWL 1310nm Singlemode Optical Laser Source, SC Connector (LO2-13SC)
  • 1 - Carrying Case
  • 1 - Set of USB Download/Charger Cables
  • 3 - Protective Rubber Boots
  • 1 - OWL Reporter Software
  • 1 - NIST Certificate
  • 1 - Product Manual
