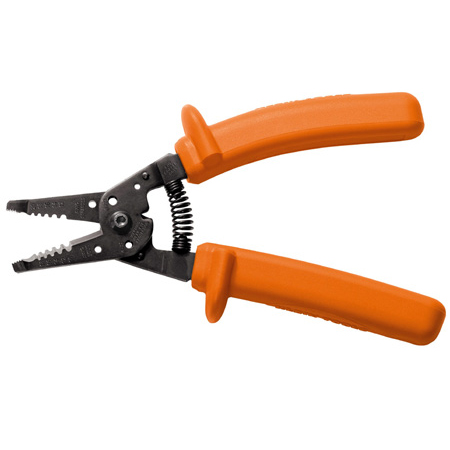

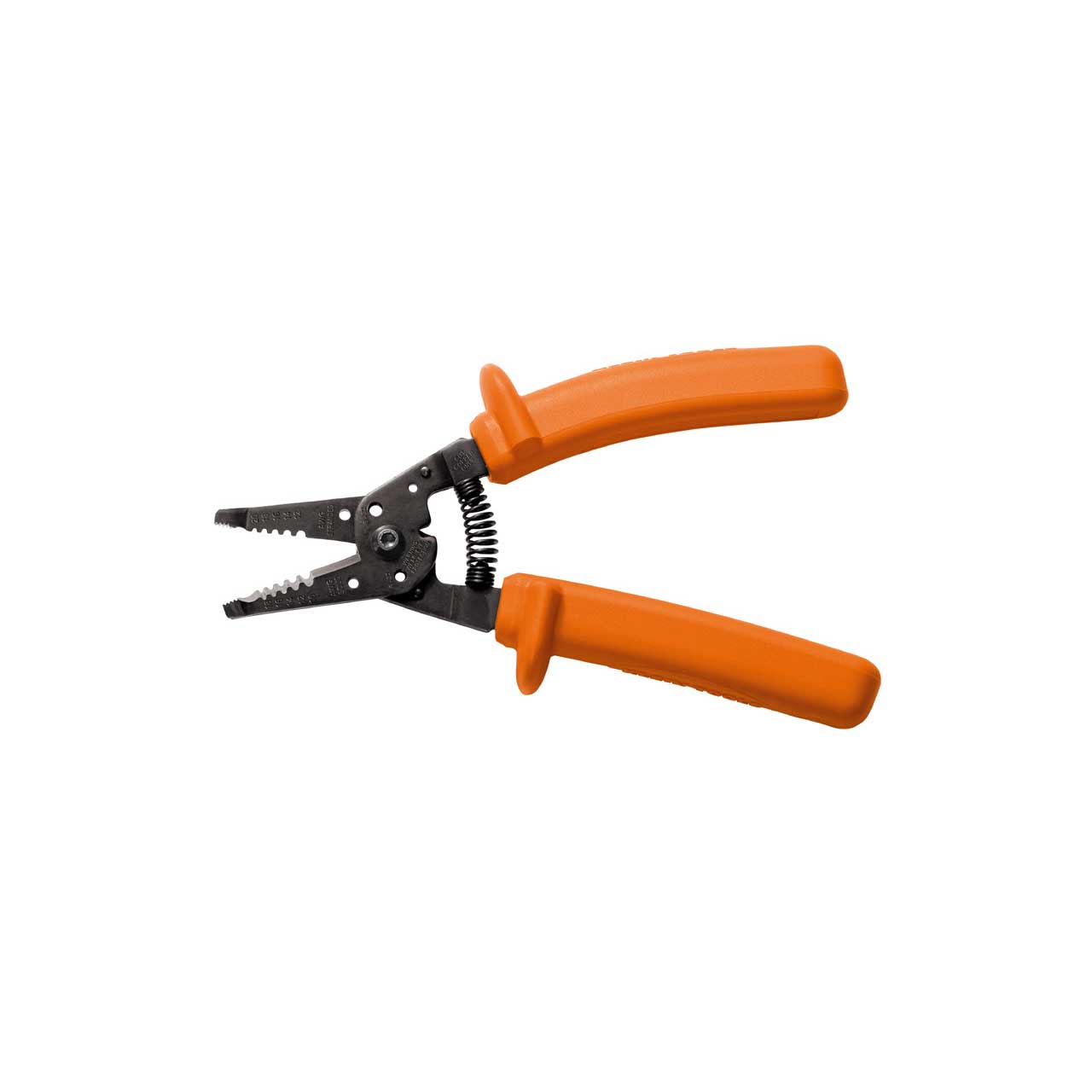

Klein Tools 11055-INS Insulated Klein-Kurve Wire Stripper/Cutter

11055-INS - Overview

• Features:

  • Individually tested to meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
  • Cuts, strips, loops and gauges both 10-18 solid and 12-20 stranded AWG wire
  • Cleanly shears 6-32 and 8-32 screws
  • Spring-loaded action for self-opening
  • Hardened steel with precision ground stripping holes for easy removal of insulation
  • Strong gripping serrated nose for bending, shaping and pulling of wire
  • Comfortable curved handles


• Specifications:

  • Application: Cuts, Strips, Loops and Gauges Wires
  • Special Features: Compact and Lightweight, Spring Loaded For Self Opening
  • Material: Steel
  • Insulated: Yes
  • Strips and Cuts: 10, 12, 14, 16, 18 AWG Solid (4.0 mm² , 2.5 mm² , 1.5 mm² , 1.0 mm² , 0.75 mm² ) 12, 14, 16, 18, 20 AWG Stranded (2.5 mm² , 1.5 mm² , 1.0 mm² , 0.82 mm² , 0.50 mm² )
  • Screw Shearing: 6-32 and 8-32
  • Standard: IEC 60900 and ASTM F1505
  • Overall Length: 8'' (203.2 mm)
  • Handle Color: Orange
  • Handle Finish: 2-Layer
  • Weight: 0.75 lb (0.34 kg)


• GTIN:

  0092644740688
