Kramer 602R/T Detachable DVI Optical Transmitter & Receiver

Name: Kramer 602R/T Detachable DVI Optical Transmitter & Receiver
Brand: Kramer
SKU: KR-602RT
Price: 788.00 USD
Availability: PreSale

ITEM #: KR-602RT MFG #: 602R/T

Kramer

List Price:

$985.00

Our Price:

$788.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

602R/T - Overview

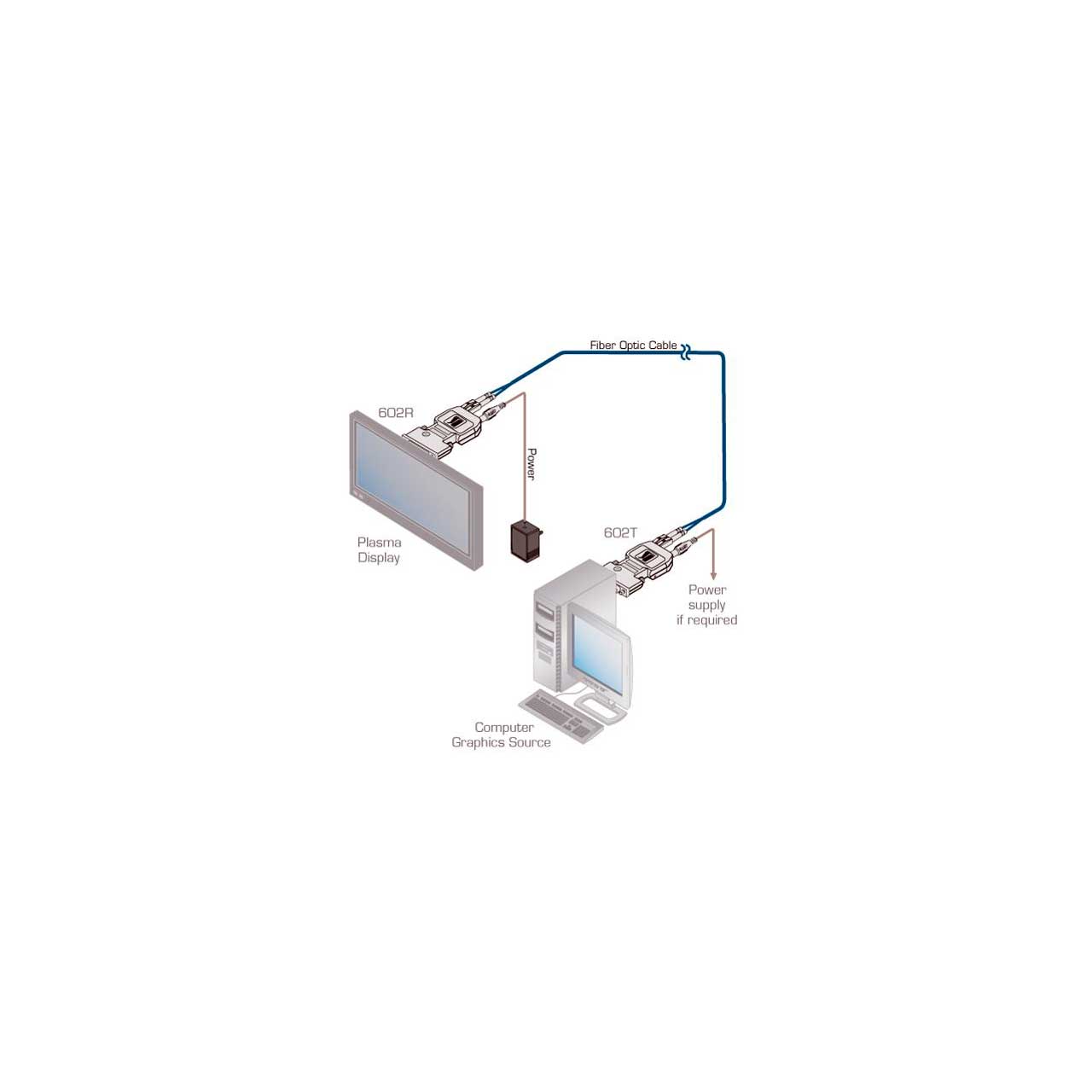

The Kramer 602RT which contains the 602 Transmitter and 602 Receiver are a small and lightweight fiber optic transmitter and receiver pair for DVI signals. The 602T converts electrical signals to optical signals and the 602R decodes the optical signals back to electrical signals.

Perfect for:
Digital flat panel and plasma displays used in medical, commercial and travel applications.
Conference rooms and auditoriums.
Kiosks with digital flat panel displays for presenting information.
LED signboards in streets and stadiums.

Features:
- Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- Max. Resolution - Up to WUXGA (1920x1200) @60Hz, 1080p.
- Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
- Range - Up to 400m (1312ft) (multimode); up to 1500m (5000ft) (single-mode).
- Cable - 2LC single or multimode fiber optic cable.
- EDID Capture - Copies and stores the EDID from a display device.
- Advanced Solution - Small and lightweight, indispensable asset in any digital signage application.
- Standards Compliance - Supports DVI1.0 and DDC2B, fully implemented by fiber-optic communication.
- Not HDCP Compliant.
- EMI/RFI Free.
Specifications:
- INPUTS:
- DVI-D on a DVI-I connector (602T), 2 LC optical connectors (602R).
- OUTPUTS:
- 2 LC optical connectors (602T), DVI-D on a DVI-I connector (602R).
- RESOLUTION:
- Up to WUXGA @60Hz (1.65Gbps).
- POWER CONSUMPTION:
- 5V DC, <500mA.
- DIMENSIONS:
- 3.9cm x 6.9cm x 1.5cm (1.5" x 2.83" x 0.75") W, D, H.
- WEIGHT:
- 0.14kg (0.31lbs) approx.
Item Includes:
- 602 Transmitter and 602 Receiver pair
- Power supplies (2)
Warranty:
- Limited 7 Year Warranty
GTIN:
7291063039813

602R/T - Recommended Accessories

Camplex Premium Bend Tolerant Fiber Patch Cable OM3 Multimode Duplex LC to LC - Aqua - 1 Meter
MMD50-LC-LC-001
Our Price: $19.95
Connectronics Dual Link DVI-D Male to DVI-D Male Cable 6Ft
DVID-DVID-6
Our Price: $7.99
Lilliput A7S-B Full HD 7 Inch 4K HDMI Field Monitor Package Camera Assist - Black Case
LIL-A7S-B
Our Price: $169.00
Connectronics HDMI to DVI-D Digital Monitor Adapter Cable - 10 Foot
HDMI-DVID-10
Our Price: $14.75

602R/T - Reviews

602R/T - Attachments

602RT User Manual
602RT Data Sheet
