Kramer 616R-T Dual Link DVI Extender Transmitter and Receiver over Ultra-Reach MM Fiber

Name: Kramer 616R-T Dual Link DVI Extender Transmitter and Receiver over Ultra-Reach MM Fiber
Brand: Kramer
SKU: KR-616R-T
Price: 1976.00 USD
Availability: PreSale

ITEM #: KR-616R-T MFG #: 616R-T

Kramer

List Price:

$2,470.00

Our Price:

$1,976.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

616R-T - Overview

Dual-link ultra-reach DVI over MM fiber transmitter and receiver pair

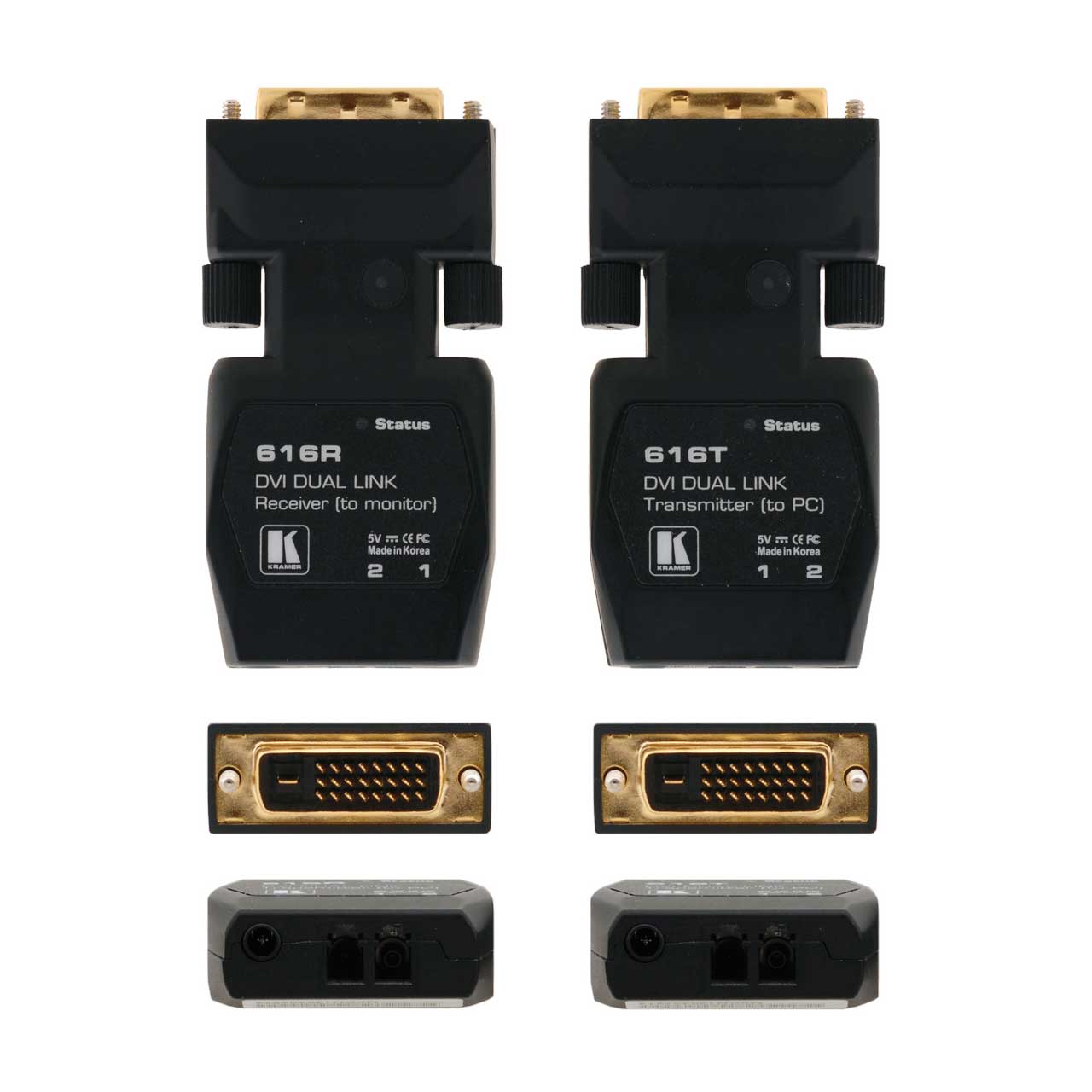

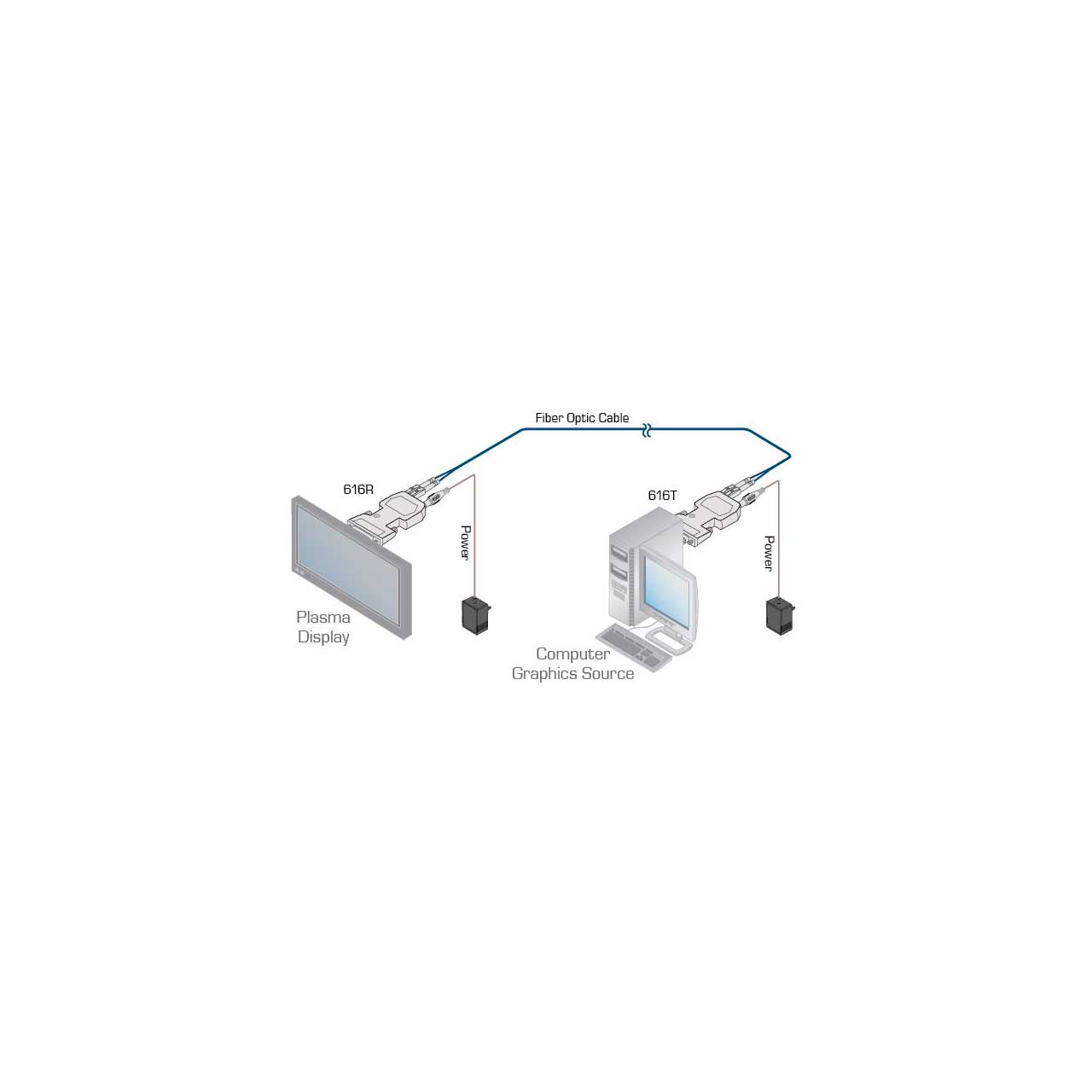

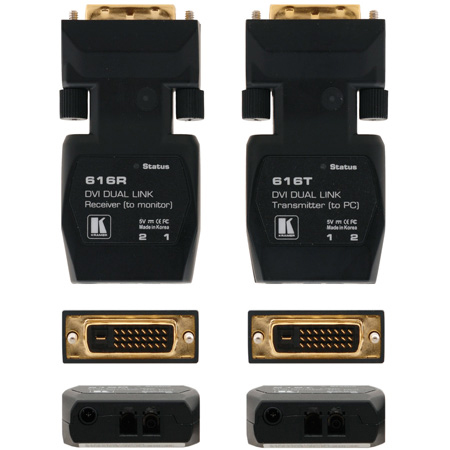

The Kramer 616T and 616R are detachable dual-link DVI over MM fiber ultra-reach transmitter and receiver pair. They transmit uncompressed resolutions of up to 1080p@60 over dual-link DVI to a range of up to 500 meters (1640 feet). They use duplex multimode fiber optic cable with two LC connectors. 616T converts dual-link DVI signals to optical signals that it transmits to 616R. 616R decodes the optical signals back to a dual-link DVI signal.

Perfect for:
Digital flat panel and plasma displays used in medical, commercial and travel applications
Conference rooms and auditoriums
Kiosks with digital flat panel displays for presenting information
LED signboards in streets and stadiums

Features:
- Max. Data Rate - 13.5Gbps (2.25Gbps per graphic channel).
- Max. Resolution - HDTV: 480p, 720p, 1080p; Vesa: VGA to WQUXGA @33Hz (XGA not supported).
- Not HDCP Compliant.
- Standards Compliance - Supports DVI1.0, fully implemented by fiber-optic communication and DDC2B by virtual DDC; Class A digital device, pursuant to part 15 and 2 of FCC and CE.
- Laser Standards Compliance - IEC 60825-1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
- System Range - Up to 500m (1640ft) (multimode).
- EMI/RFI Free.
- EDID Capture - Copies and stores the EDID from a display device (616T).
- Cable - Duplex multimode fiber optic cable with two LC connectors.
- Power - External power adapters (supplied) or 5V DC from source (auto detect).
Specifications:
- INPUTS
- 1 DVI (616T), 1 duplex multimode fiber optic with 2 LC connectors (616R)
- OUTPUTS
- 1 duplex multimode fiber optic with 2 LC connectors (616T), DVI OUT (616R)
- MAX RESOLUTION
- 13.5Gbps (2.25Gbps bandwidth per graphic channel), WQUXGA @33Hz (XGA is not supported)
- MAX. RANGE
- 500m (1640ft) for WQUXGA (3840x2400) at 33Hz refresh rate
- POWER CONSUMPTION
- 5V DC, 430mA max. (616T)
- 350mA max. (616R)
- OPERATING TEMPERATURE
- 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE
- -40° to +70°C (-40° to 158°F)
- HUMIDITY
- 10% to 85%, RHL non-condensing
Item Includes:
- 616 Transmitter
- 616 Receiver
- Power Supply 5V/DC1A (X2)
Warranty:
- Limited 7 Year Warranty
GTIN:
7291063062477
