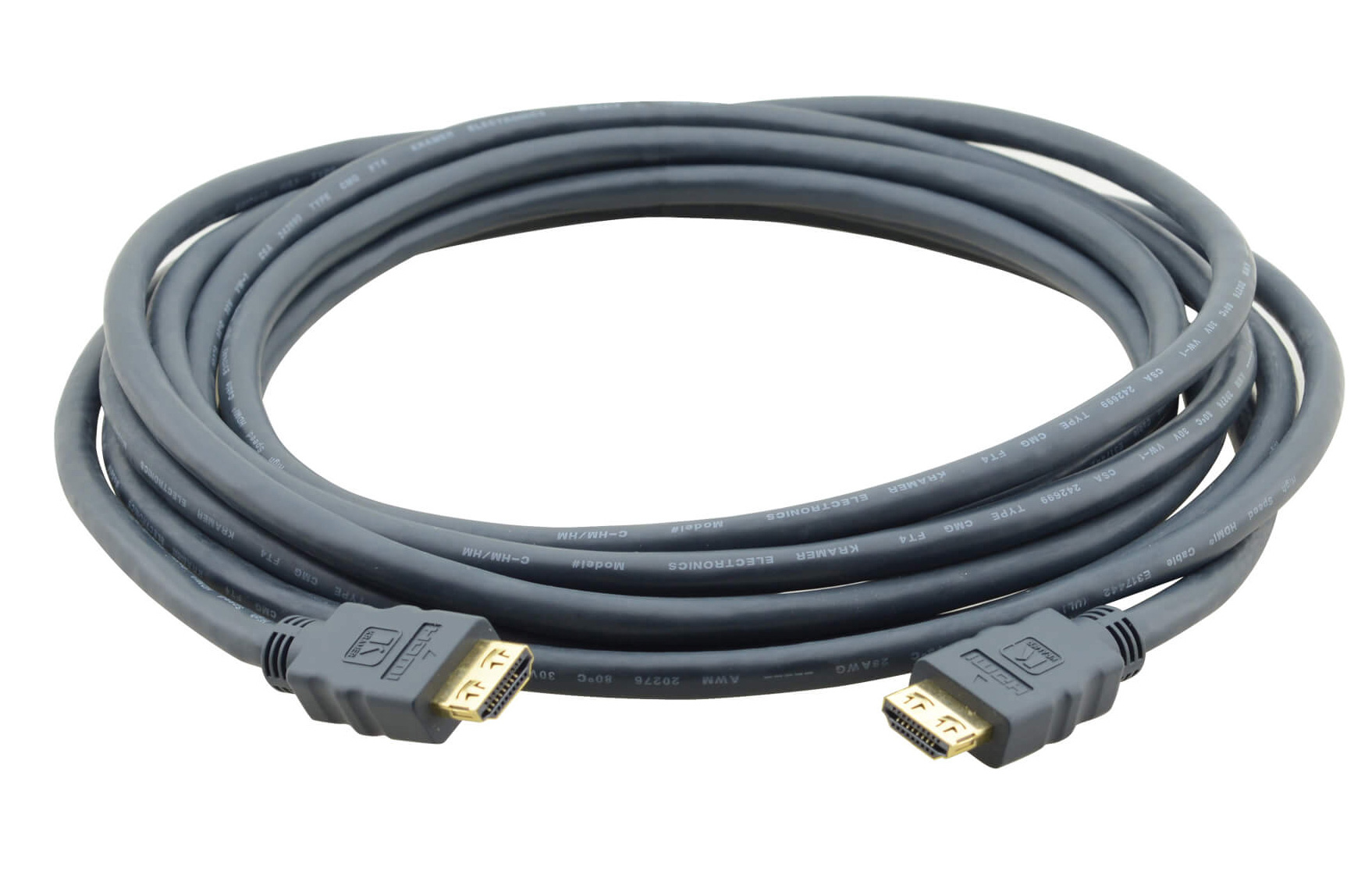

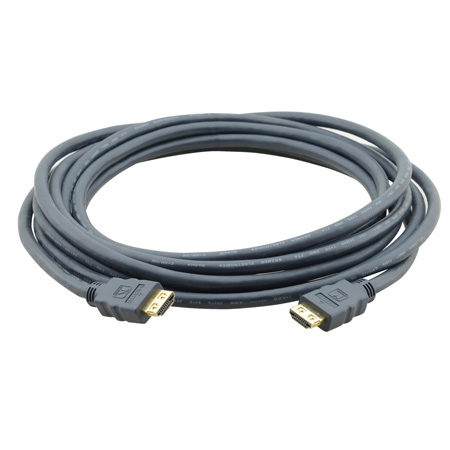

Kramer C-HM/HM-10 PREMIUM High-Speed HDMI Cable with K-Lock Connectors - Male to Male - 10 Foot

C-HM/HM-10 - Overview

Quality Performance

• Features:

  • Quality Performance - Kramer's HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as LCD or OLED display screens for high-definition TVs.
  • Max. Resolution - 4K@60Hz (4:4:4).
  • High-Quality Connectors - 24K gold-plated connectors resist corrosion, and offer the best possible connectivity.
  • K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection.
  • Varied Selection of Lengths - Available in versions of 0.9 to 15.2m (3, 6, 10, 12, 15, 25, 35 and 50ft).


• Specifications:

  Video
  • Max Resolution for 3ft - 15ft (0.9m - 4.6m) Lengths: 4K @ 60Hz (4:4:4)
  • Max Resolution for 25ft - 35ft (7.6m - 10.7m) Lengths: 1080p-12bit
  • Max Resolution for 50ft (15.2m) Lengths: 1080p
  • Max Data Rate for 3ft - 15ft (0.9m - 4.6m) Lengths: 18Gbps
  • Max Data Rate for 25ft - 35ft (7.6m - 10.7m) Lengths: 7.65Gbps
  • Max Data Rate for 50ft (15.2m) Lengths: 4.95Gbps
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR,HDCP 2.2, EDID and CEC

    Audio
  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS-HD Master Audio™, DVD Audio, SA-CD

    Physical
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector

    Conductors
  • Material: Tinned Copper/Bare Copper
  • 3ft - 35ft (0.9m - 10.7m) Lengths: 28AWG (7/0.127)
  • 50ft (15.2m) Lengths: 26AWG (7/0.160)

    Screening
  • Type: Triple shielding

    Jacket
  • Material: PVC
  • Color: Gray
  • Diameter for 3ft - 35ft (0.9m - 10.7m) Lengths: 6.50 ±0.15mm
  • Diameter for 50ft (15.2m) Lengths: 9 ±0.25

    Mechanical
  • Cable Bending Radius for 3ft - 35ft (0.9m - 10.7m) Lengths: 60mm
  • Cable Bending Radius for 50ft (15.2m) Lengths: 90mm

    Electrical
  • Temperature Rating: 176°F (80°C)
  • Voltage Rating: 30V
  • Conductor Resistance - 28AWG: 237.25Ω/km
  • Conductor Resistance - 26AWG: 148Ω/km MAX. at 68°F (20°C)

    Standards Compliance
  • Safety: Flammability Rating - CL3/FT4
  • Environmental: RoHS 2011/65/ EU


• Item Includes:

  • C-HM-HM-10 cable


• Warranty:

  • Lifetime Warranty


• GTIN:

  7290012307522
