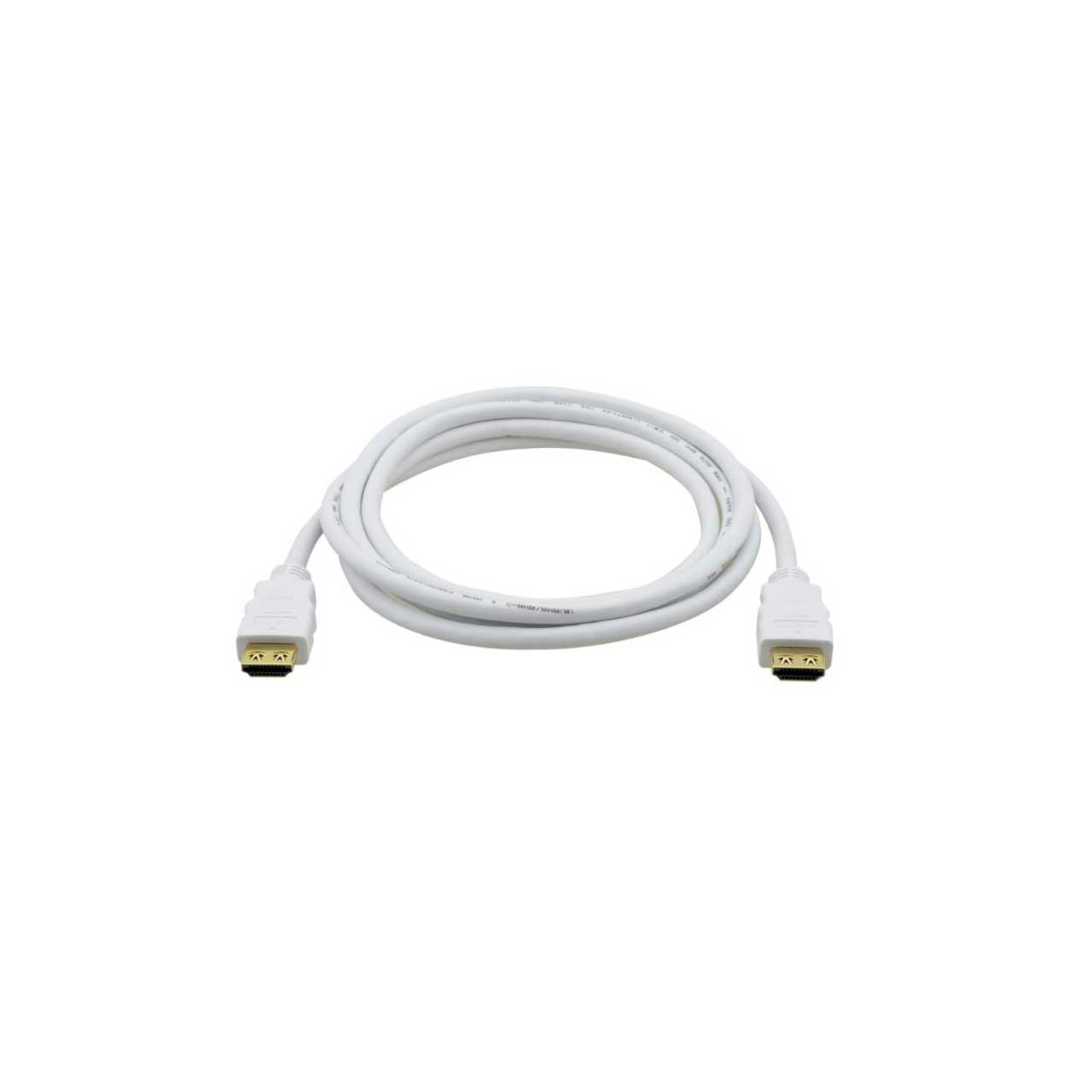

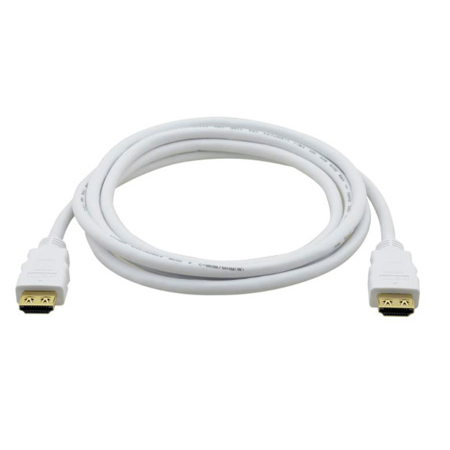

Kramer C-MHM/MHM Flexible High-Speed HDMI Cable with Ethernet and Pull Resistant Connectors - White Jacket - 1 Ft.

C-MHM/MHM(W)-1 - Overview

• Features:

  • Max. Resolution - 4K@60Hz (4:4:4).
  • K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection.
  • Available Colors - gray and white.
  • Varied Selection of Lengths - Available in versions of 0.3 to 10.7m (1, 2, 3, 6, 10, 15, 25 and 35ft).


• Specifications:

  • VIDEO
  • Max Resolution for 1-15ft(0.3-4.6m) lengths: 4K60Hz (4:4:4)
  • Max Resolution for 25-35ft (7.6-10.7m) lengths: 4K60 (4:2:0)
  • Max Data Rate for 1-15ft (0.3-4.6m) lengths: 18Gbps (6Gbps per channel)
  • Max Data Rate for 25-35ft (7.6-10.7m) lengths: 10.2Gbps (3.4Gbps per channel)
  • HDMI Support: HDCP 2.2, EDID, CEC, HDR-10, HLG, Dolby Vision


  • AUDIO
  • Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD


  • PHYSICAL
  • Connectors: 2 Male HDMI Type A, 24K gold-plated with K-Lock
  • Bending Radius: 58mm


  • CONDUCTORS
  • Diameter: 30AWG (7/0.1)
  • Material: Tinned Copper


  • SCREENING
  • Type: Triple shielding


  • JACKET
  • Material: PVC
  • Available Colors: Gray, White
  • Diameter: 5.8 ± 0.15mm


  • ELECTRICAL
  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance: 376.96Ω /KM MAX. at 20°C


  • REGULATORY
  • Rating (NEC/UL/CSA): VW-1/CMG-FT4
  • RoHS: 2011/65/ EU


• Warranty:

  • Lifetime Warranty


• GTIN:

  7291063083410
