Kramer CA-HM-15 Active High Speed HDMI Cable with Ethernet - 18Gbps up to 20m (66ft) - 15 Feet

ITEM #: KR-CA-HM-15 MFG #: CA-HM-15

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$62.00

Our Price:

$49.60

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CA-HM-15 - Overview

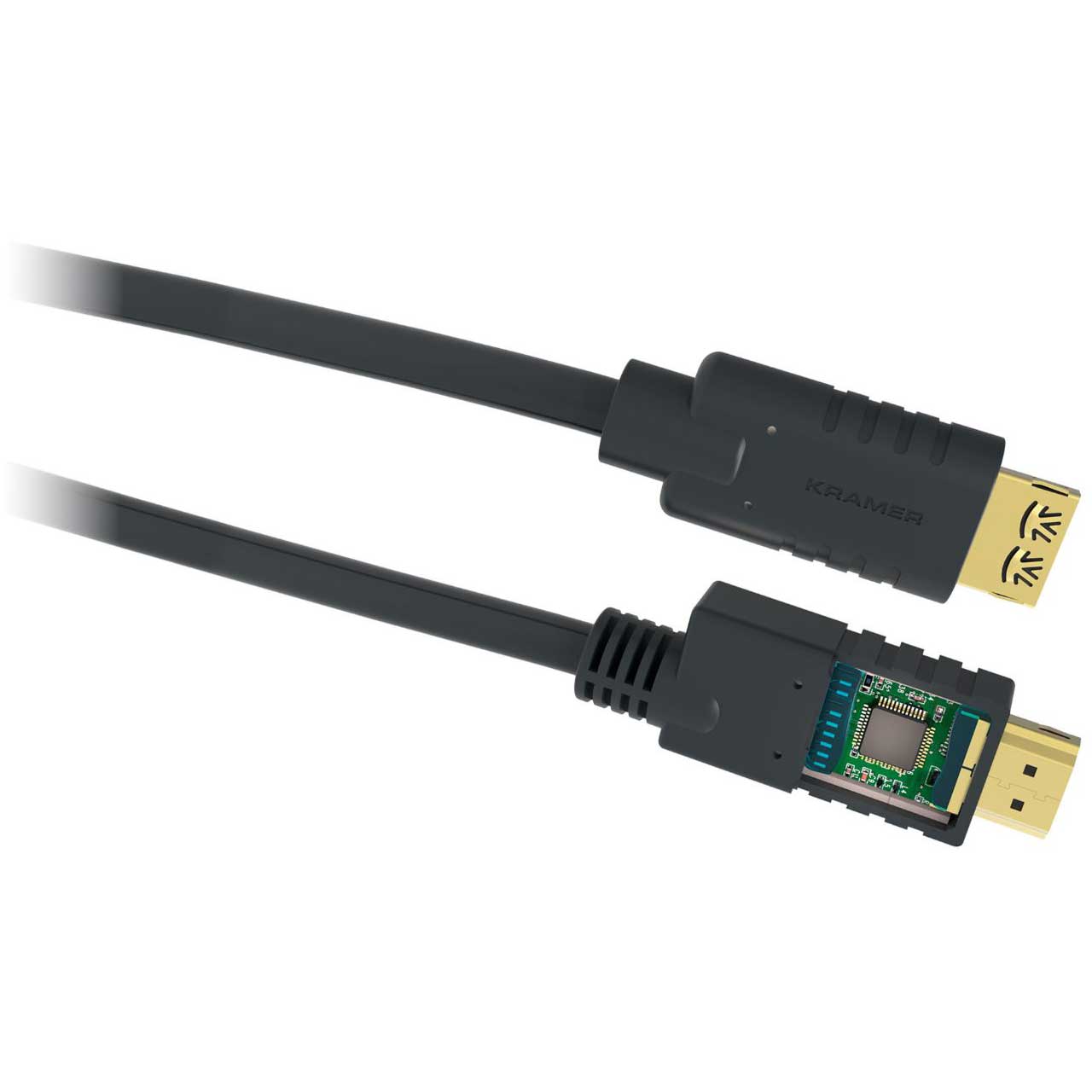

Kramers' CA-HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft), 10.2 Gbps up to 25m (82ft) and 6.75Gbps up to 30m (98ft). The innovative technology utilized in the cable's connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.

This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source.

CA-HM features the Kramer exclusive K-Lock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable-related service calls. Additionally, an LED on the connector indicates when the signal is transmitted successfully. This cable measures 15 feet in length.

  • Specifications:

    • Max Resolution: 4K@60Hz (4:4:4)
    • Max Data Rate: 18 Gbps (6Gbps per channel)
    • HDMI Compliance: HDCP 2.2, HDR, EDID and CEC
    • Supported Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
    • HDMI Source: On a male type A, 24K gold-plated K-Lock connector
    • HDMI Display: On a male Type A, 24K gold-plated K-Lock connector (optional external power input via micro USB connector)
    • Conductors: 32AWG
    • TMDS pairs: aluminum/mylar
    • Overall: aluminum/mylar + aluminum braid
    • Material: PVC
    • Color: Black
    • Diameter: 5.5±0.15mm
    • Cable Bending radius: 27.5mm
    • Connector Max. Pulling Strength: 15lbs/6.8kg
    • Power Consumption: 90mA (18Gbps)/ 1mA (standby mode)
    • Temperature Rating: 80°C
    • Voltage Rating: 30V
    • Conductor Resistance - 32AWG: 588 Ω/km
    • Electrical: UL listed, CL3/FT4
    • Environmental: RoHS 2011/65/EU

      VIDEO
    • Max Resolution for 15-66ft (4.6-20m) lengths: 4K@60Hz (4:4:4)
    • Max Resolution for 82ft (25m) length: 4K@60Hz (4:2:0)
    • Max Resolution for 98ft (30m) length: C
    • Max Data Rate for 15-66ft (4.6-20m) lengths: 18 Gbps (6Gbps per channel)
    • Max Data Rate for 82-98ft (25-30m) length: 10.2 Gbps (3.4Gbps per channel)
    • HDMI Compliance: HDCP 2.2, HDR, EDID and CEC

      AUDIO
    • Supported Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD

      PHYSICAL
    • HDMI Source: On a male type A, 24K gold-plated K-Lock connector
    • HDMI Display: On a male Type A, 24K gold-plated K-Lock connector (optional external power input via micro USB connector)

      CONDUCTORS
    • 15ft (4.6m) length: 32AWG
    • 25-35ft (7.6-10.7m) lengths: 28AWG
    • 50ft (15.2m) length: 26AWG
    • 66-98ft (20-30m) lengths: 24AWG

      SCREENING
    • TMDS pairs: Aluminum/mylar
    • Overall: Aluminum/mylar + aluminum braid

      JACKET
    • Material: PVC
    • Color: Black
    • Diameter - 15ft (4.6m) length: 5.5±0.15mm
    • Diameter - 25-35ft (7.6-10.7m) lengths: 7.10±0.15mm
    • Diameter - 50ft (15.2m) length: 8.5±0.20mm
    • Diameter - 66-98ft (20-30m) lengths: 9.5±0.25mm

      MECHANICAL
    • Cable Bending radius - 15ft (4.6m) length: 27.5mm
    • Cable Bending radius - 25-35ft (7.6-10.7m) lengths: 35.5mm
    • Cable Bending radius - 50ft (15.2m) length: 42.5mm
    • Cable Bending radius - 66-98ft (20-30m) lengths: 47.5mm
    • Connector Max. Pulling Strength: 15lbs/6.8kg

      ELECTRICAL
    • Power Consumption: Up to 90mA / 1mA (standby mode)
    • Temperature Rating: 80°C
    • Voltage Rating: 30V
    • Conductor Resistance - 32AWG: 588 Ω/km
    • Conductor Resistance - 28AWG: 237.25588 Ω/km
    • Conductor Resistance - 26AWG: 148.94 Ω/km
    • Conductor Resistance - 24AWG: 381 Ω/km

      REGULATORY
    • Electrical: UL listed, CL3/FT4
    • Environmental: RoHS 2011/65/EU

  • Item Includes:

    • Kramer CA-HM-15 Active High Speed HDMI Cable with Ethernet - 18Gbps up to 20m (66ft) - 15 Feet

  • Warranty:

    • Standard One (1) Year Warranty

  • GTIN:

    7291063086138
