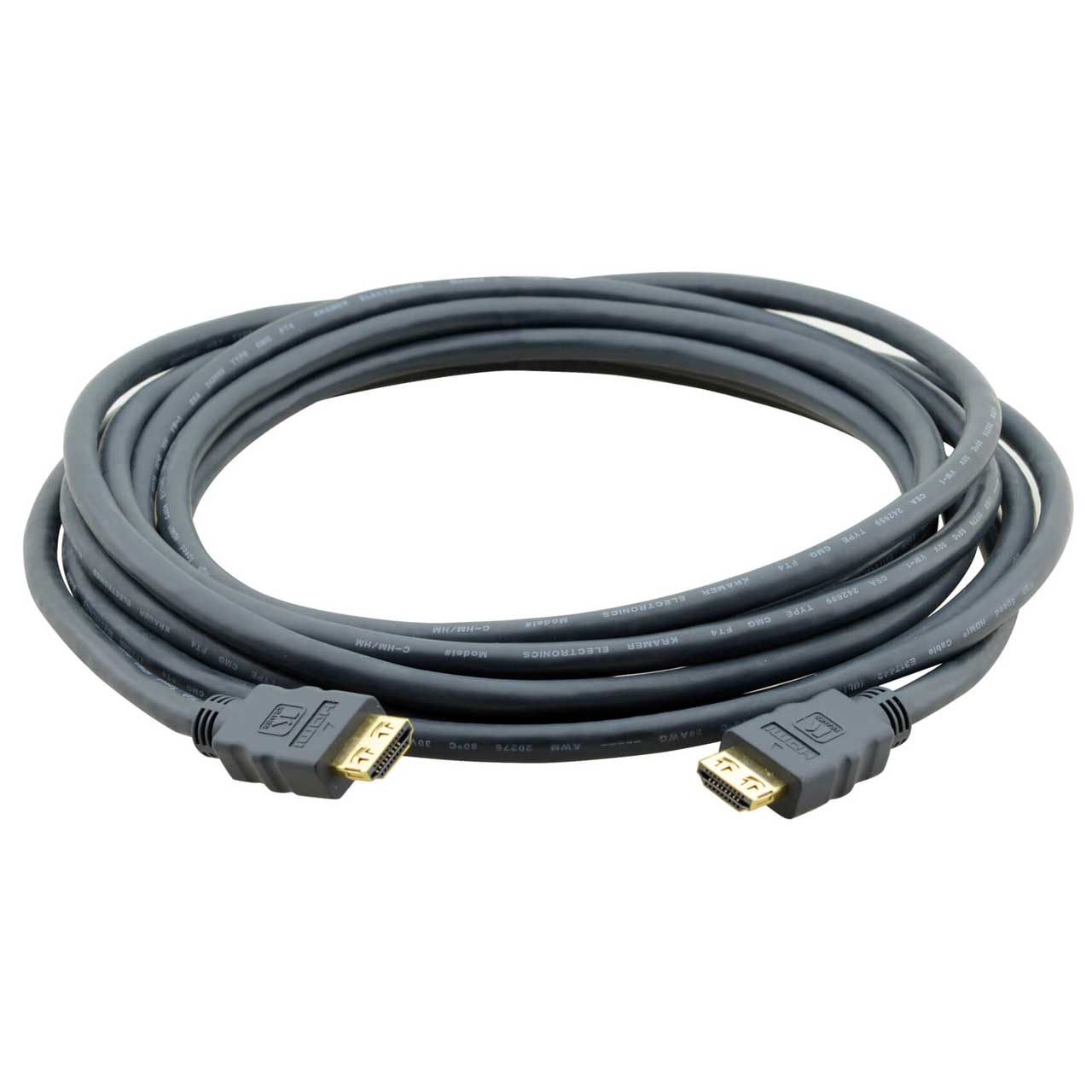

Kramer C-HM/HM/ETH-3 High-Speed HDMI (M) to HDMI (M) Cable with Ethernet - 3 Foot

C-HM/HM/ETH-3 - Overview

• Features:

  • Quality Performance - Kramer's HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as plasma display screens for high-definition TVs.
  • Supported Resolutions - Up to 4K@60Hz (4:4:4).
  • High-Quality Connectors - Gold-plated connectors resist corrosion, and offer the best possible connectivity.
  • K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection.
  • Varied Selection of Lengths - Available in versions of 3, 6, 10, 15, 25, 35, and 50ft


• Specifications:

  • VIDEO
  • Max Resolution for 3-15ft (.9-4.6m) lengths: 4K@60Hz (4:4:4)
  • Max Resolution for 25-35ft (7.6-10.7m) lengths: 4K@60Hz (4:2:0)
  • Max Resolution for 50ft (15.2m) lengths: 1080p
  • Max Data Rate for 3-15ft (.9-4.6m) lengths: 18 Gbps (6Gbps per channel)
  • Max Data Rate for 25-35ft (7.6-10.7m) : 10.2 Gbps (3.4Gbps per channel)
  • Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (.99Gbps per channel)
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH


  • AMPLIFIER
  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS-HD Master Audio™, DVD Audio, SA-CD


  • PHYSICAL
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector


  • CONDUCTORS
  • Material: Tinned Copper
  • 3-35ft (.9-10.7m) lengths: 28AWG (7/0.127)
  • 50ft (15.2m) lengths: 26AWG (7/0.160)


  • SCREENING
  • Type: Triple shielding


  • JACKET
  • Material: PVC
  • Color: Gray
  • Diameter for 3-35ft (.9-10.7m) lengths: 7.30 ± 0.20mm
  • Diameter for 50ft (15.2m) lengths: 8.50 ± 0.20mm


  • MECHANICAL
  • Cable Bending Radius for 3-35ft (.9-10.7m) lengths: 73mm
  • Cable Bending Radius for 50ft (15.2m) lengths: 85mm


  • ELECTRICAL
  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance - 28AWG: 239.0Ω/km
  • Conductor Resistance - 26AWG: 150Ω/km MAX. at 20Ω


  • STANDARDS COMPLIANCE
  • Safety: Flammability Rating - CL3/FT4
  • Environmental: RoHS 2011/65/ EU


• Item Includes:

  • Kramer C-HM/HM/ETH High-Speed HDMI (M) to HDMI (M) Cable with Ethernet - 3 Foot


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063043612
