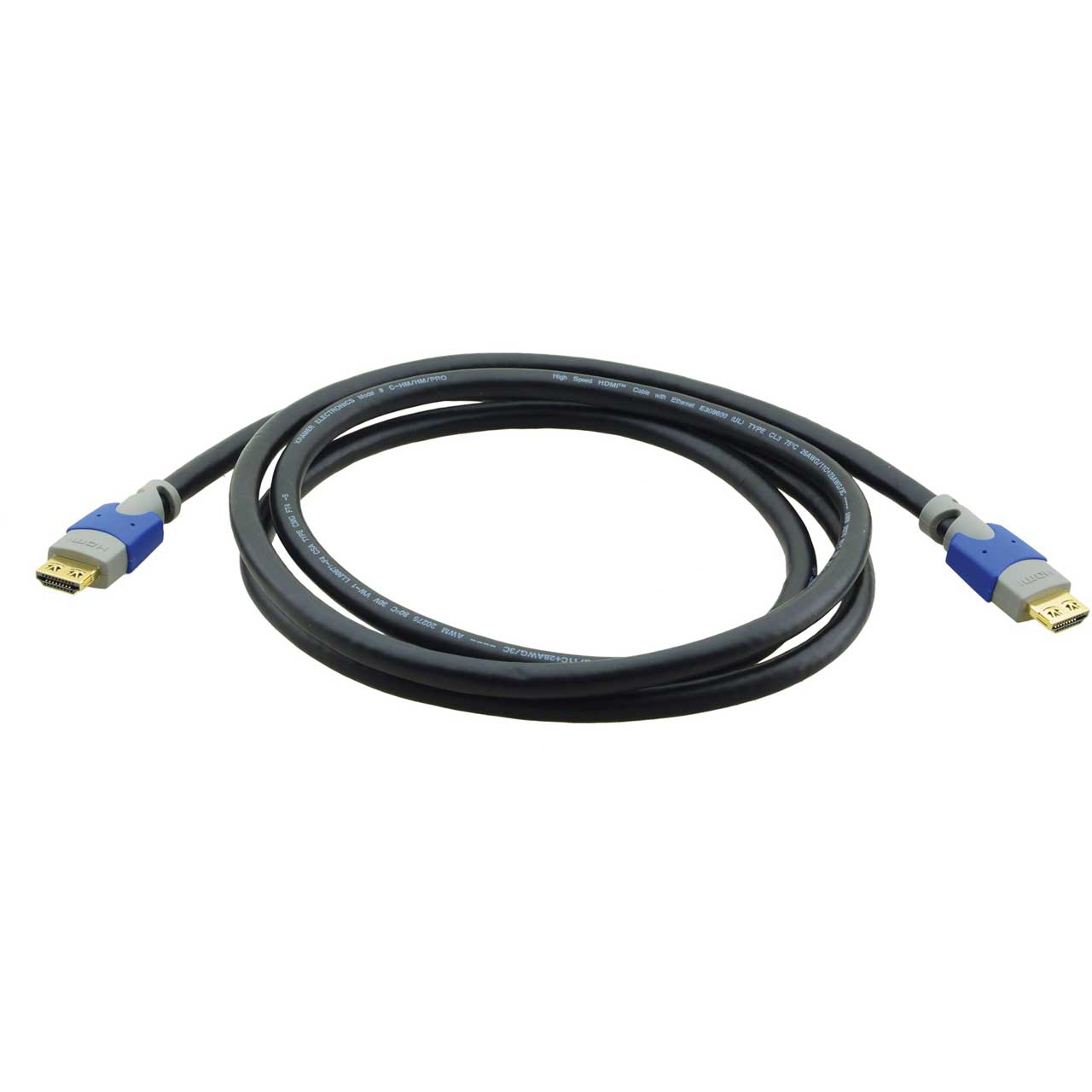

Kramer C-HM/HM/PRO-6 Premium High-Speed Male to Male HDMI Cable with Ethernet - 6 Foot

C-HM/HM/PRO-6 - Overview

Triple shielded against EMI/RFI interference

• Features:

  • Max. Data Rate - 18Gbps.
  • Max. Resolution - 4K@60Hz (4:4:4).
  • Deep Color - Supports 24-bit, 30-bit, 36-bit and 48-bit (RGB or YCbCr) color depths. Best for multimedia applications or home cinema and surround systems.
  • Multi-Channel Audio Support - Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
  • High Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity.
  • K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection.
  • Shield - Triple overall shield against EMI/RFI interference
  • Varied Selection of Lengths - Available in versions of 0.9 to 19.8m (3, 6, 10, 15, 25, 35, 50 and 65ft).


• Specifications:

  • VIDEO
  • Max Resolution for 3-20ft (.9-6.1m) lengths: 4K@60Hz (4:4:4)
  • Max Resolution for 25-35ft (7.6-10.7m) lengths: 4K@30Hz (4:4:4)
  • Max Resolution for 50ft (15.2m) lengths: 1080p
  • Max Data Rate for 3-15ft (.9-4.6m) lengths: 18 Gbps (6Gbps per channel)
  • Max Data Rate for 25-35ft (7.6-10.7m) : 10.2 Gbps (3.4Gbps per channel)
  • Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (.99Gbps per channel)
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH


  • AUDIO
  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS-HD Master Audio™, DVD Audio, SA-CD


  • PHYSICAL
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector


  • CONDUCTORS
  • Material: Bare Copper
  • 3-35ft (.9-10.7m) lengths: 26AWG (7/0.160)
  • 50ft (15.2m) lengths: 24AWG (7/0.20)


  • SCREENING
  • Type: Triple shielding


  • JACKET
  • Material: PVC
  • Color: Black
  • Diameter for 3-35ft (.9-10.7m) lengths: 8 ± 0.19mm
  • Diameter for 50ft (15.2m) lengths: 9.50 ± 0.25mm


  • MECHANICAL
  • Cable Bending Radius for 3-35ft (.9-10.7m) lengths: 80mm
  • Cable Bending Radius for 50ft (15.2m) lengths: 95mm


  • ELECTRICAL
  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance - 26AWG: 148Ω/km
  • Conductor Resistance - 24AWG: 63.2Ω/km MAX. at 20Ω


  • STANDARDS COMPLIANCE
  • Safety: Flammability Rating - CL3/FT4
  • Environmental: RoHS 2011/65/ EU


• Item Includes:

  • Kramer C-HM/HM/PRO-6 High-Speed HDMI Cable with Ethernet 6 Foot


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063043544
