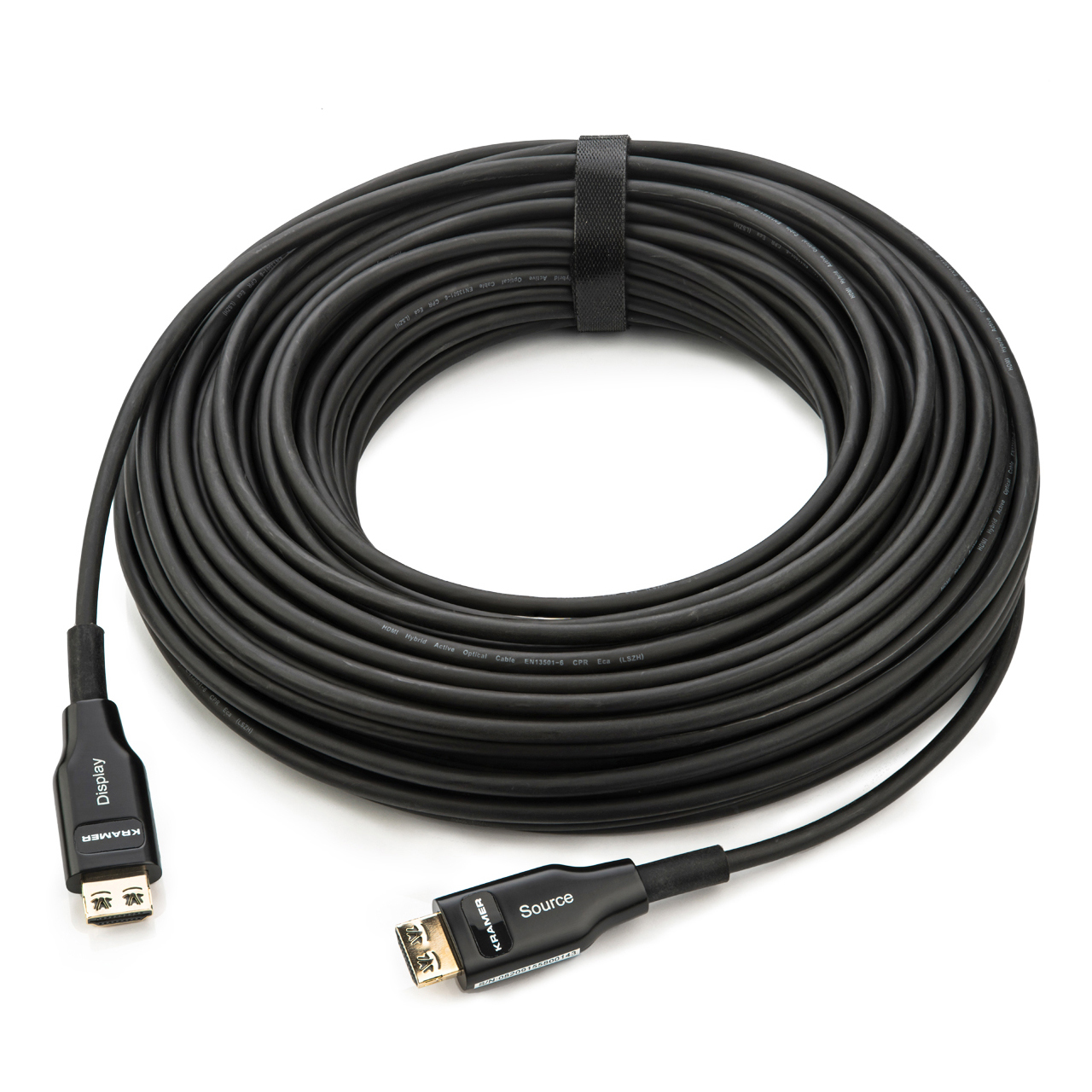

Kramer CP-AOCH/60F-50 High-Speed HDMI Active Optical Hybrid Cable - Plenum Rated - 50 Foot

97-04161050 - Overview

• Features:

  • Video Resolution - Up to 4K@60Hz (4:4:4)
  • High Data Transfer Rate - Up to 18Gbps
  • Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio
  • HDMI Support - HDCP 2.2/1.4, HDR, EDID, ARC and CEC
  • High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity
  • Reduced EMI & RFI
  • Thin Construction - 4.5mm diameter
  • Jacket Construction - Plenum rated
  • RoHS 2011/65/EU CE,FCC Compliant


• Specifications:

  • Video & Audio
  • Max Resolution: 4K@60Hz
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC
  • Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD

    Physical
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector

    General
  • Cable Type: Hybrid with OM3 fiber and copper wire
  • O/E Converter: 4 channel 850 nm VCSEL array
  • Material: Bare Copper

    Mechanical
  • Cable Bending Radius: 20mm

    Jacket
  • Color: Black
  • Diameter: 4.5mm

    Power
  • Consumption: 250mW (max)

    Environmental Conditions
  • Operating Temperature Maximum: 122°F (50°C)
  • Storage Temperature: -40°F - 158°F (-40°C - 70°C)

    Compliance
  • Safety: CE/FCC
  • Environmental: REACH,RoHS 2011/65/ EU


• Item Includes:

  • 1x Kramer CP-AOCH/60F-50 High-Speed HDMI Active Optical Hybrid Cable - 50 Feet


• Warranty:

  • 3-Year Limited Warranty
