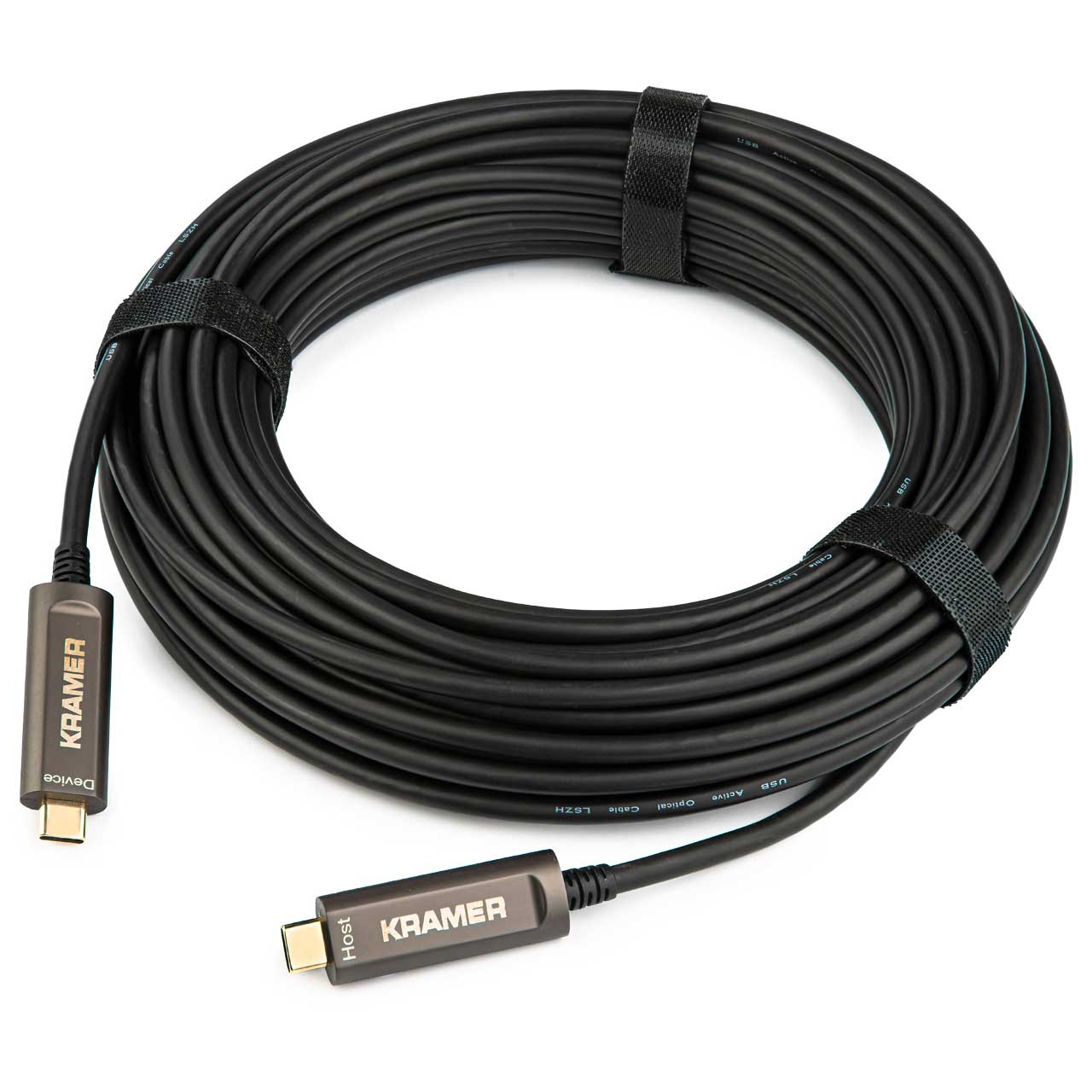

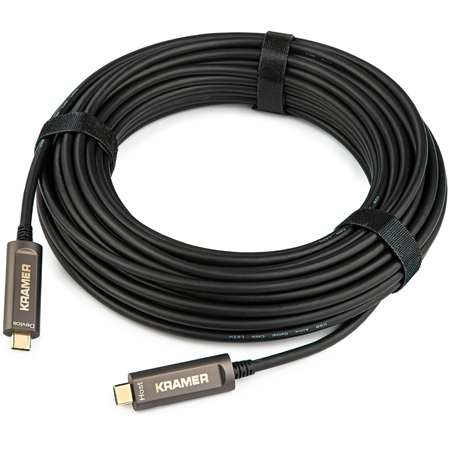

Kramer CP-AOCU31/CC-25 USB 3.1 GEN-2 Active Optical USB-C Male to USB-C Male Cable - Plenum Rated - 25 Foot

CP-AOCU31CC25 - Overview

• Features:

  • No external power needed
  • Plug & play
  • Available lengths - 3 to 15.2m (10 to 50ft)
  • True Plug-and-Play - No additional drivers needed.
  • No External Power Needed - Pulls power from the USB source device.
  • High Transfer Rates - Up to 10Gbps.
  • USB Backward Compatibility - 1.1, 2.0, and 3.0.
  • Hybrid Cable - Fiber and copper.
  • Current Rating - 3A.
  • Varied Selection of Lengths - Available in versions of 3 to 15m (10 to 50ft).


• Specifications:

  • VIDEO
  • Max Resolution: 4K@60Hz
  • Supported Color Spaces: RGB, YCbCr, xvYCC, BT.2020
  • HDMI Support: HDR, HDCP 2.2/1.4, EDID


  • AUDIO
  • Supported Audio Formats: DTS HD 7.1, Dolby TrueHD


  • PHYSICAL
  • USB-C Source: On a male HDMI type A, 24K gold-plated
  • HDMI Display: On a male HDMI type A, 24K gold-plated


  • GENERAL
  • Cable Type: Hybrid with 4x polymer insulated glass fibers
  • Copper Type: 30-20 AWG tinned copper wire
  • Flammability: Plenum Rated


  • MECHANICAL
  • Cable Bending Radius: 20mm


  • JACKET
  • Color: Black
  • Diameter: 4.7 +/ - 0.2mm


  • POWER
  • Consumption: < 1.5W


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0-50°C
  • Storage Temperature: -20-70°C


  • STANDARDS COMPLIANCE - EC VERIFIED
  • Safety: CE/FCC


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Environmental: REACH, RoHS 2011/65/ EU


• Item Includes:

  • USB 3.1 GEN-2 Active Optical USB-C Male to USB-C Male Cable


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063094515
