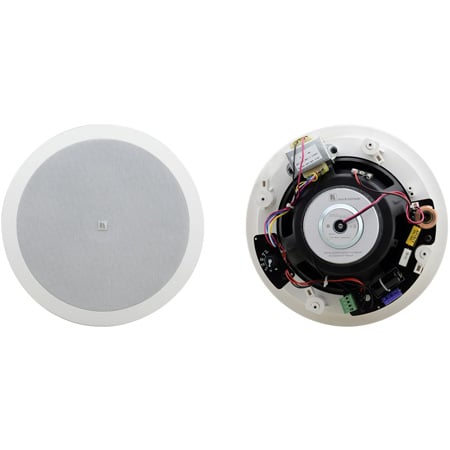

Kramer Galil 8-CO 8-Inch 2-Way Open-Back Ceiling Speakers - Pair - White

GALIL 8-CO - Overview

A pair of 2-way Coaxial Ceiling Speakers

• Features:

  • Type - 2-way coaxial speaker.
  • Woofer - 8 inch polypropylene cone.
  • Tweeter - 1 inch silk dome.
  • Frequency Response - 60Hz to 20kHz @ ±3dB.
  • Impedance - 8Ω.
  • Power Handling - 50W RMS, 140W continuous program.
  • Transformer Taps - 70V: 50W/25W/12W/6W/Off (Lo-Z); 100V: 50W/25W/12W/Off (Lo-Z).


• Specifications:

  • DESCRIPTION
  • 2-way open-back ceiling speakers


  • FREQUENCY RESPONSE
  • 47Hz to 20kHz @-10dB, 60Hz to 20kHz ±3dB


  • WOOFER
  • 8 Inch (200mm) polypropylene with rubber surround


  • TWEETER
  • 1 Inch (25.4mm) silk dome


  • IMPEDANCE
  • 8Ω (transformer tap in off position)


  • TRANSFORMER TAPS
  • 70V: 50W/25W/12W/6W/Off (Lo-Z)
  • 100V: 50W/25W/12W/Off (Lo-Z)


  • SENSITIVITY
  • 88.5dB SPL, 1W@1m


  • MAX SPL
  • Continuous: 106dB, peak: 109dB


  • POWER HANDLING
  • 50W RMS, 140W continuous program


  • CROSSOVER FREQUENCY
  • 3.15kHz


  • COVERAGE ANGLE
  • 104°


  • DIRECTIVITY FACTOR (Q)
  • 8 averaged 1kHz to 10kHz


  • DIRECTIVITY INDEX (DI)
  • 9dB averaged 1kHz to 10kHz


  • INPUT CONNECTOR
  • Terminal block


  • MATERIALS
  • ABS bezel, aluminum grill


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • INSTALLATION CLEARANCE
  • Mounting depth: 8.8cm (3.5")


  • CUTOUT DIAMETER
  • 23.7cm (9.33")


• Item Includes:

  • Galil8-CO 2 speakers (1 pair)
  • Cutout template
  • User manual
  • Safety cord attached to grill
  • Ceiling mounting kit


• Warranty:

  • Standard 1 Year Warranty


• GTIN:

  7291063065201
