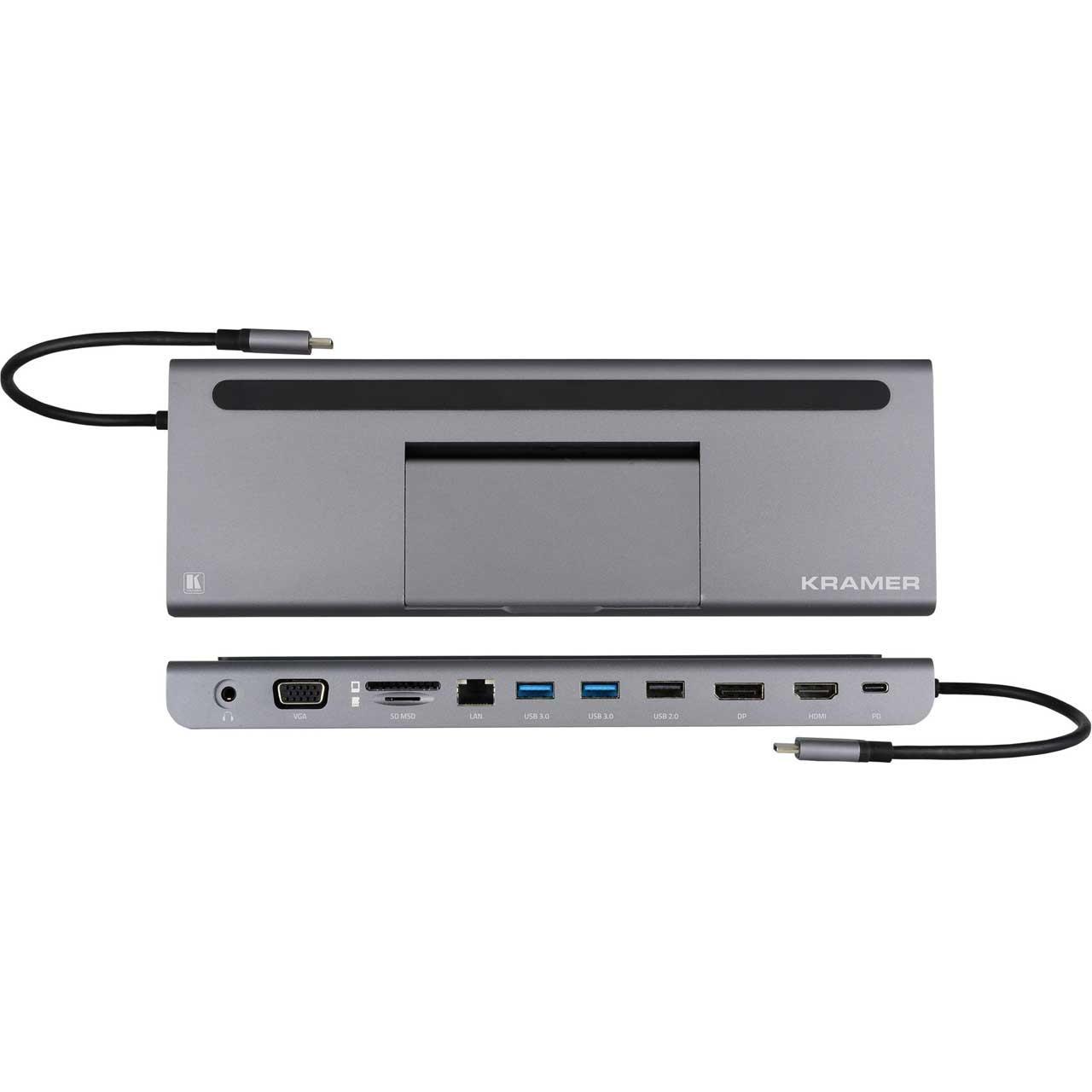

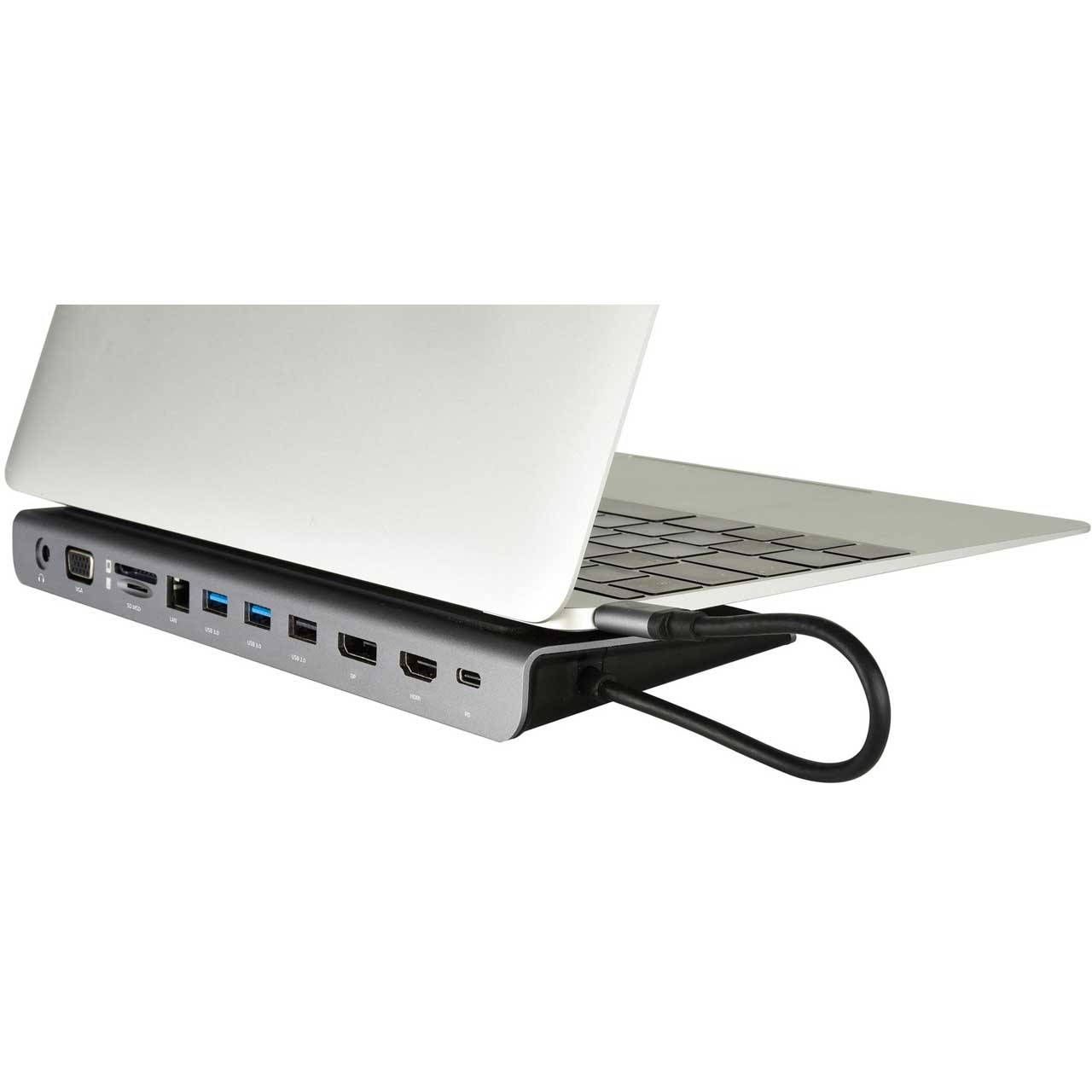

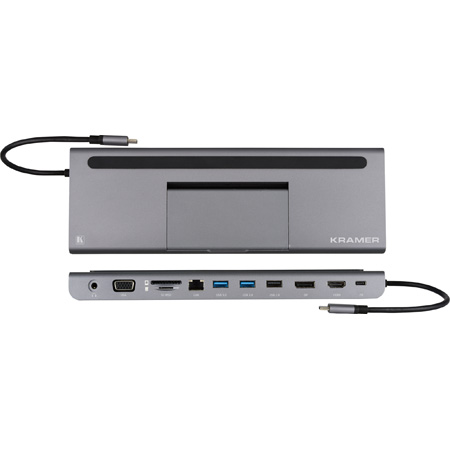

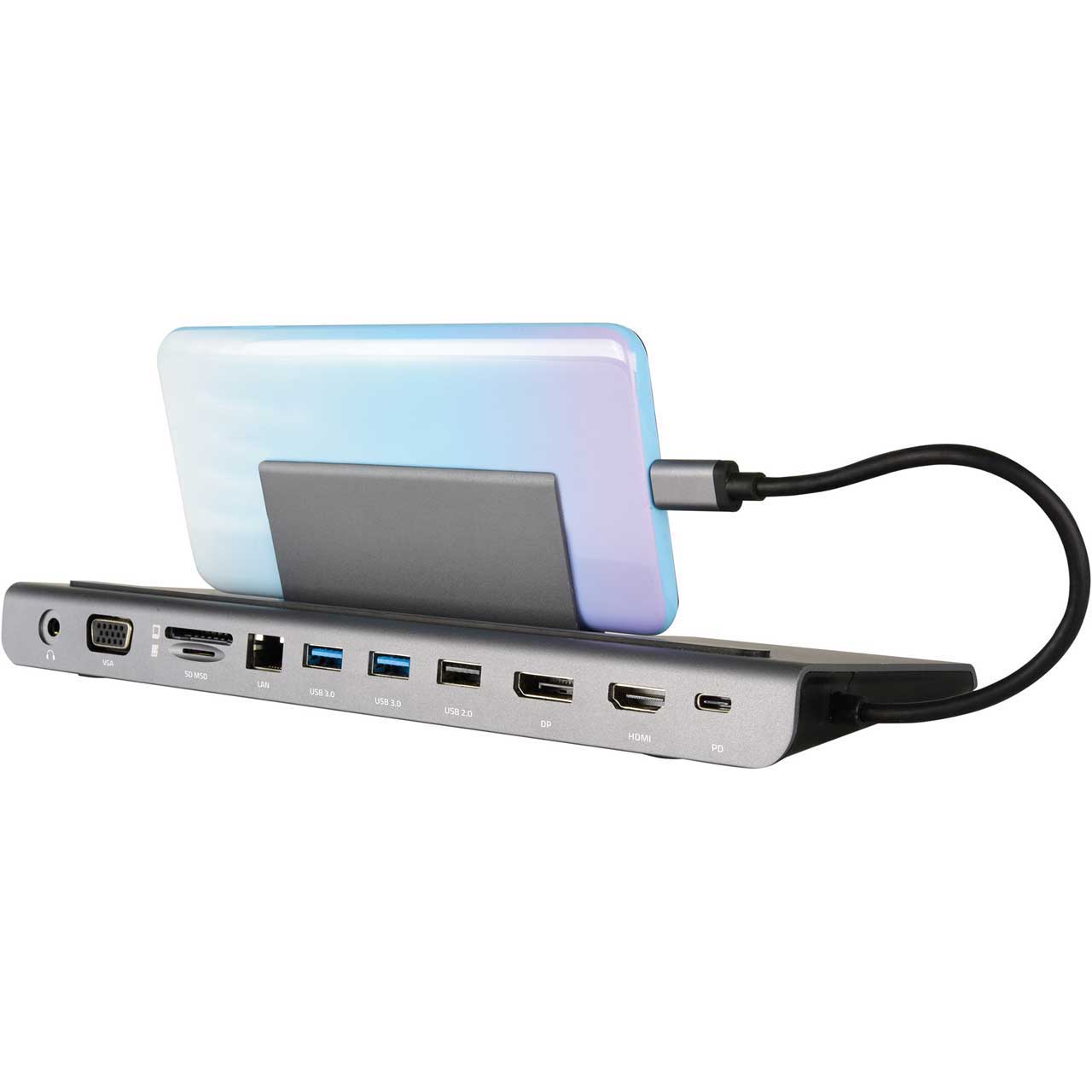

Kramer KDOCK-4 USB-C 3.0Hub Multiport Adapter with HDMI/DisplayPort & VGA out and USB/Ethernet/SD Ports

ITEM #: KR-KDOCK-4 MFG #: KDOCK-4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Kramer
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$220.00

Our Price:

$176.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

KDOCK-4 - Overview

4K@30 HDMI output

Kramer KDock-4 is a USB-C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB Type-C, mobile phones, and tablets. KDock-4 enables you to connect your USB-C device to HDMI™, DisplayPort, and VGA video outputs, 2 USB 3.0 ports, 1 USB 2.0 ports, an Ethernet port, SD and micoSD card port and USB-C charging pass-through.

  • Features:

    • 4K@30 HDMI output
    • 4K@30 DisplayPort output
    • VGA output
    • USB 3.0 data and charging ports
    • Ethernet port
    • USB-C charging pass-through
    • SD and MicroSD ports


  • Specifications:

    • INPUTS
    • 1 USB: On a USB Type-C male connector

    • OUTPUTS
    • 1 HDMI: On a female HDMI connector
    • 1 DisplayPort: On a female DisplayPort connector
    • 1 VGA: On a female 15-pin HD connector

    • PORTS
    • 2 USB 3.0: On female USB type-A connectors
    • 1 USB 2.0: On female USB type-A connectors
    • 1 Ethernet: On an RJ-45 connector
    • SD: On an SD card port
    • 1 Unbalanced Stereo: On a 3.5mm mini jack
    • SD: On a microSD port
    • 1 USB: On a female USB type-C connector for charging

    • VIDEO
    • Max Resolution (HDMI/DP): 3840x2160P@30Hz (with one display connected)
    • Max Resolution (HDMI/DP): 1920x1080P@60Hz (with two displays connected)
    • Max Resolution (HDMI/DP): 1920x1080P@60Hz (with three displays connected)
    • Max Resolution (VGA): 1920x1080P@60Hz (with one or two displays connected)
    • Max Resolution (VGA): 1280x720P@60Hz (with three displays connected)
    • Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
    • Multiple Video Output Support: Via MST (Multi-Stream Transport) technology
    • Content Protection (HDMI output): HDCP 1.4

    • EXTENDED ETHERNET
    • Max Data Rate: 1000M (Gigabit)/100M/10M
    • Includes: Wake-on-LAN (WoL), single Mac address, PXE boot

    • GENERAL
    • USB 3.0 Data Transmission Speed: Up to 5.0Gbps

    • POWER
    • Delivery: 100W
    • USB Charging: BC1.2 (5V 1.5A)
    • USB Limited Current when Connected to Power via female USB-C port: 1.9A
    • USB Limited Current when Not Connected to Power via female USB-C port: 1A

    • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: 0° to +70°C (32° to 158°F)
    • Storage Temperature: -10° to +55°C (14° to 131°F)
    • Humidity: 5% to 90%, RHL non-condensing

    • ENCLOSURE
    • Type: Aluminum with built-in 20cm/7.87" flexible USB-C cable

    • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
    • Safety: CE
    • Environmental: RoHs, FCC


  • Item Includes:

    • USB-C 3.0Hub Multiport Adapter with HDMI/DisplayPort & VGA out and USB/Ethernet/SD Ports


  • Warranty:

    • Standard One (1) Year Warranty


  • GTIN:

    7291063092467
