Kramer KDOCK-6 Multiport USB-C Adapter/Hub and Ergonomic Laptop/Tablet Stand - HDMI/DP/Audio Out

KDOCK-6 - Overview

• Features:

  • Supports HDMI and DisplayPort video outputs.
  • Supports USB 5G speed connection between host and docking station.
  • Supports Ethernet 1Gbps.
  • Includes a 3.5 mm headset jack.
  • Bracket panel is layered with silicon to prevent slipping of laptop/tablet or other devices.
  • Bracket and dock are affixed with a magnetic suction and buckle.
  • Bracket panel is designed for better heat dissipation to prevent overheating devices.
  • 4K@60 HDMI output
  • 4K@60 DisplayPort output
  • USB 3.0 data and charging ports
  • Ethernet port
  • USB-C charging pass-through
  • Headset+mic port


• Specifications:

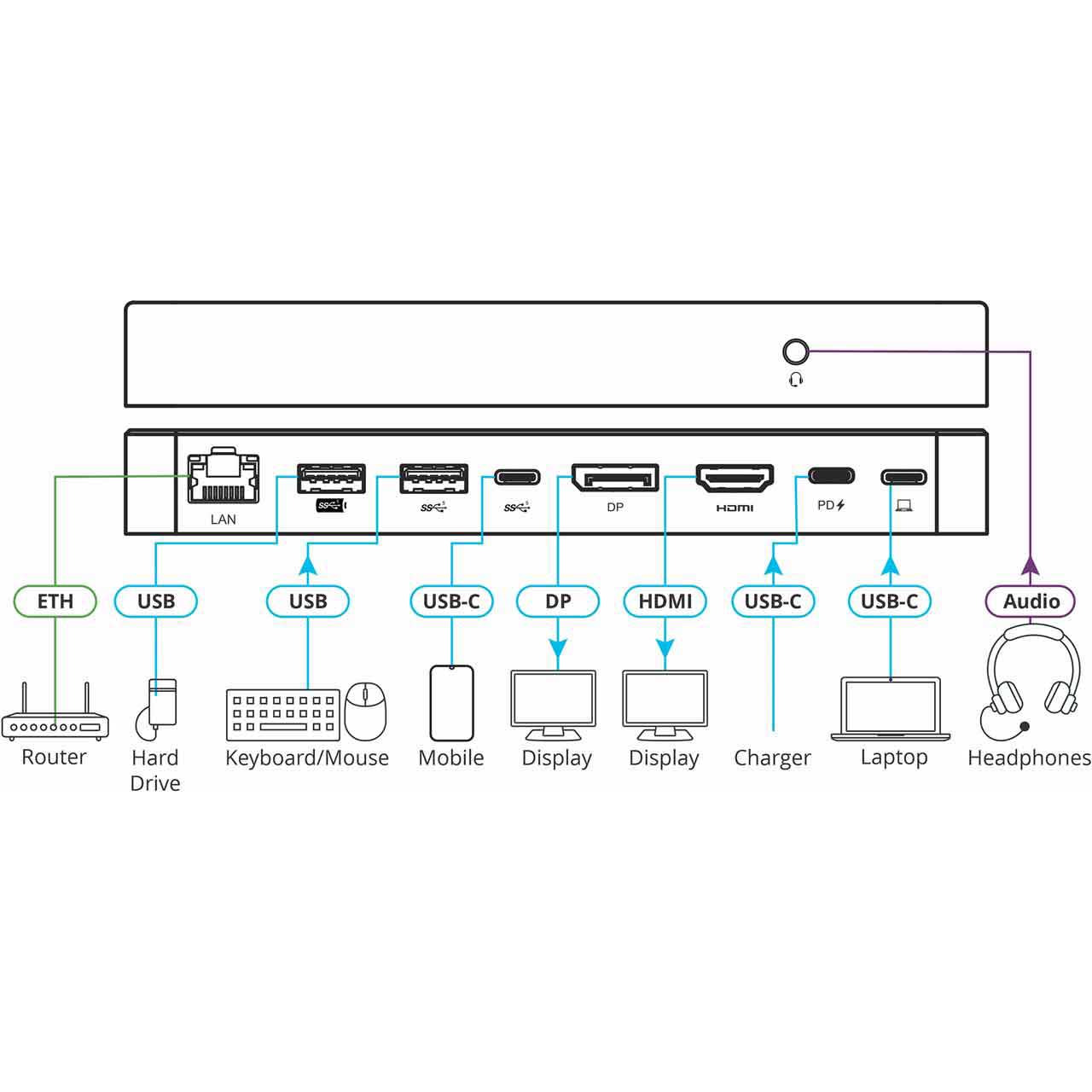

  • INPUTS
  • 1 USB: On a USB Type-C female connector
  • OUTPUTS
  • 1 HDMI: On a female HDMI connector
  • 1 DisplayPort: On a female DisplayPort connector
  • PORTS
  • 1 USB 3.0: On female USB type-A connectors (5V/1.5A)
  • 1 USB 3.0: On female USB type-A connectors (5V/0.9A)
  • 1 USB 3.0: On female USB type-C connectors (5V/0.9A)
  • 1 Ethernet: On an RJ-45 connector (10/100/1000)
  • 1 3.5 mm Headset Jack: For audio and Microphone
  • 1 USB: On a female USB type-C connector for charging (100W max)
  • 1 USB: On a female USB type-C connector for host connection
  • VIDEO
  • Windows MST Mode Max. Resolution: 3840x2160P@60Hz, when a single display is attached to the device
  • Windows MST Mode Max. Resolution: 3840x2160P@30Hz, when two displays are attached to the device
  • MAC OS SST Mode Max Resolution: 3840x2160P@60Hz, when a single or dual display is attached to the device
  • EXTENDED ETHERNET
  • Max Data Rate: 1000M (Gigabit)/100M/10M
  • Includes: Wake-on-LAN (WoL), single Mac address, PXE boot
  • GENERAL
  • USB 3.0 Data Transmission Speed: Up to 5.0Gbps
  • POWER
  • Delivery: 100W
  • USB Charging: BC1.2 (5V 1.5A)
  • USB Limited Current when Connected to Power via female USB-C port: 1.9A
  • USB Limited Current when Not Connected to Power via female USB-C port: 1A
  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +70°C (32° to 158°F)
  • Storage Temperature: -10° to +55°C (14° to 131°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • ENCLOSURE
  • Type: Aluminum
  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: CE
  • Environmental: RoHs, FCC
  • BALANCED LINE LEVEL INPUT
  • PRODUCT DIMENSIONS: 27.5cm x 25cm x 3.5cm (10.8" x 9.8" x 1.4") W, D, H
  • PRODUCT WEIGHT
  • 1.1kg (2.4lbs) approx
  • SHIPPING DIMENSIONS
  • 32cm x 27cm x 5.8cm (12.6" x 10.6" x 2.3") W, D, H
  • SHIPPING WEIGHT
  • 1.4kg (3.1lbs) approx


• GTIN:

  7291063098384
